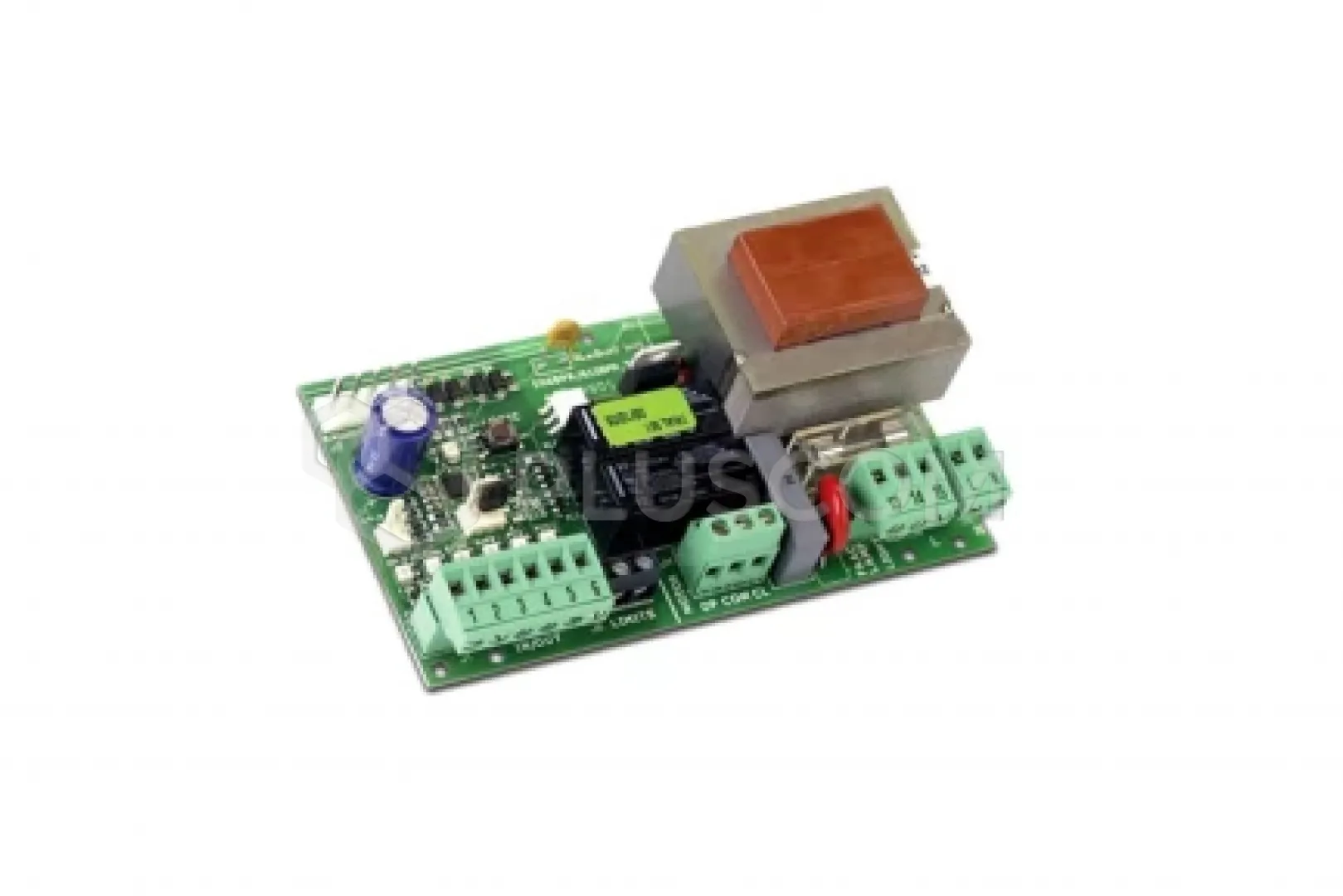

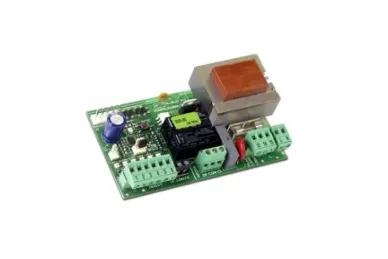

Faac 790281 Control unit 615/596 BPR (built-in)

309,81 EUR including 23.00% VAT
Product code: #20009
Manufacturer: FAAC
  • Power supply: 230V AC
  • Control unit terminal inputs: open-close-stop-close protection-switches-power supply
  • Control unit terminal outputs: engine - signal lamp - lighting and power supply for accessories
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 104911 615BPR RAPID gray Barrier unit 230V Faac 104910 615BPR STANDARD grey Barrier unit 230V Faac 104907 615BPR RAPID Orange Barrier unit 230V Faac 104906 615BPR STANDARD orange Barrier unit 230V

Faac 790281 Control unit 615/596 BPR (built-in)


Control unit built into automation. Allows connection of a range of FAAC accessories for remote control, signalling and anti-crush protection.

Technical data:

  • Power supply voltage: 230V (+6%-10%) 50 (60) Hz
  • Power consumption (standby): 4 W
  • Max. power consumption: 800 W
  • Accessories power supply: 250 mA
  • Operating temperature range: from -20°C to +55°C
  • Fuses: F1 = 6.3 A - 250 V - F2 = automatic reset
  • Logic functions: B/C - B - C - EP - AP - P - default = EP
  • Working time: automatic learning (0-10 min with 2.5 sec steps) - default = 10 min
  • Automatic gate closing: automatic learning (0-5 min with 1.5 sec steps) - default = 30 sec
  • Control unit terminal inputs: open-close-stop-closing protection-switches-power supply
  • Outputs control unit terminals: engine - signal lamp - lighting and power supply for accessories
  • Programming functions: barrier or lifting gate drive - logic
  • "Learning" functions: working time - downtime

Compatible with:

Faac 790281 Control unit 615/596 BPR (built-in) in the diagram Faac 615 BPR STD 1
Faac 790281 Control unit 615/596 BPR (built-in) in the diagram Faac 615 BPR RAP 1
Faac 790281 Control unit 615/596 BPR (built-in) in the diagram Faac 595 I
