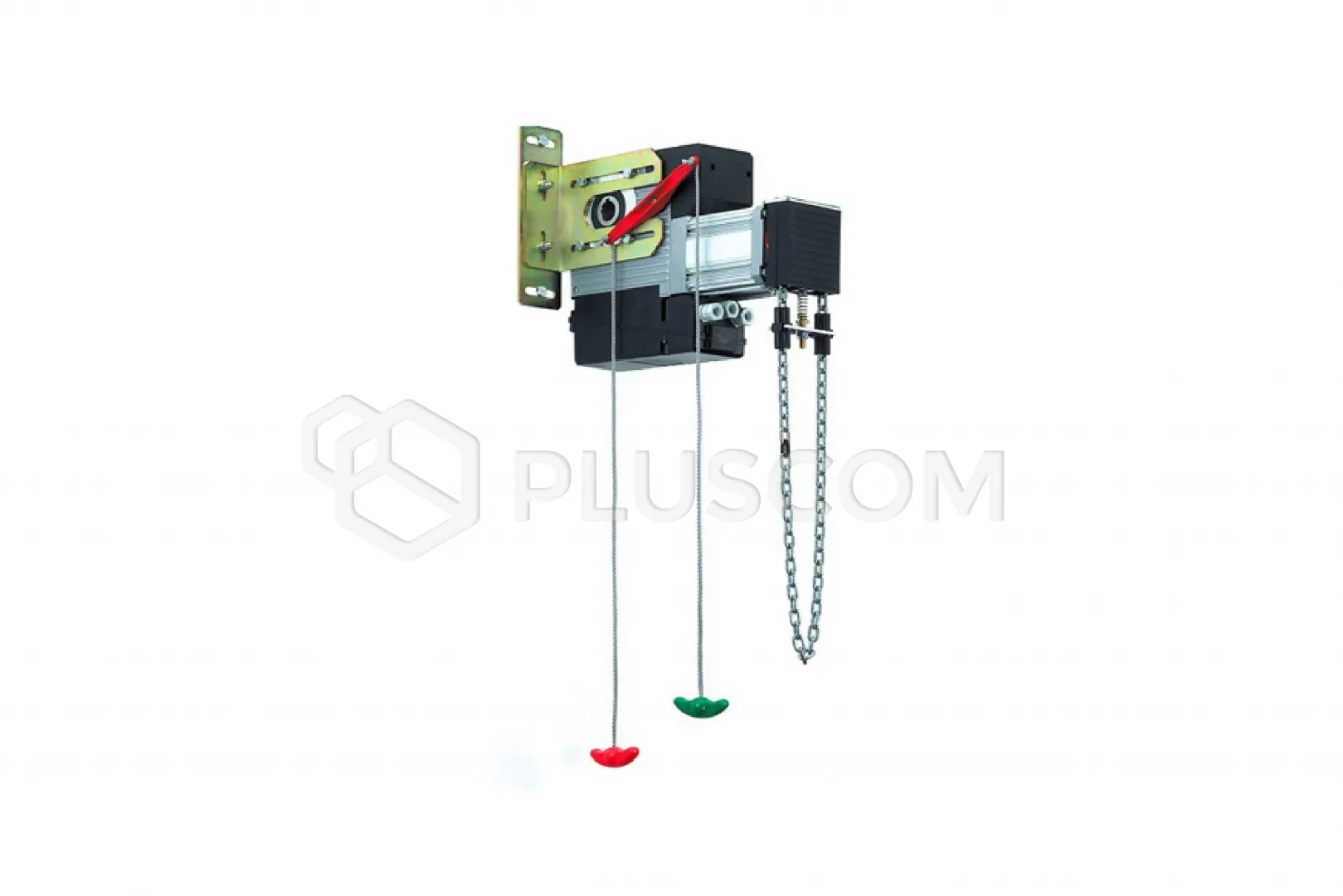

Faac 109542 541 Industrial sectional door operator 230V

1302,15 EUR including 23.00% VAT
Product code: #32793
Manufacturer: Faac
  • Power supply: 230V AC
  • Shaft speed - 23 rpm
  • Encoder: Integrated
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 720118 Model L housing for control unit Faac 390719 Quick release extension for industrial sectional doors Faac 390745 Chain drive kit, ratio 1:2.0 Faac 390744 Chain drive kit, ratio 1:1.5 Faac 390720 Chain with clasp for industrial sectional doors Faac 390721 Mounting plate for three-plane mounting Faac 790922 Control unit board 578D Faac Housing model LM for the control unit Faac Model E housing for the control unit

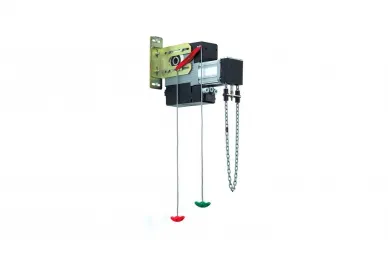

Faac 109542 541 Industrial sectional door drive 230V


Industrial sectional door gear drive 230V, with built-in control unit.

FEATURES:

  • Ideal for industrial applications with "dead-man" operating logic
  • Self-locking drive
  • Ideal for operation in automatic and semi-automatic mode with a control unit mounted outside the drive
Included: 540 V drive with limit switches, safety plate, emergency "cord" release, manual "chain" mechanism (chain hoist) for installations over 4 m.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Single-phase asynchronous
  • Max. power consumption - 800 W
  • Drive - Through a 25.4 mm diameter shaft
  • Shaft speed - 23 rpm
  • Max. shaft speed - 24 rpm
  • Max. torque - 50 Nm
  • Max. door weight - See drawing: application types
  • Encoder - Integrated
  • Ambient temperature during operation - -20 °C ÷ +55 °C
  • Protection degree - IP54
  • Oil type - FAAC HP
  • Weight of the device - 14 kg
  • Dimensions (LxDxW) - 92 x 376 x 266 mm
  • Control unit - None
  • Use frequency - S3 - 40%
