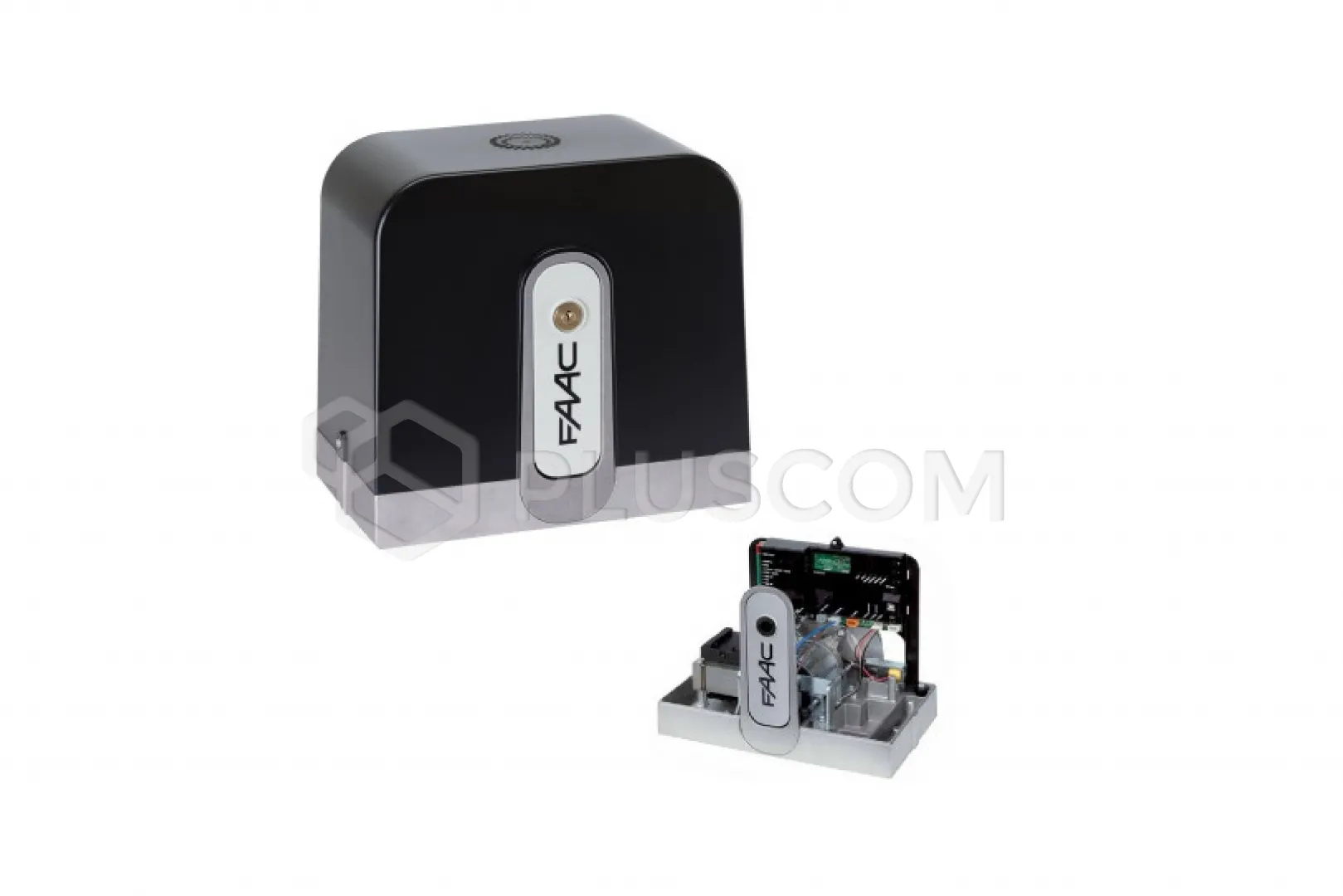

Faac 109321 Electromechanical drive with built-in control unit C721 24V

1092,02 EUR including 19.00% VAT
Product code: #26815
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max load 800 kg
  • Limit switch: Magnetic
  • Feed speed: 18 m/min
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Lock for unlocking the drive with a key Faac XBAT 24 emergency battery Faac E721 control unit for C720/C721 drives

Faac 109321 Electromechanical drive with built-in control unit C721 24V


Electromechanical drive C721 24V for residential sliding gates weighing up to 800 kg.

FEATURES:

  • For home and residential use
  • Cycloidal gear that reduces vibration and noise. FAAC PATENT
  • Exceptional mechanical efficiency >80%
  • Control unit with drive force regulation and virtual encoder, acting as anti-crushing protection (reversing the movement of the leaf after detecting an obstacle)
  • Magnetic limit switch
  • Master-Slaóe function allowing connection of two drives in the application of opposite gates
Included: C721 electromechanical drive with Z28 M4 gear wheel and built-in E721 control unit equipped with virtual encoder, key to unlock the drive, magnets to activate the limit switch, mounting base.

Technical data:

  • Supply voltage: 230V 50Hz
  • Drive power supply: 24Vdc
  • Power consumption: 290W
  • Current consumption: 12 A
  • Engine speed: 3600 rpm
  • Maximum torque: 30 Nm
  • Thrust: 530 N
  • Feed speed: 18 m/min
  • Frequency of use: continuous operation
  • Operating temperature range: -20°C to +55°C
  • Protection class: IP 44
  • Limit switches: magnetic
  • Gear wheel: Z28 mod. 4
  • Dimensions (L x W x H): 300 x 180 x 280 mm
  • Weight: 8 kg
