Faac 104680 B680H Hybrid automatic barrier 24V

2716,39 EUR including 23.00% VAT
Product code: #26919
Manufacturer: Faac
  • Power supply: 230V AC
  • Arm type: Oval
  • Control unit: E680S (built-in)
  • Encoder: Absolute encoder
  • For arms: from 2 to 8 m
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Barrier arm stickers (6 pcs.) Faac 428437 B680H Spring with bracket for mounting the Faac 428441 2m apron for barrier arm Faac 416020 Stainless steel casing for B680H barrier Faac 428806 Adjustable boom arm support Faac 428051 Faac 71209101-10 lock to unlock the drive with key Faac 416019 Grey casing RAL 9006 for B680H barrier Faac 428444 Oval arm break kit Faac 428050

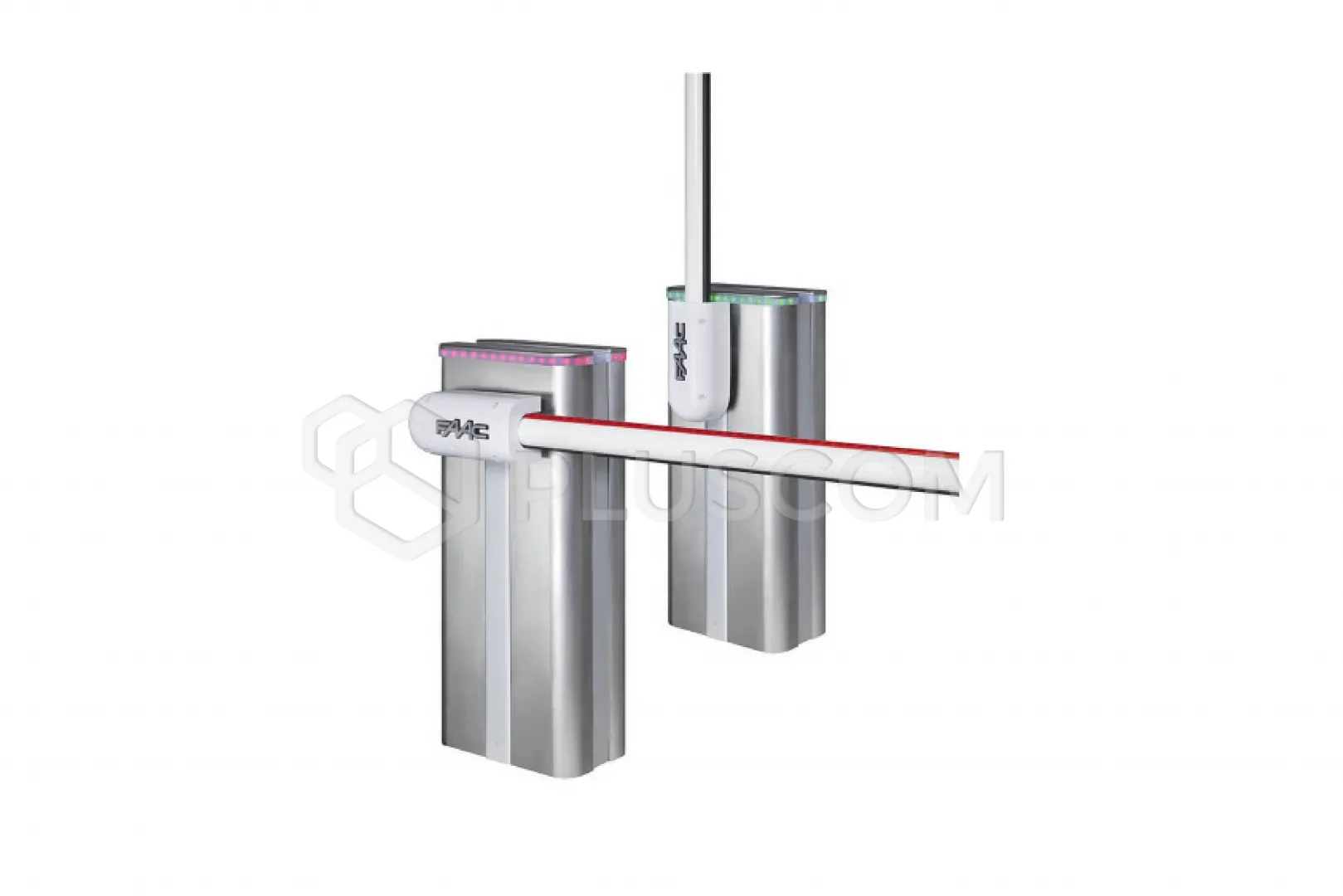

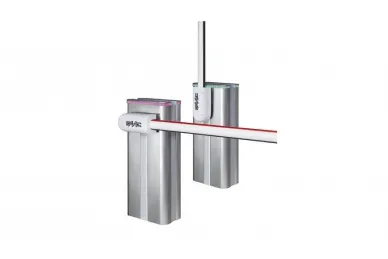

Faac 104680 B680H Automatic hybrid barrier 24V


B680H - Automatic hybrid barrier 24V from 2 to 8 m long.

FEATURES:

  • Hybrid technology: hydraulics + brushless motor
  • Barrier with "eternal" spring: over 2 million continuous operating cycles without special maintenance
  • Exclusive design: only one barrier model and two springs for split arms from 2 to 8 m long, right or left version and different speeds

Technical data

  • Power supply voltage - 100 ÷ 240 V AC 50/60 Hz
  • Type of motor - Brushless 36V DC
  • Engine speed - 1,000 ÷ 6,000 rpm
  • Max. power consumption - 240 W
  • Pump capacity - 3.2 l/min
  • Housing material - Steel
  • Protection type - 100 micron anti-corrosion protection + polyester paint or stainless steel (inox)
  • Encoder - Absolute encoder
  • Slowdown type - Electronic by encoder
  • Arm type - Oval
  • Ambient temperature during operation - -20°C ÷ +55°C
  • Protection class - IP56 (TWV certification)
  • Weight of the device - 85 kg (65 kg base + 20 kg housing)
  • Oil type - FAAC HP
  • Dimensions (LxDxH) - 469x279x1100 mm
  • Max. arm length - 2 ÷ 8 m
  • Opening time - 1.5 sec. (90° - 2m) - 6 sec. (90° - 8m)
  • Use frequency - 100%
  • Control unit - E680S (built-in)
