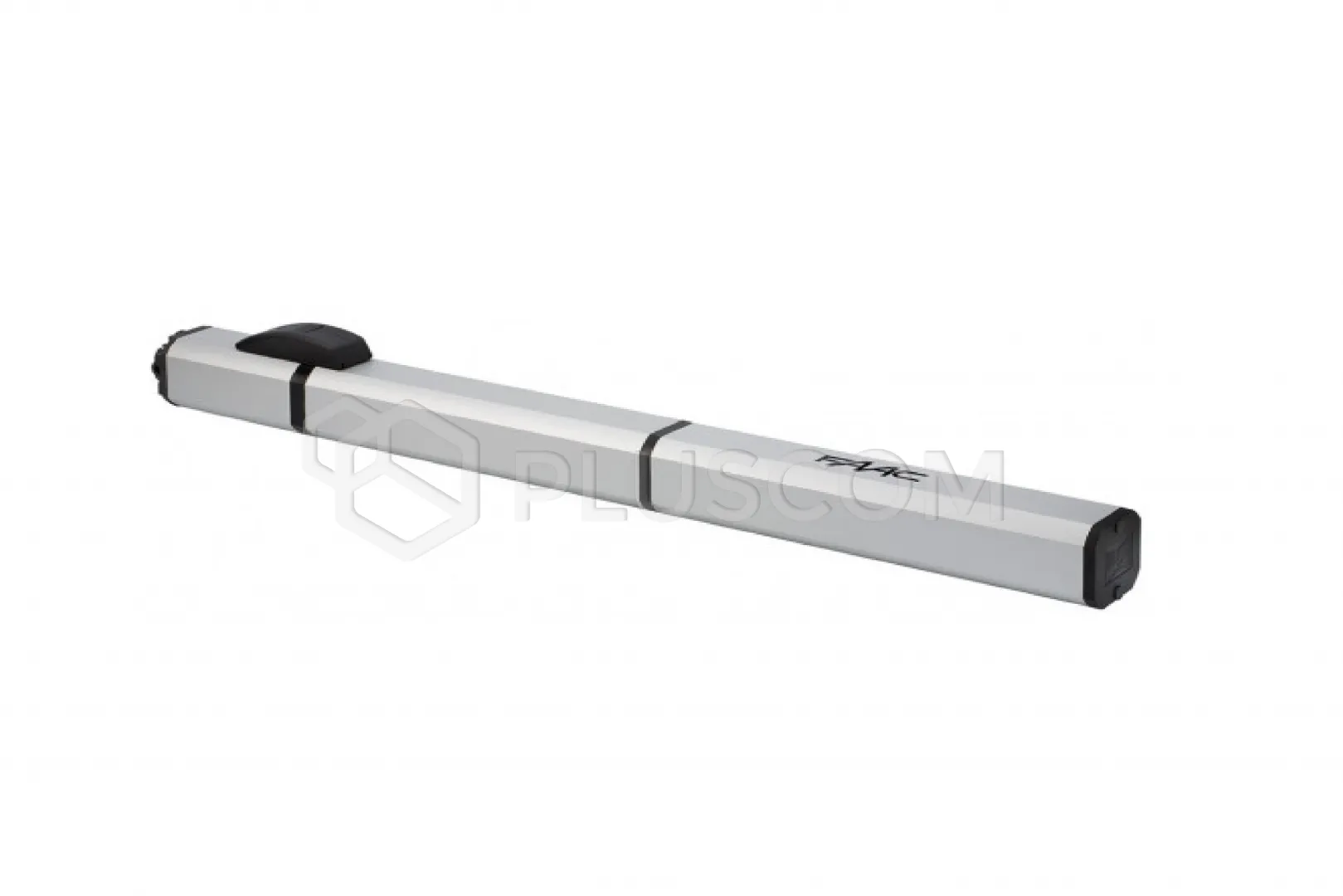

Faac 104101 Hydraulic actuator S450H SB 24V

976,33 EUR including 20.00% VAT
Product code: #26766
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max. wing width: 2 m
  • Max. sash opening angle: 110°
  • Max. traction force > 5000 N
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Lock for unlocking the drive with a key Faac 710010 RTA connector Faac Interface BUS XIB Faac 90926 Emergency battery base Faac XBAT 24 emergency battery Faac E124 control unit with housing

Faac 104101 Hydraulic actuator S450H SB 24V


24 V hydraulic drive for residential swing gates with a maximum leaf length of 2 m.

FEATURES:

  • Hybrid technology (combination of hydraulic drive with 24 V motor)
  • Included absolute magnetic encoder (SAFEcoder) providing anti-crushing protection
  • Usable piston stroke 311 mm
  • New multi-position mounting brackets that do not require welding
  • Included mechanical opening and closing limiters

Included: drive, mounting accessories, key for unlocking the drive.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: Brush, 24 V DC
  • Maximum power consumption: 60 W
  • Maximum thrust: >5000 N
  • Maximum linear speed (piston): 25 mm/sec.
  • Useful working stroke: 311 mm
  • Maximum leaf opening angle: 110°
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Protection class: 55 IP
  • Device weight: 6.5 kg
  • Frequency of use: 100%
  • Max. leaf width: 3 m
  • Oil type: FAAC HP

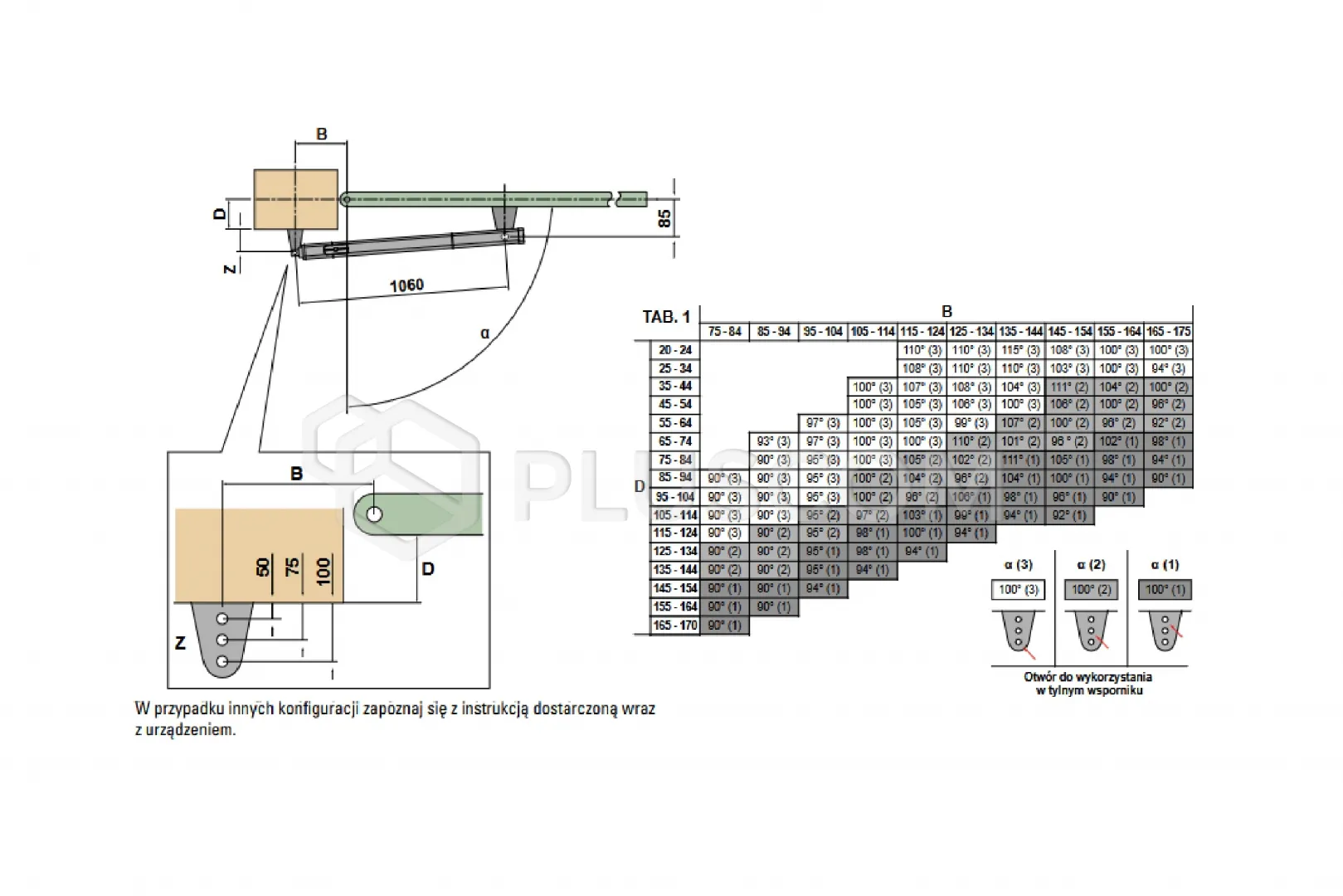

  • Mounting brackets: Rear bracket (to the post) to screw on, adjustable - Front bracket (to the leaf) to screw on, adjustable
  • Device dimensions (LxDxH): 1131 x 85 x 119 mm
  • Control unit: None
