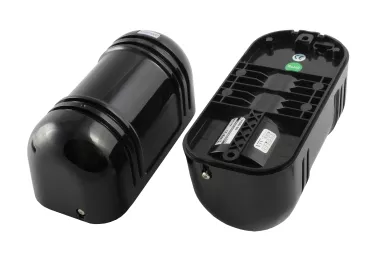

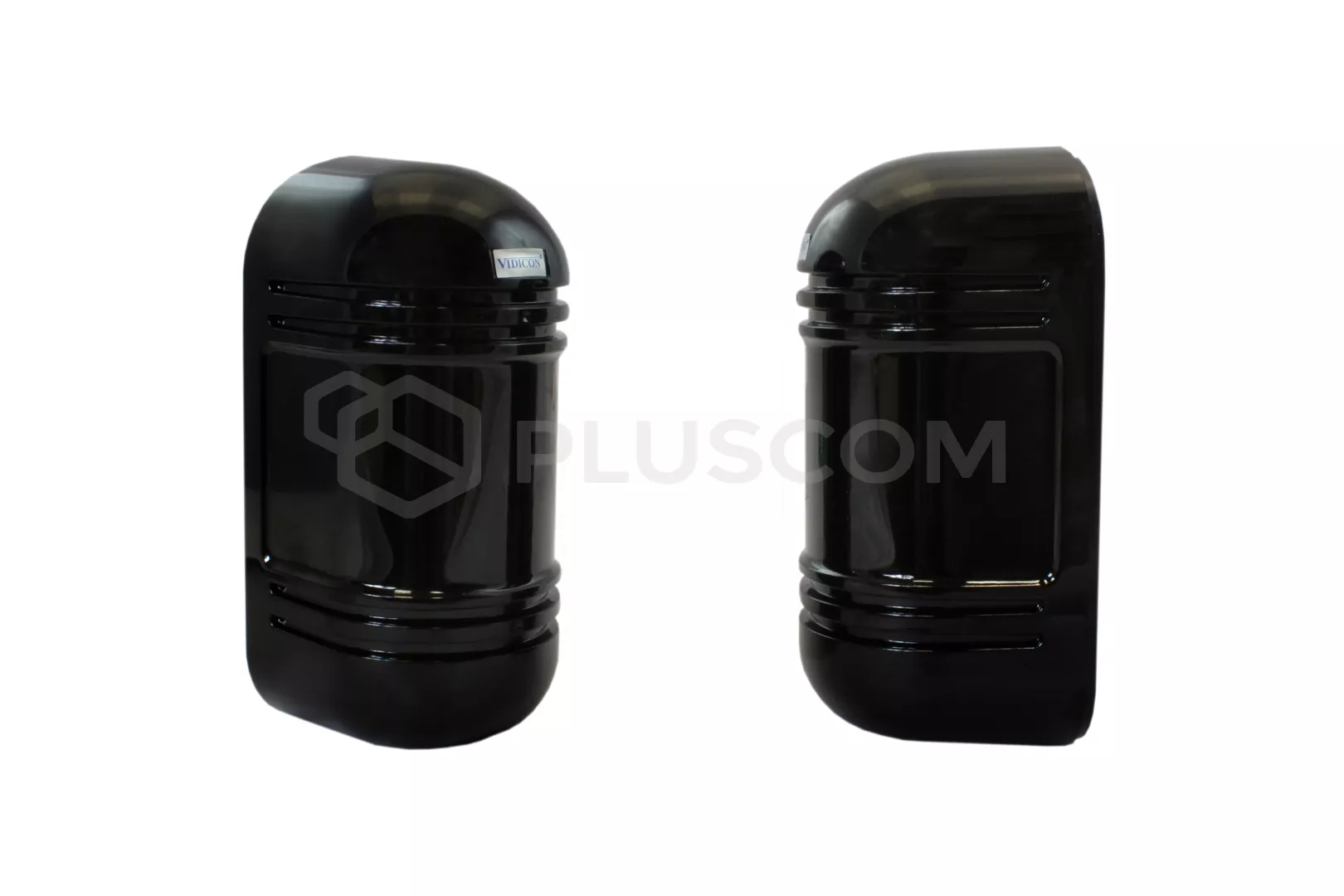

VIDD 60 Dual active infrared barrier

68,11 EUR including 23.00% VAT
Product code: #6067
Manufacturer: Vidicon
  • Range: 60m
  • Detection Method: double infrared beam
  • Calibration: The hole collimation, LED
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.
VIDD 60 infrared barrier uses two infrared beams. Alarm will be given after discontinuation of the two beams. This reduces the number of false alarms that could be caused by small animals, birds or falling leaves.

The calibration of the transmitter and receiver facilitates hole collimation, and LED indicator for the strength of the received signal. Adjustment is possible in the horizontal plane of 120° (+/- 20°), the vertical of 10° degrees (+/- 5°).

Barriers have the ability to set:
  • one of the four operating channels
  • interruption time
  • alarm time
Includes:

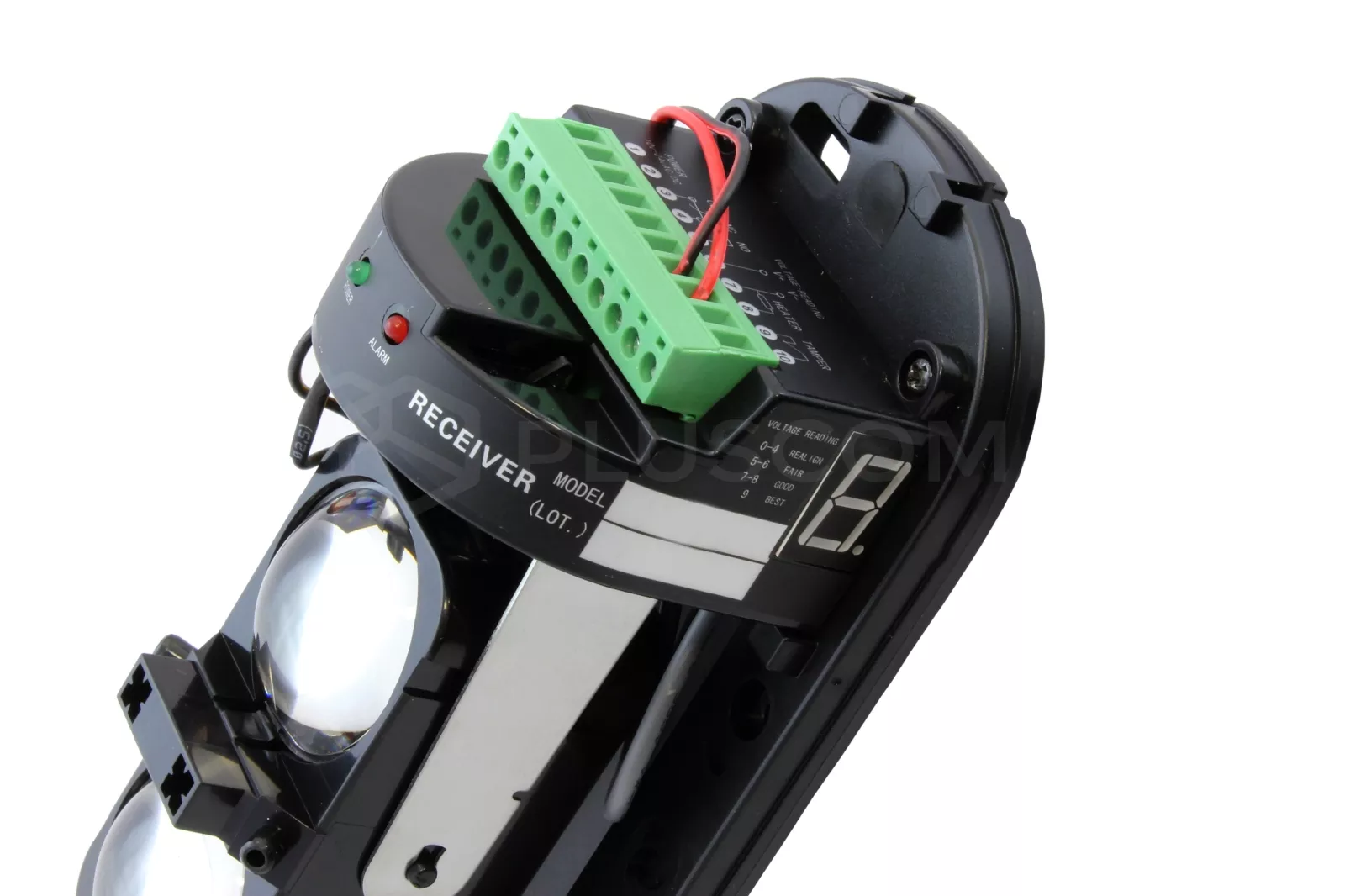

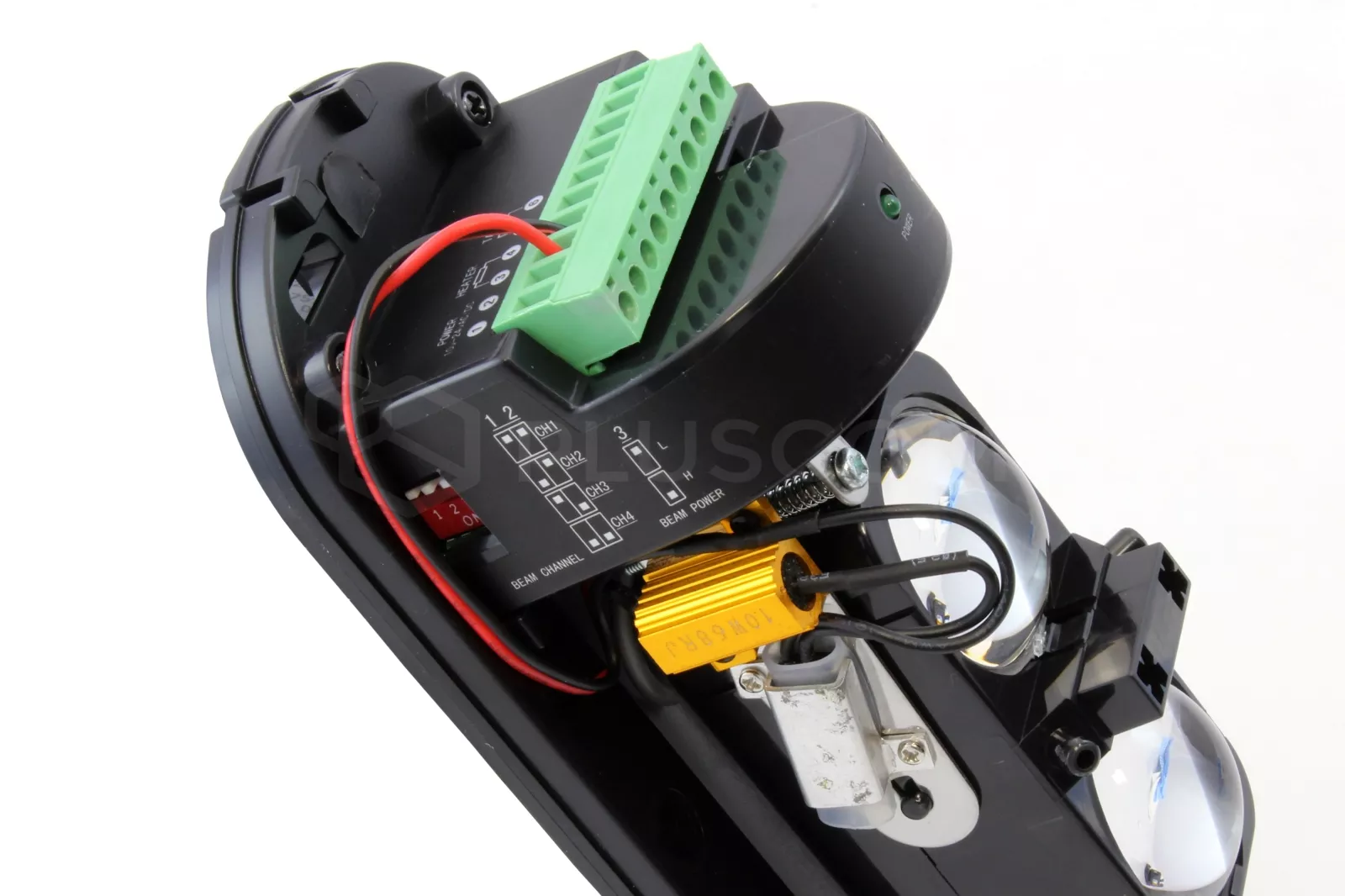

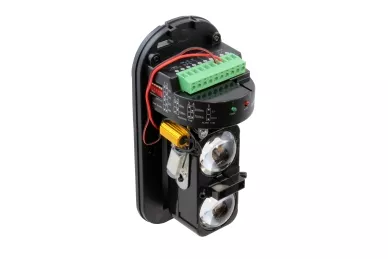

  • barrier infrared transmitter, receiver

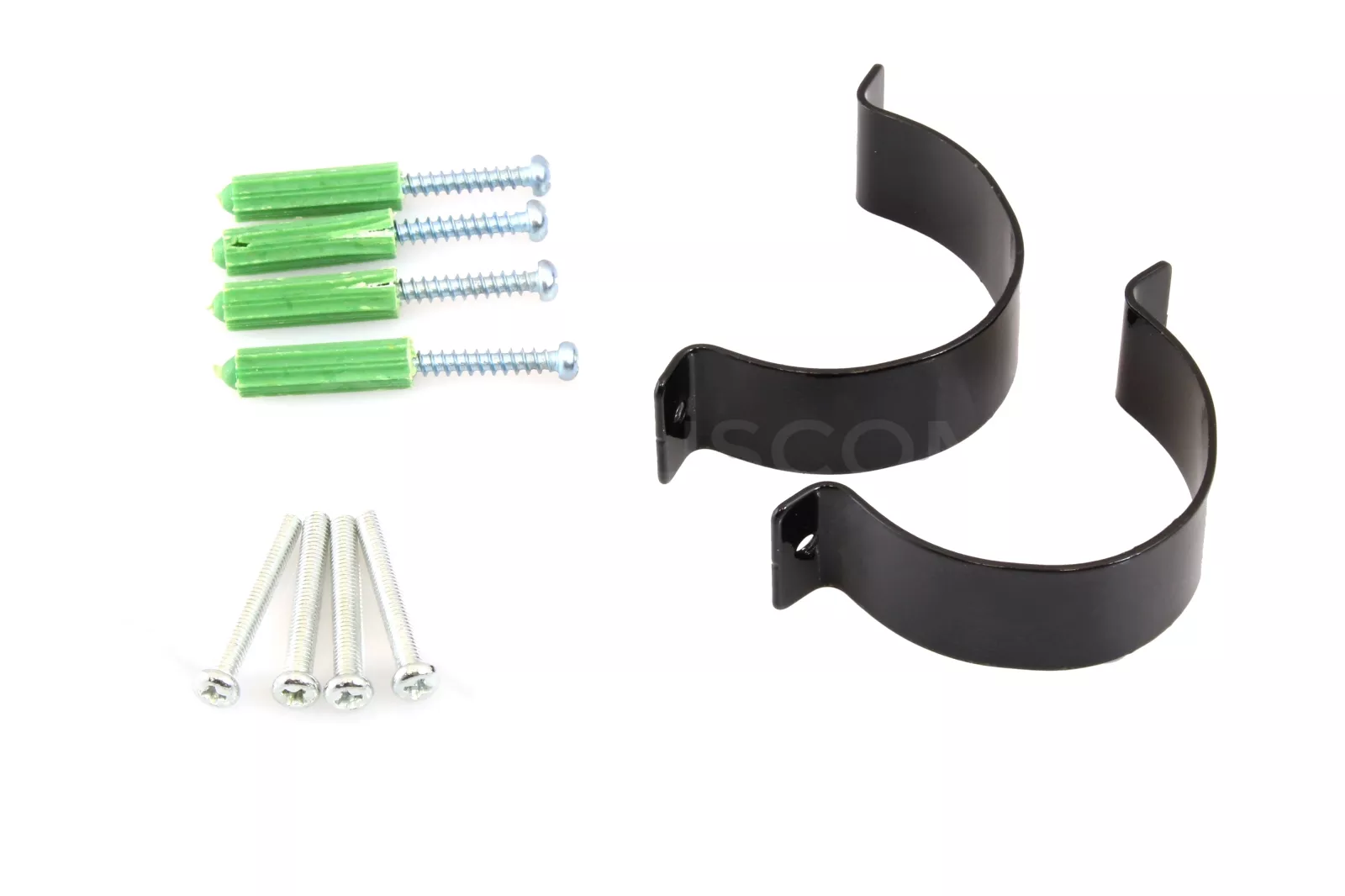

  • mounting brackets
  • mounting screws
Specifications:
  • outdoor range: 60m
  • indoor range: 120m
  • number of beams: 2
  • detection method: simultaneous intersection of all beams
  • source of radiation: infrared
  • response time: 50 ÷ 250ms
  • alarm output: relay output: NO / NC. Output load: AC / DC 30 [V], 0.5 [A]
  • power supply: DC 12 - 24V AC 11 - 18V
  • maximum power consumption: 13mA TX, RX 40mA
  • heater: TX 150mA, 150mA RX
  • operating temperature and humidity: -25 ° C ... 70 ° C, 5% ... 95%
  • tamper output: NC
  • frequency: 4 channels work
Download
Datasheet 0.63 MB
Manual 0.7 MB
Declaration of Conformity 3.36 MB
