Somfy Elixo 500 3S io EE pack, set for weight sliding gates 500kg
(1216507)

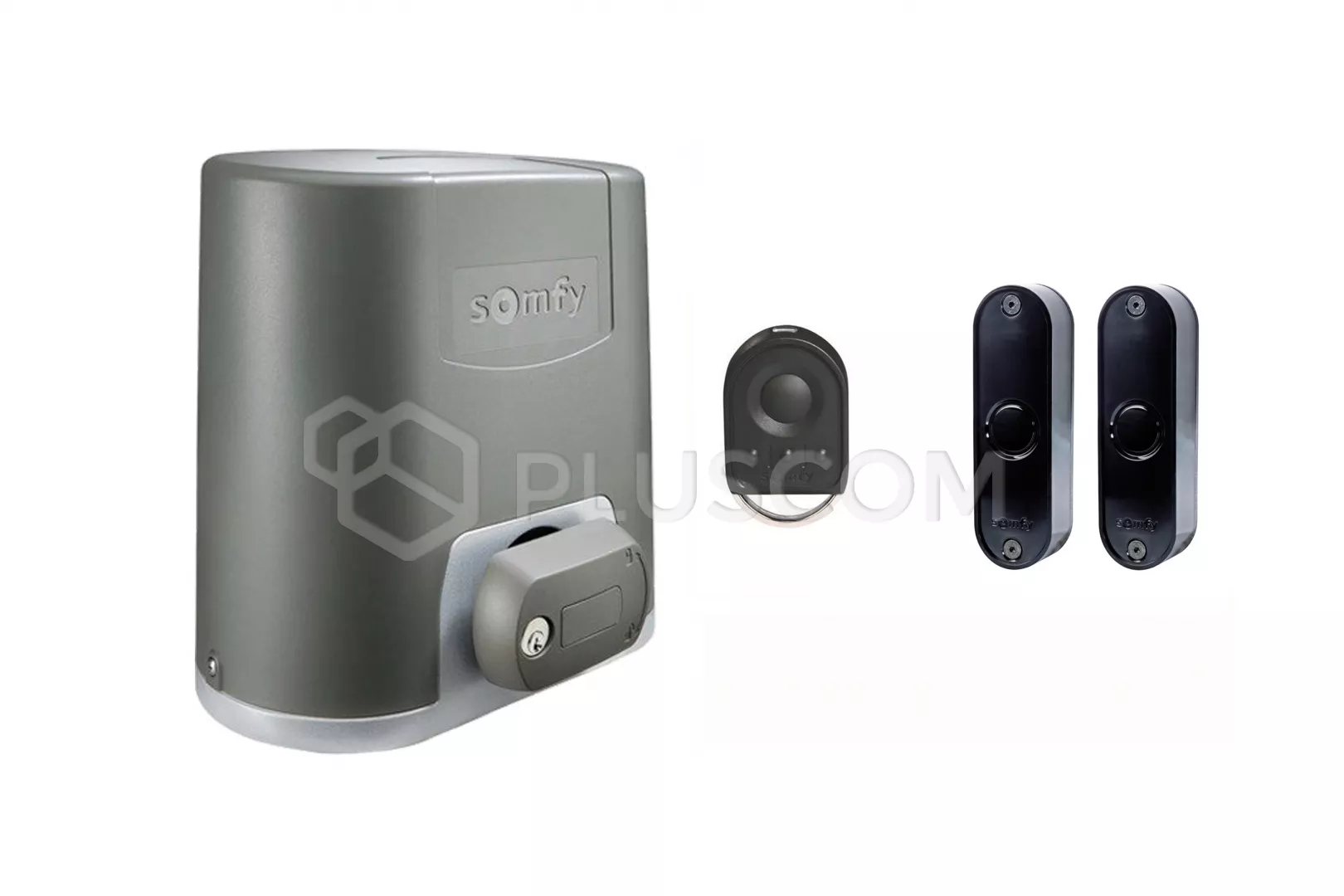

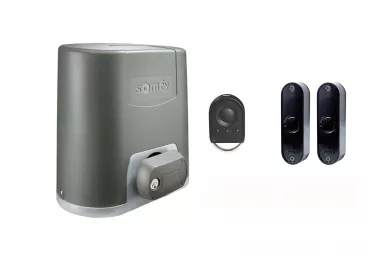

PACK INCLUDES
- Elixo 500 3S io actuator with built-in 3S control unit
- Keygo 4 io 4-channel remote control - unidirectional
- photocells Master Pro Bitech
|
Somfy Elixo 500 3S io EE pack
|
The Somfy Elixo 500 3S io drive can be used for gates with a maximum 8m
long and weighing up to 500 kg. It is quiet, durable and reliable.
Elixo 500 3S io can be freely extended with accessories from Somfy's offer
by adding lamps or photocells, thus increasing the safety of the gate.
The drive has a built-in 3S control unit, which ensures intuitive operation,
quick installation and the ability to set operating parameters.
Io-homecontrol technology ensures that all Somfy products are compatible made
in io technology. Each bi-directional transmitter receives a signal feedback
from the controlled object. Joining the TaHoma system is possible remotely
control and monitoring of the position in which the gate is currently located.
The most important features of the drive include:
- Proven mechanical system using many years experience
- up to 30 cycles a day for a 500 kg gate
- speed: gate travel of 3 meters in 15 seconds
- with the key easy to unlock and open the gate from outside
- quiet running

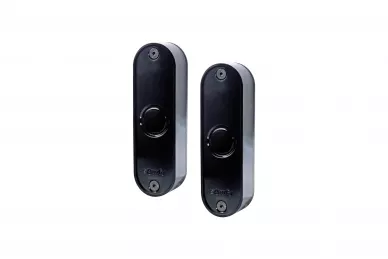

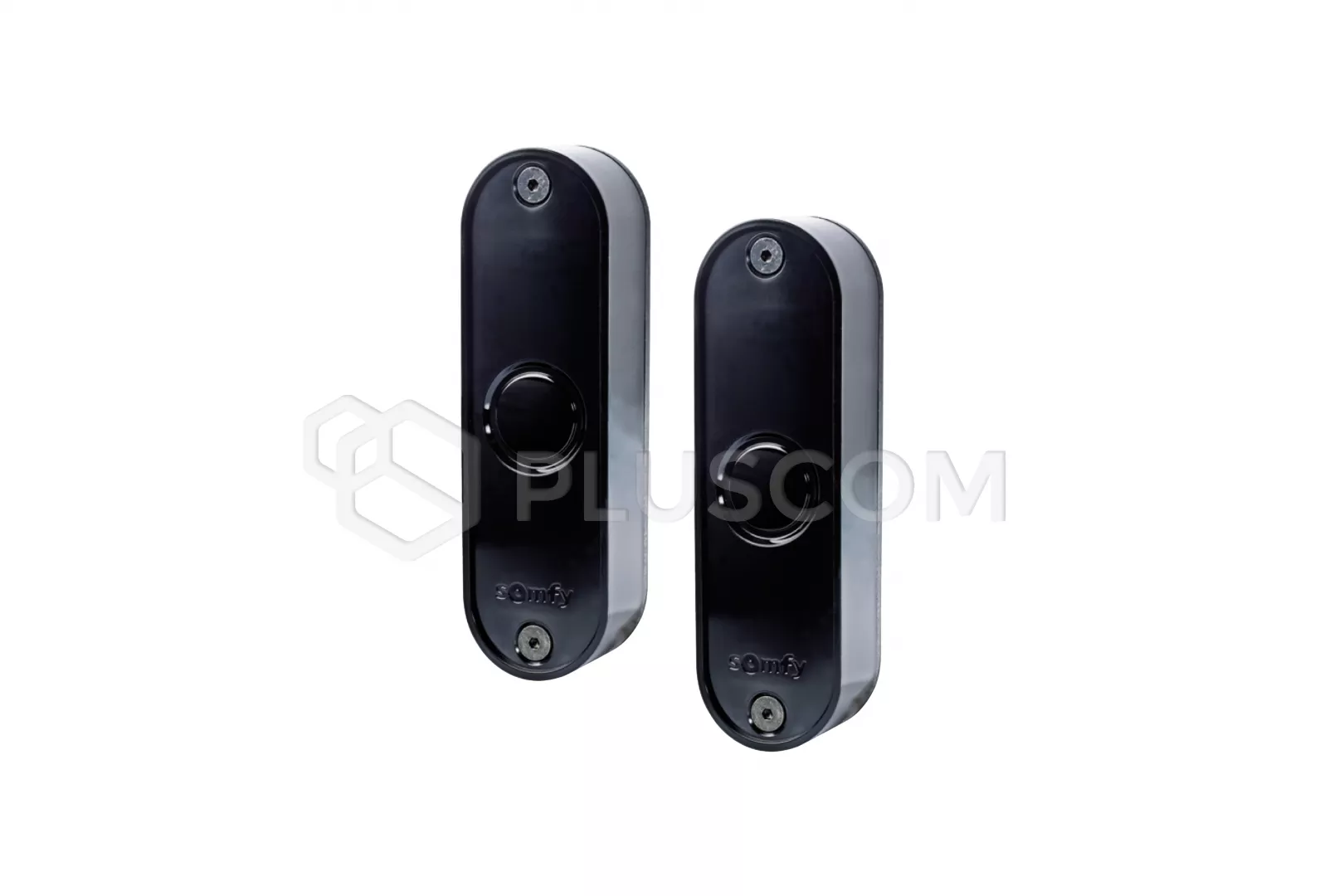

Master Pro - Bitech photocells are discrete devices for
obstacle detection when closing / opening the gate. They have as standard
narrow housing, which can be additionally equipped with a metal cover for
additional protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10m
- self-test input: no
- power supply: 24 V AC / DC
- contact load: 1 A
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|
Photocells Master Pro - Bitech
|

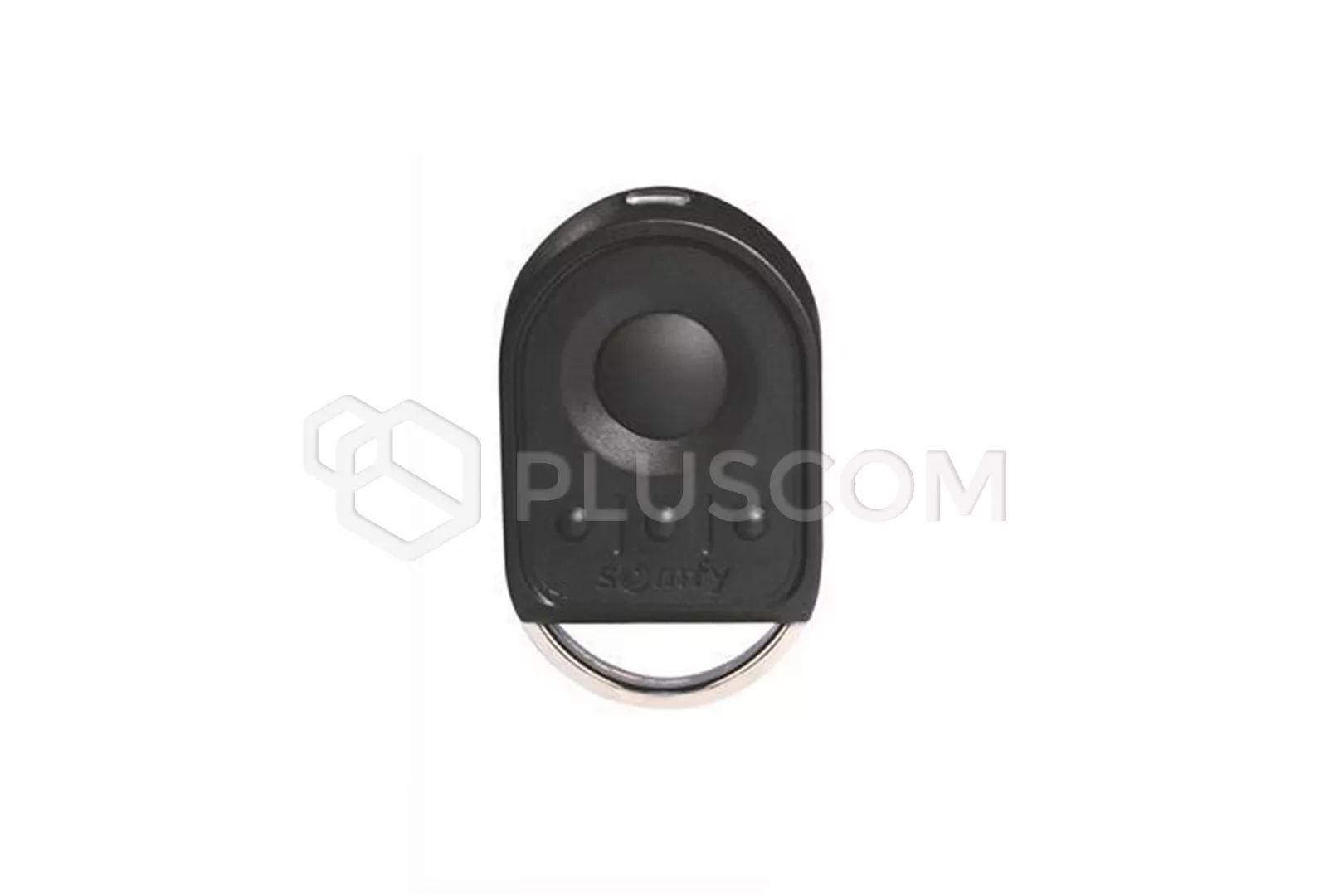

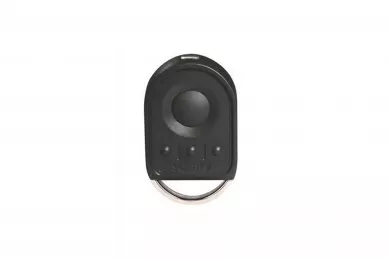

The kit includes the Keygo 4 io (1-way) remote control. It is used to
control from 1 to 4 devices. It is impact and moisture resistant and has a
large central button that makes it easy to use the remote control without
having to look at it.
Remote specification
- number of channels: 4
- frequency: io - 868.95 MHz - unidirectional
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 59 x 35 x 14 mm
- working conditions: -20 ° C to + 70 ° C

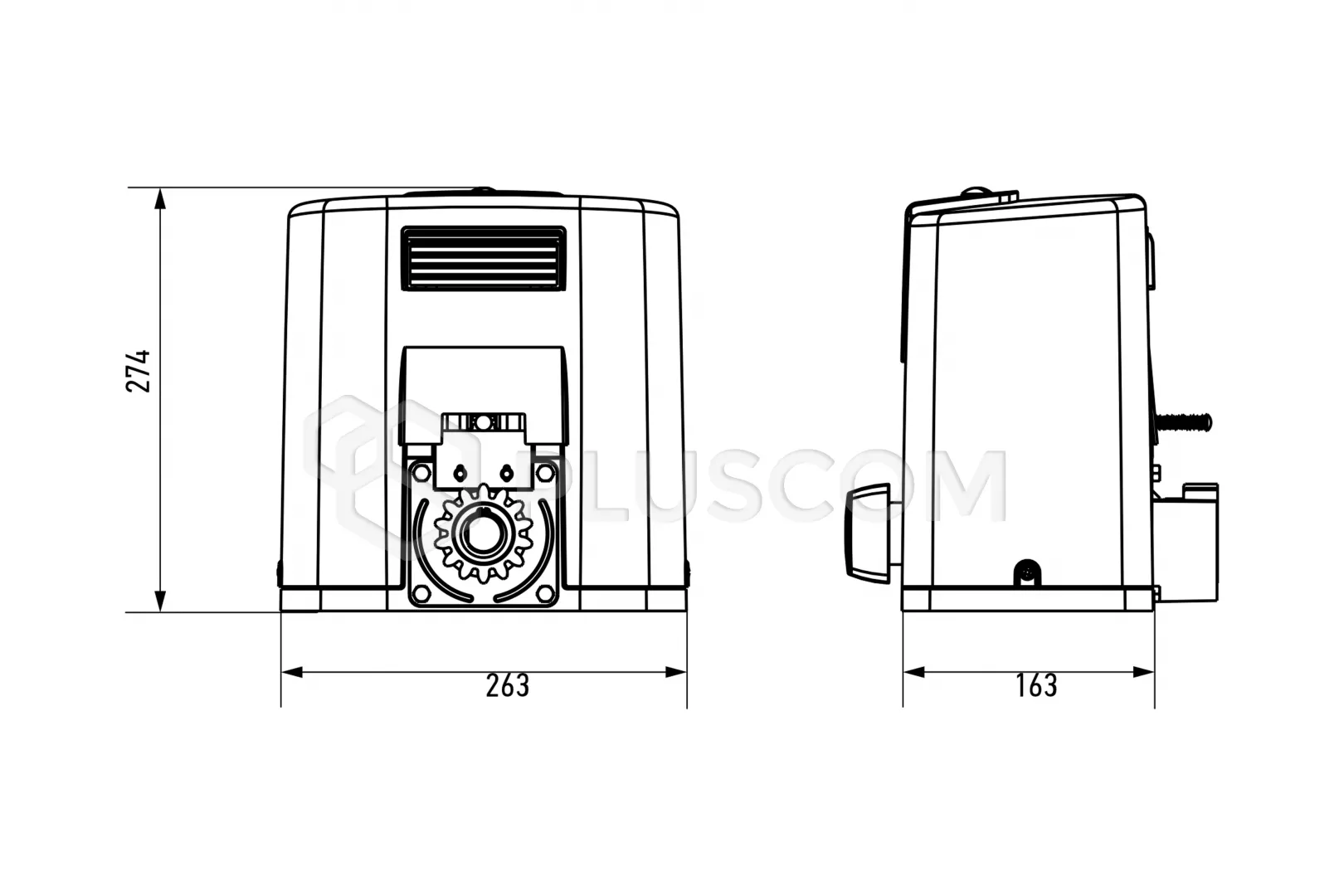

Dimensions:
TECHNICAL DATA OF THE DRIVE
- mains supply: 220-230 V - 50-60 Hz
- motor power supply: 24 V DC
- power consumption: 130W
- lighting: 500 W max. halogen
- accessory power supply: 24V DC / 1.2A
- opening time up to 3m: 15 seconds
- radio frequency io: 868-870 MHz
- drive force: 500 N
- number of storable remote control devices:
-
- One-way (Keygo 4 io, ...):
-
- opening control: max. 30 channels
- lighting control: max. 4 channels
- control of additional devices: max. 4 channels
- Bidirectional (Keytis io, ...): Unlimited
- protection class: IP 24
- working conditions: -20 ° C to + 60 ° C
- dimensions: 274x263x163mm
