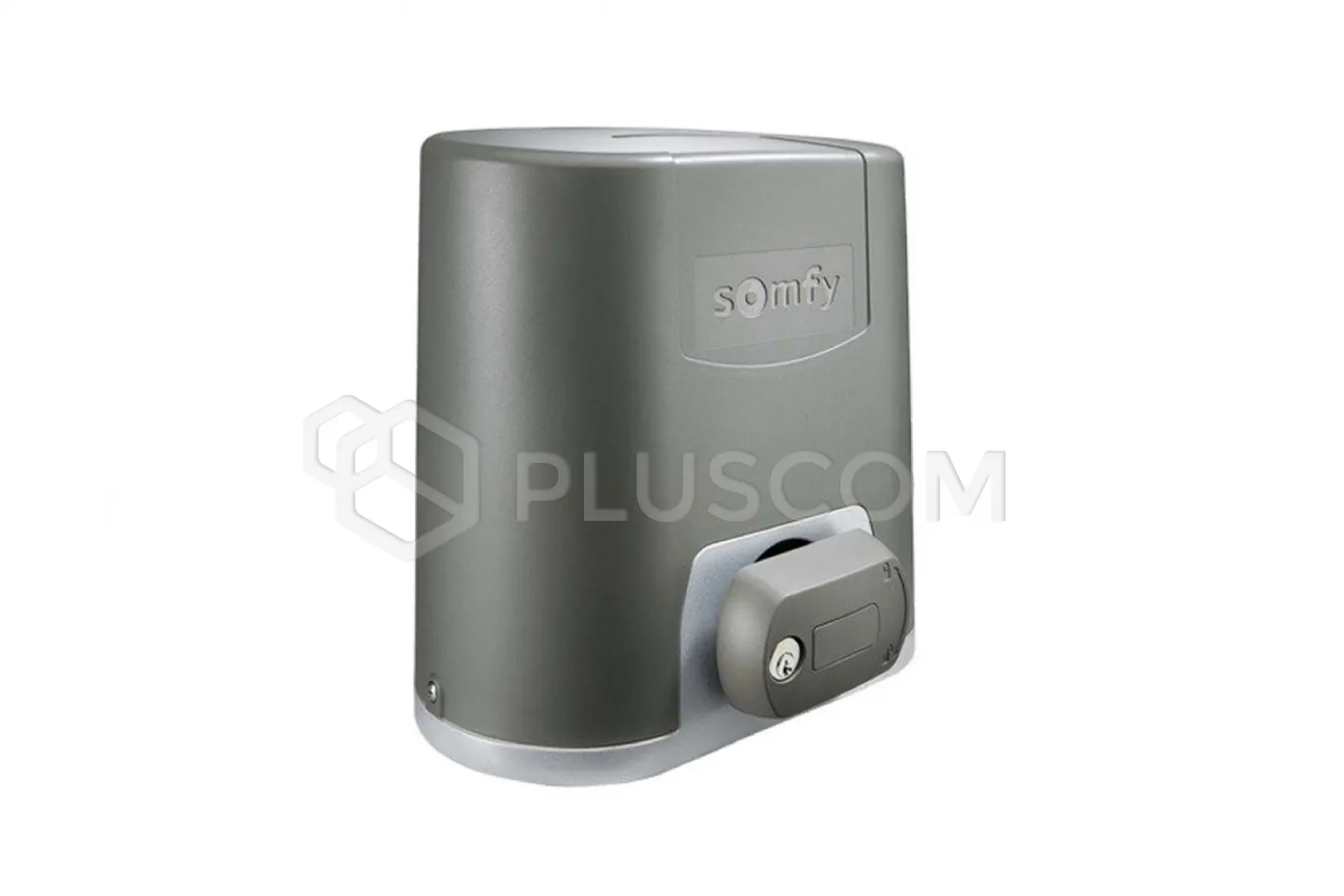

The Somfy Elixo 500 3S io drive can be used for gates with a maximum capacity 8
m long and weighing up to 500 kg. It is quiet, durable and reliable.
Elixo 500 3S io can be freely expanded with accessories from the Somfy offer,
adding lamps or photocells, thus increasing the safety of using the gate.
The drive has a built-in 3S control panel, which ensures intuitive operation,
quick installation and the ability to set operating parameters.
io-homecontrol technology ensures compatibility with all Somfy products made
using io technology. Each two-way transmitter receives a signal feedback from
the controlled object. Joining the TaHoma system is possible remotely control
and control of the gate's current position.
The most important features of the drive include:
- proven mechanical system using many years of experience experience
- up to 30 cycles per day for a gate weighing 500 kg
- speed: sliding of a 3-meter-wide gate in 15 seconds
- using the key, easy unlocking and opening of the gate outside
- quiet operation
Master Pro - Bitechphotocells are discreet devices to
detect obstacles when closing/opening the gate. They have it as standard narrow
housing, which can be additionally equipped with a metal cover additional
protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be
between 2 and 10 meters.
Technical data:
- range: 10 m
- self-test input: no
- power supply: 24 V AC /DC
- contact load capacity: 1 A
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- operating temperature: -20 °C to +60 °C
- degree of protection: IP 54
