SD-150B-24 Single output DC-DC converter

85,01 EUR including 23.00% VAT
Product code: #22757
Manufacturer: Pulsar
  • Input voltage: DC 19-36V
  • Output voltage: DC 24
  • Max output current: 6.3A

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
SD-15C-05 Single output DC-DC converter SD-100C-12 Single output DC-DC converter SD-1000L-48 Single output DC-DC converter Pulsar SD-350D-48 SD 48V/350W/7,3A DC/DC converter SD-25B-24 Single output DC-DC converter SD-15B-24 Single output DC-DC converter SD-100B-12 Single output DC-DC converter SD-50C-24 Single output DC-DC converter Pulsar SD-350C-48 SD 48V/350W/7,3A DC/DC converter SD-25B-12 Single output DC-DC converter

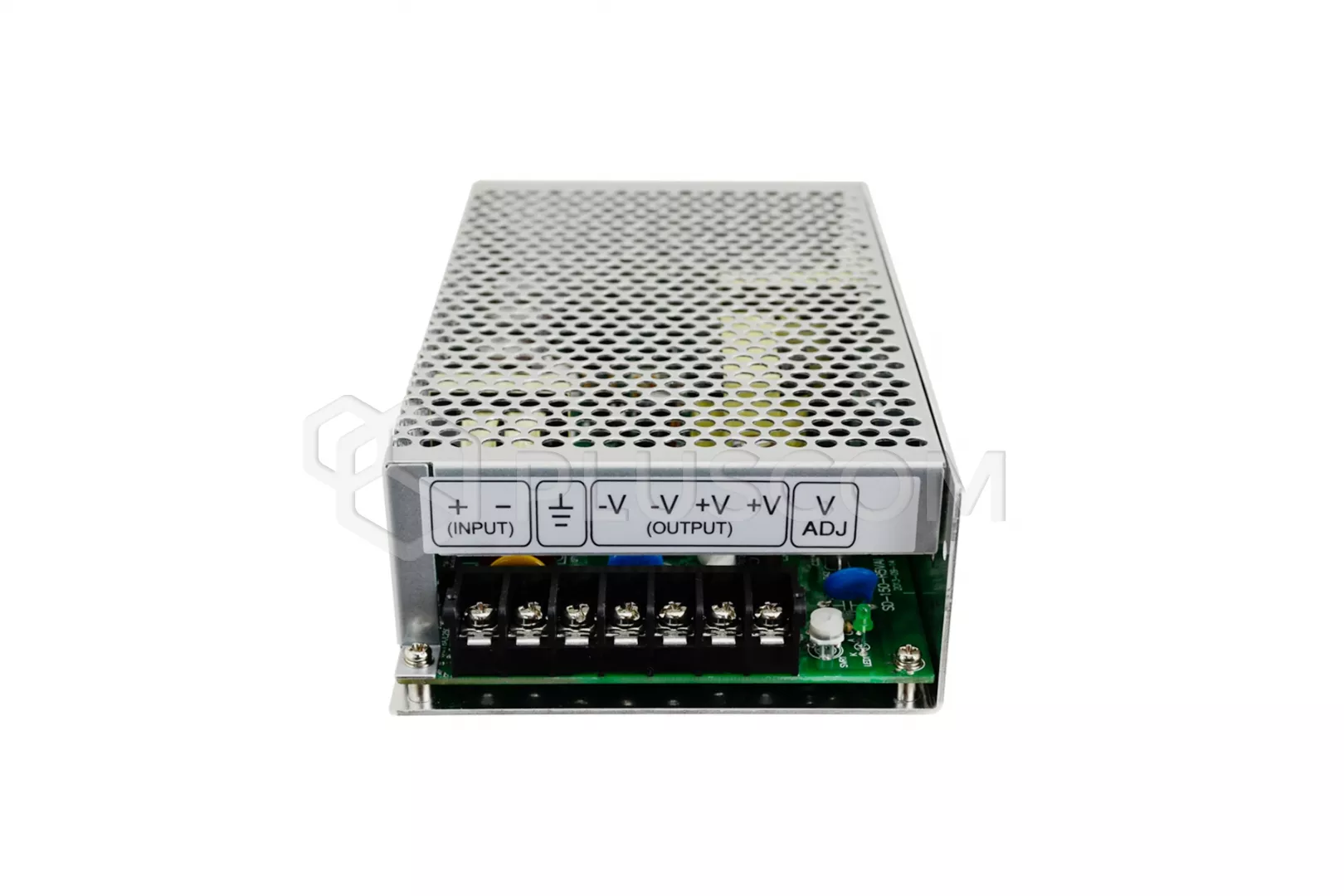

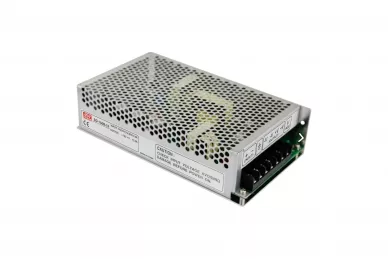

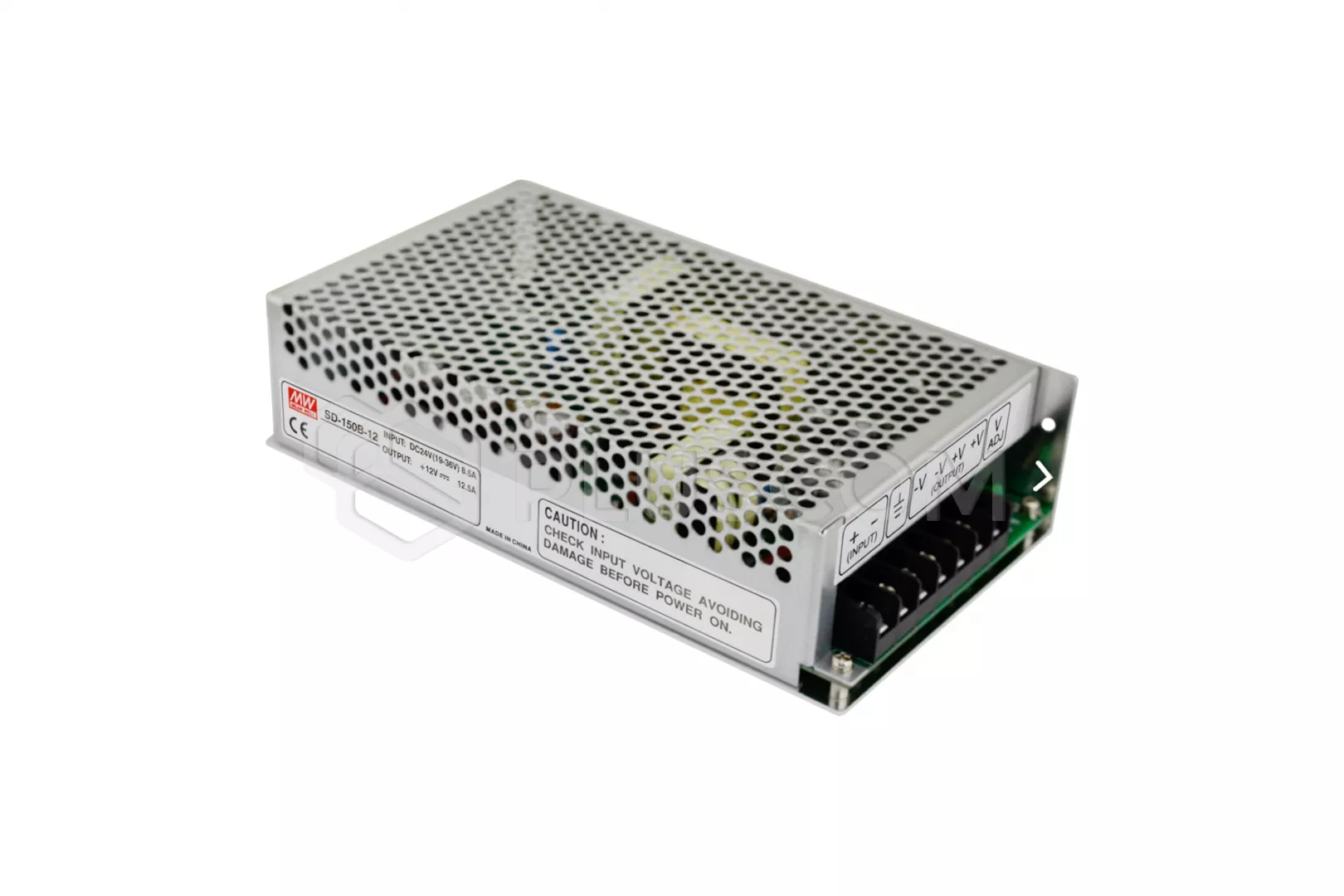

Mean Well DC/DC step-up/step-up converter SD-150B-24


SD-150B-24 converter with high reliability, characterized by stability operation, efficiency at the level of 77% and the possibility of adjusting the output voltage. The device is cooled by free air flow.

TECHNICAL PARAMETERS:
  • input voltage range: DC 19-36V
  • output voltage: DC 24V
  • output voltage adjustment range: DC 23-30V
  • maximum output current: 6.3A
  • power: 151.2W
  • built-in EMI filter, low ripple and noise
  • system efficiency: 77%
  • security:
    • overload
    • overvoltage
  • working temperature: -10 ° C ~ + 60 ° C
  • dimensions: 199 x 110 x 50mm
  • weight: 0.86kg
