SD-100D-12 Single output DC-DC converter

64,76 EUR including 23.00% VAT
Product code: #22754
Manufacturer: Pulsar
  • Input voltage: 72 - 144VDC, 85 - 132VAC
  • Output voltage: DC 12
  • Max output current: 8.5A
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
SD-15C-05 Single output DC-DC converter SD-200B-24 Single output DC-DC converter SD-15A-12 Single output DC-DC converter SD-100C-5 Single output DC-DC converter Pulsar SD-500L-24 SD 24V/500W/21A DC/DC converter SD-25C-24 Single output DC-DC converter SD-15C-24 Single output DC-DC converter SD-150C-12 Single output DC-DC converter SD-100B-24 Single output DC-DC converter Pulsar SD-500H-24 SD 24V/500W/21A DC/DC converter

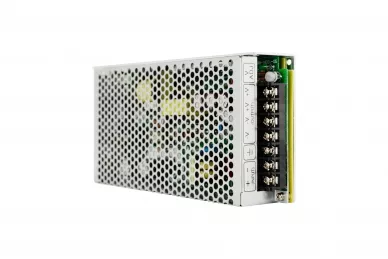

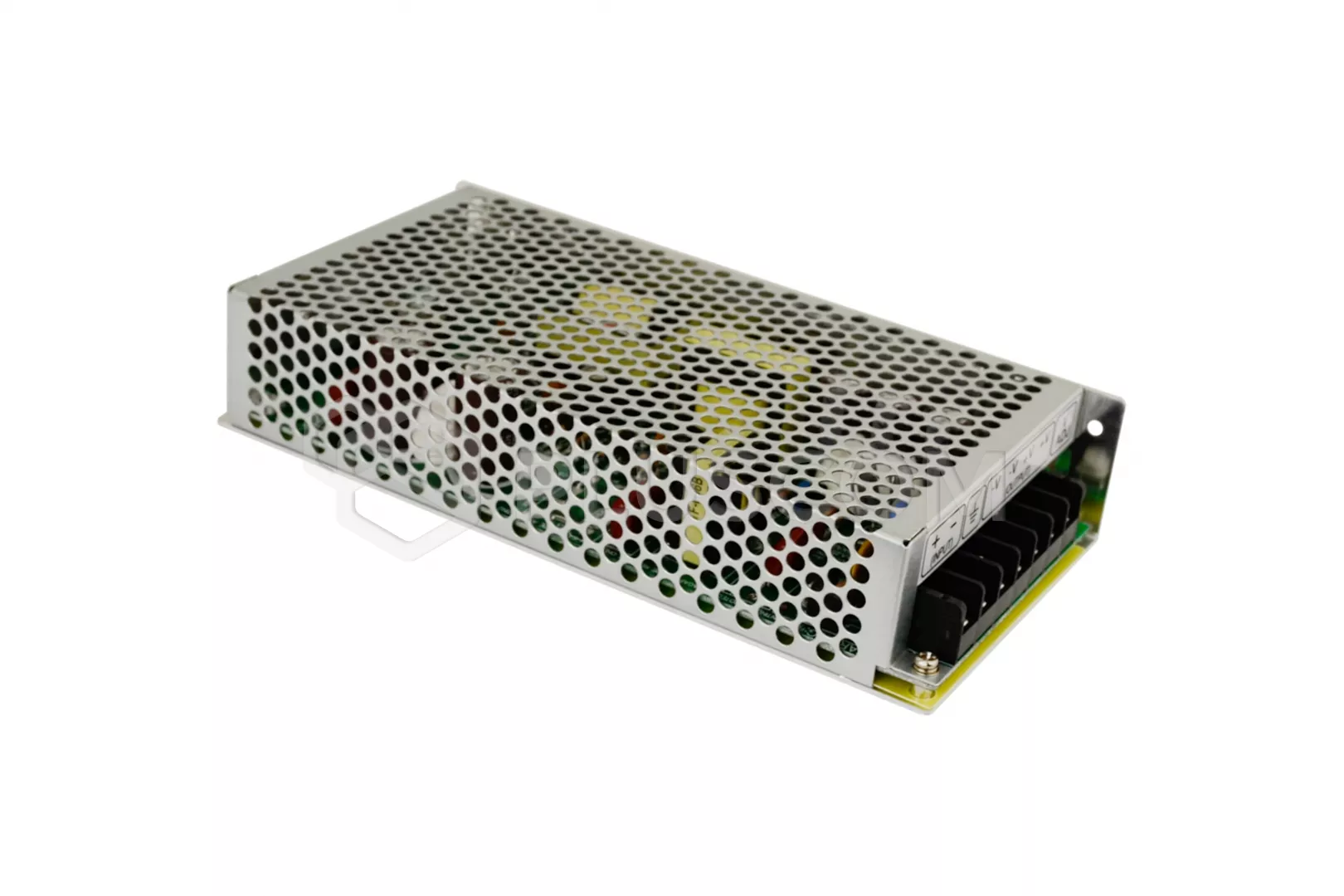

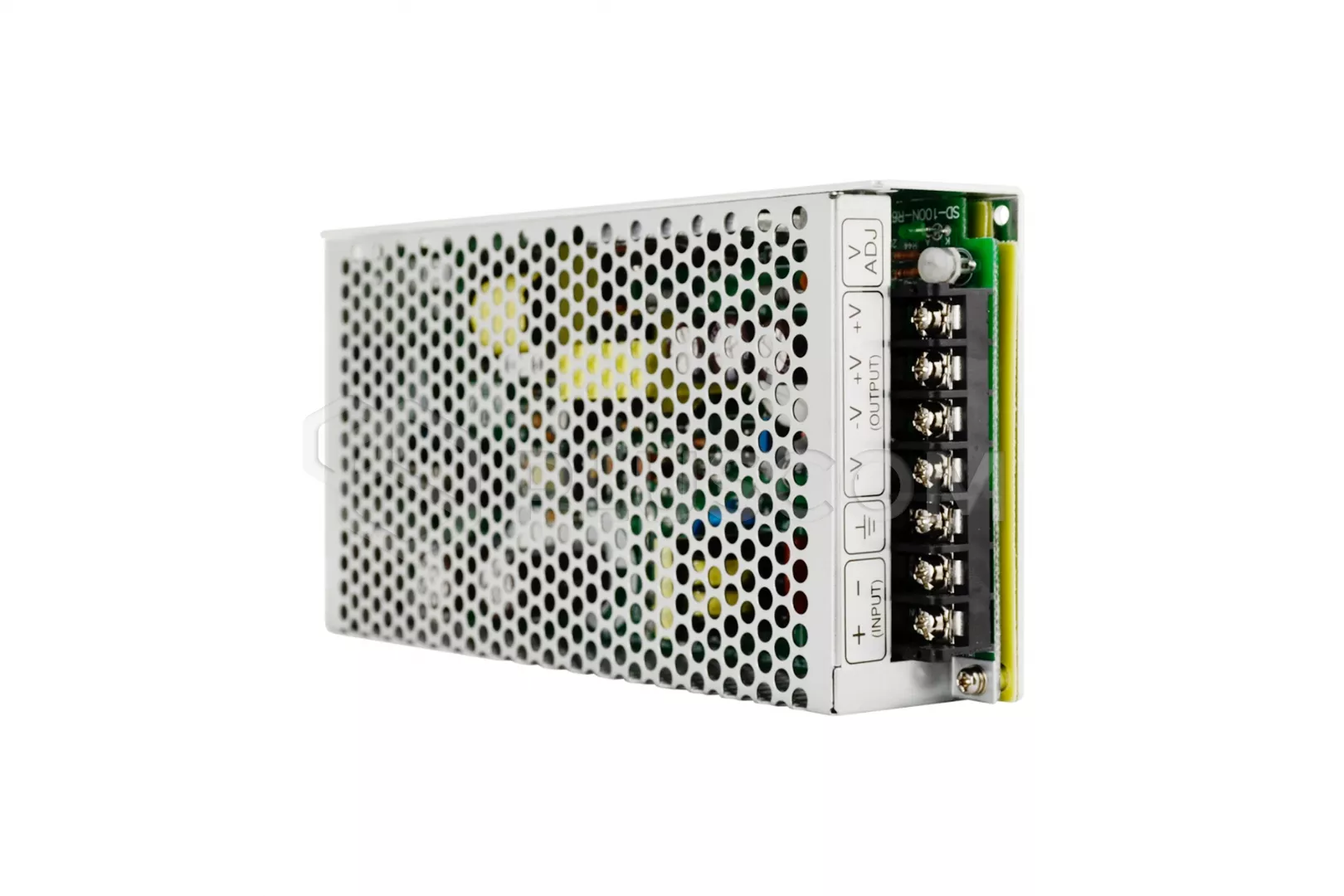

Mean Well Step Down DC/DC Converter SD-100D-12


The SD-100D-12 converter has a wide voltage range input. It is characterized by stability of work, the possibility of mounting on any surface, also on the DIN rail with the help of attachments, and cooling passive.

TECHNICAL PARAMETERS:
  • input voltage range: 72 - 144VDC, 85 - 132VAC
  • output voltage: DC 12V
  • output voltage adjustment range: DC 11-16V
  • maximum output current: 8.5A
  • power: 102W
  • built-in EMI filter, low ripple and noise
  • system efficiency: 80%
  • security:
    • overload
    • overvoltage
  • working temperature: -15 ° C ~ + 60 ° C
  • dimensions: 199 x 98 x 38mm
  • weight: 0.65kg
Download
Datasheet 0.09 MB
CE Declaration 0.45 MB
