SD-350B-48 Single output DC-DC converter

167,40 EUR including 22.00% VAT
Product code: #11281
Manufacturer: Pulsar
  • Input voltage: DC 19-36V
  • Output voltage: DC 48
  • Max output current: 7,3A

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
SD-15C-05 Single output DC-DC converter Pulsar SD-25C-5 SD 5V/25W/5A DC/DC converter SD-200C-24 Single output DC-DC converter SD-150C-24 Single output DC-DC converter SD-50A-5 Single output DC-DC converter Pulsar SD-50B-5 SD 5V/50W/10A DC/DC converter SD-25B-5 Single output DC-DC converter SD-200C-12 Single output DC-DC converter SD-150B-24 Single output DC-DC converter SD-50A-12 Single output DC-DC converter

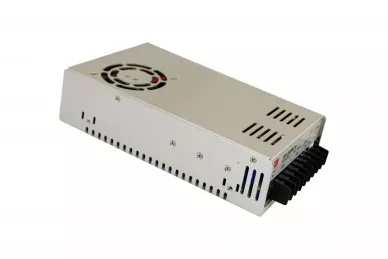

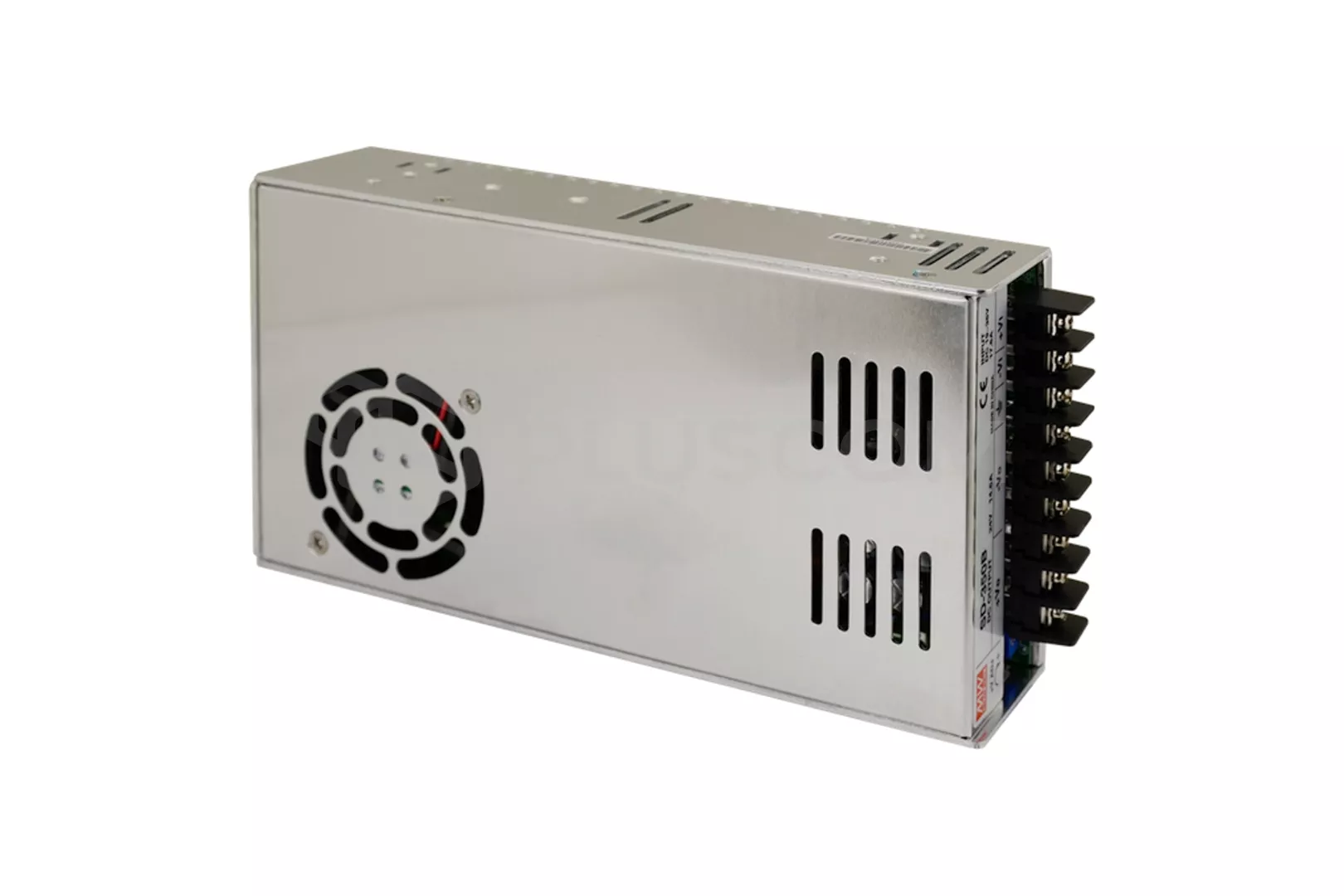

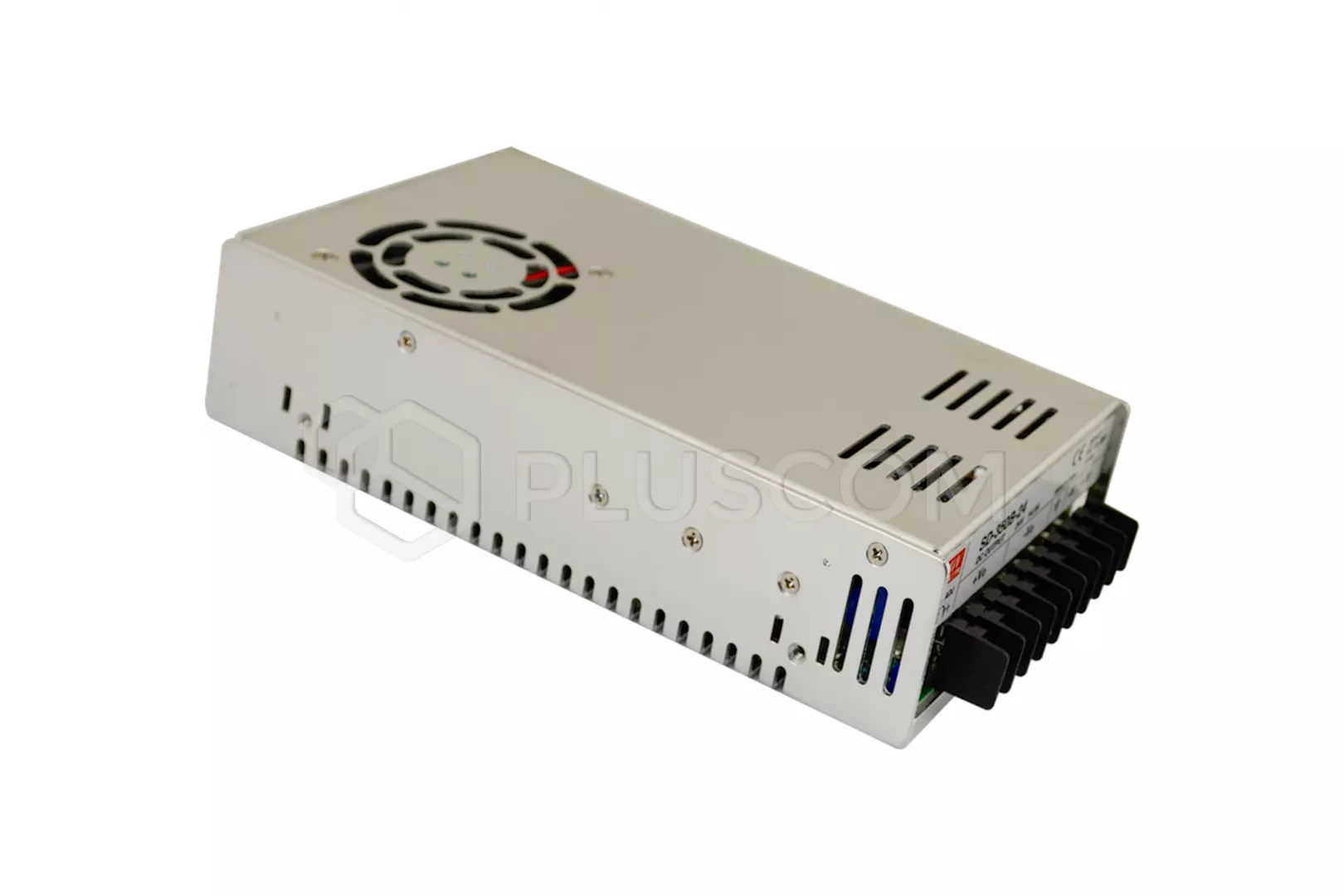

SD-350B-48 Mean Well SD 48V/350,4W/7,3A DC/DC converter

FEATURES:
  • power supply: 19-36VDC
  • power supply output: 7,3A/48VDC
  • voltage adjustment range: 43V÷53VDC
  • efficiency: 84%
  • protections: SCP, OLP, OHP
  • dimensions: W=215 L=115 H=50 mm
SD-350B-48 Single output

SD-350B-48 Single output


Download
CE declaration 0.44 MB
Data sheet 0.09 MB
