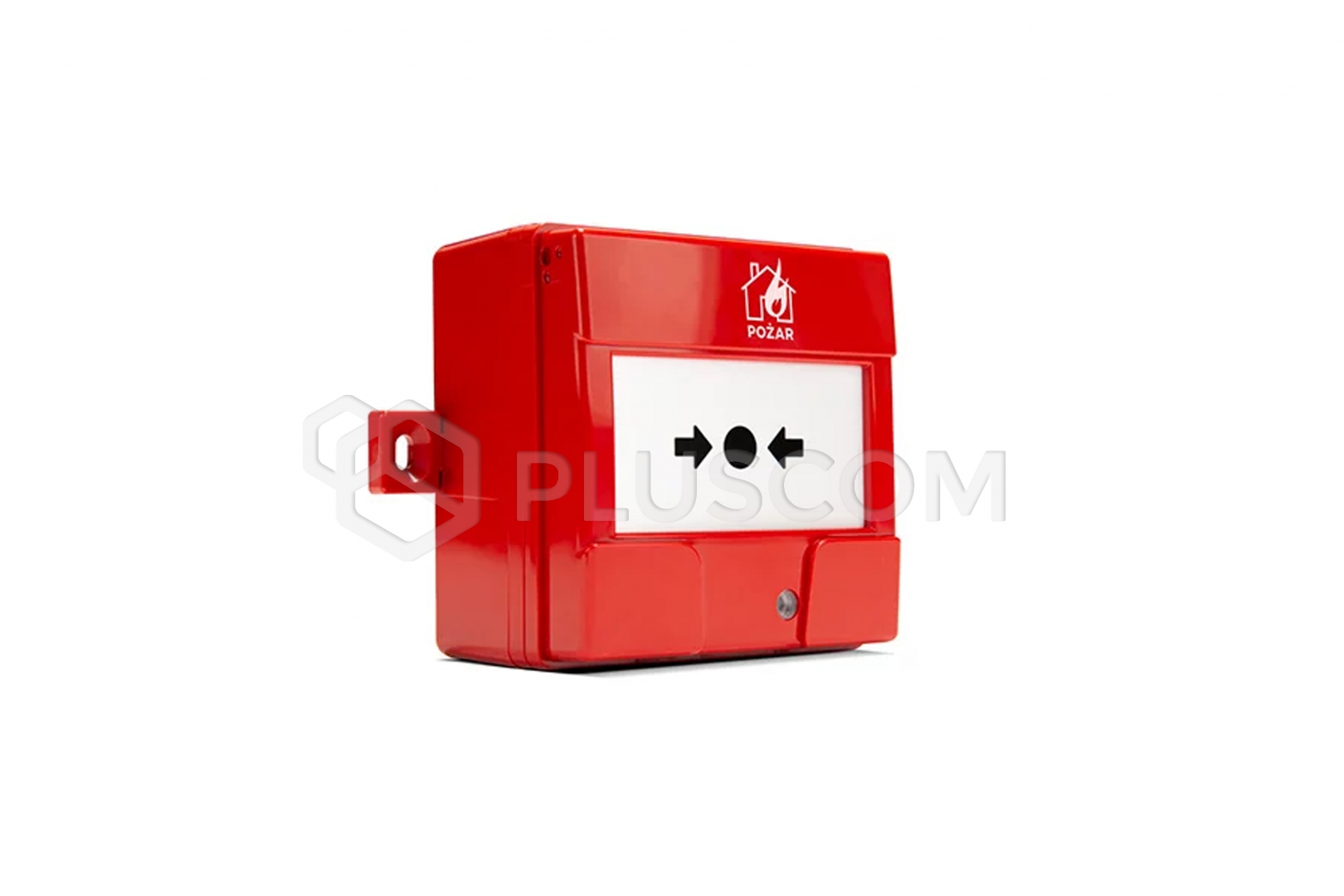

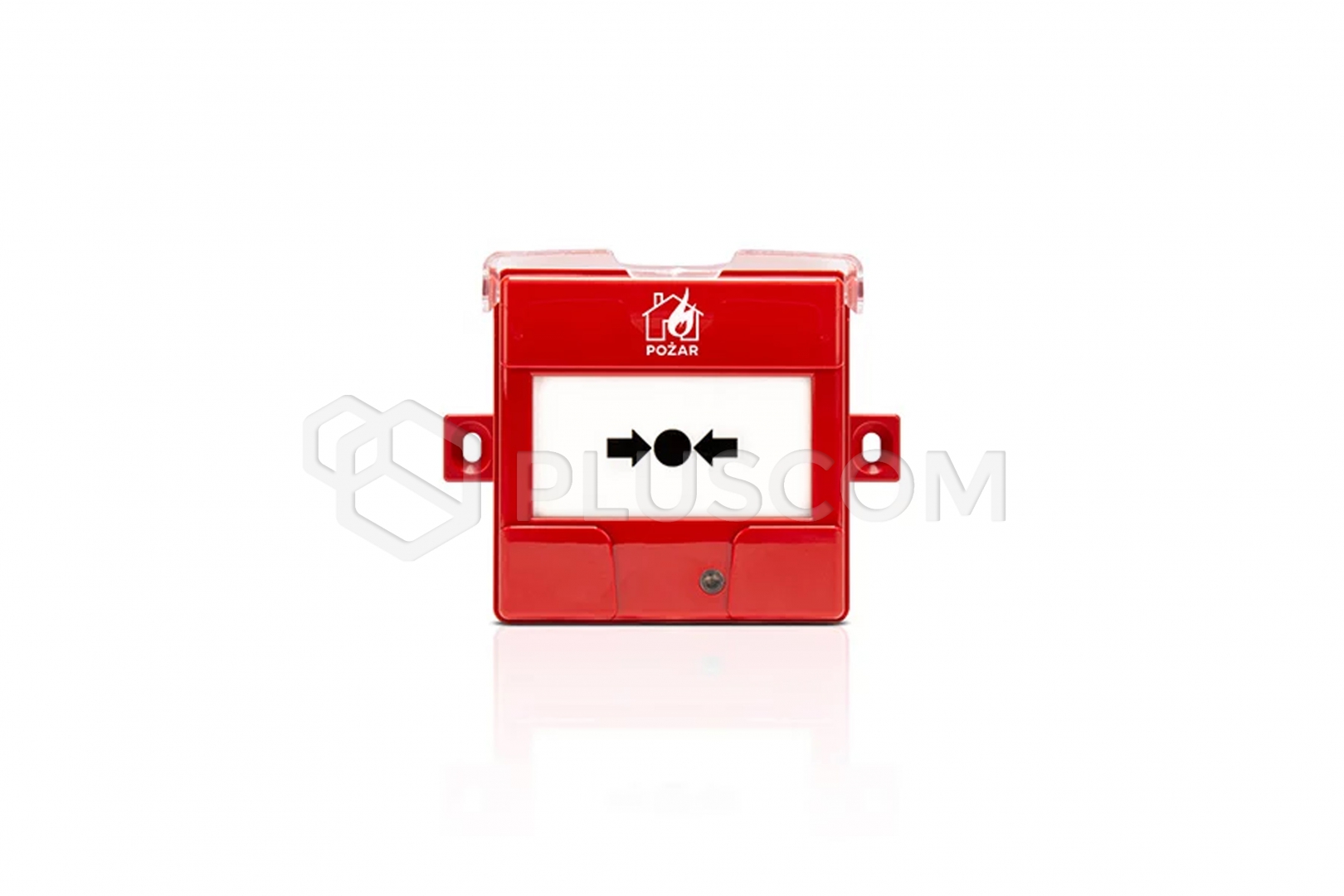

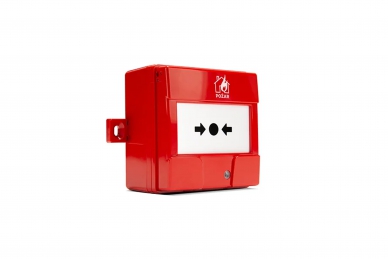

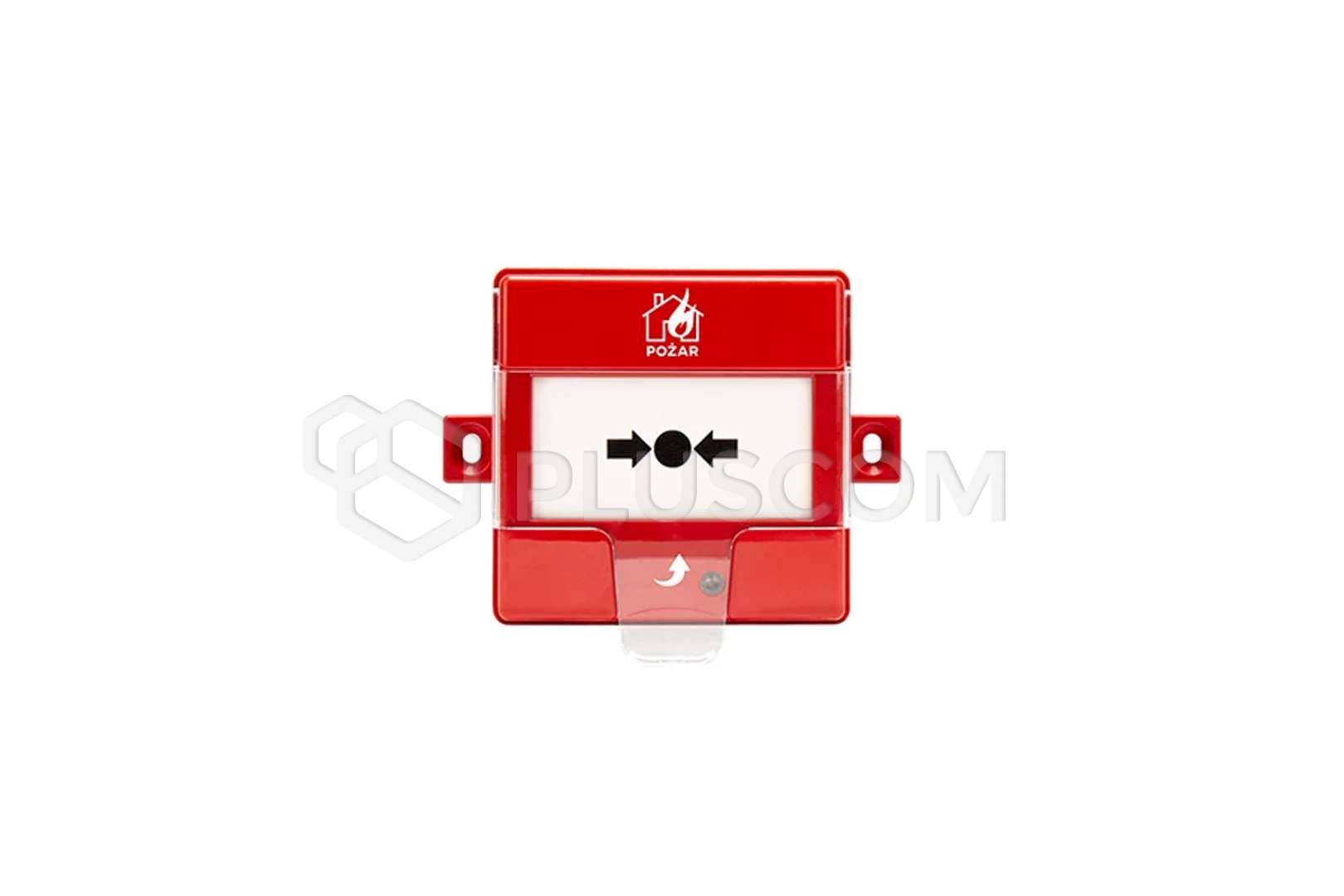

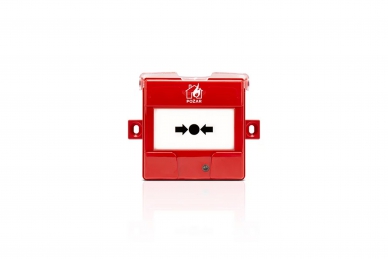

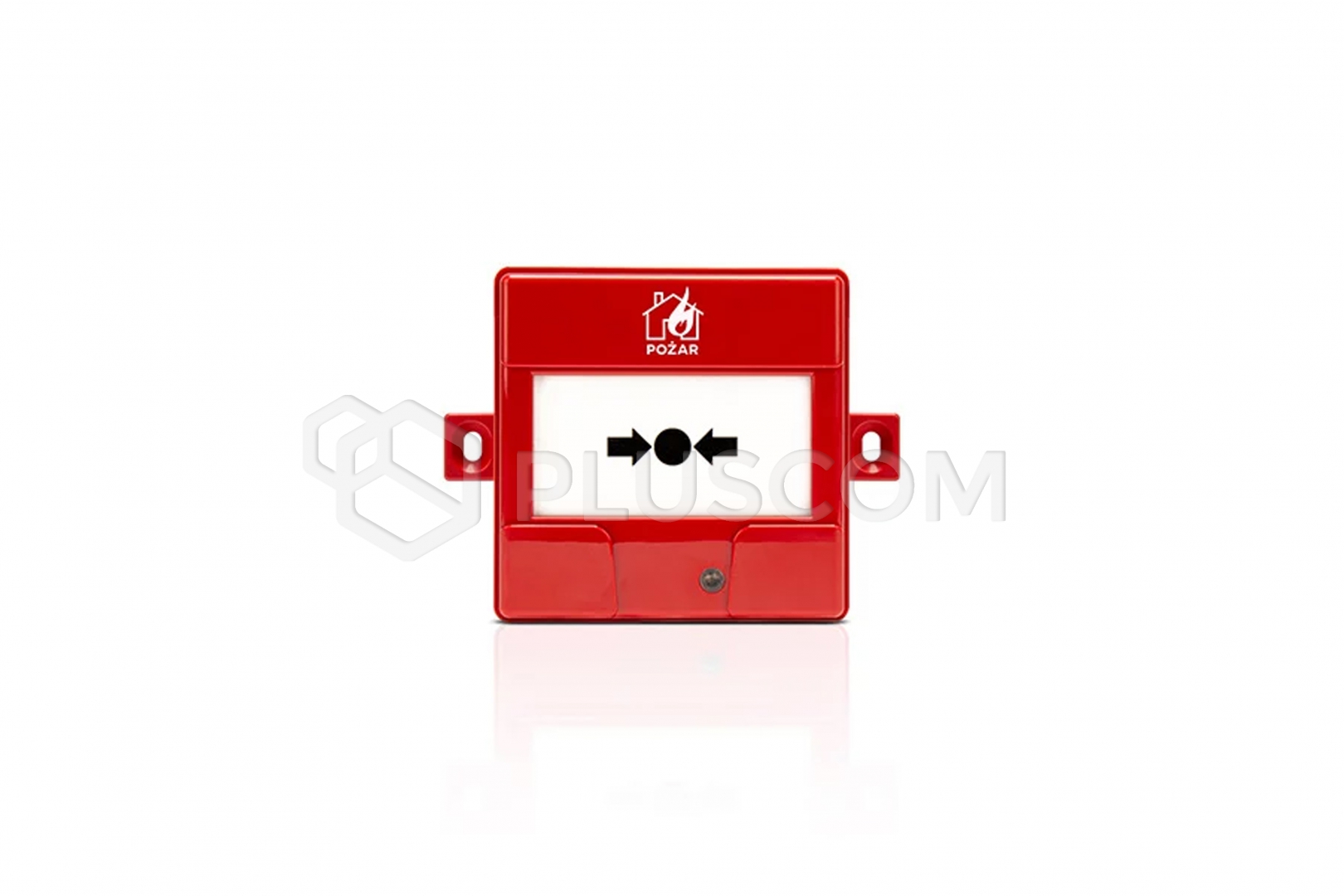

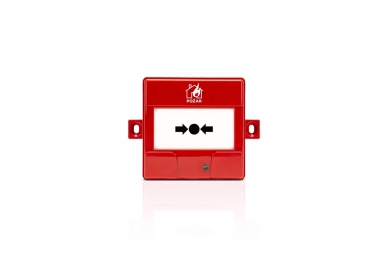

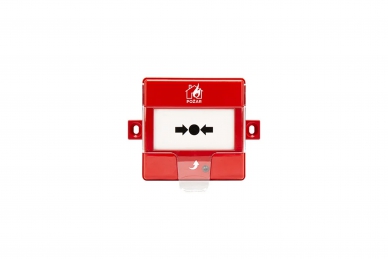

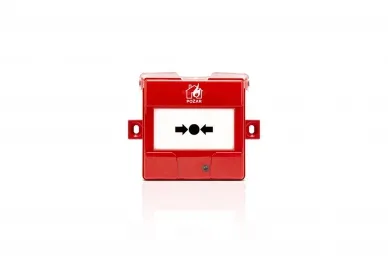

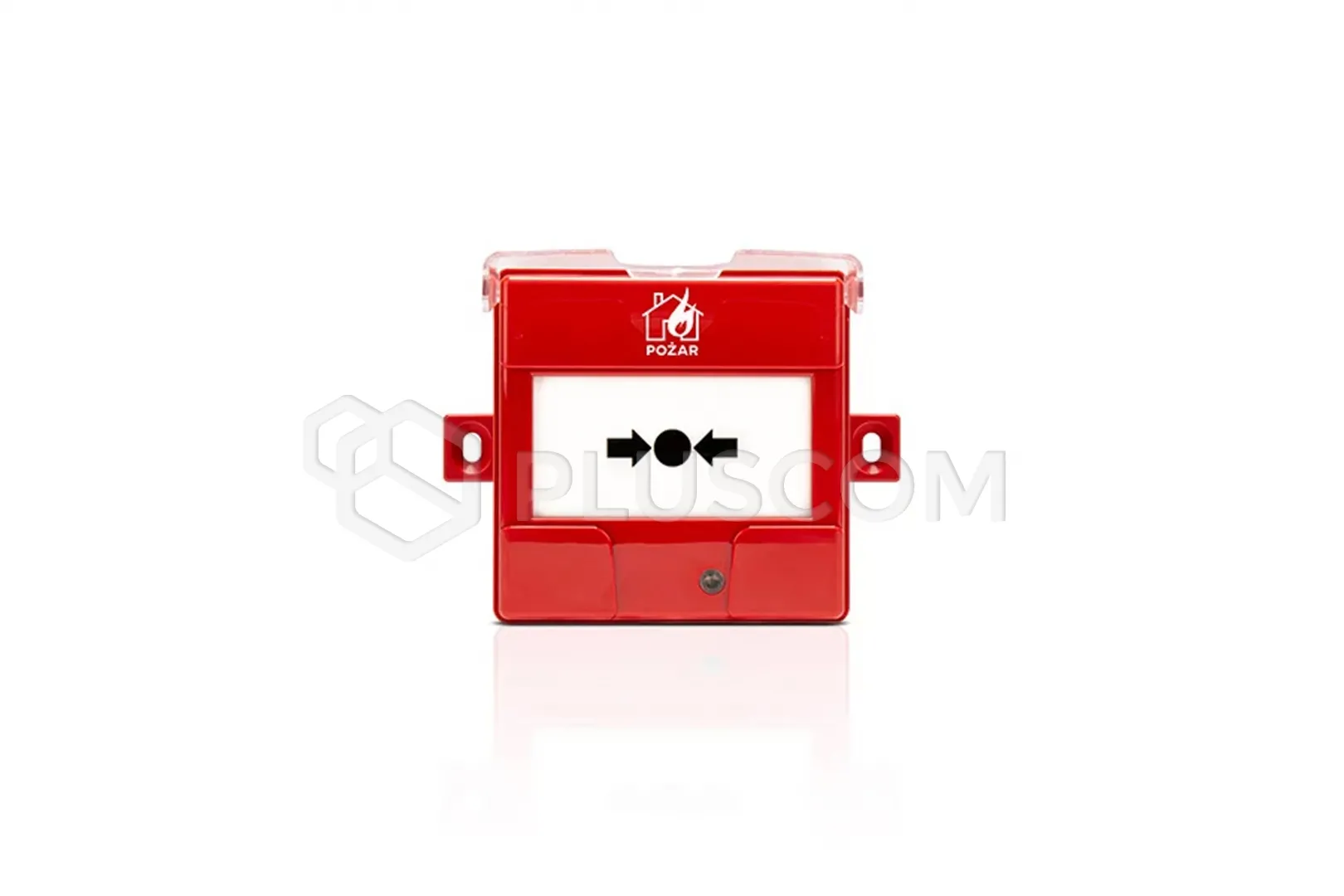

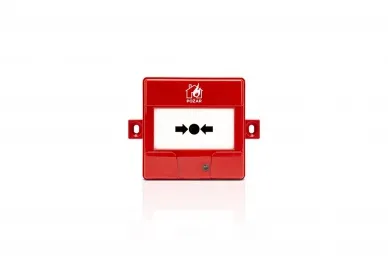

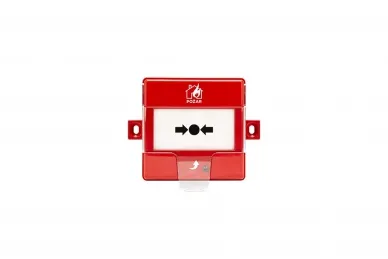

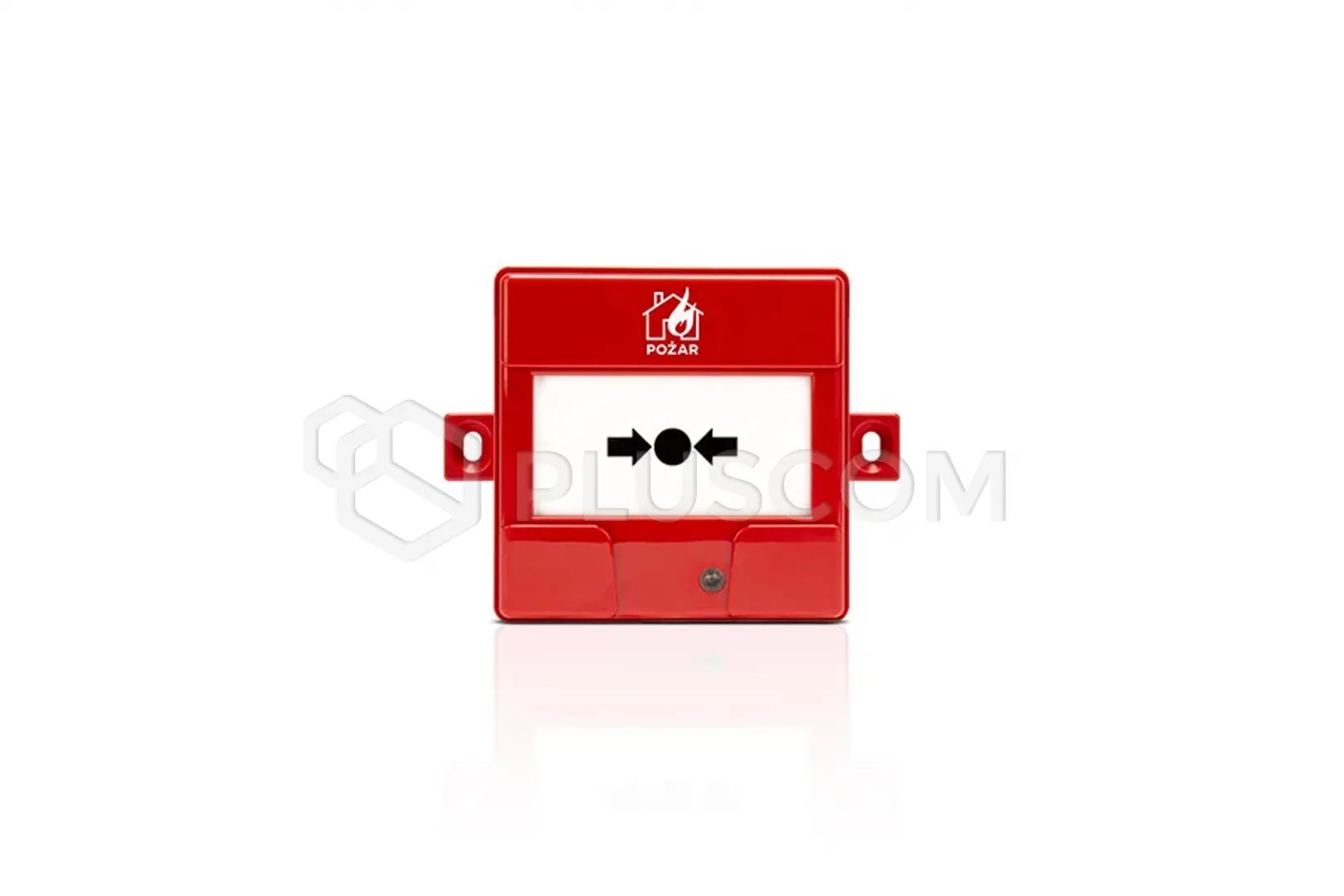

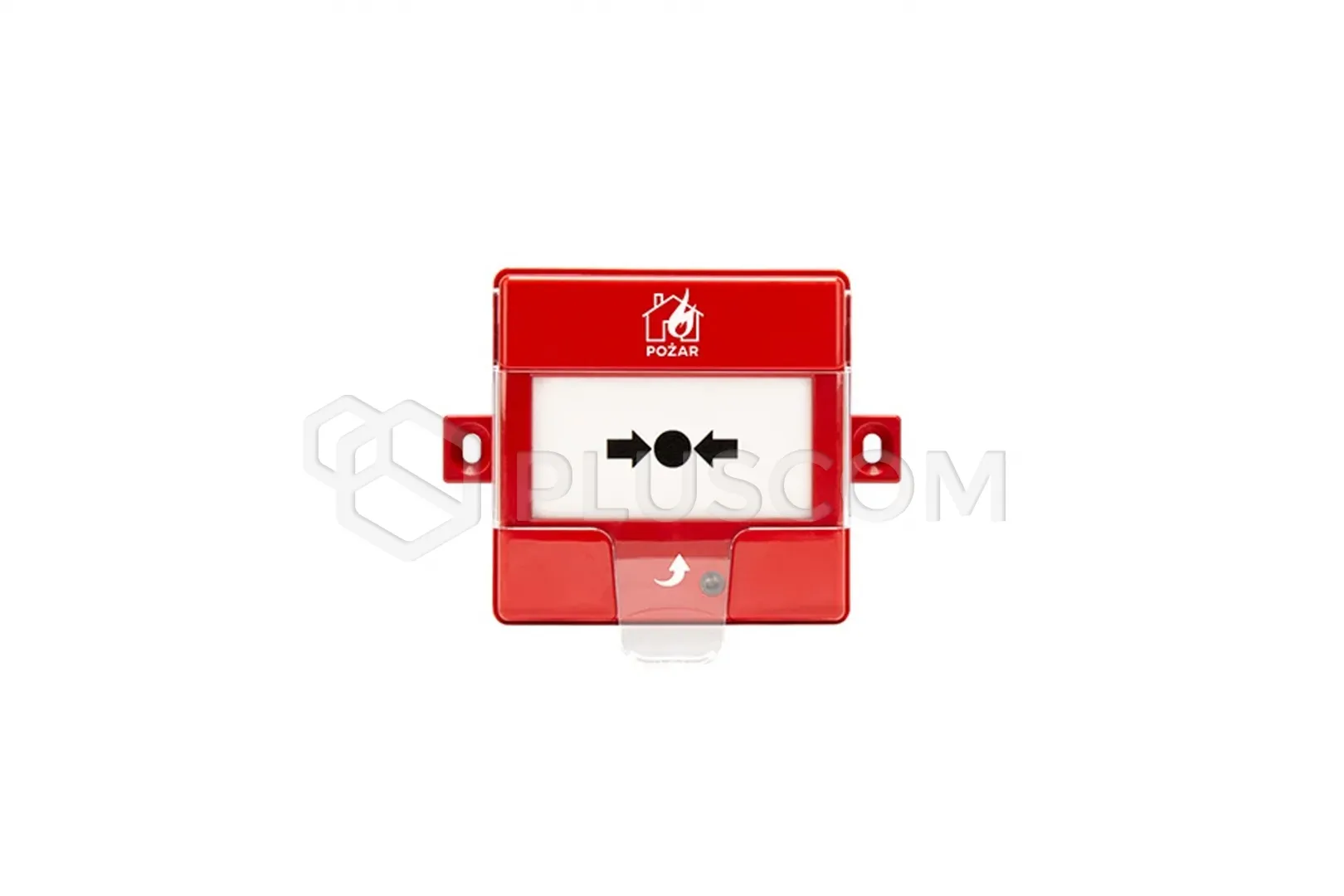

Satel ROP-401/PL Addressable fire call point, outdoor

85,18 EUR including 23.00% VAT
Product code: #43181
Manufacturer: Satel
  • For outdoor use
  • ROP-KEY-U key included
  • Reusable plastic lens
  • LED for optical signaling
  • Mounting box included
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACSP-402 Fire Alarm Control Panel Satel ROP-KEY-U Spare key for manual fire call points

Satel ROP-401/PL Addressable Manual Fire Call Point, Outdoor


The ROP-401 outdoor call point allows you to manually trigger an alarm when a fire is detected. The device is designed to operate in the detection line of the ACSP-402 addressable fire alarm control panel.

FEATURES:
  • Reusable plastic window
  • ROP-KEY-U key (included) enables:
  • Testing
  • Resetting
  • LED for visual indication
  • Double-sided short circuit isolator
  • Loop powered
  • Mounting box included
  • Optional cover to prevent accidental activation: ROP-FLAP

TECHNICAL DATA:

  • Power supply voltage: 18-26 V DC
  • Current consumption in quiescent mode: 170 µA
  • Current consumption in alarm mode: 450 µA
  • Operating temperature range: -25°C ~ +70°C
  • Maximum humidity: 95%
  • Ingress protection: IP66
  • Dimensions without brackets: 87 x 87 x 53 mm
  • Dimensions with brackets: 117 x 87 x 53 mm
  • Weight: 180 g
