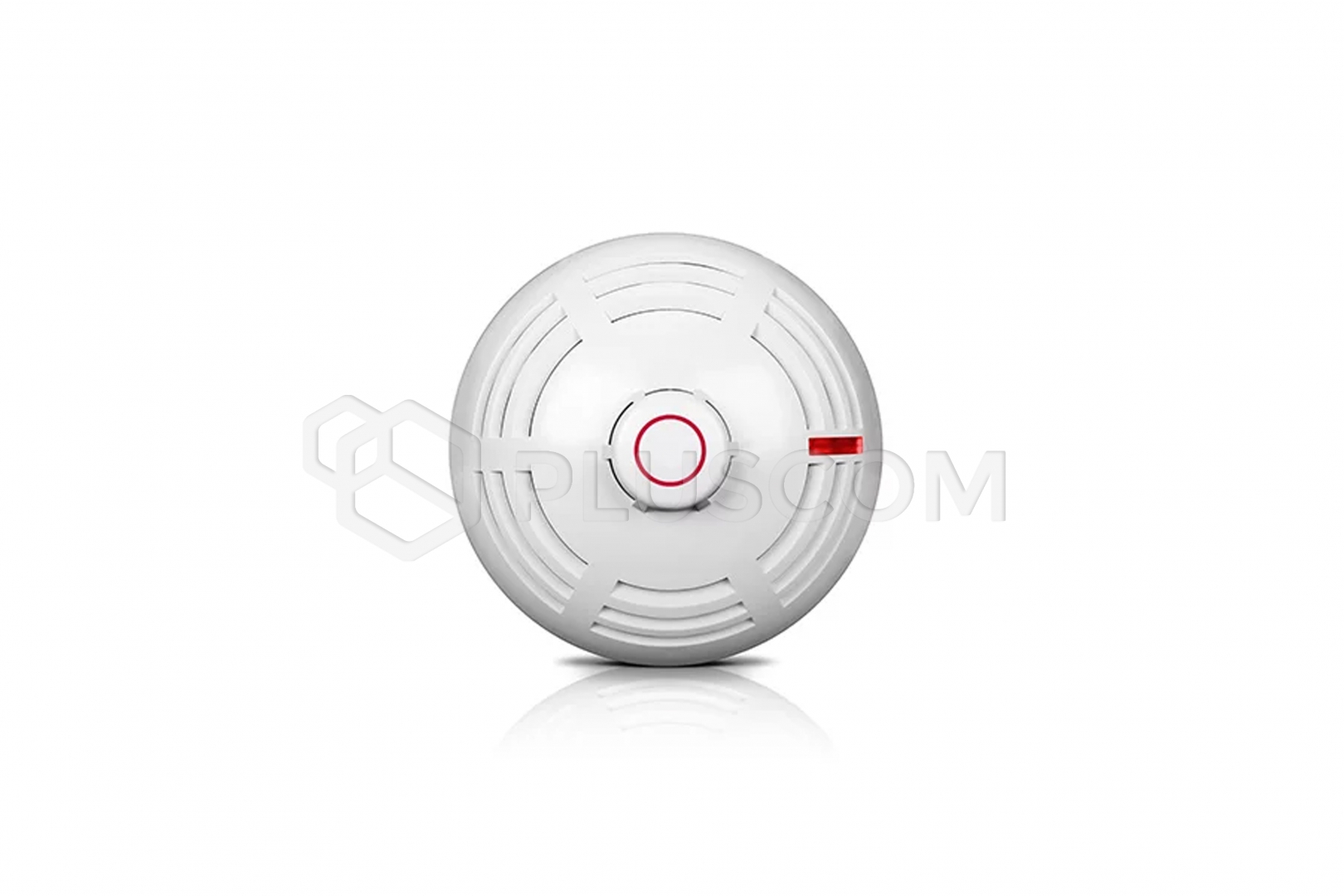

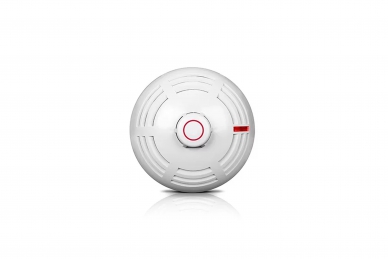

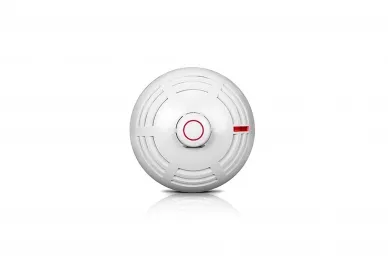

Satel DCP-400 Addressable fixed temperature / rate-of-rise heat detector

57,92 EUR including 23.00% VAT
Product code: #43177
Manufacturer: Satel
  • Thermal sensor
  • Power supply: 10.5-26V DC
  • Built-in input and output short circuit isolators
  • Easy installation of the detector in the DB-400 socket
  • Possibility of connecting the WZ-110 activation indicator

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel WZ-110 Remote alarm indicator Satel ACSP-402 Fire Alarm Control Panel

Satel DCP-400 Addressable fixed temperature / rate-of-rise heat detector


The DCP-400 detector can detect the early stages of fire development when there is a temperature rise. It is designed to be used in conjunction with the ACSP-402 fire alarm control panel.

FEATURES:
  • heat sensor
  • LED indicator
  • double-sided short-circuit isolator
  • power supply from the detection line
  • installation on the DB-400 base by SATEL (sold separately)
  • ability to connect the WZ-110 remote indicator
  • dust cover included

TECHNICAL DATA:

  • Power supply voltage: 18-26 V DC
  • Current consumption in quiescent mode: 450 µA
  • Current consumption in alarm mode: 0.6 mA
  • Class according to EN 54-5 (thermal sensor): A1R
  • Minimum static alarm temperature: 54 °C
  • Maximum static alarm temperature: 65 °C
  • Maximum humidity: 93±3%
  • Housing dimensions: ø108 x 54 mm
  • Weight: 94 g

Download
Datasheet 0.09 MB
CE Declaration 0.11 MB
User manual 0.36 MB
