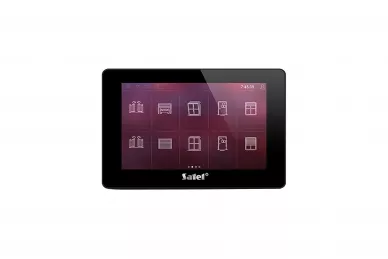

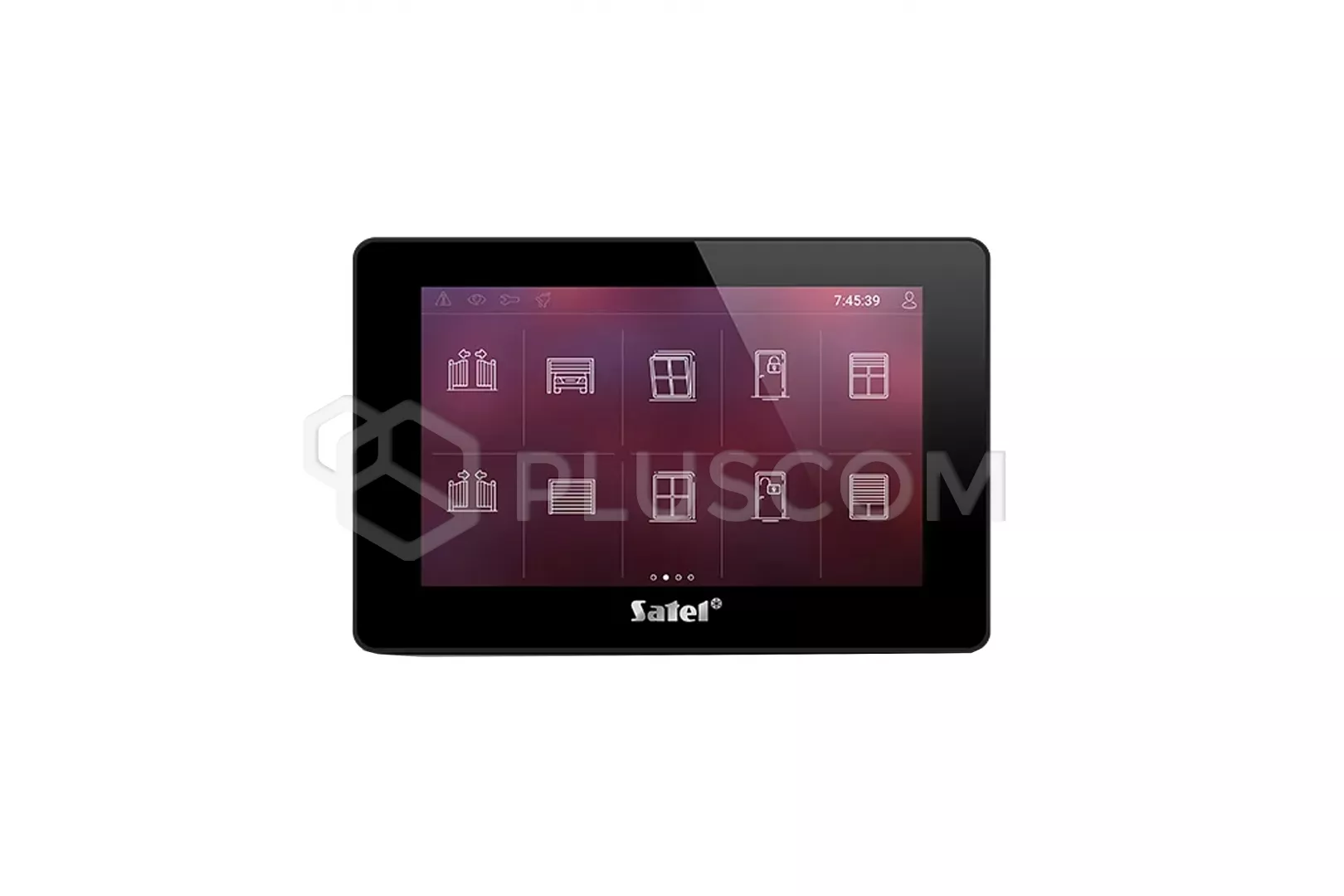

Satel INT-TSH2R-B Manipulator with 7'' touch screen - black
The
INT-TSH2-B keypad is used to operate and program the INTEGRA, INTEGRA Plus,
VERSA and PERFECTA 64 M control panels. It is an ideal solution for people who
expect convenience in everyday control of the alarm system and building
automation elements, including the KNX system. The combination of a large
display and universal design makes this device fit perfectly into both modern
and traditionally decorated interiors.
The multi-screen and multi-level interface allows you to build the menu in such
a way that it remains transparent, which allows you to easily find the
functions you are looking for. Thanks to gesture support, navigating the
interface is smooth and, above all, intuitive.
INT-TSH2R-B has a built-in reader thanks to which you can...
convenient way to control INTEGRA system functions, without the need to use a
password
the device has as many as 24 screens, and on each of them you can group icons,
for example by topic or in relation to a specific room. The appearance of icons
can be freely adjusted to the function assigned to them.
Features:
- 7'' capacitive glass touchscreen with gesture support
- 1024x600 resolution, displaying 16.7 million colors (true color)
- multi-level graphical interface adapted to user needs
- up to 24 user screens
- ability to configure and adapt interface screens to user needs
- over 20 ready-made graphic motifs with the possibility of creating your
own composition
- widgets enabling operation of the keypad, control of the alarm system and
automation devices connected to the alarm control panel
- system control using MAKRO commands activating a number of various
functions in the control panel (including building automation)
- possibility of quickly triggering the ATTACK, FIRE, HELP alarms
- cooperation with INTEGRA and INTEGRA Plus control panels (INTEGRA
Firmware 1.20 or newer), VERSA (VERSA Firmware 1.10 or newer) and PERFECTA 64
M
- screen saver with the ability to display the clock, date, states of
system elements (zones, zones, outputs), temperatures (INTEGRA, INTEGRA Plus,
PERFECTA 64 M)
- possibility to display a slide show (photo frame function)
- indicators of the current system status located on the status bar
- 2 programmable wired zones (only supported by INTEGRA and INTEGRA Plus
control panels)
-
- support for NO and NC type detectors as well as roller shutter and
vibration detectors;
- support for EOL, 2EOL and 3EOL configurations (3EOL in the case of
cooperation with the INTEGRA Plus control panel);
- programming the values of parametric resistors
- built-in loudspeaker for sound signaling
- possibility to adjust the signaling volume
- possibility to adjust the backlight with "day/night"
division
- built-in microSD memory card reader (storing photos for a photo frame,
additional screen backgrounds, sounds for input violations - gongs)
- tamper contact reacting to opening the housing and removing it from the
wall
- GRADE 3
The new generation processor used in the manipulator is over 2 times
faster compared to previous models. All components have been selected and
optimized to ensure effective operation of even complex systems, including both
facility protection and automation functions.
TECHNICAL DATA:
- Supply voltage: 12 V DC
- Standby current consumption: 350 mA
- Maximum current consumption: 450 mA
- Supported memory cards: microSD, micro SDHC
- Maximum humidity: 93±3%
- Environmental class according to EN50130-5: II
- Security level according to EN 50131: Grade 3
- Operating temperature range: -10°C…+55°C
- Dimensions: 196 x 129 x 22 mm
- Weight: 400 g
