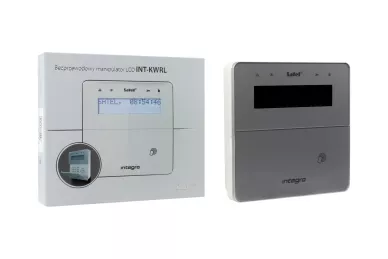

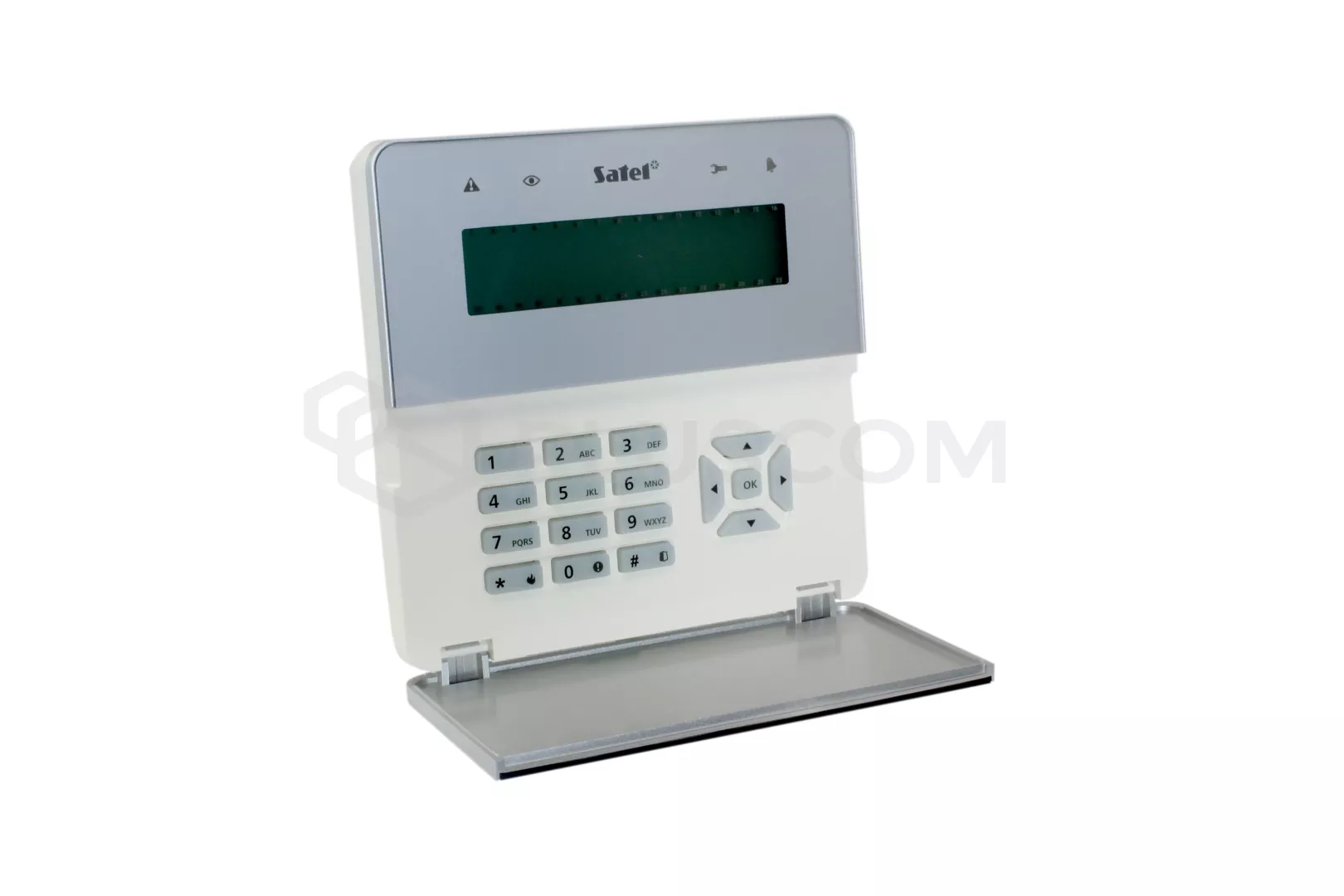

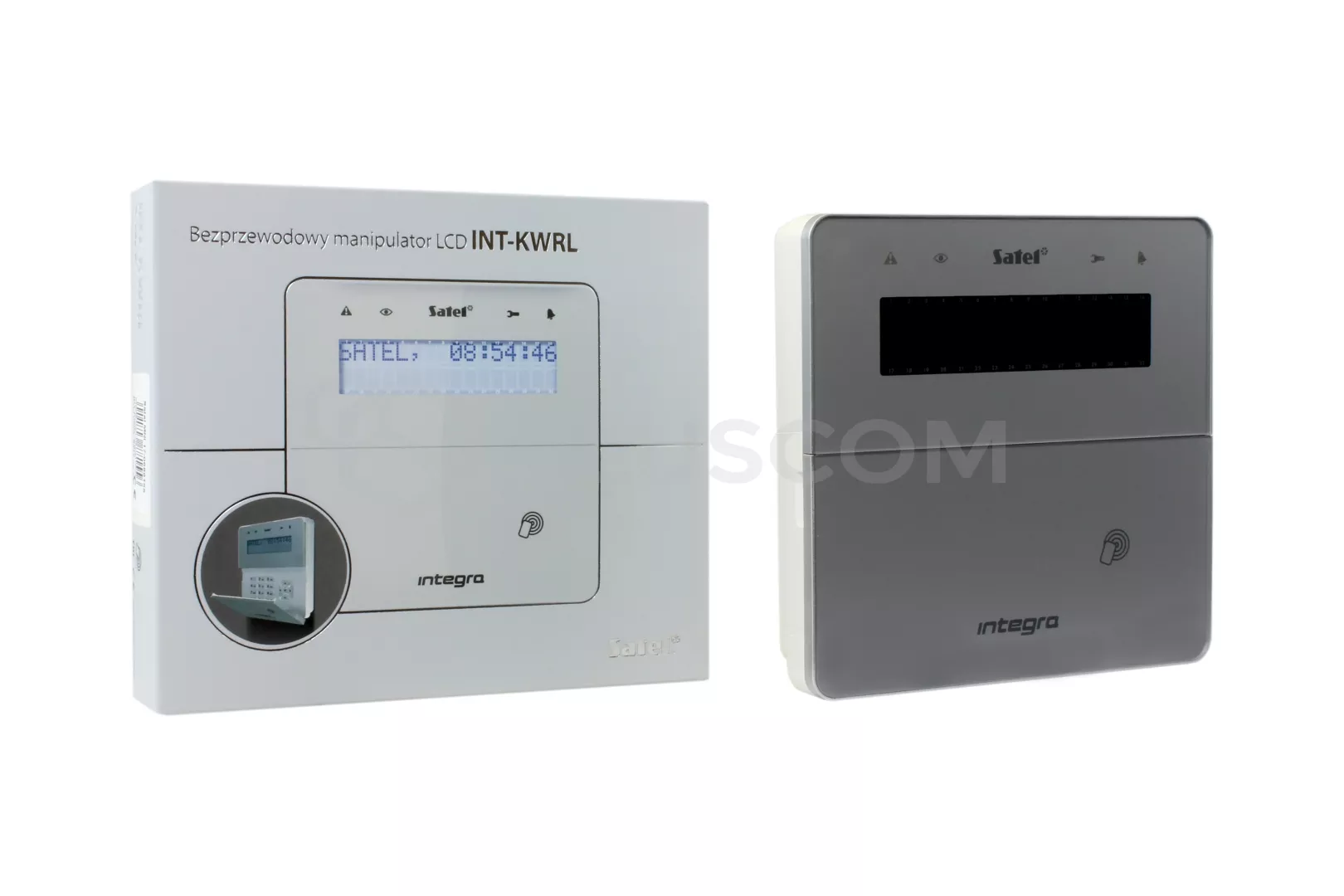

Satel INT-KWRL-SSW Wireless LCD keypad with card reader

Satel INT-KWRL-SSW Wireless LCD keypad with card reader, silver

The INT-KWRL wireless keypad enables operation and programming of the INTEGRA and INTEGRA Plus control panels with firmware version 1.17 (or newer).
The keypad can work in two modes:

• active mode - started by pressing any key or automatically when an alarm occurs or an entry delay, an exit delay or an auto-arming delay begins
• inactive mode - is entered after 20 seconds since the last key press or after preset time, if the active mode was started automatically

The built-in proximity card reader enables the system to be operated by using proximity cards (any 125 kHz passive transponder in the form of a card, tag, etc.).

Features:

• Two-way encrypted radio communication in the 868 MHz frequency band
• Display 2 x 16 characters with backlight
• LEDs indicating the state of system
• 12 keys, bearing designations according to telephone standard and intended for entering data
• 4 additional keys for menu navigation
• An extra key to confirm the data entered
• Backlit keys
• Built-in proximity card reader
• Built-in sounder
• Tamper contact reacting to the enclosure opening or detaching from the wall

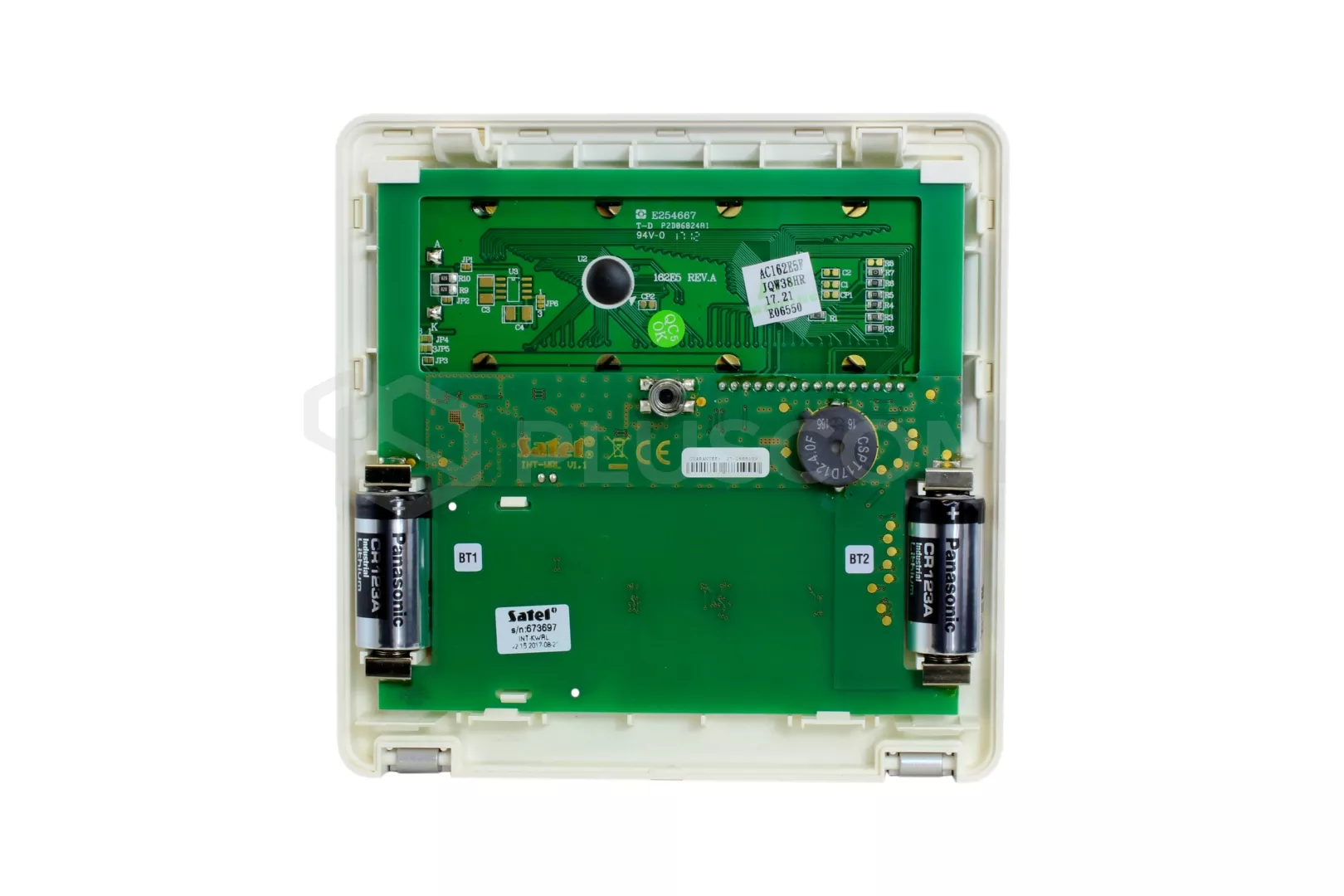

• Power supply: two CR123A 3 V batteries
