PU1/HV Relay module AWZ 514
The PU1/HV
(AWZ514) relay module is to be used in low-voltage installations. It is
intended for controlling and status indication in e.g. alarm or access control
systems. It may be used to control devices of high power consumption via OC
outputs of alarm systems. Moreover, it ensures galvanic isolation of signals,
power sources relating to the outputs of the module.

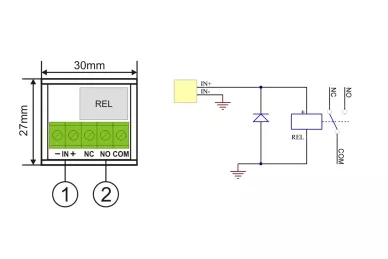

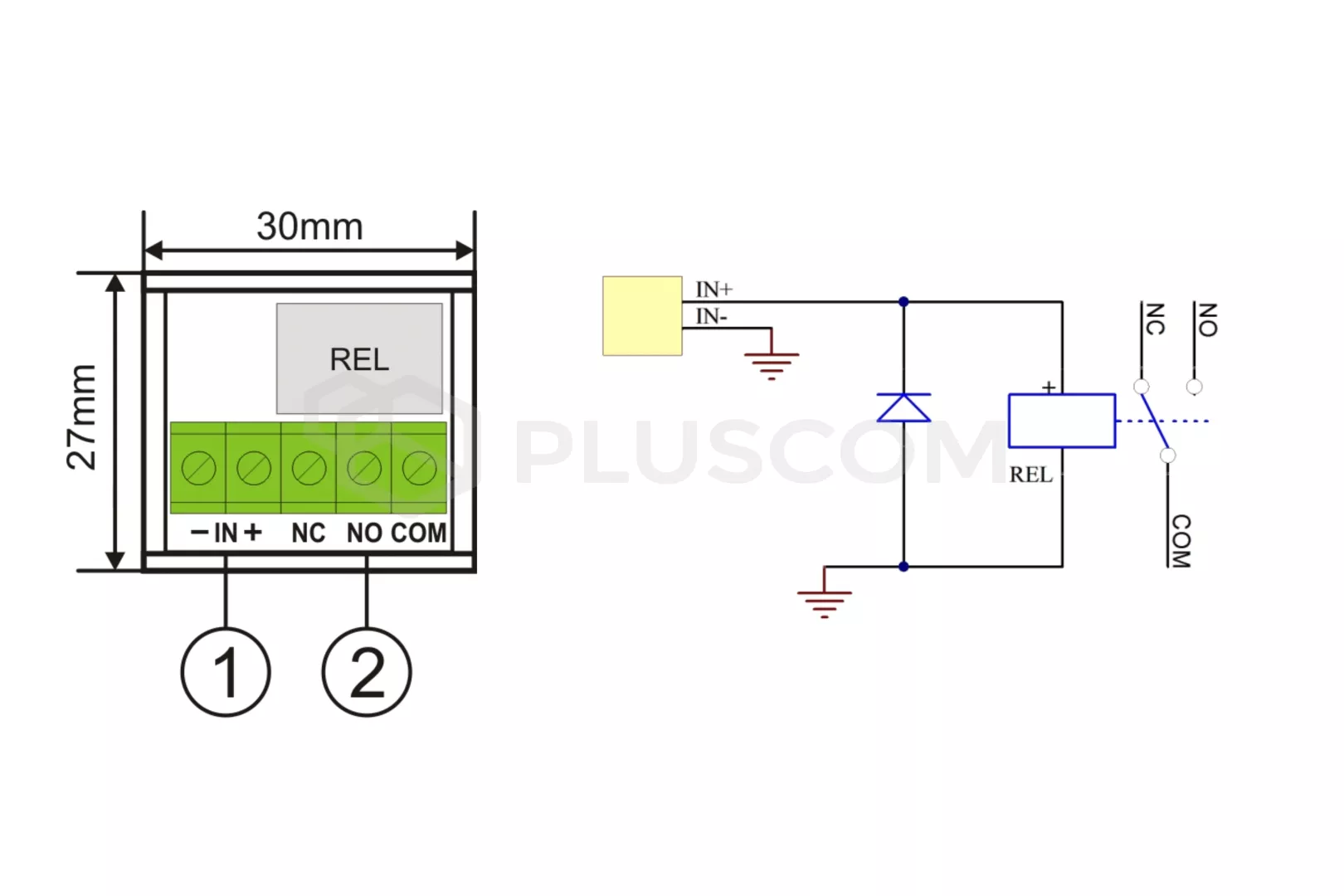

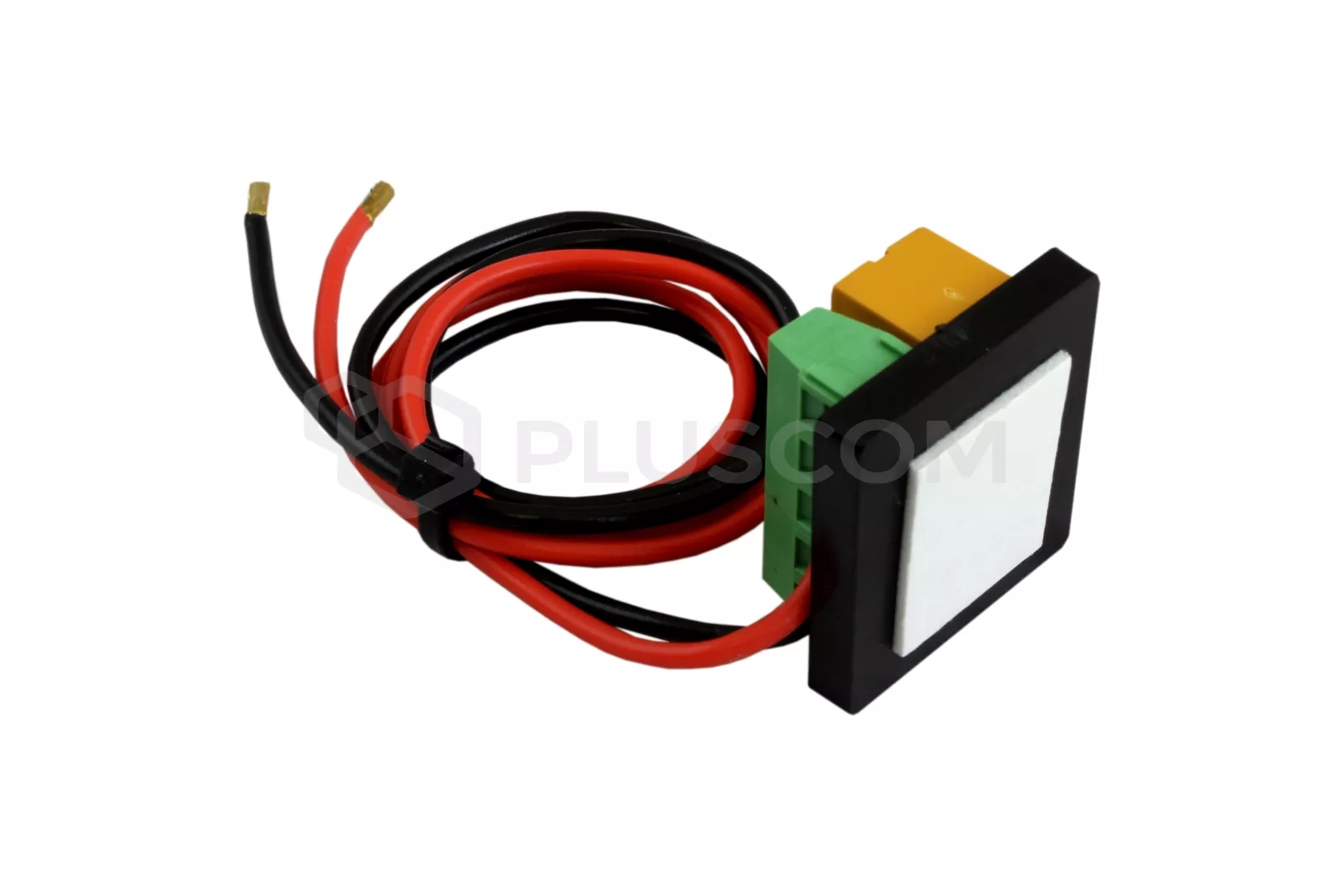

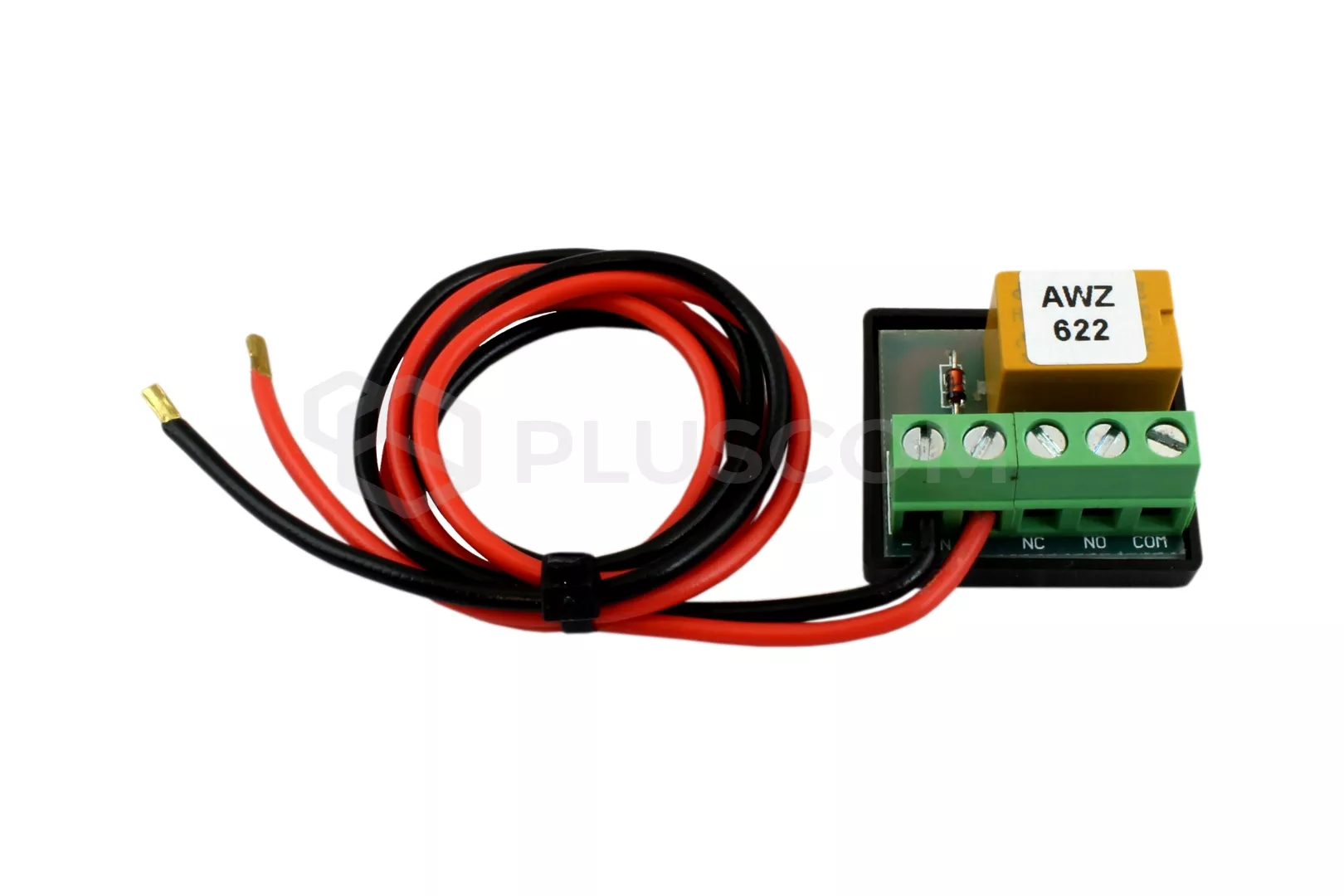

Relay module Pulsar AWZ 622
SPECIFICATIONS
Voltage of the relay’s coil 10÷16V DC/AC
Current of the relay’s coil 33mA@12VDC
Resistance of coil 360 OHM (-/+10%)
Power of coil 400mW
Number of relays 1
Voltage of the relay’s contacts 30VDC / 250VAC max.
Current of the relay’s contacts 6A max
Contacts of relay C/NC/NO (leads Φ2.05 mm: AWG 24-12)
ON/OFF time 15ms/8ms
Operating conditions 2nd environmental class, -10°C÷ 40°C
Enclosure open-frame design, IP00
Dimensions W=70, L=43, H=23 [mm, +/-2]
Net/gross weight 0,04 / 0,06 [kg]
Installation: installation tape or installation bolt x2
Declarations, warranty CE, 2 year from the production date
Notes leads on connections:Ø 0,41÷1,63 (AWG 26-14) Ø 0,51÷2,05 (AWG
24-12) - relay contacts
