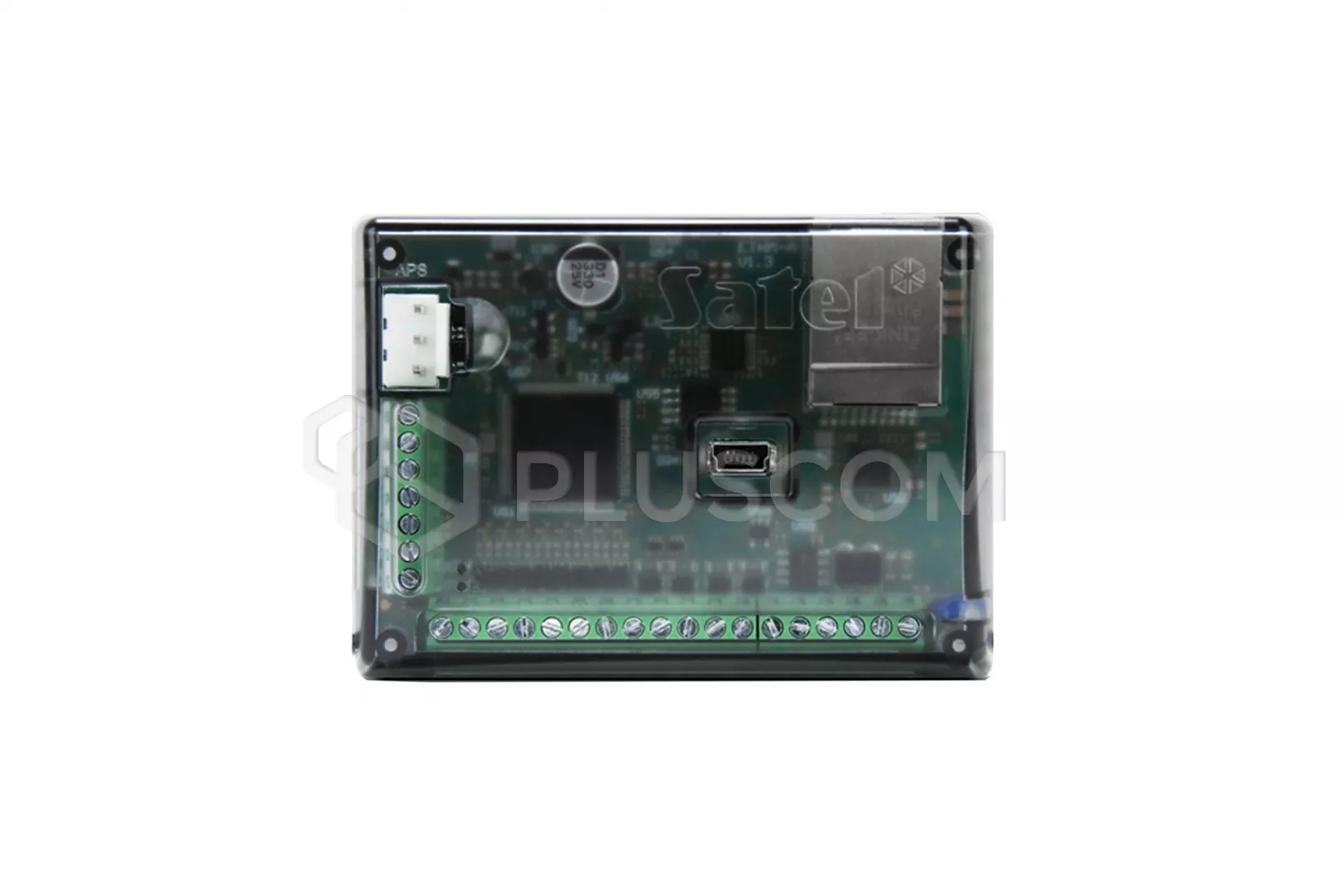

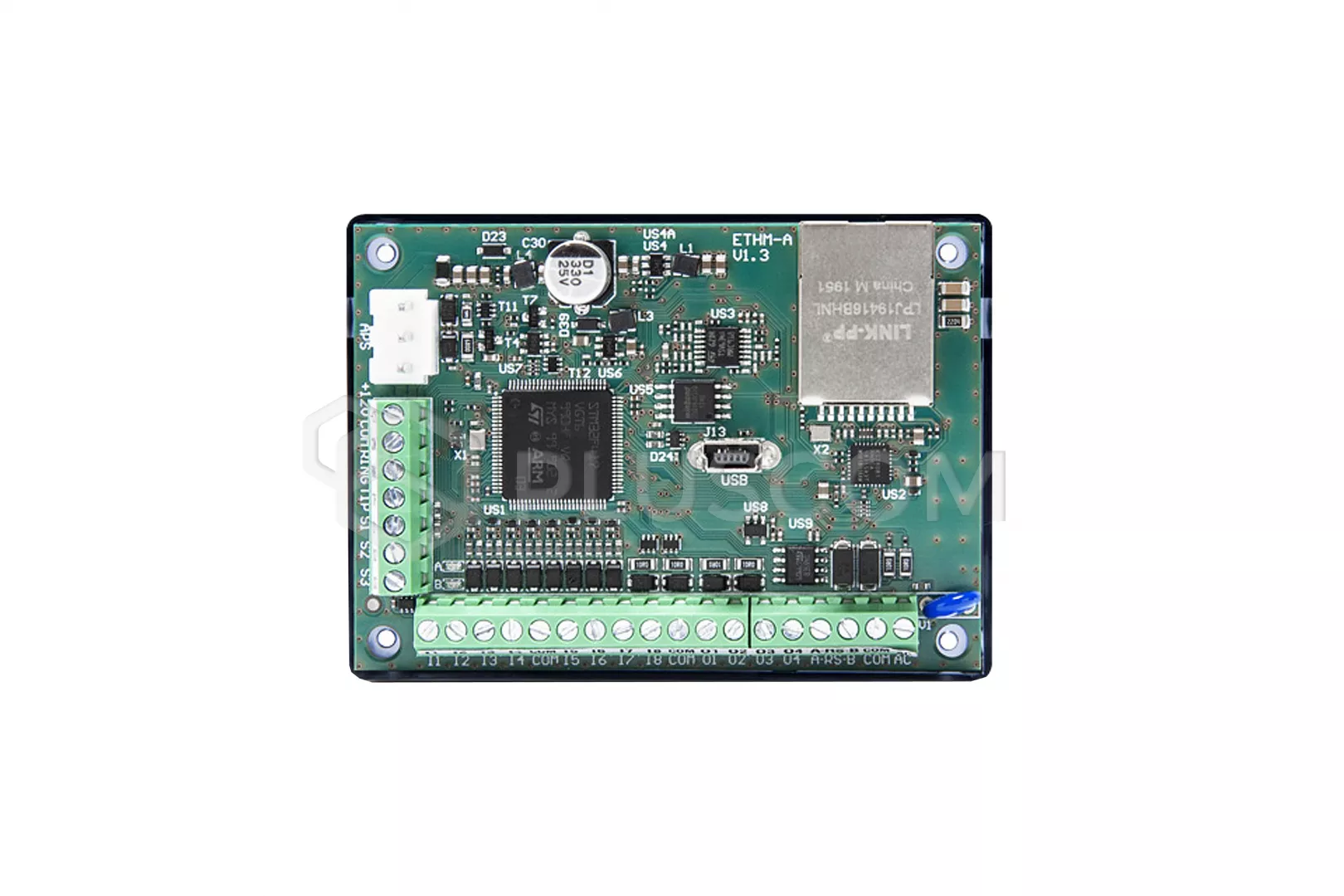

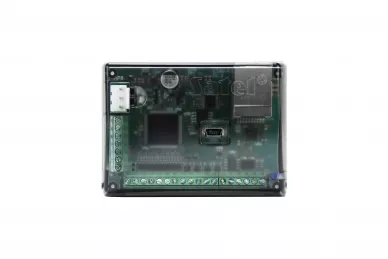

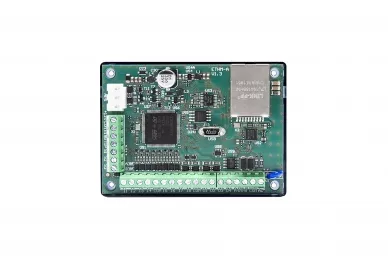

Satel ETHM-A Universal monitoring module

Satel ETHM-A Universal monitoring module

ETHM-A is a universal monitoring module which can operate autonomously, as part of an intruder alarm system or in automation systems. The module allows transmission of information via the Ethernet network.

In intruder alarm systems, the module can be used for event reporting, when connected to an alarm control panel via its dialler. ETHM-A can also be connected to a control panel using suitably configured control panel outputs connected to the module inputs.

The module can also be used to send PUSH notifications to mobile devices with the GX CONTROL app installed and via e-mail.
To program and configure the module, a PC with the GX Soft software installed is required. ETHM-A supports local connection (RSL-232 (TTL)) or remote connection (Ethernet). The ETHM-A firmware can be updated remotely using the UpServ software.

Properties:

• audio monitoring conversion (SIA/DTMF/pulse)
• messaging: PUSH/E-mail
• 8 programmable inputs (NO/NC/analogue)
• 1-Wire digital sensor bus (up to 8 detectors)
• configurable module response to exceeded programmed threshold values:
• • from analogue inputs
  • from 1-Wire sensors
• 4 OC type outputs controlled:
• • remotely via GX CONTROL
  • locally/remotely via GX Soft
  • remotely by IoT
  • locally using 8 module inputs
• support for open communication protocols:
• • MQTT
  • JSON
  • JSON/HTTP
• configuration of the module settings with GX Soft
• • locally via RS-232 (TTL)
  • remotely via Ethernet

If the module is to meet the requirements of the EN50131 standard for Grade 2, it should be mounted in an additional enclosure that will enable it to meet the tamper standard requirements.

TECHNICAL DATA:

• number of inputs: 8
• number of outputs (OC type): 4
• supply voltage: 12 V DC ± 15%
• standby current consumption: 60 mA
• maximum current consumption: 80 mA
• maximum allowable voltage on AC input: 25V AC
• outputs (OC type): 50 mA / 12 V DC
• environmental class according to EN50130-5: II
• operating temperature range: -10 ... + 55 ° C
• case dimensions: 83 x 60 x 26 mm
• weight: 76 g
