Satel ART-200 Wireless thermostatic head

59,64 EUR including 19.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #27478
Manufacturer: Satel
  • built-in temperature sensor
  • wireless communication with the ABAX 2 controller
  • 2 x LR6 AA batteries
  • 3 operating modes
  • fast heating function (Boost Heat)
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACU-280 ABAX 2 Wireless system controller ARU-200 radio signal retransmitter Satel INT-TSI-W Touchscreen controller Satel INT-TSI-B Touchscreen controller

Satel ART-200 Wireless thermostatic head


Satel ART-200 is a wireless thermostatic head for manual and remote control, operating as part of the ABAX 2 i two-way wireless system is supported by:
  • ACU-220 or ACU-280 controller with firmware version 6.05 or newer
  • ARU-200 repeater
The head is not supported by the ACU-220 / ACU-280 controller connected to the VERSA series control panel.

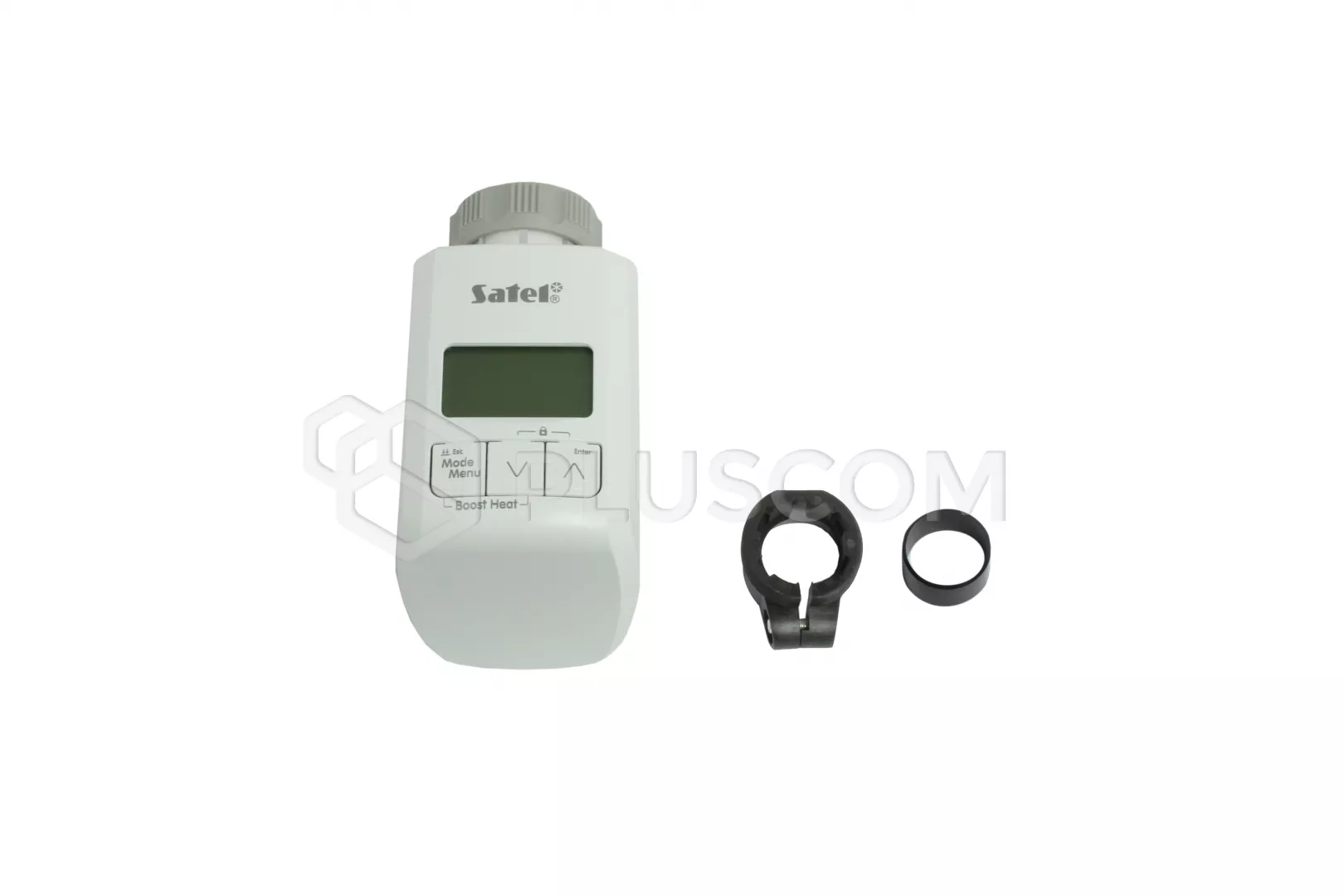

The head is powered by two LR6 AA batteries and can be mounted on valves with M30x1.5 mm thread. An adapter is attached to the head can also be mounted on a Danfoss RA valve.

The most important features of the ART-200:
  • adjustable temperature from 5 °C to 30 °C
  • 3 head modes:
    • comfort temperature
    • economy temperature
    • manual setting of valve position / temperature
  • external (ABAX 2 system temperature sensor)
  • remote switching of the head to "comfort temperature" or "economic temperature"
  • remote temperature setting for "comfort temperature" and modes "economic temperature"
  • choose the temperature sensor to use:
    • built-in
    • external (ABAX 2 system temperature sensor)
  • Boost Heat
  • valve descaling function
  • open window detection
  • Child Lock
  • view of the head status
  • LCD display for easy operation and configuration
  • battery indicator
  • encrypted two-way radio communication in the 868 frequency band MHz (AES standard)
  • diversification of transmission channels - 4 channels enabling automatic choose the one that will allow transmission without interference with other signals in the 868 MHz frequency band
  • remote device firmware update
  • "ECO" option to extend battery life
  • battery check
TECHNICAL DATA:
  • Operating frequency band : 868.0MHz ÷ 868.6MHz
  • Radio communication range (open area): up to 1000 m
  • Batteries: 2 x 1.5V LR6 AA
  • Expected battery life: up to 2 years
  • Temperature measurement in the range: -10°C...+50°C
  • Temperature measurement accuracy: ±0.1°C
  • Temperature regulation in the range: 5°C...30°C
  • Temperature control accuracy: ±0.5°C
  • Standby current consumption: 98 µA
  • Maximum current consumption: 80mA
  • Operating temperature range: -10°C...+50°C
  • Device dimensions: 55 x 102 x 61 mm
  • Weight: 136g
