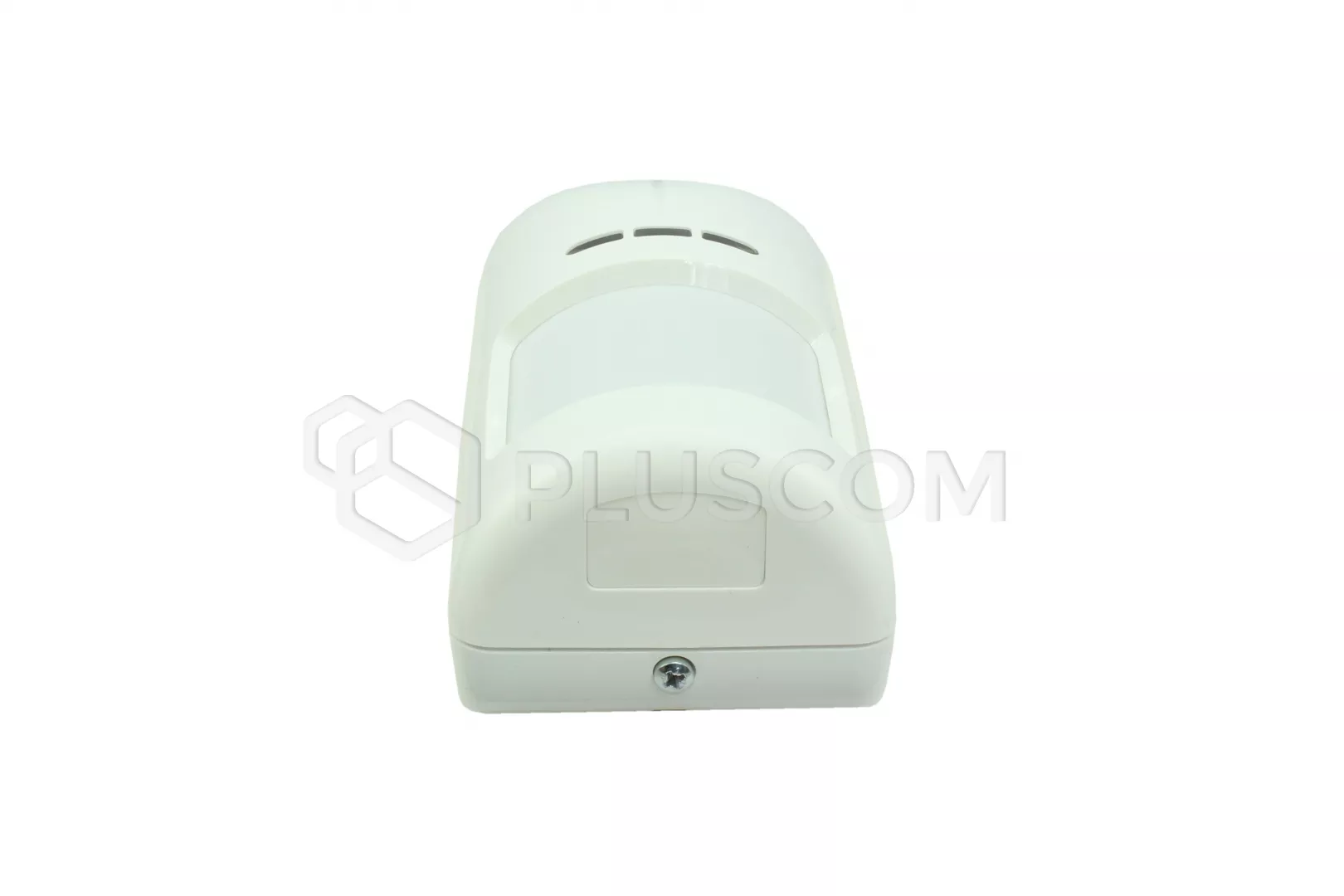

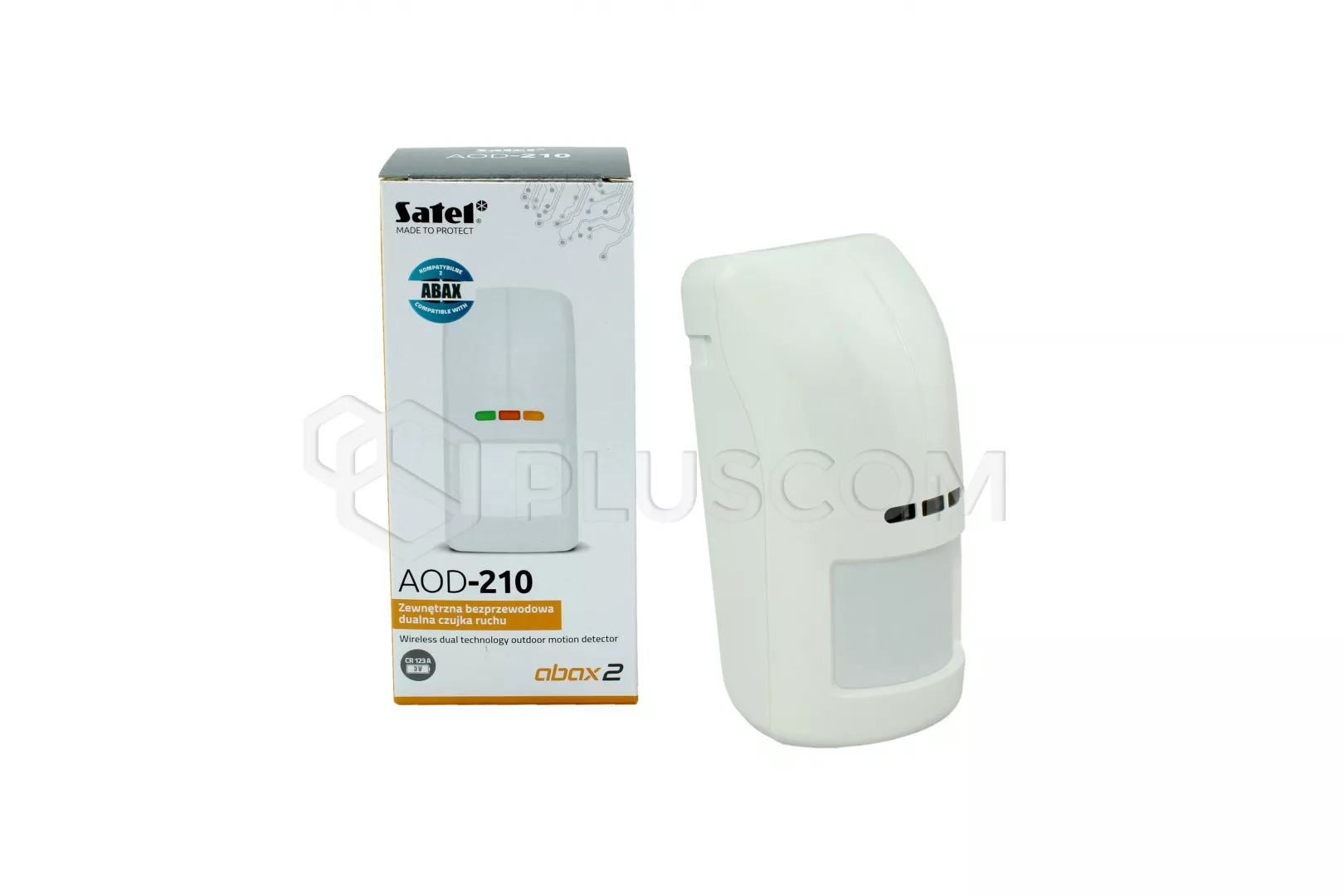

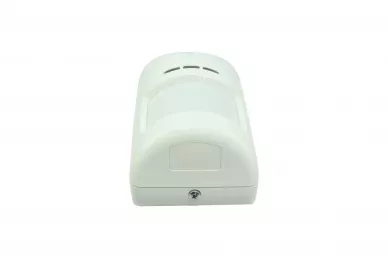

Satel AOD-210 Wireless outdoor dual motion detector ABAX/ABAX 2 - white
Wireless PIR + MW motion detector for operation in difficult or changing
conditions environmental. It is suitable for installation outside and inside
buildings, where specific environmental conditions prevail (eg halls). For
communication with the control panel the detector uses the ABAX 2 wireless
system, but it can also work in classic ABAX wireless system. The power source
is a lithium battery CR123A on which the detector can work up to 2 years and
the ECO mode available in the ABAX 2 extends the detector's working time by
up to four times.
Satel AOD-210 Outdoor wireless dual technology motion detector PIR MW
The detector has been designed to work in difficult conditions atmospheric such
as rain, snow, sunshine and gusts of wind, it took place smoothly. PIR + MW
dual technology with advanced digital signal processing and dynamic temperature
compensation, makes the detector very effectively detects movement. In
addition, the AOD-210 detector software it was designed so that the presence of
small pets or accidental also did not trigger false alarms.
A big advantage of the AOD-210 is the built-in temperature and dusk sensor
(from sensitivity adjustment). Thanks to them, we can use the detector in
systems alarms with home automation, eg to control lighting around the house.
The advantage of the twilight sensor is the built-in time delay, thanks to
which it does not respond to short-term changes in the intensity of light.
PARAMETERS AND FEATURES
- range of radio communication in the open area:
- in ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with
ACU-280)
- in ABAX: up to 500 m
- two detection paths: PIR (double pyroelement) and microwave
- creep zone control
- high immunity to false alarms
- advanced digital signal processing
- dynamic compensation of temperature changes
- built-in temperature sensor (temperature measurement from -40°C to
+55°C)
- built-in dusk sensor
- independently adjustable sensitivity of PIR and MW paths and dusk
sensor
- remote configuration and updating of the firmware
- compatible with:
- ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 radio
signal repeater
- ABAX system controllers (ACU-120 and ACU-270), INTEGRA 128-WRL
control panel and ARU-100 radio signal repeater
- opcja ignorowania przez czujką małych zwierząt (do 20kg)
- "ECO" option for extending battery life (ABAX 2 only)
- splash-proof, weather-resistant polycarbonate enclosure with IP54
protection rating

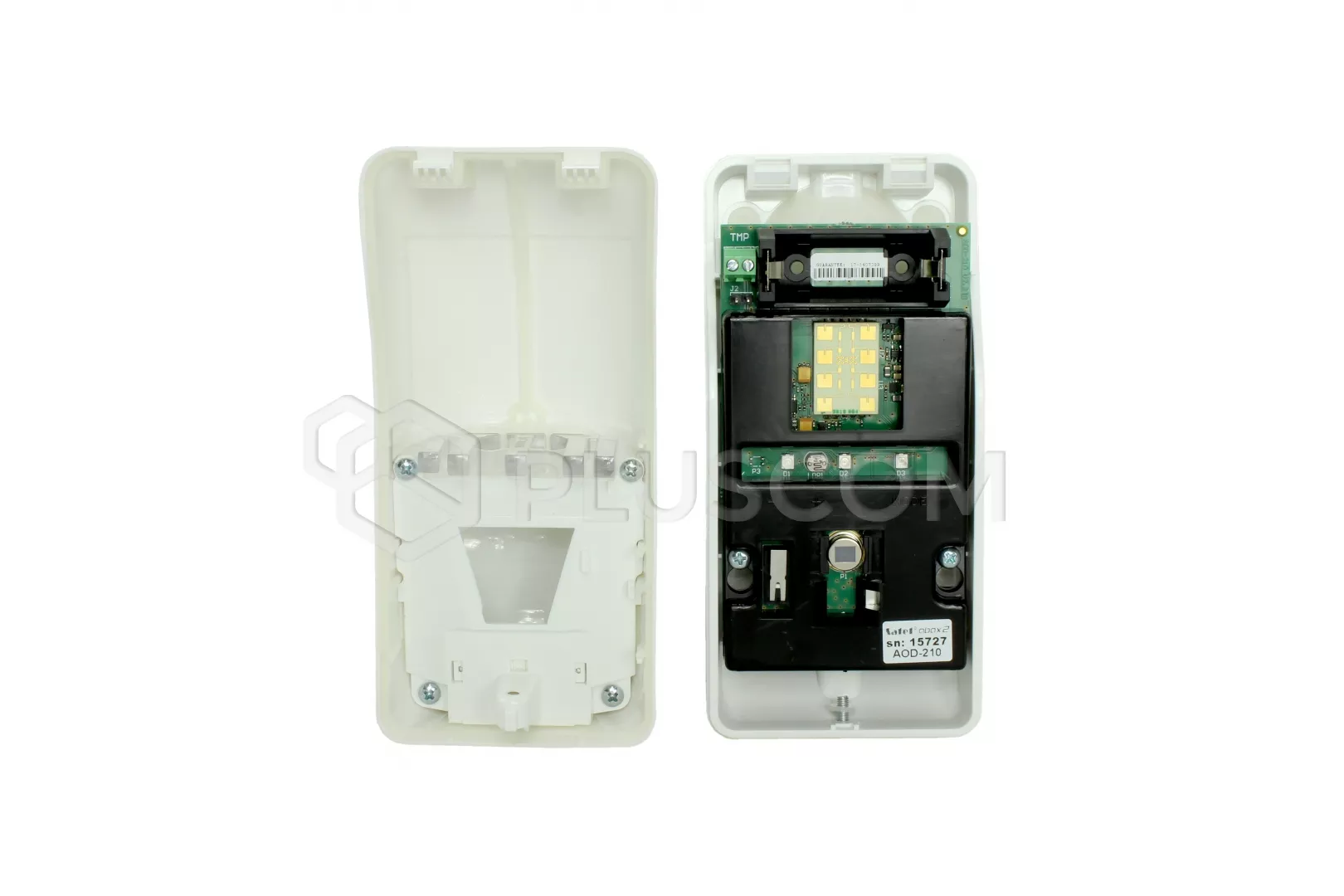

- tamper protection against opening of the enclosure / removal from the
mount
- wide range of working temperatures: -40°C do +55°C
- low power consumption
- battery life up to 2 years
AREA AND AREAS OF INTRUME DETECTION
The device can also be used for protection of the creep zone, as well as for
implementation of the Pet function i.e. immunity to movement of pets (up to 20
kg). AOD-210 supervises the motion detection system and indicates possible
irregularities in its operation. The detector is characterized by high false
alarm immunity.
MONTAGE
Design of the AOD-210 detector allows it to be mounted directly on a flat
surface. If the device is to be tilted vertically or horizontally, special
angle-type or ball-type mounts must be used, included in the BRACKET C (white)
or BRACKET C GY (gray) set. The detector is provided with tamper protection
against opening of enclosure and removal from the mount.
