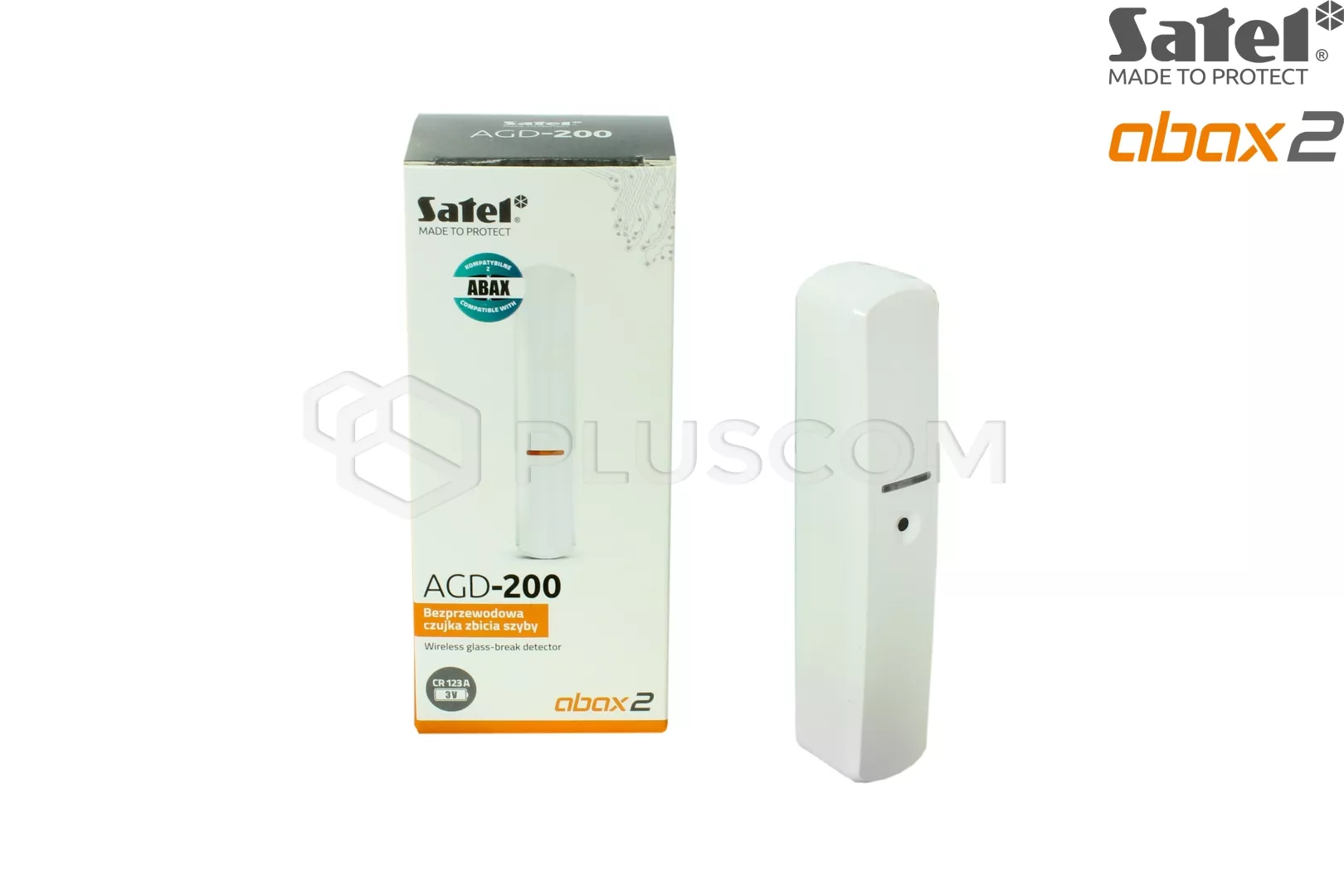

Satel AGD-200 Wireless glass-break detector ABAX 2 white

80,33 EUR including 23.00% VAT
Product code: #19493
Manufacturer: Satel
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
DURACELL Lithum battery CR123A Satel ACU-220 ABAX 2 Wireless system controller Satel ACU-280 ABAX 2 Wireless system controller

Satel AGD-200 Wireless glass break detector ABAX 2 COLOR WHITE

Satel AGD-200 Wireless glass-break detector ABAX 2

Satel AGD-200 Wireless glass-break detector ABAX 2

The AGD-200 detector detects the sound of breaking, shattering ordinary, laminated and tempered glass.
Designed for indoor installation, preferably on a wall opposite the protected glass at a distance of no more than 6 m.

FEATURES AND FUNCTIONS:
  • advanced two-track signal analysis
  • adjustment of detection sensitivity
  • remote configuration and update of detector software (only in ABAX 2)
  • built-in temperature sensor (measurement range: -10°C...+55°C)
The detector operates within the ABAX 2 wireless system. It is supported by the following modules:

ABAX 2
  • controller ACU-220, ACU-280
  • retransmitter ARU-200
ABAX
  • ACU-120, ACU-270 controller (software version 5.04 or newer)
  • ARU-100 retransmitter (software version 2.02 or newer)
  • INTEGRA 128-WRL control panel (software version 1.19 or newer and software version of the processor supporting the ABAX system 3.10 or newer)
TECHNICAL PARAMETERS:
  • operating frequency: 868 - 868.6MHz
  • radio communication range (in open area)
  • ABAX 2
    • ACU-220 up to 2000m
    • ACU-280 up to 1200m
  • ABAX up to 500m
  • battery: CR123A 3V
  • battery life: up to 2 years
  • standby current consumption: 90 μA
  • maximum current consumption: 25 mA
  • standards met: EN 50130-4, EN 50130-5, EN 50131-5-3
  • environmental class according to EN50130-5: II
  • operating temperature range: -10°C...+55°C
  • maximum humidity: 93 +/- 3%
  • housing dimensions: 20x102x23mm
  • weight: 39g
  • temperature measurement range: -10°C...+55°C
  • temperature measurement accuracy: +/- 1°C
