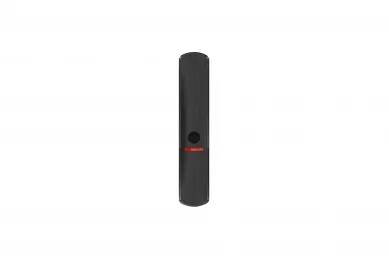

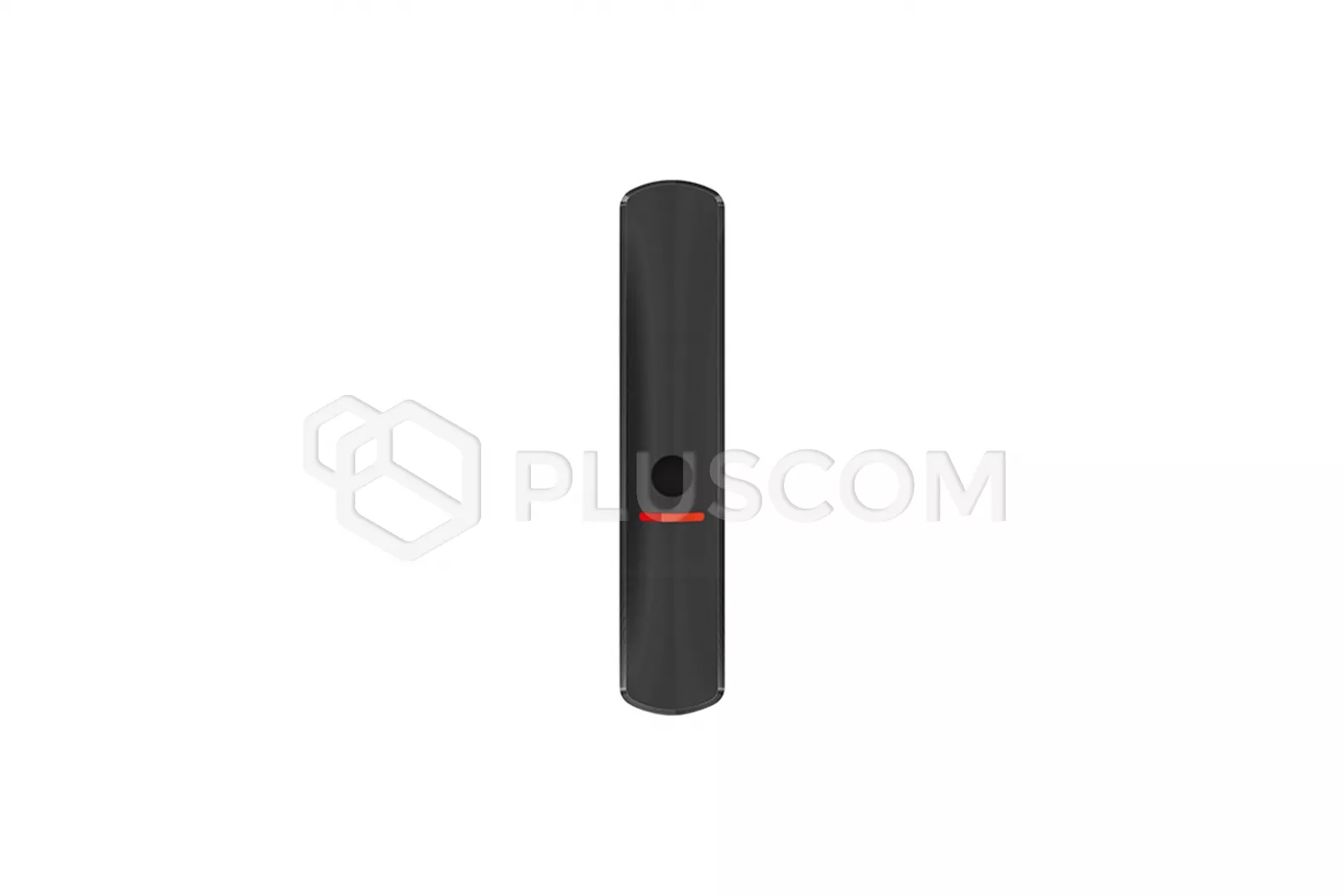

Satel AGD-200 DG Wireless glass-break detector ABAX 2 (grey)

Satel AGD-200 DG Wireless glass-break detector ABAX 2 grey

The AGD-200 detector enables detection of a break of plate, tempered and laminated glass. It is designed for operation within the ABAX 2 / ABAX two-way wireless system.

This manual applies to the detector with firmware version 1.00 (or newer), which is supported by:

• ABAX 2: ACU-220 / ACU-280 controller, ARU-200 repeater
• ABAX: ACU-120 / ACU-270 controller (firmware version 5.04 or newer), ARU-100 repeater (firmware version 2.02 or newer), INTEGRA 128-WRL control panel (firmware version 1.19 or newer and firmware version of processor used to operate ABAX system 3.10 or newer)

Features:

• Advanced two-path sound analysis
• Adjustable detection sensitivity
• Encrypted two-way radio communication in the 868 MHz frequency band (AES standard for the ABAX 2 system)
• Transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals in the 868 MHz frequency band (ABAX 2 system only)
• Remote update of detector firmware (ABAX 2 system only)
• Remote configuration
• Built-in temperature sensor (temperature measurement range from -10°C to +55°C)
• “ECO” option for longer battery life (ABAX 2 system only)
• Battery status control
• LED indicator
• Tamper protection against enclosure opening and removal from mounting surface
