Satel ACSP-ETH Ethernet communication module

201,34 EUR including 23.00% VAT
Product code: #43175
Manufacturer: Satel
  • Supply voltage: 12-18 V DC
  • Power supply from ACSP-402 or APSP-402
  • RS-485 port
  • Ethernet connector
  • View the status of the ACSP fire alarm system in the application
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel APSP-402 Remote control and signaling device Satel ACSP-402 Fire Alarm Control Panel

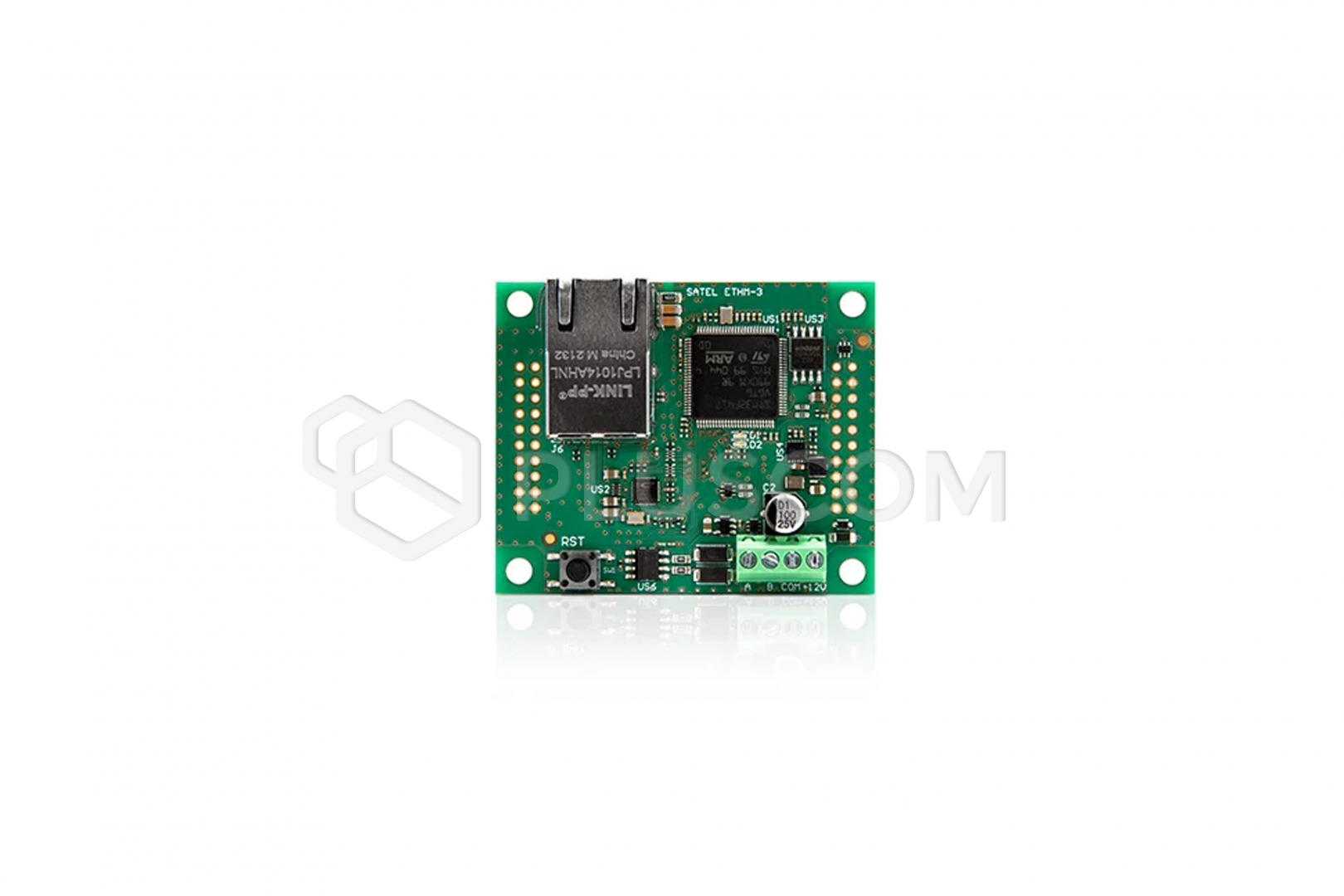

Satel ACSP-ETH Ethernet Communication Module


The ACSP-ETH module enables remote viewing of the status of the ACSP Addressable Fire Alarm System from a mobile device or computer. The module is an optional component of the fire alarm system based on the ACSP-402 control panel.

FEATURES:
  • View the status of the ACSP fire alarm system in the Virtual APSP application on a computer or mobile device.
  • Notification of the status of the fire alarm system via email.
  • Presentation of the status of the fire alarm system in the INTEGRUM application.
  • Ability to synchronize time with an NTP time server.
  • Ethernet port.
  • RS-485 port for connecting the ACSP-402 control panel / APSP-402 repeater panel.
  • 12-18 V DC power supply from the ACSP-402 control panel / APSP-402 repeater panel.

TECHNICAL DATA:

  • Power supply voltage: 12-18 V DC
  • Current consumption: 35 mA
  • Operating temperature range: -10°C...+55°C
  • Maximum humidity: 93±3%
  • Dimensions: 61 x 51 mm
  • Weight: 25 g
Download
Datasheet 0.09 MB
CE Declaration 0.11 MB
User manual 0.09 MB
