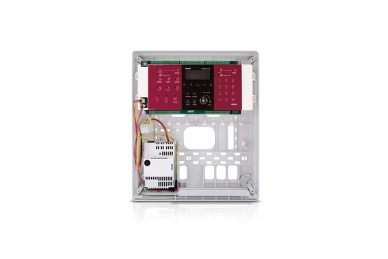

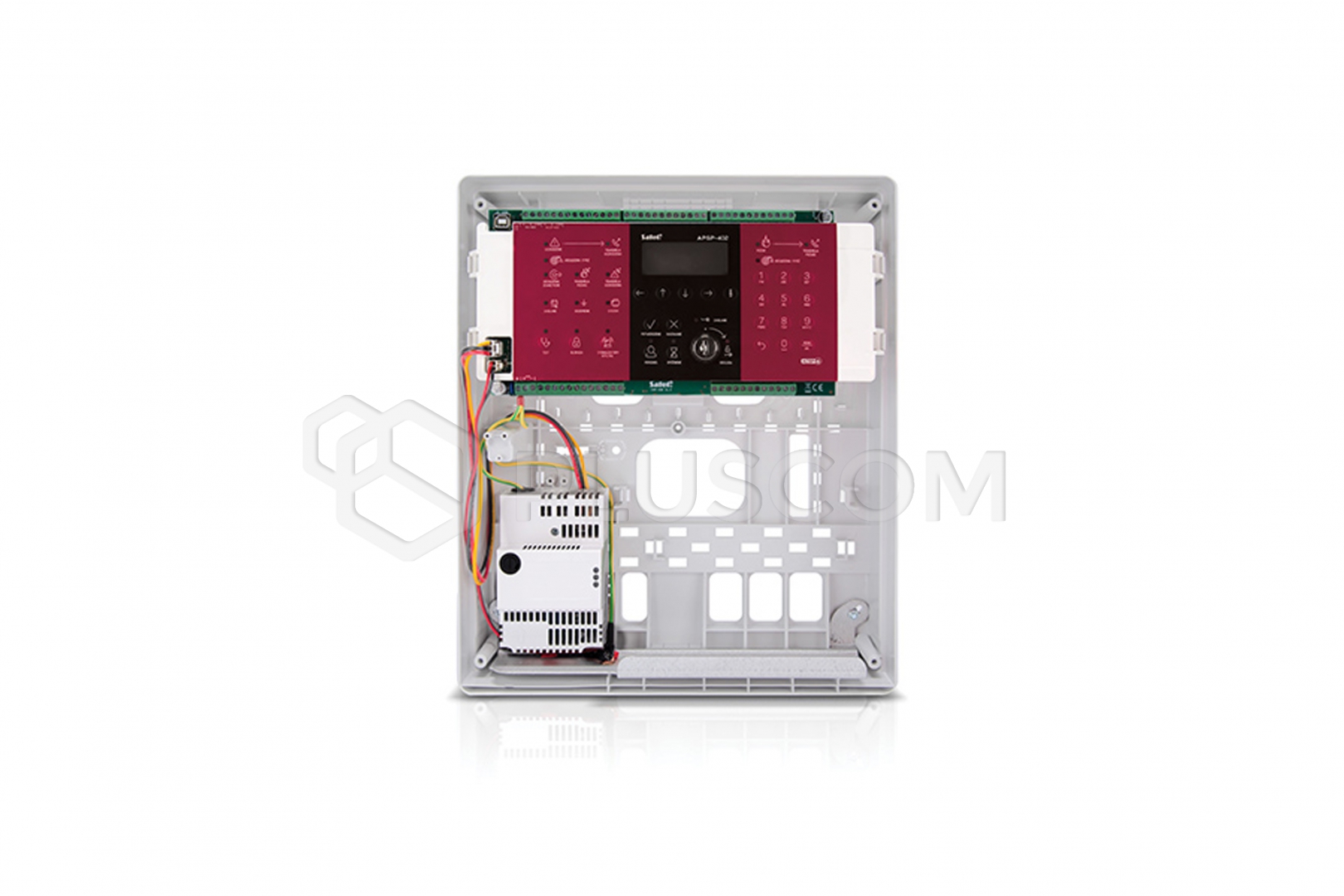

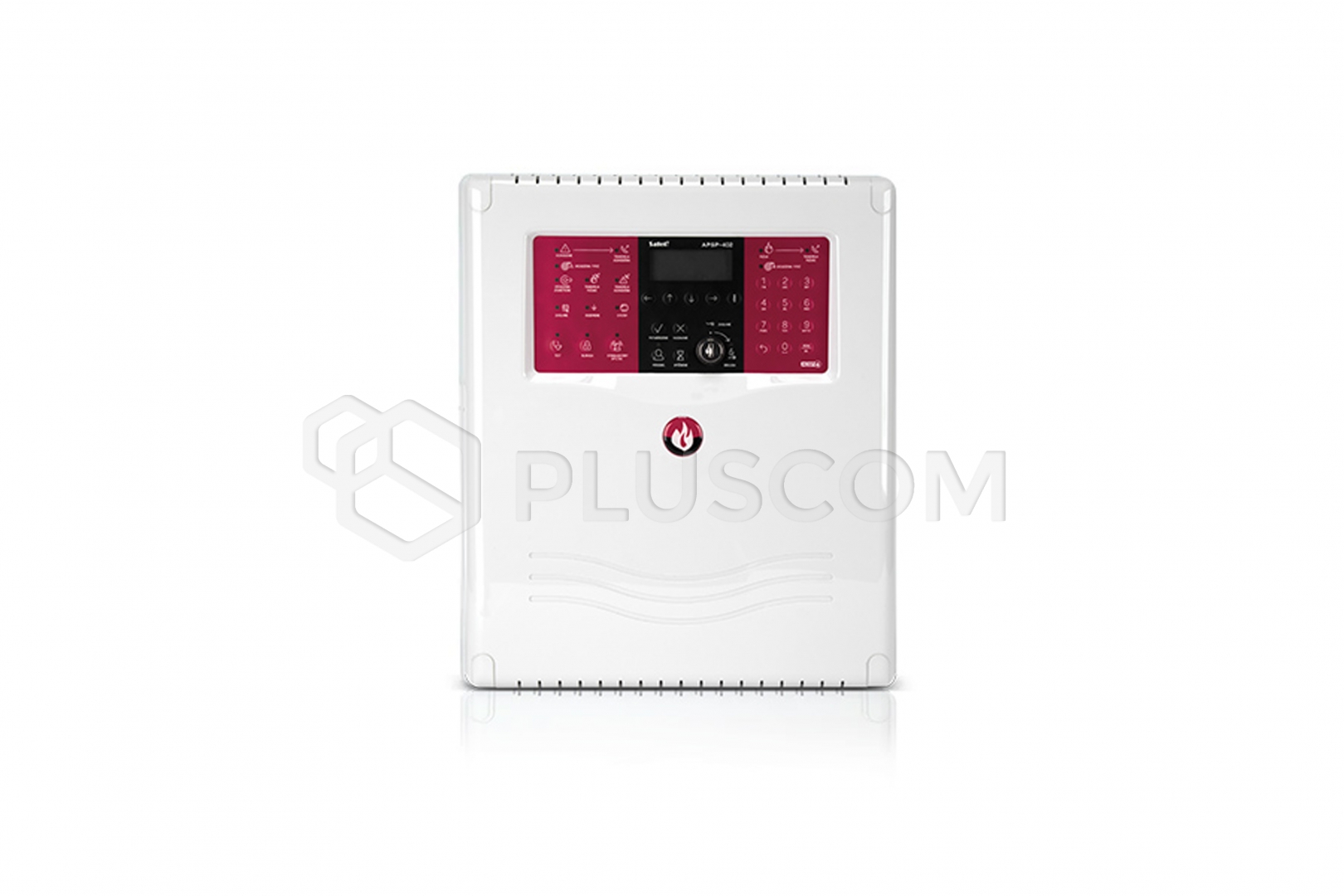

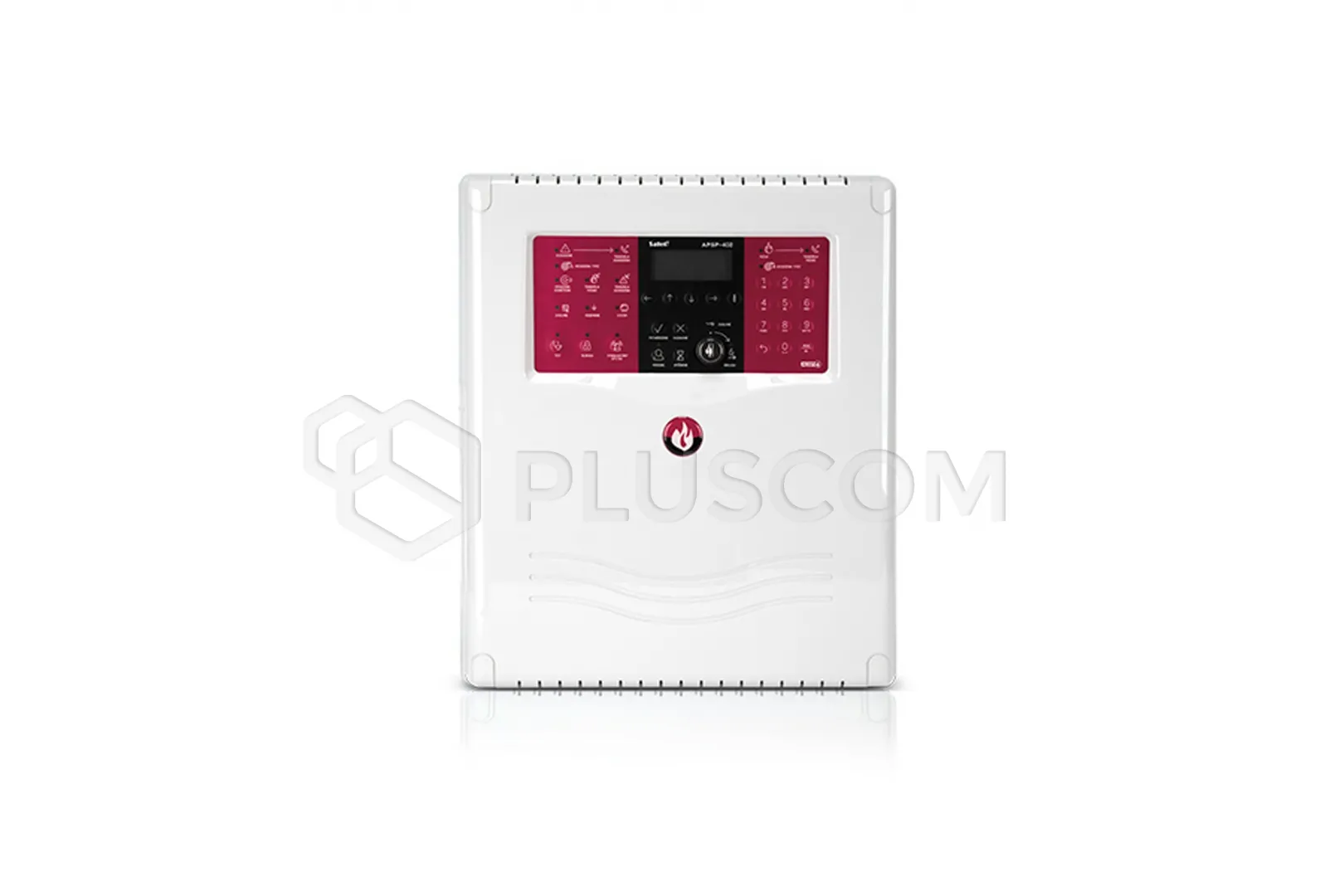

Satel APSP-402 Remote control and signaling device

1567,32 EUR including 23.00% VAT
Product code: #43174
Manufacturer: Satel
  • Remote control of the control panel on levels 1 and 2
  • LCD display
  • APS-318 switching power supply included
  • Space in the housing for a 12 V / 7 Ah battery
  • Possibility of full system operation from a distance of up to 1 km
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACSP-402 Fire Alarm Control Panel

Satel APSP-402 Remote control and signaling device


The repeater panel is designed for the remote operation of the ACSP addressable fire alarm control panel. The ACSP-402 control panel can be connected with one APSP-402 repeater panel. The panel may be installed inside a protected facility, within 1,000 meters from the control panel.

FEATURES:

  • remote control of the control panel on levels 1 and 2 as using the front panel of the control panel
  • connection to the control panel over the RS-485 communication bus
  • LEDs for signalling the status of the control panel
  • LCD display for:
    • presenting information about the alarm
    • presenting messages
    • viewing the list of current disablement, test or failure conditions
    • viewing the history of alarms and other events
  • built-in piezo transducer for acoustic signalling
  • switching mode power supply APS-318 included
  • enclosure with a space for a 12 V / 7 Ah battery
  • automatic switching to back-up power supply (battery) in case of failure of the main power supply

TECHNICAL DATA:

  • Power supply voltage: 230 V AC, 50-60 Hz
  • Maximum current consumption from 230 V mains: 250 mA
  • Backup power supply: internal lead-acid battery: 12 V / 17 Ah
  • Battery current consumption in alarm mode: 75 mA
  • Battery current consumption in standby mode: 65 mA
  • Maximum battery charging current: 1.4 A
  • Max. Battery internal resistance (with wires and terminals in the circuit): 1.1±10% Ω Ω
  • Backup power supply operating time: 72 h
  • Current parameters of the integrated power supply (according to EN54-4) - Imax b: 1.6 A
  • Current parameters of the integrated power supply (according to EN54-4) - Imax a: 1.6 A
  • Overcurrent protection of the power supply (slow-blow fuse): 3.15 A
  • Current consumption from the integrated AC power supply in alarm mode: 70 mA
  • Current consumption from the integrated AC power supply in quiescent mode: 60 mA
  • Housing protection: IP30
  • Maximum humidity: 93±3%
  • Operating temperature range: -5 ~ +40°C
  • Dimensions: 324 x 382 x 108 mm
  • Weight without battery: 2625 g
