Ropam NeoLTE-IP-SET Set

341,26 EUR including 23.00% VAT
Product code: #27584
Manufacturer: Ropam
  • NeoLTE-IP control panel
  • Buffer power supply: PSR-ECO-2012
  • O-R3P housing
  • AT-GSM-MINI90 antenna
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam AT-GSM-MAG GSM Antenna 900/1800MHz Ropam PSR-ECO-2012 Intelligent, buffer type supervised AC-DC power supply Ropam PSR-ECO-5012-RS Backup power suppply Ropam NeoGSM-IP-D9M Alarm control panel with GSM / IP communication Ropam EXP-I8-RN Inputs module Expander Ropam O-R3P Surface-mounted plastic housing Ropam APm-ari ARI wireless system controller Ropam TPR-4W 4.3 ”touch panel in a surface-mounted housing, white Ropam TPR-4W 4.3 ”touch panel in a surface-mounted housing, black Ropam EXP-LAN Ekspander Ethernet

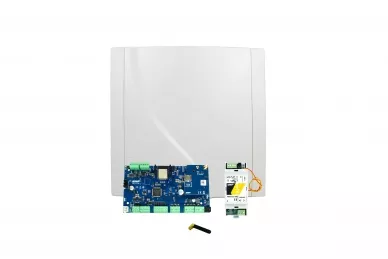

Ropam NeoLTE-IP-SET Set - Alarm control panel with LTE/IP communication


SET CONTAINS:
  • NeoLTE-IP alarm control panel
  • AT-GSM-MINI90 antenna
  • O-R3P Housing
  • PSR-ECO-2012 buffer power supply
Ropam NeoLTE-IP-SET Set

Ropam NeoLTE-IP-SET Set
NeoLTE-IP alarm control panel with peripheral devices a solution integrating an electronic burglary detection system and automation building. The built-in LTE modem and WiFi module allow for remote control system control. Thanks to its modular design, the system can be expanded and adapted to the changing needs of the user.

The control panel has the following functions:
  • 2 independent zones with two types of standby: full or night
  • 8-32 programmable zones, expansion via input expanders, panels touch
  • 8-24 programmable outputs, expansion via output expanders
  • hybrid control panel: wired + Ari wireless system
  • support for up to 32 users (1 main +31), 8 phone numbers, 8 e-mail
  • support for up to 4 touch panels (TPR-4 series) or touch keyboards (TK-4 series)
  • LTE modem support for 4G and 2G networks, (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900MHz)
  • built-in WIFI module (802.11 b/g/n standard, 2.4 GHz, with antenna on casing) ATTENTION! Due to the built-in WiFi antenna, installation is required plastic housing - O-R3P
  • IP communication: WIFI/LAN primary channel, GPRS backup channel (automatic switching)
  • wired LAN connection option via expander: EXP-LAN
  • Dedicated RopamNeo mobile application for online and remote supervision control
  • 1 RopamNet communication bus for connecting touch panels, expansion modules
  • 1 TSR bus for connecting 2 temperature sensors i humidity
  • 4 timers with calendar, for control and automation
  • Built-in LogicProcessor for creating advanced functions logical
  • programming: local via micro USB or WIFI/ETH, remote via GPRS/IP
  • USSD code support (pre-paid card control)
  • convenient, detachable terminal connectors, grouped by ports
  • possibility of updating the software via USB cable or WiFi
  • 12V DC power supply, a supervised system power supply is required for power supply PSR-ECO-5012-RS or PSR-ECO-2012
Building automation functions
  • support for temperature and humidity sensors (wired, wireless),
  • Room Thermostat function (support for 1 heating zone)
  • control of outputs for controlling automation elements possible through: RopamNeo mobile applications, SMS, DTMF, CLIP (KeyGSM),
  • AI 0-10V/4-20mA analog input for controlling physical parameters, e.g. battery voltage, humidity [%RH], temperature etc
Notification / Control
  • SMS notification and control - independent messages for events in system
  • PUSH notification to the RopamNeo mobile application
  • VOICE/CLIP: independent voice connection for z system events voice messages (possibility to upload up to 16 messages directly to switchboard, AMR-1)
  • E-MAIL: independent e-mail messages for system events, handling SMTP server (SSL/TSL)
  • GPRS monitoring: cooperation with the Monitoring Software Ropam station/server, with Kronos NET station (RopamDirect driver) or SafeStar encrypted TCP/IP transmission, two IP addresses, backup SMS transmission, parallel operation SMS/VOICE notification mode
  • built-in SIA-IP communication protocol
  • possibility of operation via the RopamNeo mobile application
