Ropam PSR-ECO-5012-RS Backup power suppply

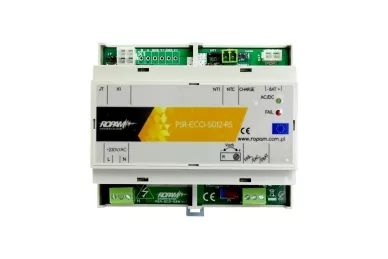

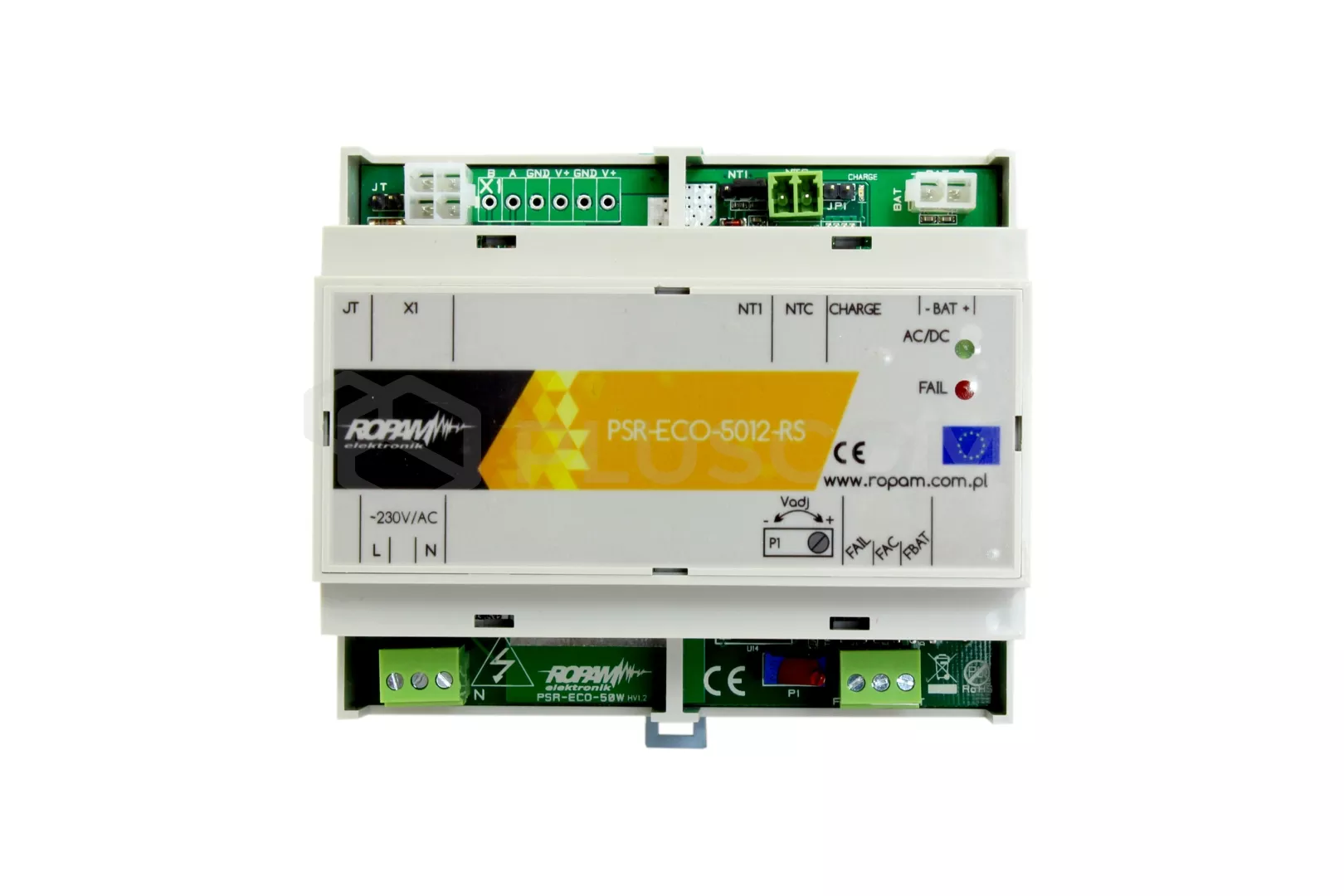

Ropam PSR-ECO-5012-RS

Ropam PSR-ECO-5012-RS is a smart modern design, buffer and supervised power supply. Very big emphasis on service back-up battery. With the use of the proper two-phase process of charging the direct-current and constant-voltage (I/U) and self-temperature compensated charging voltage of the battery is extended operation under normal conditions to the design value manufacturer. Keeping the battery in good condition is important for system reliability and brings tangible economic benefits extending the time to replace the batteries and maintenance service.

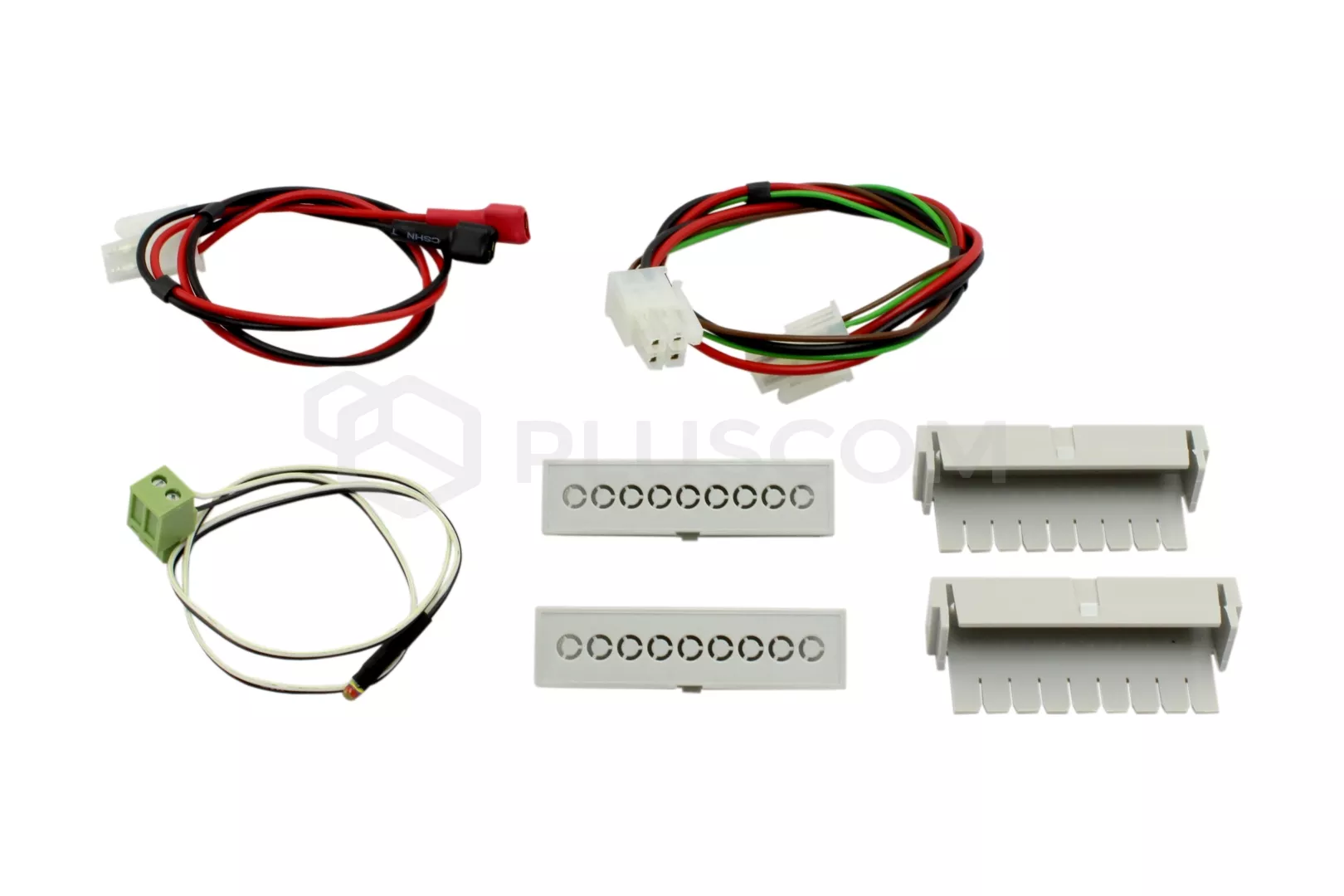

The power supply systems designed for Neo and Visum. It has derived a special plug-in for direct connection to a dedicated modules. This version does not have a universal power adapter screw terminals on the output.

The power supply integrates three functions in one:

• adjustable power supply
• battery charger
• UPS 12V DC


FEATURES:

• the nominal output voltage of 13.8V/3A
• AC input voltage 195-265V
• high energy efficiency is typically 88% up to 91%
• passive cooling, low heat emission
• 50W output power available in the full range of work
• increased galvanic isolation PRI/SEC 3.5 kV

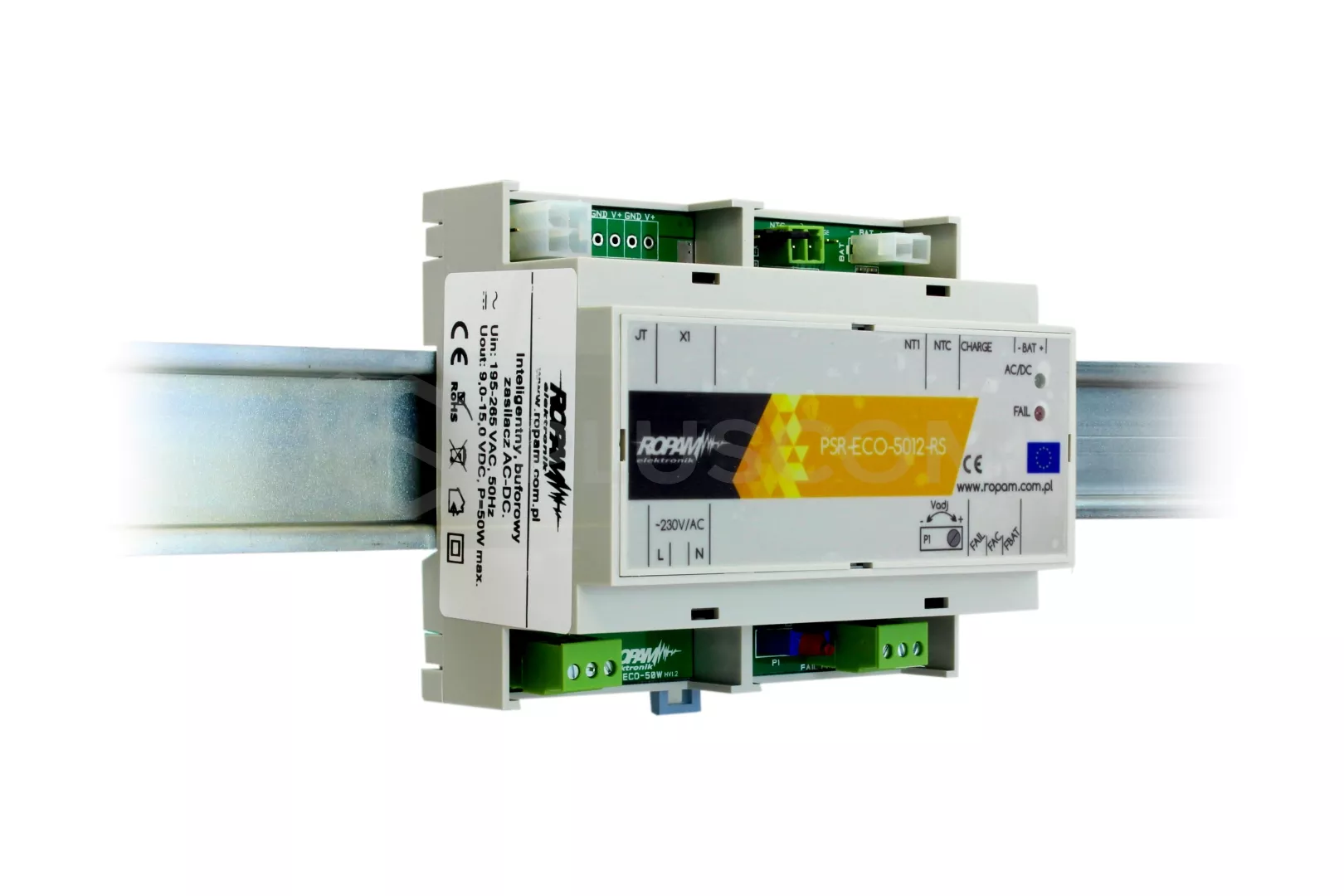

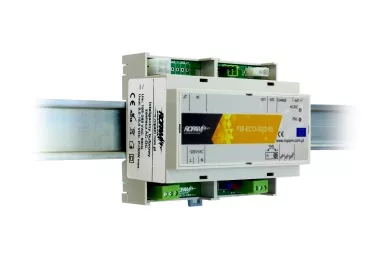

• DIN 6M modular housing
• electronic and autonomous protection with automatic reset:
• • overload OCP,
  • SCP,
  • OHP temperature,
  • OVP,
  • UVP undervoltage
• 12V battery service 5-28Ah
• control the charging process
• technical output for reporting the state: the state of the AC, battery status, and other failures
• surveillance and communication systems NEO, NeoGSM, OptimaGSM
• microprocessor diagnostics and control of power supply operation
• measurement of the basic parameters of the power supply voltages, currents, temperature


APPLICATION:

• NEO system power, NeoGSM, OptimaGSM

PROGRAMMING:

• PARTNER GSM software supplied with the control panel
