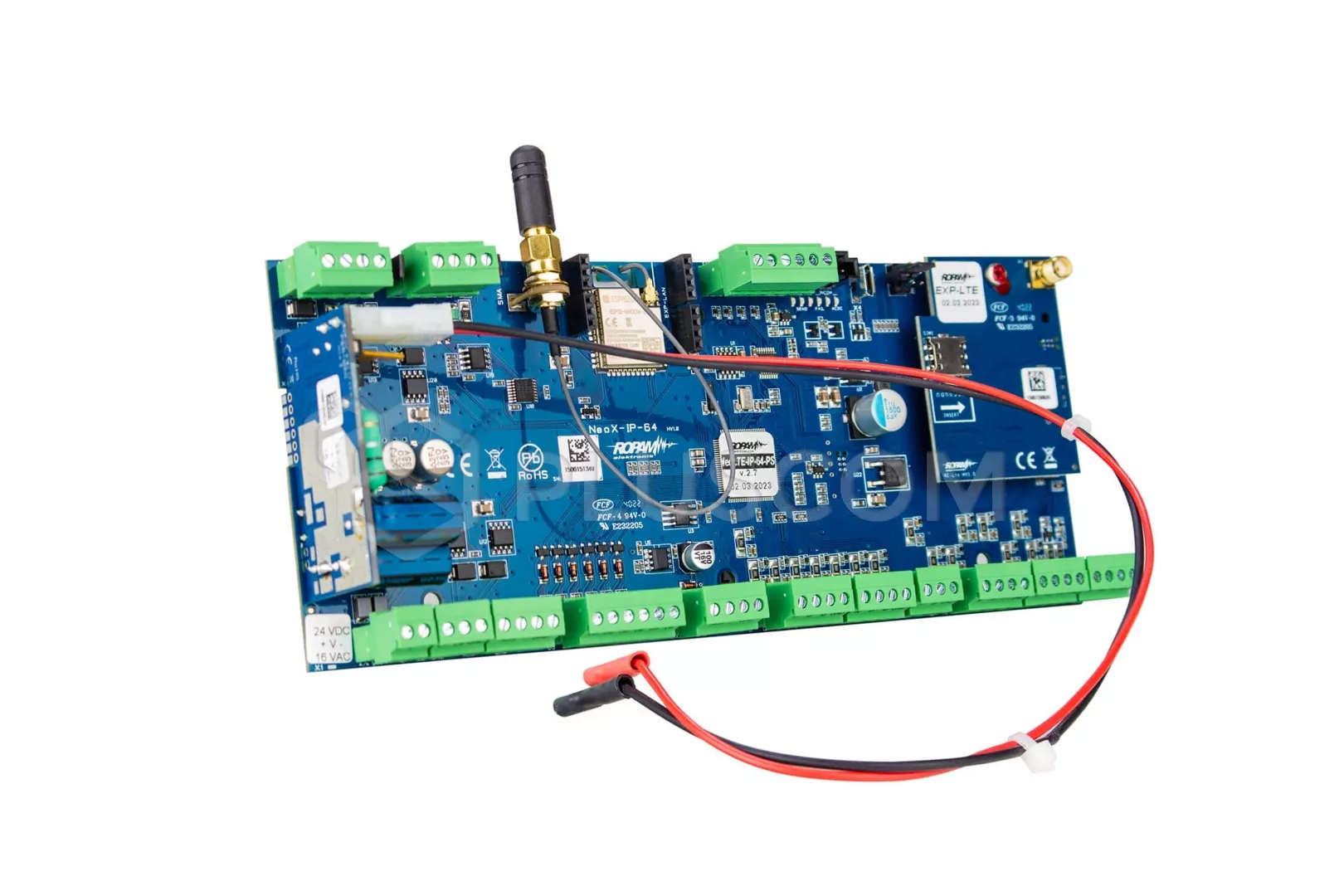

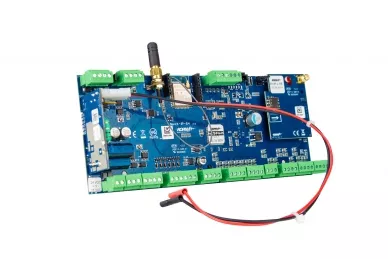

Ropam NeoLTE-IP-64-PS Alarm control panel with LTE/IP with built-in power supply

427,51 EUR including 23.00% VAT
Product code: #27578
Manufacturer: Ropam
  • Built-in 12V/1.5A buffer power supply
  • LTE modem supports 4G and 2G networks
  • Built-in WIFI module
  • 4 zones with two types of mode (full, night)
  • Power supply 7-20V/AC or 20-30V/DC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam AT-GSM-MAG GSM Antenna 900/1800MHz Ropam TPR-4WS-P 4.3 ” touch panel in a surface-mounted housing, white Ropam TPR-4W-P 4.3 ” touch panel in a surface-mounted housing, white Ropam EXP-I8-RN Inputs module Expander Ropam O-R3D Metal housing Ropam APm-ari ARI wireless system controller Ropam TK-4B Touch keyboard in white surface-mounted housing

Ropam NeoLTE-IP-64-PS alarm control panel with built-in LTE module and and 12V/1.5A buffer power supply

NeoLTE-IP-64-PS alarm control panel with peripheral devices is a solution integrating an electronic burglary detection system and automation building. The built-in LTE modem and WiFi module allow for remote control system control. Thanks to its modular design, the system can be expanded and adapted to the changing needs of the user.

The control panel has the following functions:
  • 4 independent zones with two types of standby: full or night
  • 16-64 programmable zones, expansion via input expanders, panels touch
  • 8-40 programmable outputs, expansion via output expanders, + service up to 32 roller shutter modules (bus or radio)
  • hybrid control panel: wired + Ari wireless system
  • support for up to 32 users (1 main +31), 8 phone numbers, 8 e-mail
  • support for up to 4 touch panels (TPR-4 series) or touch keyboards (TK-4)
  • built-in 12V/1.5A buffer power supply
  • LTE modem support for 4G and 2G networks, (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900MHz)
  • In the case of the Neo-IP-64 version, it can be later expanded with a module EXP-LTE
  • built-in WIFI module (802.11 b/g/n standard, 2.4 GHz, with antenna on housing)
  • IP communication: WIFI/LAN primary channel, backup channels: GPRS/LTE (NeoLTE-IP-64)
  • wired LAN connection option via expander: EXP-LAN
  • Dedicated RopamNeo mobile application for online and remote supervision control
  • 2 RopamNET communication buses for connecting touch panels, expansion modules
  • 1 TSR bus for connecting temperature and humidity sensors
  • 4 timers with calendar, for control and automation
  • Built-in LogicProcessor for creating advanced functions logical
  • programming: local via micro USB or WIFI/ETH, remote via GPRS/IP or LTE depending on the version
  • USSD code support (pre-paid card control)
  • convenient, detachable terminal connectors, grouped by ports
  • possibility of updating the software via USB cable or WiFi
Building automation functions
  • support for 4 TSR or RHT temperature and humidity sensors - bus TSR
  • support for 8 temperature, humidity and air quality sensors - RopamNET
  • bus
  • support for 8 heating zones (room thermostat function)
  • support for 4 EXP-SROL8-RN roller shutter controllers
  • support for 2 EXP-LIGHT16-RN lighting controllers
  • 4 macros (sequence) to be invoked from touch panels or applications
  • control of outputs for controlling automation elements possible through: RopamNeo mobile applications, SMS, DTMF, CLIP (KeyGSM)
  • AI analog input 0-10V or 4..20mA for controlling physical parameters e.g. battery voltage, humidity [%RH], temperature etc
  • Integration with other automation systems via the ModBus TCP/IP protocol or MQTT Home Assistant
Notification / Control
  • SMS notification and control - independent messages for events in system,
  • PUSH notification to the RopamNeo mobile application,
  • VOICE/CLIP: independent voice connection for z system events voice messages (possibility to upload up to 16 messages directly to switchboard, AMR-1)
  • E-MAIL: independent e-mail messages for system events, handling SMTP server (SSL/TSL),
  • GPRS monitoring: cooperation with the Monitoring Software Ropam station/server, with Kronos NET station (RopamDirect driver) or SafeStar encrypted TCP/IP transmission, two IP addresses, backup SMS transmission, parallel operation SMS/VOICE notification mode
  • built-in SIA-IP communication protocol,
  • possibility of operation via the RopamNeo mobile application
