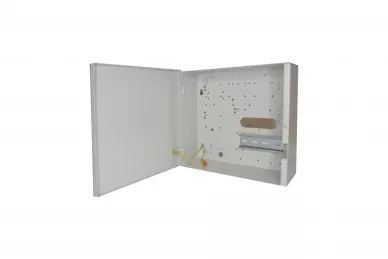

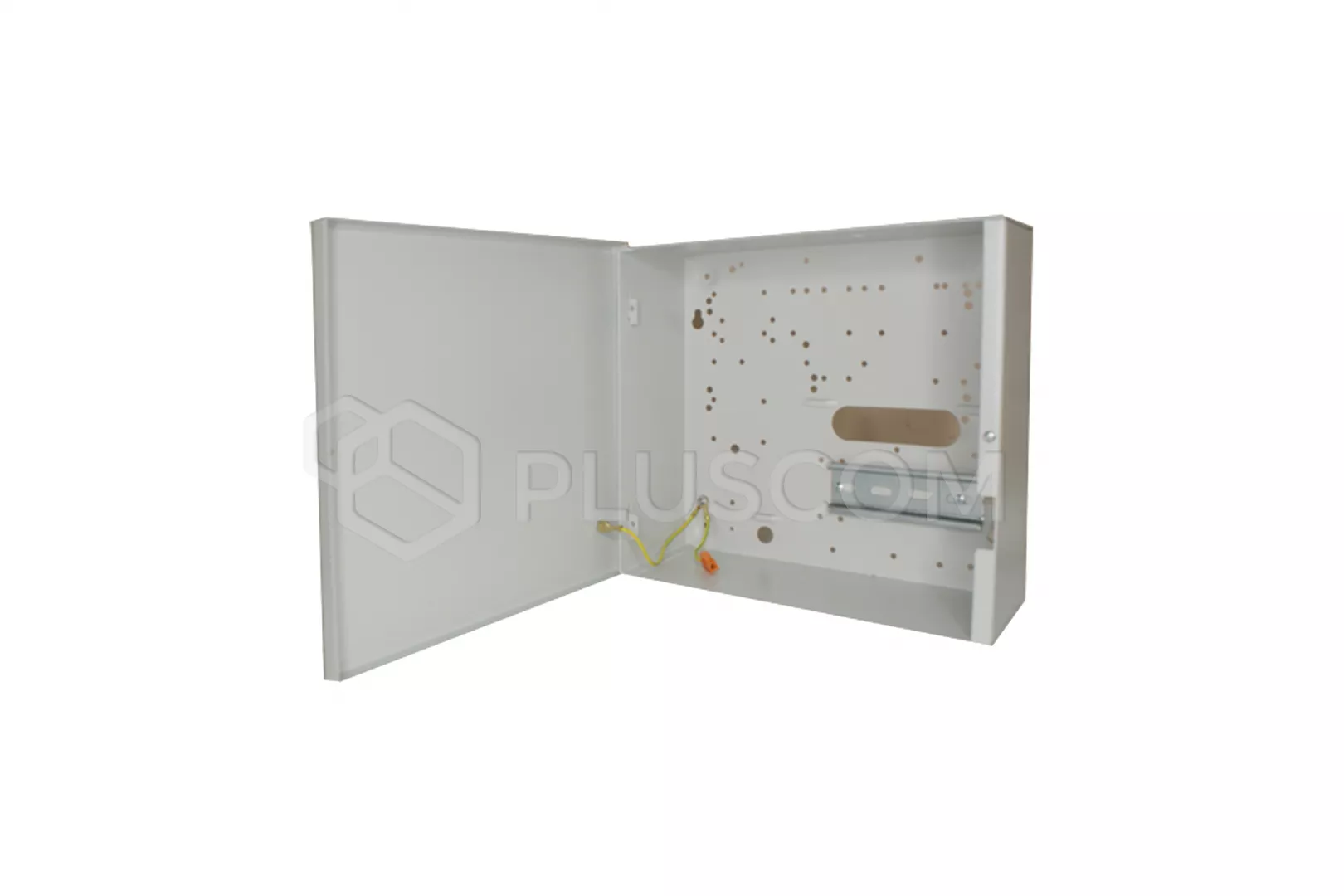

Ropam O-R3D Metal housing

34,26 EUR including 23.00% VAT
Product code: #6611
Manufacturer: Ropam
  • for the unit and GSM modules Ropam
  • DIN 35-100-rail mounted
  • space for battery 12V 7Ah
  • internal dimensions: 240x230x90mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam TRA-30VA/16,5 Transformer

Metal housing O-R3D for mounting GSM modules ROPAM company.

Dedicated to the following modules:
  • NEO-PSR-ECO + VSR-2/VAR-1 + RF-4+ FGR-4 +IPS-4,
  • NEO-PSR-ECO + VSR-2/VAR-1+ FGR-4+ IPS-4,
  • BasicGSM +VSR-2 + PSR-ECO-5012-RN + IPS-4,
  • MultiGSM + VSR-2/VAR-1 + PSR-ECO-5012-RN+ IPS-4,
  • NEO-PSR-ECO = zestaw NEO + PSR-ECO-5012-RS
Ropam O-R3D Metal housing

Ropam O-R3D Metal housing

Features:
  • hole fi-10 mm for antenna adapters (FME)
    • fitting the AT-GSM-MINI or AT-GSM-90/180) on the top of casing
  • hole fi-6,7mm for antenna AT-433
    • fitting the AT-433on the top of casing
  • dimensions 325x305x95 / 320x300x90* [mm] (WxHxD, * inside)
  • space for battery: 7Ah/12V (SLA)
  • tamper - special microswitch C/NC with terminal blocks
  • tamper - opening and remowal from wall, according with PN-EN 50131 Grade 2
  • material: steel 1mm, color light gray (RAL7035)
  • closed: screwed x1

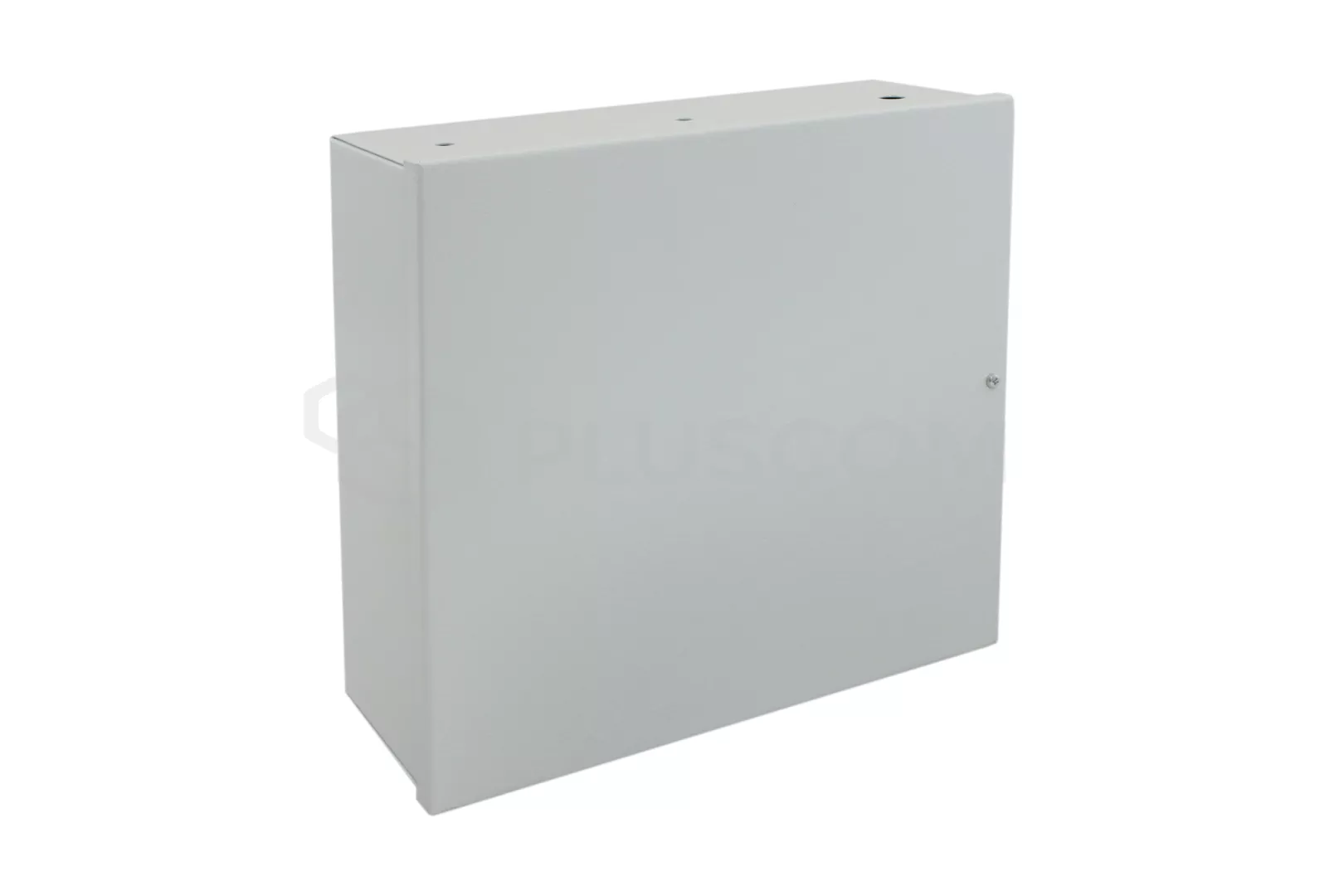

Front view:

Front view:

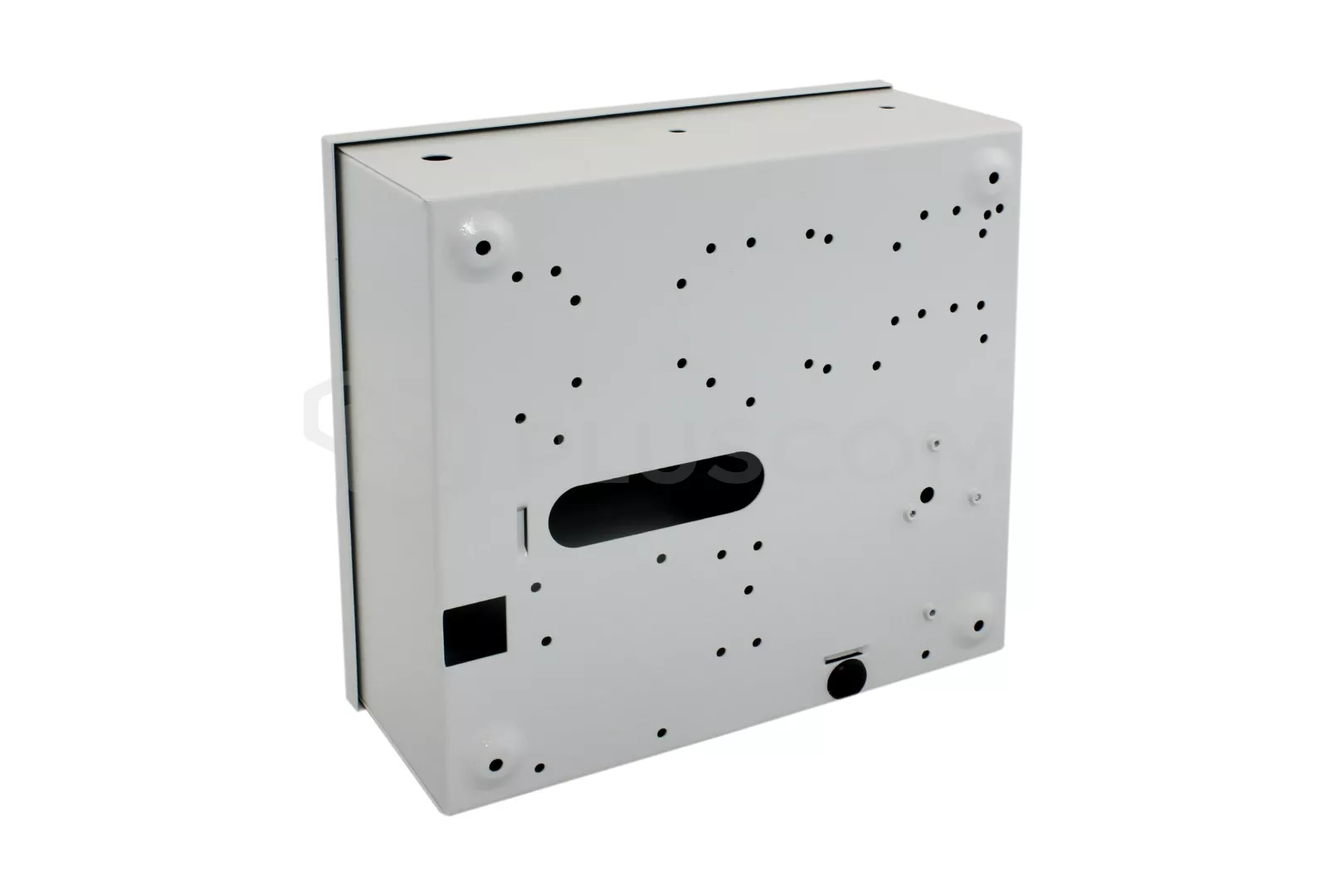

Rear view:

Rear view:
