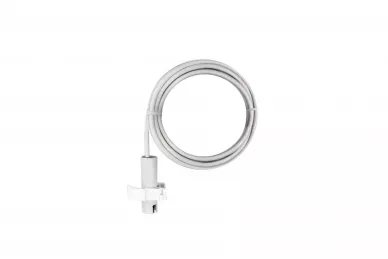

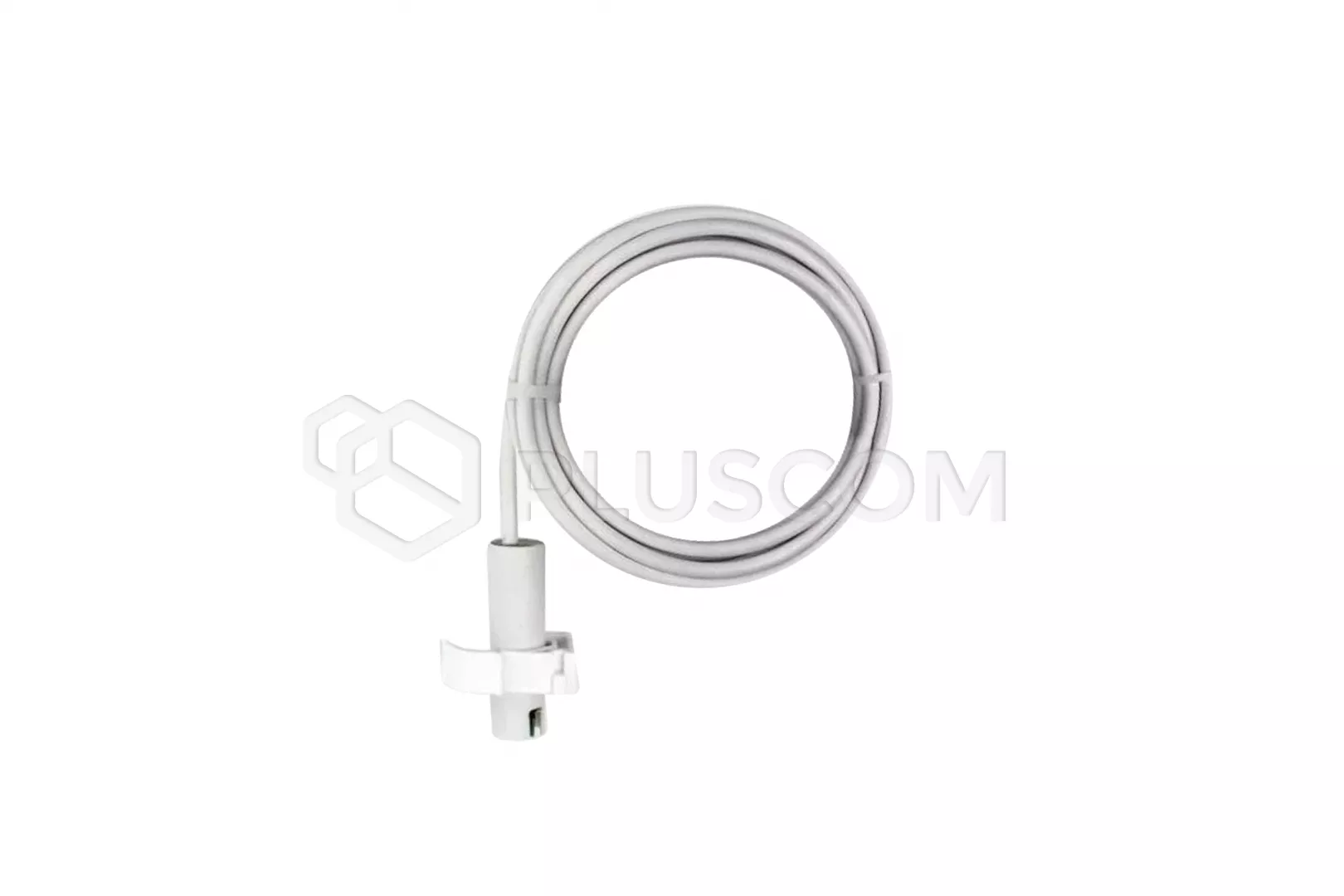

Ropam FS-NPN-2M wired flood detector

40,48 EUR including 23.00% VAT
Product code: #33425
Manufacturer: Ropam
  • Cylindrical housing with wall bracket
  • 2m cable
  • NPN output 0.1A
  • Power supply 12/24VDC.
  • IP67
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam BasicGSM 2 GSM Notification and control module Ropam NeoGSM-IP Alarm control panel with GSM/IP communication Ropam NeoGSM-IP-64-PS Alarm control panel with GSM/IP communication and Power Supply Ropam NeoLTE-IP-PS alarm control panel with LTE/IP with built-in power supply Ropam NeoLTE-IP-64 Alarm control panel with LTE/IP Ropam NeoLTE-IP alarm control panel with LTE/IP Ropam BasicLTE LTE notification and control module (2G/4G) Ropam NeoGSM-IP-64 Alarm control panel with GSM/IP communication

Ropam FS-NPN-2M wired flood detector

The FS-NPN-2m sensor is perfect for detecting flooding/leakage because it will immediately react to the appearance of water between two electrodes. Even a small amount triggers the output and lights up the LED.
The sensor works with Ropam NeoLTE-IP, NeoGSM-IP, BasicLTE, BasicGSM systems and other systems, e.g. PLC controllers, BMS systems, alarm system or GSM module.
Can be used in:
  • residential buildings (rooms with washing machine, dishwasher, meter, etc.)
  • basements, rooms below the ground
  • garages, underground parking spaces
  • industrial buildings
  • server rooms, technical rooms, measurement and control equipment
  • rainwater wells
The sensor is made in an industrial standard: a hermetic sensor (filled with resin) in a cylindrical housing with a wall mount, two gold-plated electrodes on which an alternating measuring voltage of 10V~/100Hz is generated.

Properties:
  • clean water leak detection
  • probe with electronic system + 2m cable, IP67
  • LED optical signaling: power supply (green), leakage (red)
Technical parameters:
  • OC NPN transistor output 0.1A/24VDC max.
  • 10-24VDC power supply,
  • sensor housing: PVC material, Φ19mm x 66mm + 2m YDY 3 x 125mm
  • operating temperature: -10°C...+40°C
