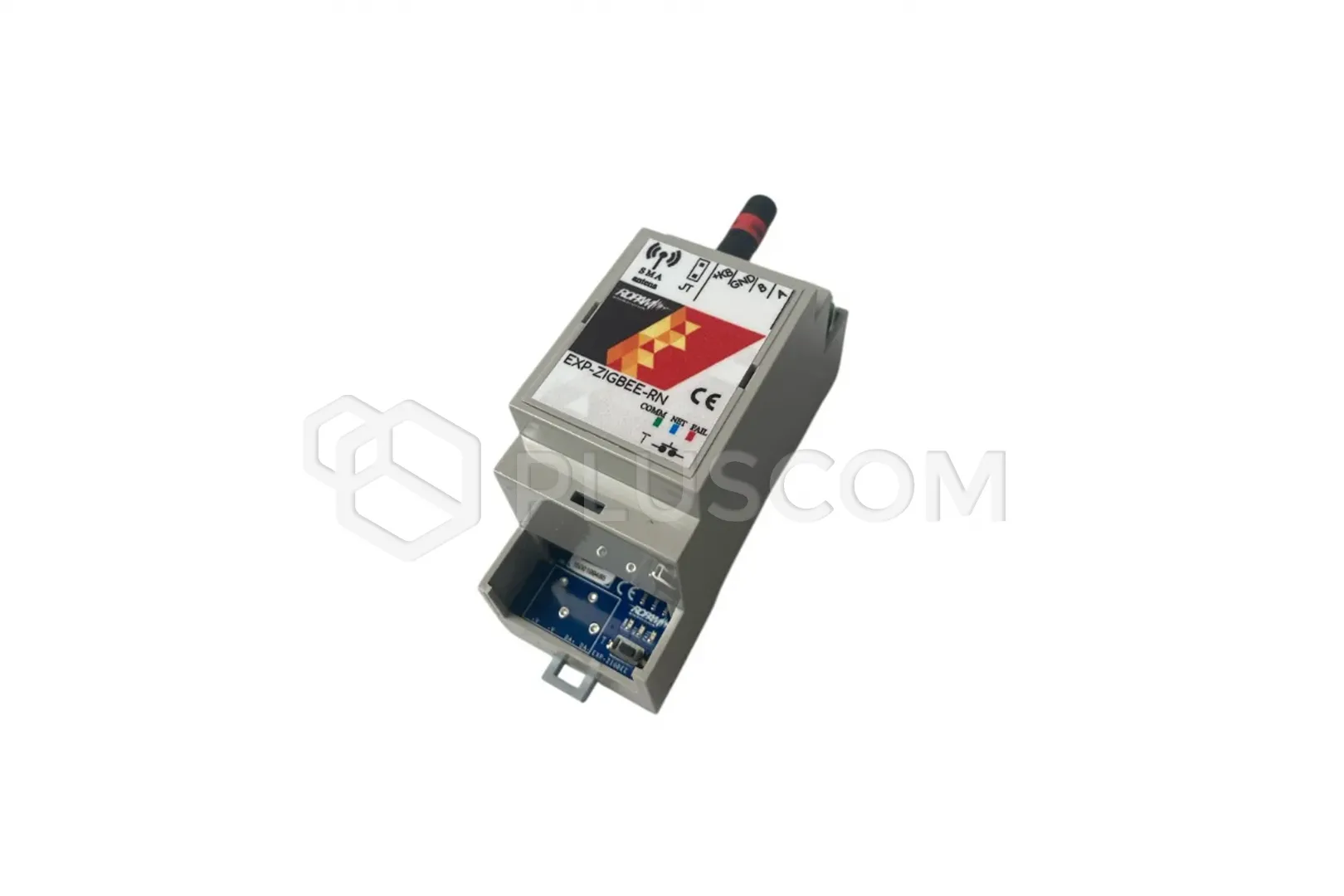

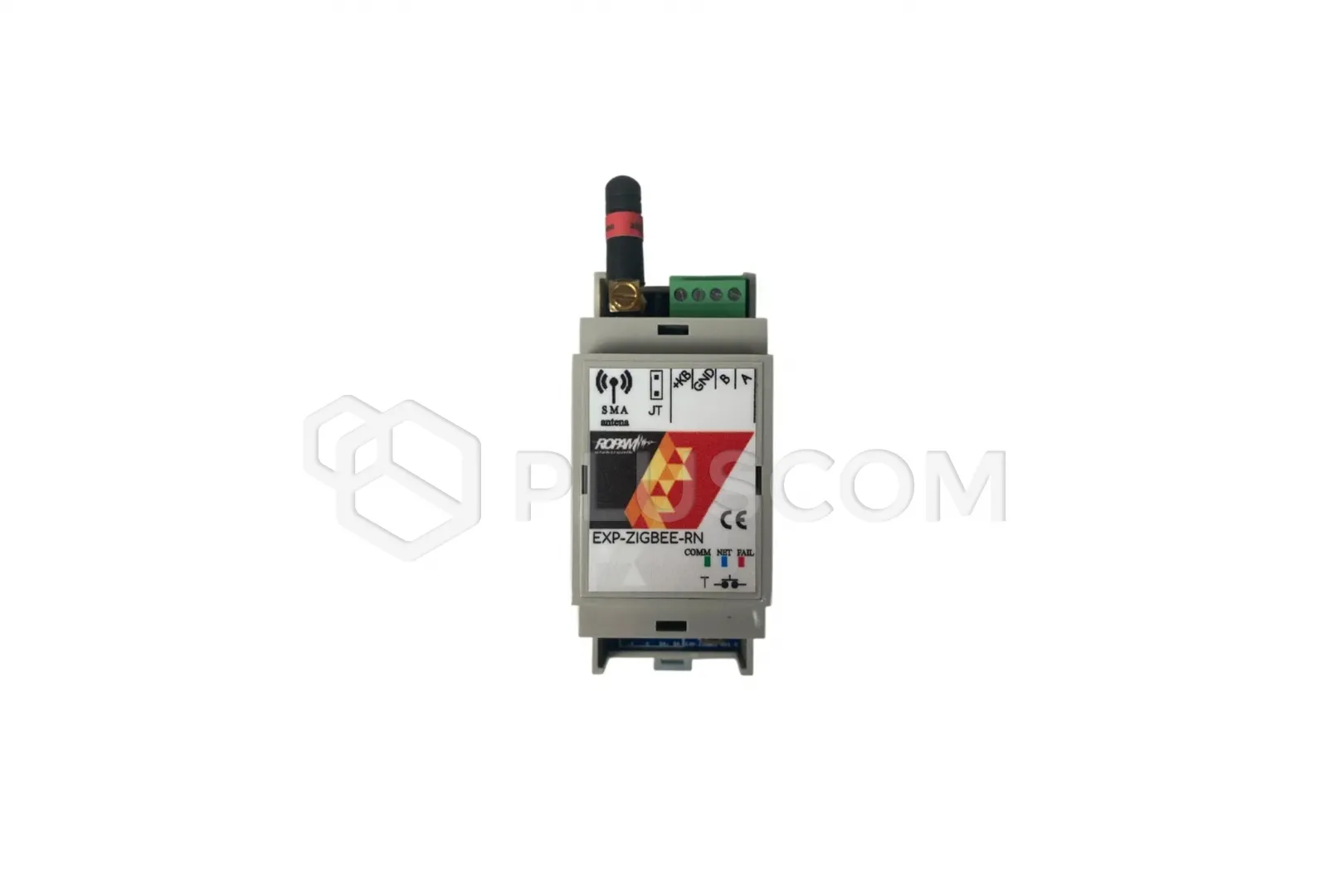

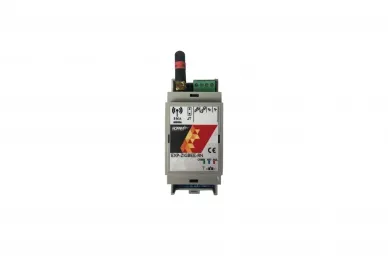

Ropam EXP-Zigbee-RN Access Gateway for Zigbee Devices

Zigbee gateway enabling full integration of Zigbee devices with the Ropam system, supervised by any control panel from the Neo-IP-64 series. The module allows you to connect up to 32 Zigbee-compliant devices, including:

• Motion (presence) sensors
• Alarm sensors (motion, reed switches)
• Magnetic sensors (reed switches)
• Remote controls
• IO modules, including controlled sockets with power measurement
• Temperature sensors
• Humidity sensors
• Thermostatic heads
• RGB-controlled lighting, including RGB+CCT bulbs

EXP-Zigbee-RN is both a Zigbee network concentrator and a hub enabling the integration of Zigbee devices with a system supported by Neo-IP-64 series control units. It connects to the control unit via the RopamNET bus.

The device should be mounted in a location that ensures communication with supported Zigbee devices. The RopamNET bus should be connected to the mounting location. If the device is located at the end of the bus, it should be terminated by placing a jumper on the JT pins.

EXP-Zigbee-RN requires a Neo-IP-64 series control panel with software version no lower than v4.1 for proper operation. The control panel supports a maximum of one EXP-Zigbee-RN module. To support RGB lighting via TPR-7 series touch panels, the panel software version must be no lower than v2.0. TPR-4 series touch panels do not support RGB lighting control.

Technical Parameters:

• Compatibility: Neo-IP-64/NeolTE-IP-64 series control panels
• Zigbee compatibility – only device types described in the documentation
• Power supply voltage: 9 – 14V (powered from the RopamNET bus)
• Current consumption:
• • 17mA – average
  • 25mA – maximum
• Communication with the control panel: RopamNET bus
• D2M housing (width of two standard DIN modules)
• Radio communication: ZigBee 2.4GHz; Channels 16 to 25
• Operating temperature: -10°C to 55°C
• Dimensions: 36.3 x 90.2 x 57.5 mm
• Weight: 63 g
