Roger Technology SET WAY5 - set with WAY5 with 5m arm

1932,00 EUR including 23.00% VAT
Product code: #43238
Manufacturer: Roger Technology

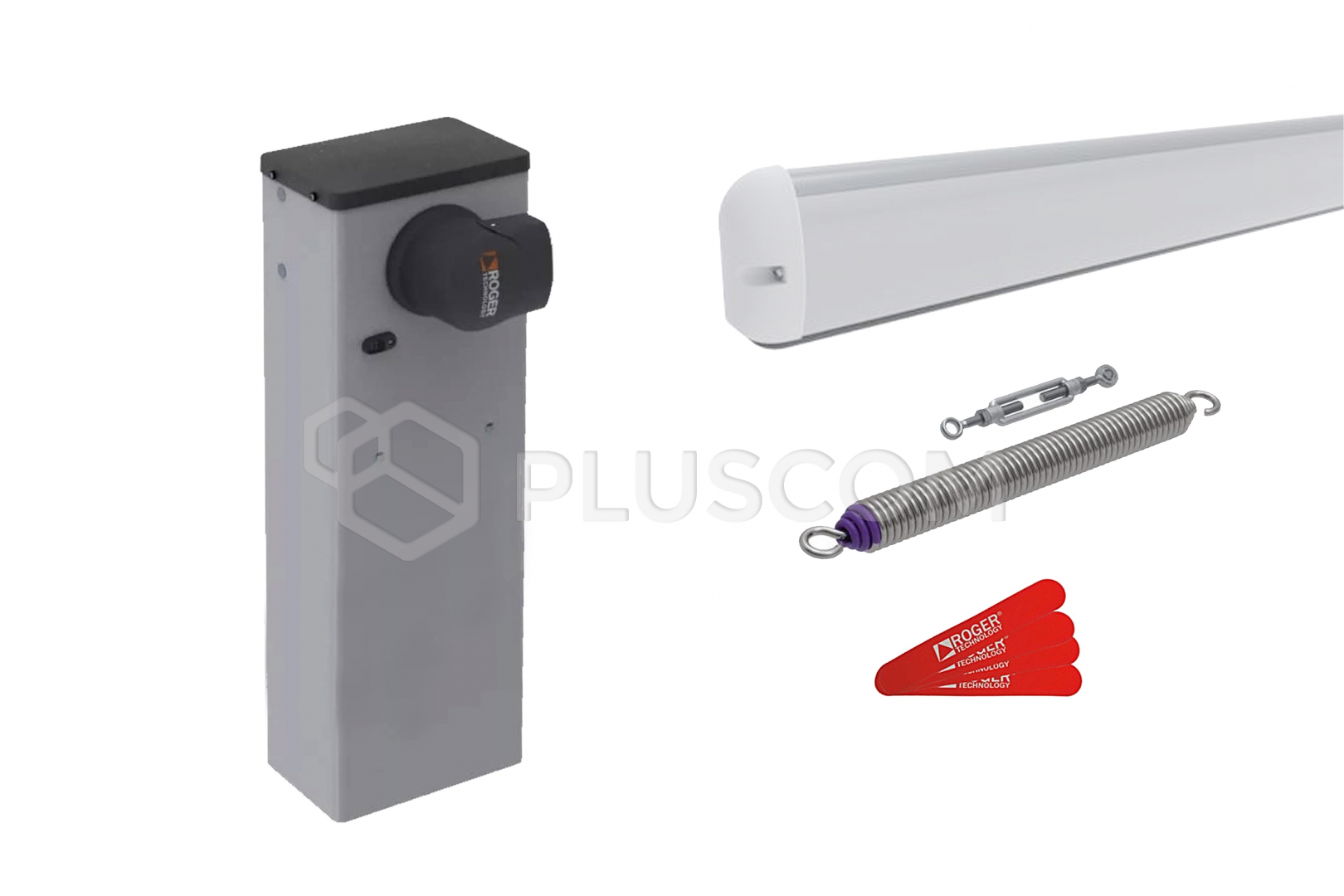

  • KIT COMPOSITION:
  • WAY/005 - Barrier column
  • SP/56/G10 - Purple spring Ø 56mm
  • BA/75/5 - Elliptical arm 5m
  • R99/BASB20 - Reflective stickers
Delivery and tax:
Poland VAT: 23.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology BAMS/01 Movable arm support Roger Technology KT242 Conduit with magnet mounting for cable management Roger Technology BAFS/05 Fixed support with height adjustment and electromagnet Roger Technology KT239 Grille with magnet mounting Roger Technology BAFS/02 Fixed support with height adjustment Roger Technology G90/F4ES Complete set of photocells for BIONIK barriers Roger Technology BAFS/01 Fixed support Roger Technology G90/F2ES Complete set of photocells for BIONIK barriers Roger Technology B71/BC Battery Charging Card Roger Technology DLD2/24 Induction loop detector 2-channel 24V DC

Roger Technology SET WAY5 Automatic Barrier Kit with 24V Brushless Motor and 5m Arm


KIT INCLUDES
Roger Technology SET WAY5 - set with WAY5 with 5m arm

Roger Technology SET WAY5 - set with WAY5 with 5m arm
The barrier guarantees intensive operating cycles and can accommodate a boom up to 5 meters long. It is equipped with a B70/1T control unit, a digital encoder, a mounting base, and a boom holder.

An innovative and precise encoder mounted on the reducer shaft allows for arm movement control with an accuracy of a tenth of a degree. It also allows the barrier to operate without restarting after a power failure or manual release.

To ensure the strength of the entire barrier and high stability during maneuvers, high-quality steel and bronze are used. A windproof aluminum arm with an elliptical cross-section and internal ribs further enhances stability. The housing is made of carbon steel, protected against corrosion and painted.

SPECIAL FEATURES
  • 24V brushless motor
  • Intensive use
  • Continuous use 2800 cycles per day
  • Alloy gear, no plastic, no Teflon, no nylon
  • Low energy consumption
  • Very quiet operation
  • Sturdy construction
The barrier is equipped with a 5m long BA/75/5 aluminum elliptical arm with protective rubber and prepared for LED lighting.
It is made of aluminum, ensuring resistance to mechanical damage and wear, as well as smooth operation.
It can be equipped with additional accessories such as warning stickers, ladders, and supports.

The SET WAY5 set includes a purple SP/56/G10 balancing spring with a diameter of 56 mm, designed for the 5m arm.

TECHNICAL DATA:

  • Arm: up to 5 m
  • Power supply: 230 V AC - 50 Hz
  • Motor power supply: 24 V
  • Starting power: 305 W
  • Nominal power: 180 W
  • Use: Intensive
  • Force: 140 Nm
  • Operating temperature: -20°C / +55°C
  • Protection rating: IP54
  • Gear motor type: Self-locking
  • Opening time to 90°: 5-17 s
  • Control unit (built-in): B70/1T, 24 V DC
  • Encoder: Built-in digital + magnetic digital SENSORED, 4096 pulses per revolution
  • Unlocking system: Front key
  • Number of cycles per day (opening/closing - 24 hours non-stop): 2800 cycles
  • Dimensions: 325 x 211 x 1010 mm
  • Weight: 44 kg
