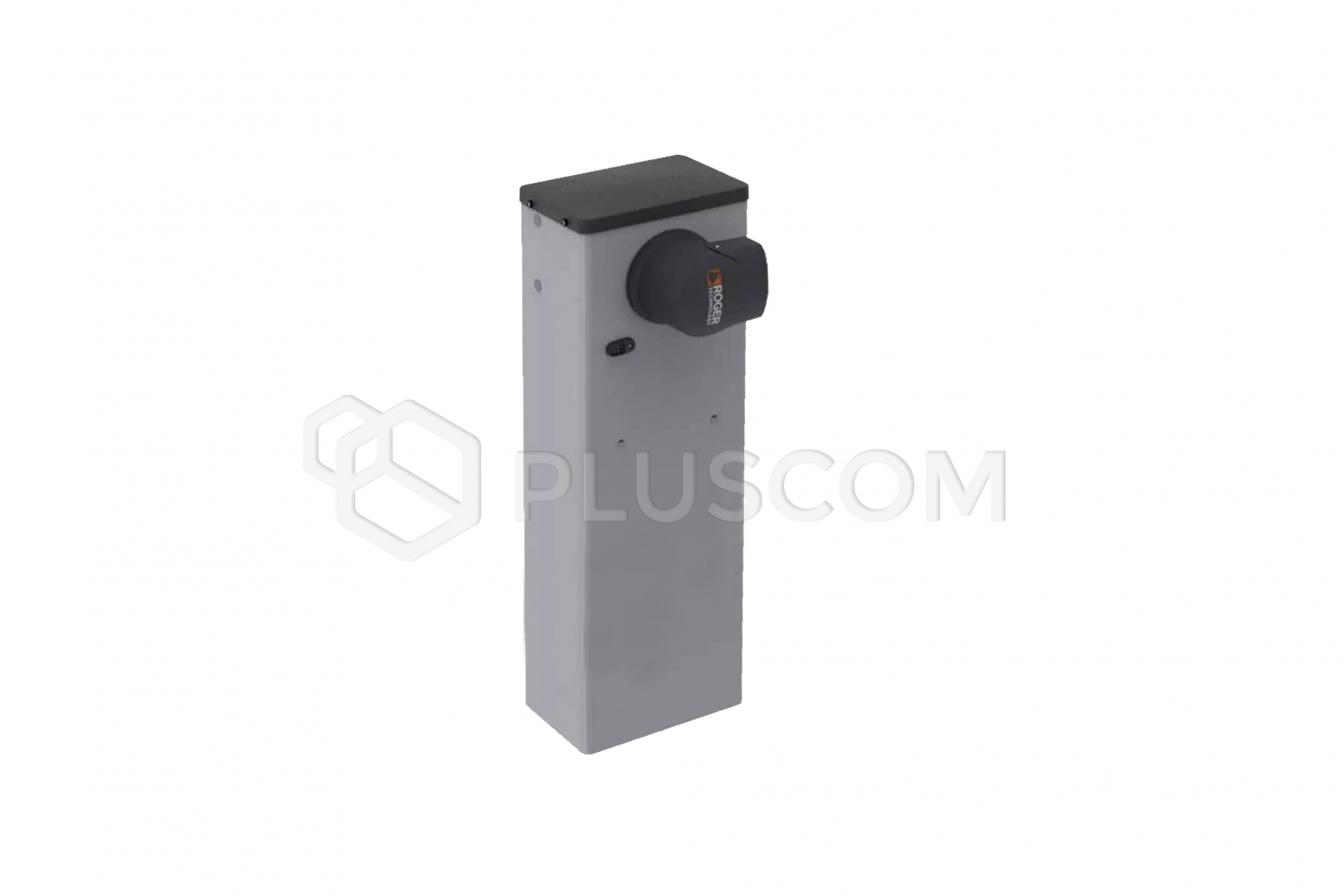

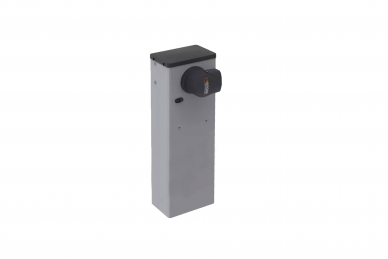

Roger Technology WAY4 Electromechanical Barrier Column

Roger Technology WAY4 Electromechanical Barrier Column

24V brushless electromechanical barrier column digital encoder built-in B70/1T control unit foundation base arm holder

Roger Technology WAY4 Electromechanical Barrier Column

The barrier guarantees intensive operating cycles and can accommodate a boom up to 4 meters long. It is equipped with a B70/1T control unit, a digital encoder, a mounting base, and a boom holder.

An innovative and precise encoder mounted on the reducer shaft allows for arm movement control with an accuracy of a tenth of a degree. It also allows the barrier to operate without restarting after a power failure or manual release.

To ensure the strength of the entire barrier and high stability during maneuvers, high-quality steel and bronze are used. A windproof aluminum arm with an elliptical cross-section and internal ribs further enhances stability. The housing is made of carbon steel, protected against corrosion and painted.

SPECIAL FEATURES

• 24V brushless motor
• Intensive use
• Continuous use 4500 cycles per day
• Alloy gear, no plastic, no Teflon, no nylon
• Low energy consumption
• Very quiet operation
• Sturdy construction

TECHNICAL DATA:

• Arm: up to 4 m
• Power supply: 230 V AC - 50 Hz
• Motor power supply: 24 V
• Starting power: 305 W
• Nominal power: 180 W
• Use: Intensive
• Force: 140 Nm
• Operating temperature: -20°C / +55°C
• Protection rating: IP54
• Gear motor type: Self-locking
• Opening time to 90°: 4-11 s
• Control unit (built-in): B70/1T, 24 V DC
• Encoder: Built-in digital + magnetic digital SENSORED, 4096 pulses per revolution
• Unlocking system: Front key
• Number of cycles per day (opening/closing - 24 hours non-stop): 4500 cycles
• Dimensions: 325 x 211 x 1010 mm
• Weight: 40 kg
