Roger Technology G90/F2ES Complete set of photocells for BIONIK barriers

75,32 EUR including 19.00% VAT
Product code: #33189
Manufacturer: Roger Technology
  • Power: 12/24V AC/DC
  • Range: max. 15m
  • For BIONIK barriers
  • Max. 2 pairs of photocells in one system

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology CRA/50 Column for G90 photocells, height 50cm Roger Technology CRA/100 Column for G90 photocells, height 100cm Roger Technology CRA/BAR Side column for G90 photocells 53cm

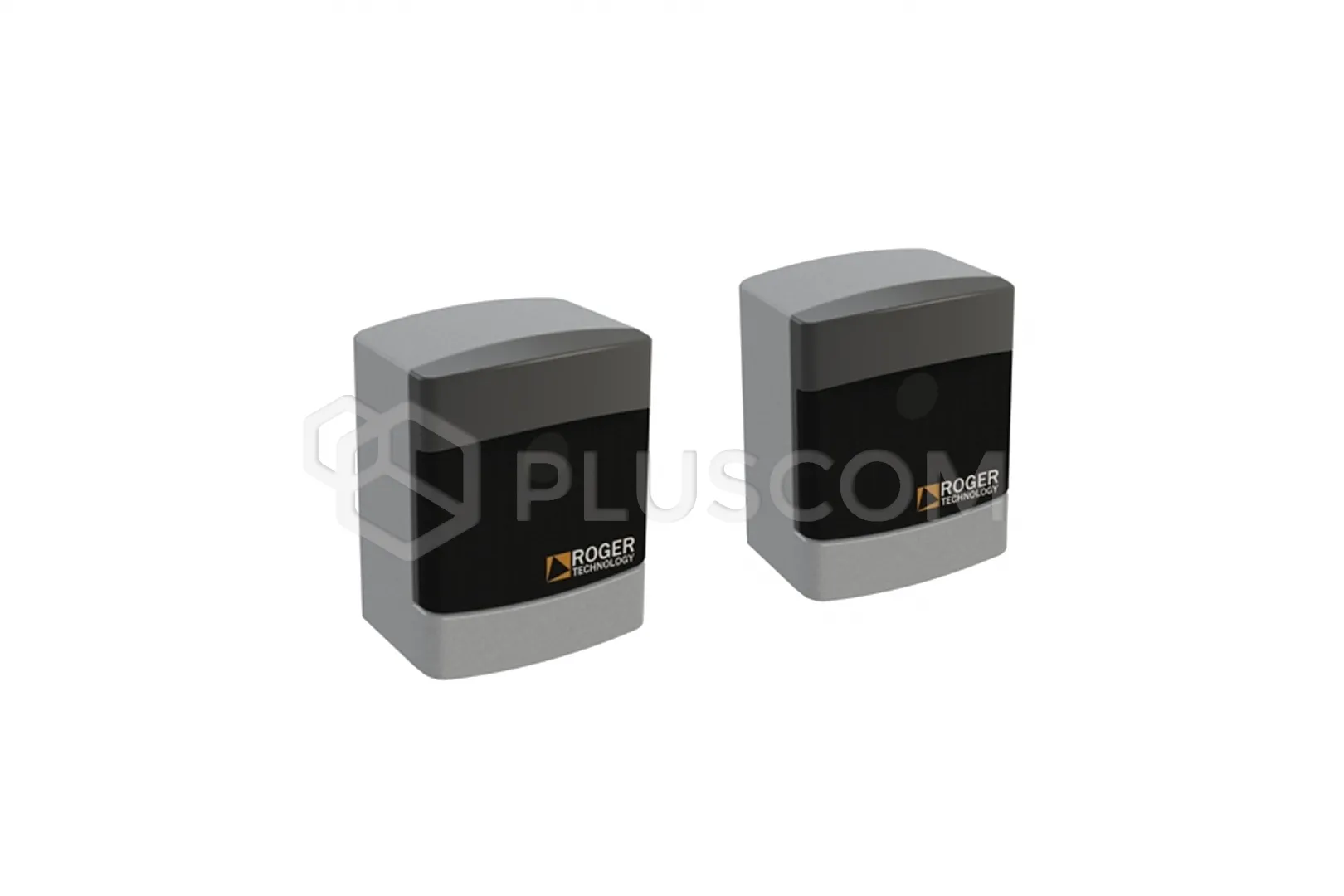

Roger Technology G90/F2ES Set of photocells for BIONIK barriers


G90/F2ES is a set of photocells for BIONIK barriers.
Surface-mounted receiving photocell with 12/24V AC/DC synchronization.

TECHNICAL DATA:

  • Standard mains power supply: 12/24V AC 50Hz - 12/24V DC
  • Absorption: TX 19 mA - RX 20 mA
  • Operating temperature: -20°C / +55°C
  • Protection class: IP55
  • Maximum distance in free field: 10 - 15 m
  • Maximum number of synchronized photocells: 2
  • Maximum current relay: 0.5A RX
  • Maximum voltage relay: 30V
  • Installation type: Outdoor
  • Dimensions: 75 x 98 x 58 mm
  • Weight: 0.2 kg
