Roger Technology SET G30/1804 Set

1305,05 EUR including 23.00% VAT
Product code: #40956
Manufacturer: Roger Technology
  • gate weight: up to 1800kg
  • 230V engine
  • built-in B70/104/AC control panel
  • speed: 10 m/min
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells, FIFTHY/230/OR lamp

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology KT222 Mounting plate for G30 actuators Roger Technology H70/104AC Control unit for 1 230 V AC motor Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30

Roger Technology SET G30/1804 Set with a 230V brushless motor drive for sliding gates up to 1800 kg

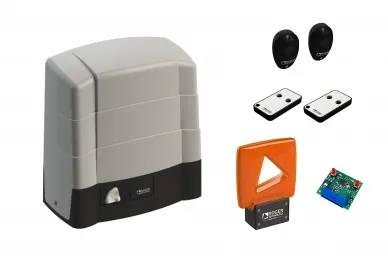

The set consists of:
Roger Technology SET G30/1804 Set

Roger Technology SET G30/1804 Set

Drive with 230 V motor, for sliding gates with a maximum weight of 1800 kg, with optical encoder, built-in H70/104/AC control unit and magnetic switches as well as base and screws for mounting.

FEATURES:

  • Gate weight max 1800 kg
  • Metal alloy gear without plastic, without Teflon, without nylon
  • Magnetic switches
  • Drive unlocking secured with a personalized key
  • Control unit with LED display
  • Optical encoder management
  • Soft start and slowdown
The actuator set is enriched with two 2-channel E80/TX52R/2 remote controls with a fixed code of 433.92 MHz with a copy function, a set of R90/F2ES photocells, based on infrared technology and an LED signal lamp FIFTHY/230/OR 230V with built-in 433.92MHz antenna increasing the range of remote controls.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC 50Hz
  • Nominal power: 520 W
  • Force: 1200 N
  • Speed: 10 m/min (0.16 m/s)
  • Motor thermal protection: 150°C
  • Gear motor type: irreversible
  • Encoder: optical
  • Capacitor: 18 µF
  • External gear: Z17/mod. 4
  • Max. gate weight: 1800 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 346 x 362 x 180 mm
  • Weight: 19.4 kg
