Roger Technology SET BG30/2204 Set

1694,85 EUR including 23.00% VAT
Product code: #40947
Manufacturer: Roger Technology
  • gate weight: up to 2200kg, length up to 4m
  • 230V engine
  • built-in B70/1DHCP control panel
  • opening time: 24 s
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells, FIFTHY/24/OR lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology KT222 Mounting plate for G30 actuators Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack Roger Technology B70/1DCHP Control unit with 1 brushless motor 36 V DC

Roger Technology SET BG30/2204 Set with a brushless motor 36V for sliding gates up to 2200 kg

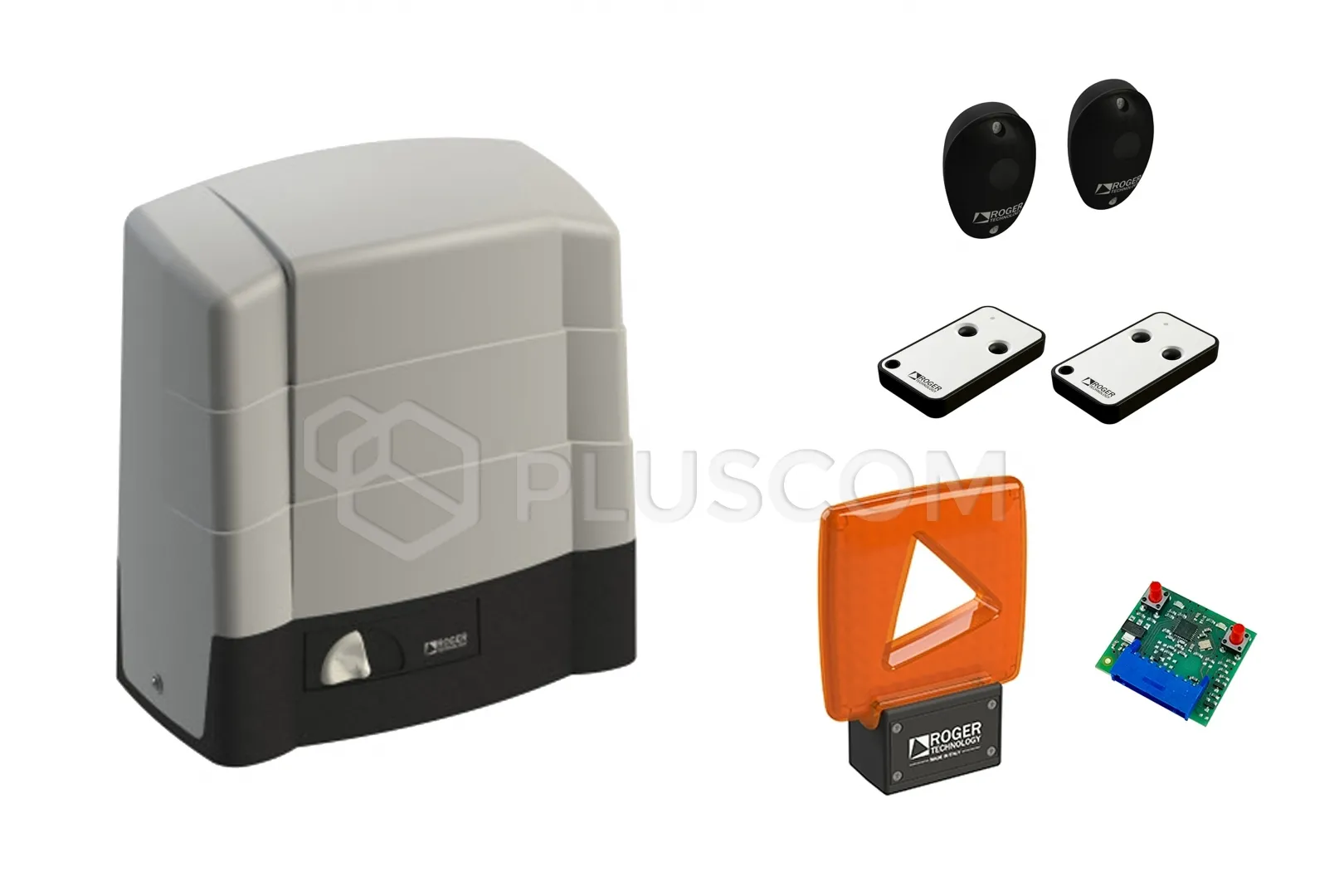

The set consists of:
Roger Technology SET BG30/2204 Set

Roger Technology SET BG30/2204 Set
Drive with 36 V brushless motor, for very intensive use, for sliding gates with a maximum weight of 2200 kg, with digital encoder, built-in B70/1DHCP control unit and magnetic switches, as well as a base and screws for mounting.

FEATURES:

  • Gate weight max 2200 kg
  • 36 V brushless motor
  • Super intensive use - 1000 cycles per day
  • Metal alloy gear without plastic, without Teflon, without nylon
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
The actuator set is enriched with two 2-channel E80/TX52R/2 remote controls with a copy function operating at a frequency of 433.92MHz, a complete set photocells R90/F2ES, based on infrared technology and LED signal lamp FIFTHY/24/OR 24V with built-in 433.92MHz antenna increasing the range of remote controls.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 36V
  • Nominal power: 470 W
  • Force: 50-1700 N
  • Speed: 10 m/min (0.16 m/s)
  • Work intensity: 1000 cycles/day (opening/closing 24h non-stop)
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (4096 pulses per revolution)
  • External gear: Z17/mod. 4
  • Max. gate weight: 2200 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 346 x 362 x 180 mm
  • Weight: 20.1 kg
