Roger Technology KIT BH30/610/HS/L KIT LIGHT

938,88 EUR including 22.00% VAT
Product code: #33226
Manufacturer: Roger Technology
  • gate weight: up to 600kg
  • 24V engine
  • built-in B70/1DC control unit
  • speed: 24 m/min
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology B71/BC Battery Charging Card Roger Technology B70/1DC Control unit with 1 brushless motor 24 V DC Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology POST BASE Adjustable base for H30 drives Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology CROSSF8 Metal toothed rack, galvanized 1m

Roger Technology KIT BH30/610/HS/L Brushless motor drive kit 24V HIGH SPEED for sliding gates up to 600 kg

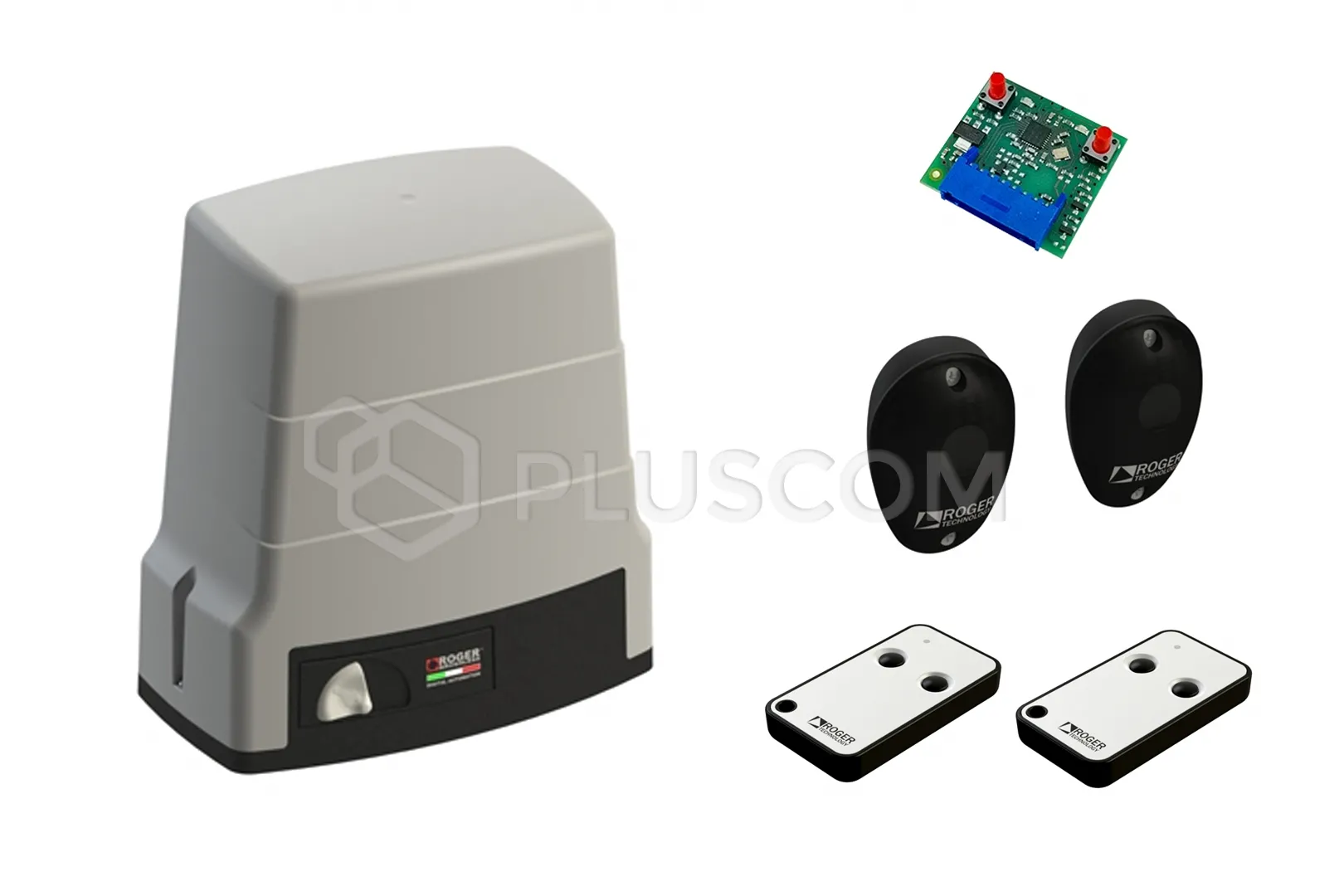

The set consists of:
Roger Technology KIT BH30/610/HS/L KIT LIGHT

Roger Technology KIT BH30/610/HS/L KIT LIGHT
Drive with a HIGH SPEED 24 V brushless motor, for very intensive use, for sliding gates with a maximum weight of 600 kg, with an absolute encoder, built-in B70/1DC control unit and magnetic switches, as well as a base and screws for mounting.

FEATURES:

  • Gate weight max 600 kg
  • Brushless motor 24 V
  • High Speed ​​version
  • Super intensive use - 800 cycles per day
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply
The actuator set is enriched with two 2-channel remote controls E80/TX52R/2 with copy function, operating on frequency 433.92MHz and a set of R90/F2ES photocells, based on infrared technology.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 24V
  • Nominal power: 130 W
  • Force: 50-500 N
  • Speed: 24 m/min (0.40 m/s)
  • Work intensity: 800 cycles/day (opening/closing 24h non-stop)
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (4096 pulses per revolution)
  • External gear: Z15/mod. 4
  • Max. gate weight: 600 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 315 x 329 x 165.8 mm
  • Weight: 11.9 kg
