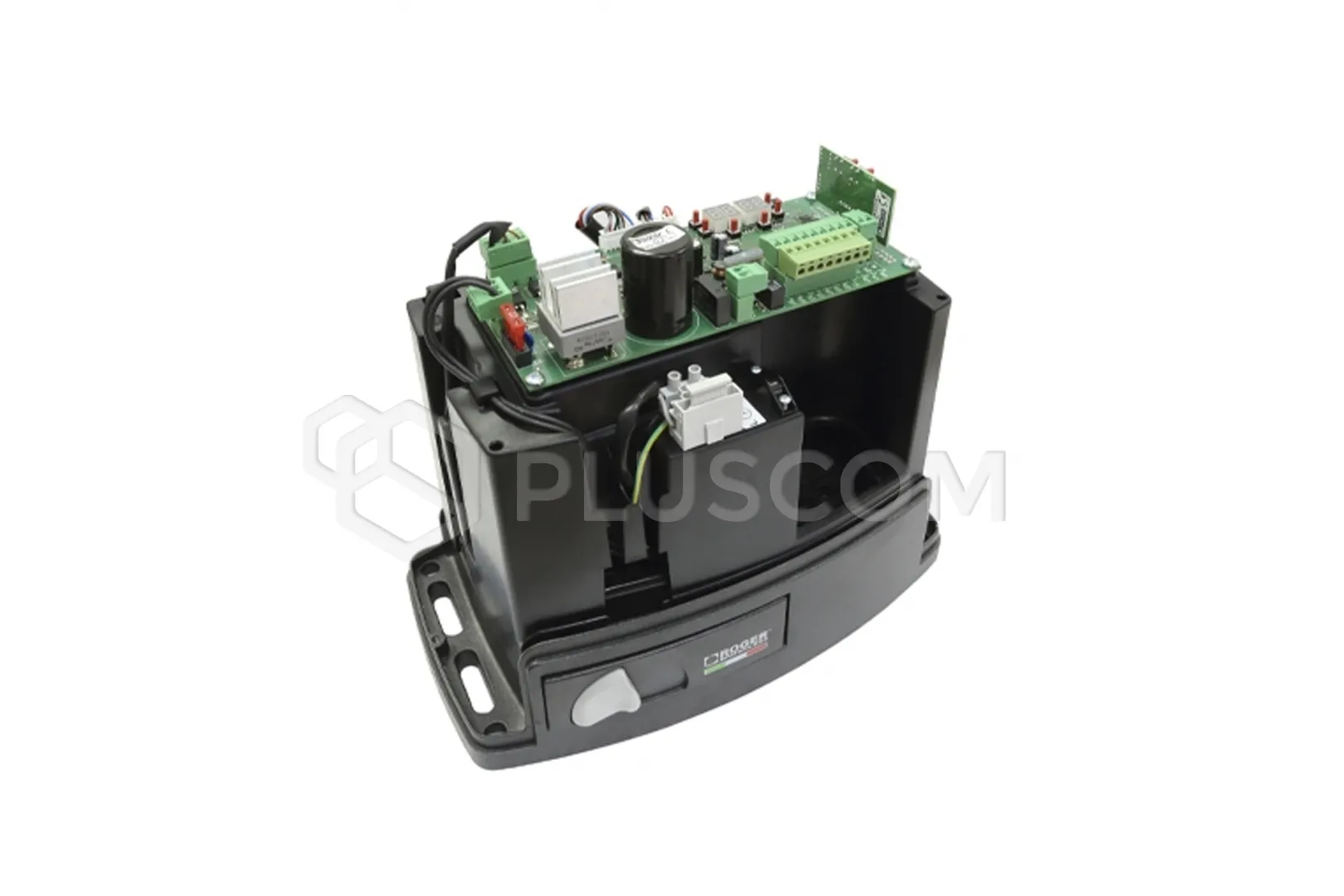

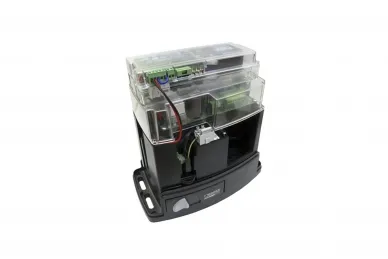

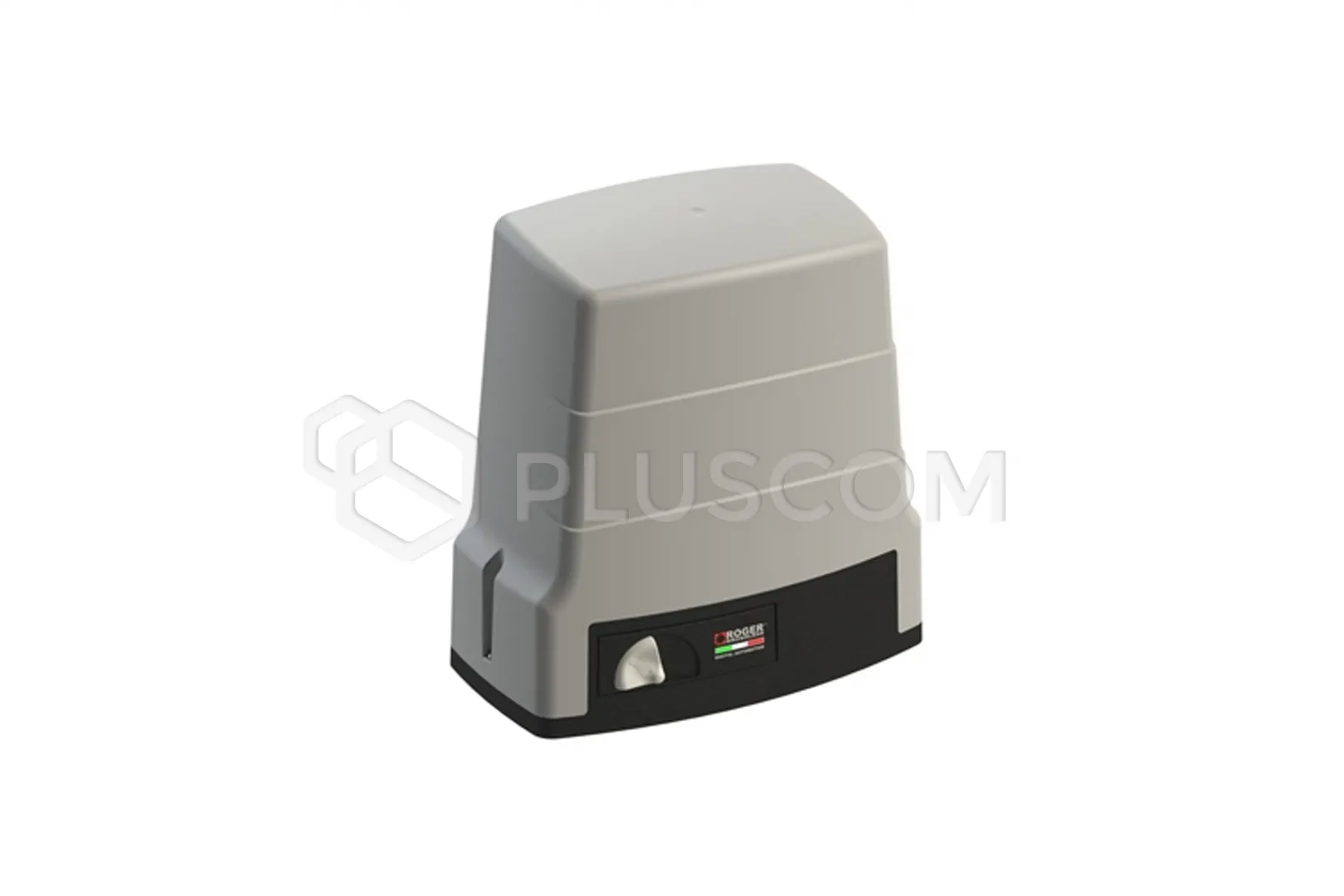

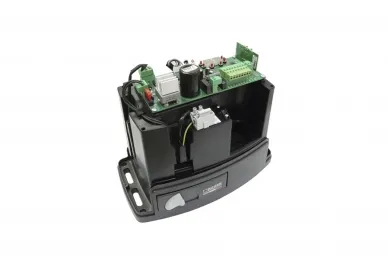

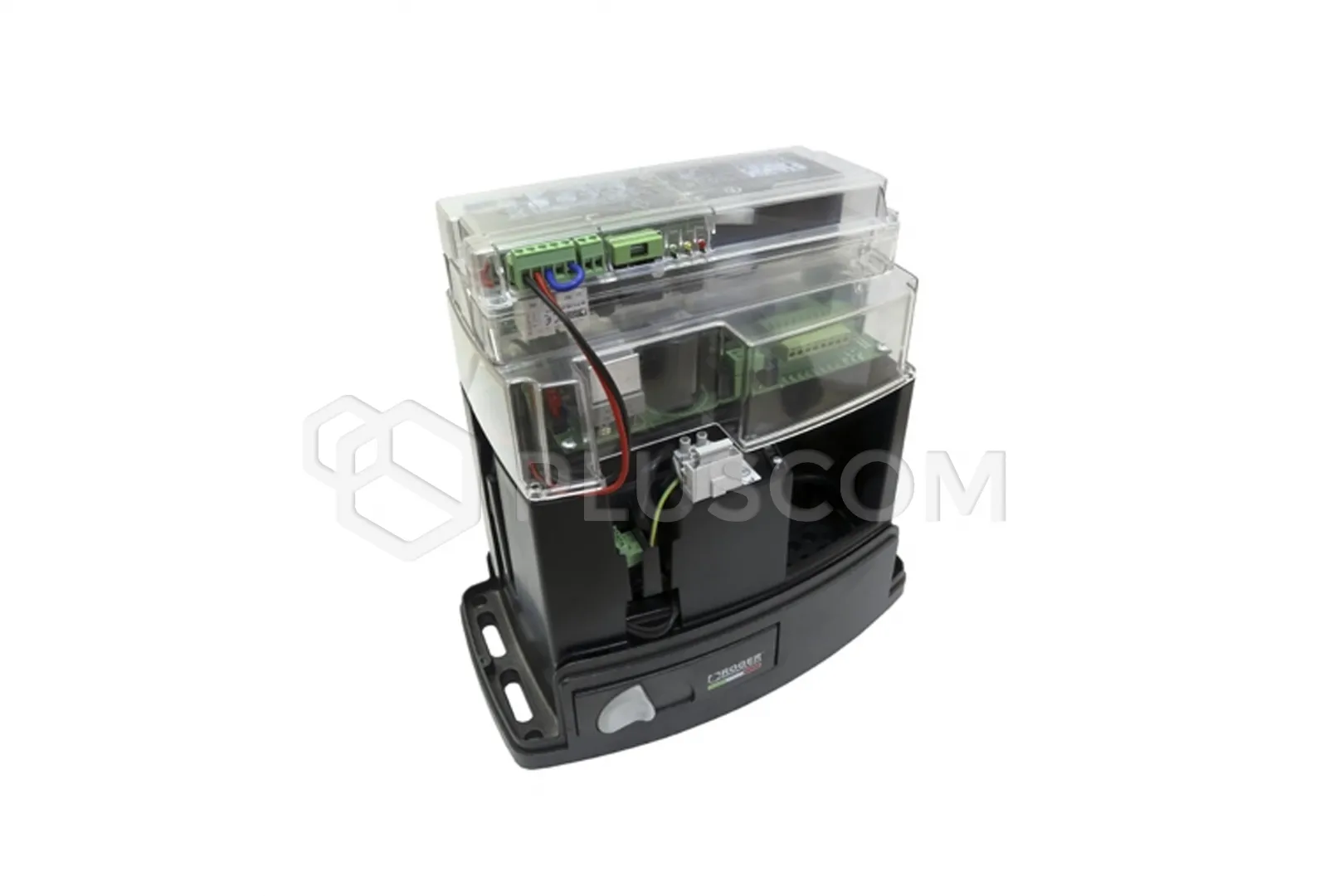

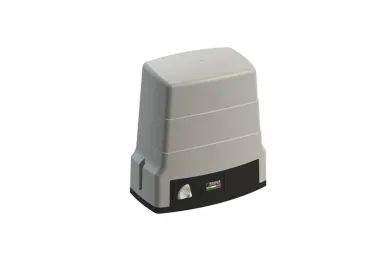

Roger Technology BH30/604/HS Drive with 24 V brushless motor

887,41 EUR including 23.00% VAT
Product code: #33135
Manufacturer: Roger Technology
  • gate weight: up to 600kg
  • 24V engine
  • built-in B70/1DC control unit
  • speed: 24 m/min
  • magnetic switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology B71/BC Battery Charging Card Roger Technology B70/1DC Control unit with 1 brushless motor 24 V DC Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology POST BASE Adjustable base for H30 drives

Roger Technology BH30/604/HS Brushless motor drive 24V for sliding gates up to 600 kg


Brushless motor drive HIGH SPEED 24 V, for very intensive use, for sliding gates with a maximum weight of 600 kg, with absolute encoder, built-in B70/1DC control unit and magnetic switches as well as a base and mounting screws.

FEATURES:

  • Gate weight max 600 kg
  • Brushless motor 24 V
  • High Speed version
  • Super intensive use - 800 cycles per day
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply

DANE TECHNICZNE:

  • Zasilanie sieciowe: 230V AC 50Hz
  • Zasilanie silnika: 24V
  • Moc znamionowa: 130 W
  • Siła: 50-500 N
  • Prędkość: 24 m/min (0,40 m/s)
  • Intensywność pracy: 800 cykli/dobę (otwieranie/zamykanie 24h non stop)
  • Typ motoreduktora: nieodwracalny
  • Enkoder: wbudowany cyfrowy + magnetyczny cyfrowy SENSORED (4096 impulsów na obrót)
  • Koło zębate zewnętrzne: Z15/mod. 4
  • Maks. ciężar bramy: 600 kg
  • Stopień ochrony: IP 43
  • Temperatura pracy: -20°C do +55°C
  • Wymiary: 315 x 329 x 165,8 mm
  • Waga: 11,9 kg
