Roger Technology KIT BE20/210/L KIT LIGHT

1183,21 EUR including 23.00% VAT
Product code: #33216
Manufacturer: Roger Technology
  • Leaf length up to 2.8m
  • Weight up to 400kg
  • Engine power supply 24V
  • Adjustable pole mount and mounting bracket included
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F4ES photocells
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology B71/BC/INT Battery Pack Roger Technology B70/2ML/BOX Control unit for 2 24 V DC motors

Roger Technology KIT BE20/210/L SET LIGHT with 24V brushless motor drive for swing gates up to 2.8m per wing

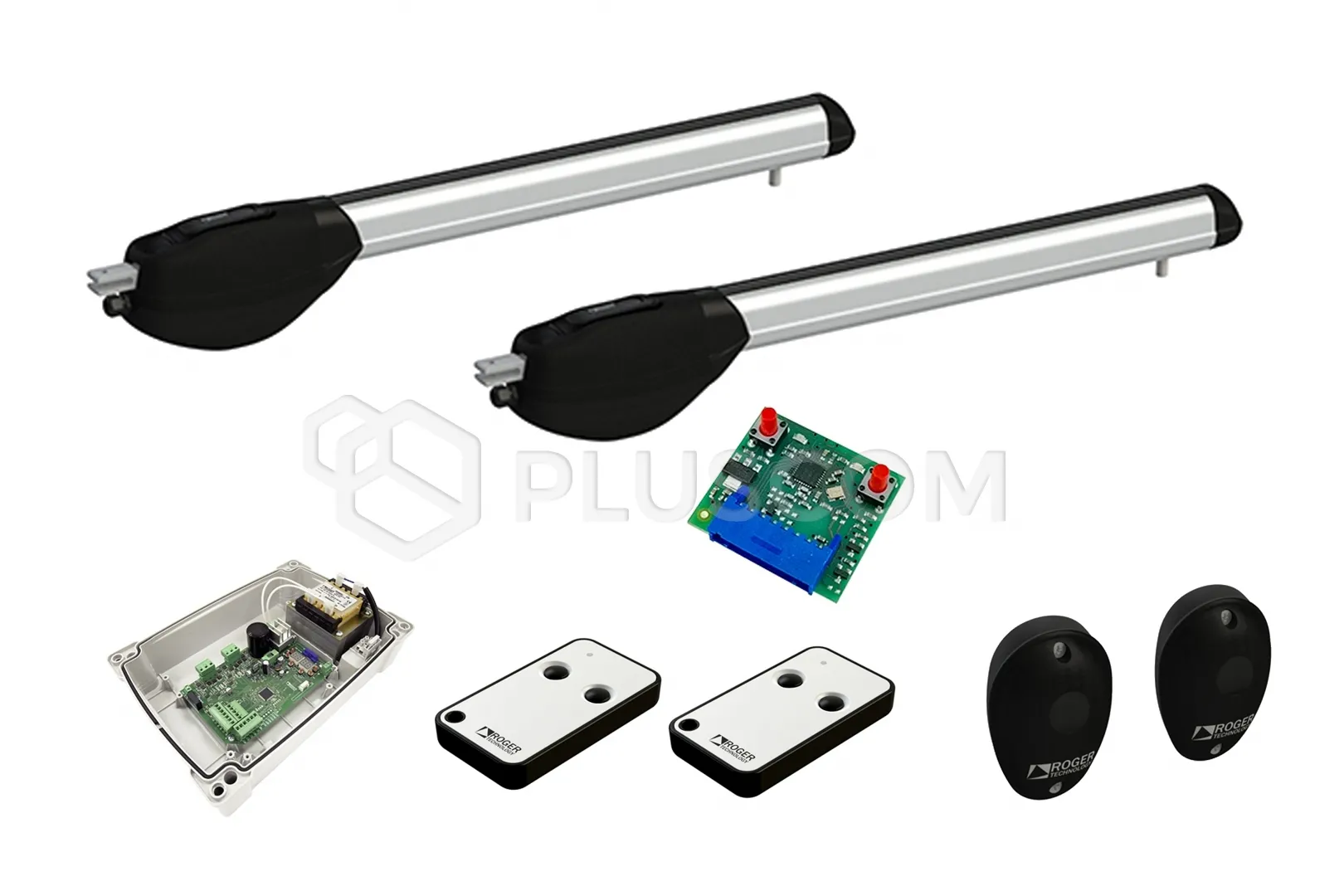

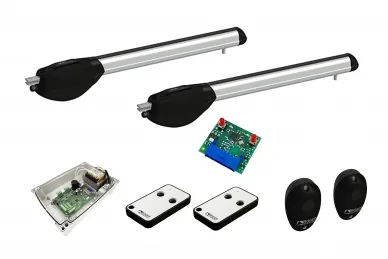

The set consists of:
Roger Technology KIT BE20/210/L KIT LIGHT

Roger Technology KIT BE20/210/L KIT LIGHT
Drive with 24 V brushless motor, for very intensive work, for swing gates with a maximum leaf length of 2.8 m with a digital encoder, mechanical limiters, adjustable bracket for screwing to the post and a bracket for mounting to the leaf.

FEATURES:

  • 24 V brushless motor
  • Super intensive use - 800 cycles per day
  • Mechanical limiter for opening and closing
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Digital encoder management
  • High work culture
  • Very low energy consumption
  • Screw stroke 400 mm
The actuator set is enriched with two 2-channel remote controls E80/TX52R/2 with fixed code 433.92 MHz with copy function and a set of R90/F4ES photocells, based on infrared technology.

TECHNICAL DATA:

  • Mains power supply: 230 V AC
  • Motor power supply: 24 V
  • Use frequency: intensive
  • Force: 100-2200N
  • Speed: 1.66 cm/s
  • Opening time to 90°: 15-25 s
  • Stroke: 400 mm
  • Limit switches: mechanical limit switches for opening and closing
  • Control unit: B70/2DC
  • Encoder: built-in digital + magnetic digital SENSORED, 48 pulses per revolution
  • Number of cycles per day: 800
  • Operating temperature: -20°C / +55°C
  • Product weight: 7.9 kg
