Roger Technology BE20/200 36V Brushless Motor Drive

473,89 EUR including 20.00% VAT
Product code: #33126
Manufacturer: Roger Technology
  • Leaf length up to 2.8m
  • Weight up to 400kg
  • Engine power supply 24V
  • Digital encoder and mechanical end stops
  • Adjustable pole mount and mounting bracket included
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology B71/BC/INT Battery Pack Roger Technology B70/2ML/BOX Control unit for 2 24 V DC motors

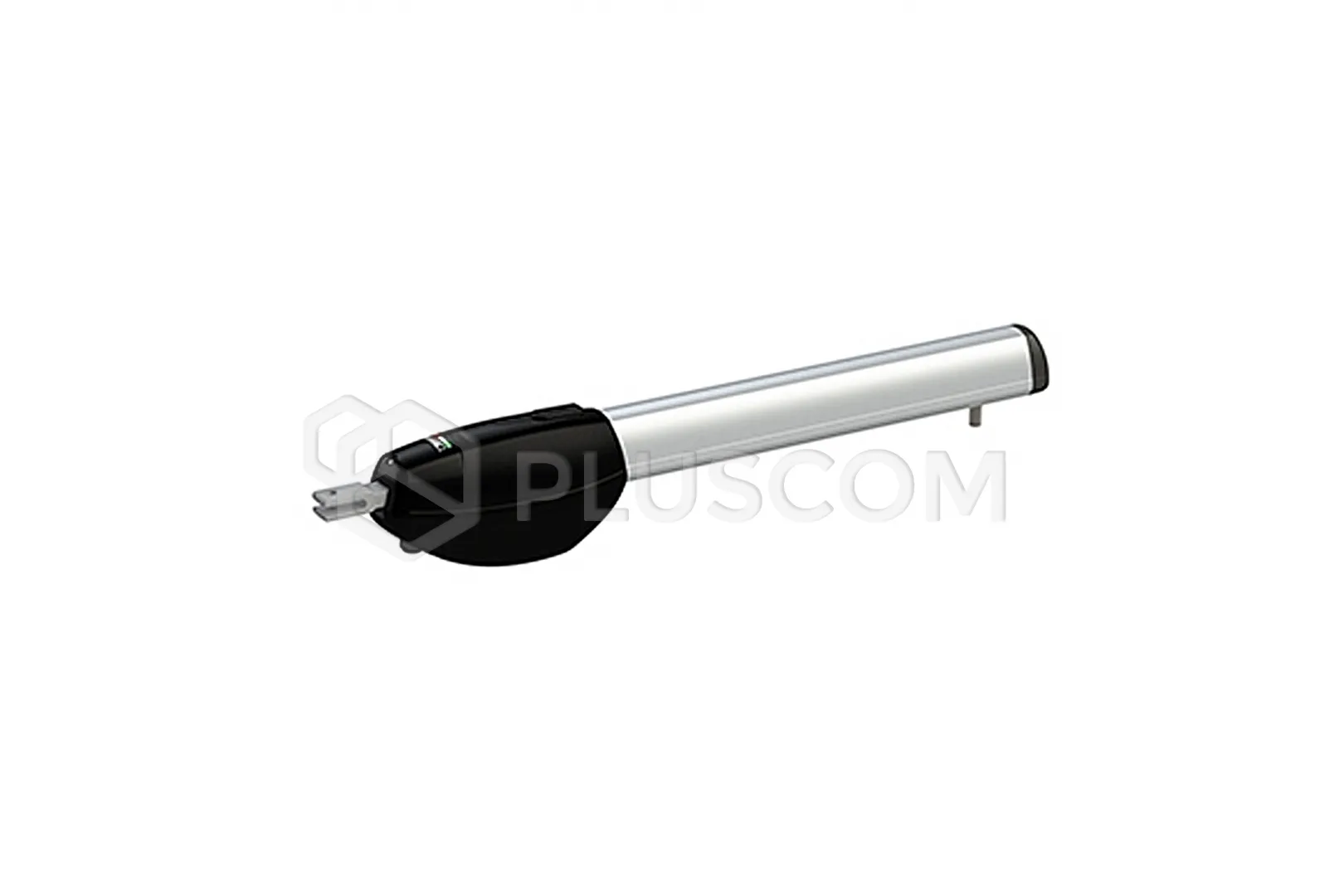

Roger Technology BE20/200 Drive with a 36V brushless motor for swing gates up to 2.8m per leaf


Drive with a 24V brushless motor, for very intensive use, for swing gates with a maximum leaf length of 2.8 m with a digital encoder, mechanical limiters, adjustable bracket for screwing to the post and a bracket for mounting to the leaf.

FEATURES:

  • 24 V brushless motor
  • Super intensive use - 800 cycles per day
  • Mechanical limiter for opening and closing
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Digital encoder management
  • High work culture
  • Very low energy consumption
  • Screw pitch 400 mm

TECHNICAL DATA:

  • Mains power supply: 230 V AC
  • Motor power supply: 24 V
  • Use frequency: intensive
  • Force: 100-2200N
  • Speed: 1.66 cm/s
  • Opening time to 90°: 15-25 s
  • Stroke: 400 mm
  • Limit switches: mechanical stops for opening and closing
  • Control unit: B70/2DC
  • Encoder: built-in digital + magnetic digital SENSORED, 48 pulses per revolution
  • Number of cycles per day: 800
  • Operating temperature: -20°C / +55°C
  • Product weight: 7.9 kg
