Roger Technology KIT AY/255/F KIT FULL

1527,31 EUR including 19.00% VAT
Product code: #33205
Manufacturer: Roger Technology
  • Leaf length up to 2.5m
  • Leaf weight up to 250kg
  • 800 cycles per day
  • High Speed ​​Version
  • 2 x 2-channel remote controls SYNUS/2, R90/F4ES photocells, FIFTHY/24 lamp
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology LT337 Long arm for AYRON series Roger Technology LT336 Short arm for AYRON series Roger Technology B71/BC Battery Charging Card Roger Technology B70/2ML Control unit for 2 24 V DC motors

Roger Technology KIT AY/255/F KIT FULL with 24V brushless motor drive for swing gates up to 2.5m per wing

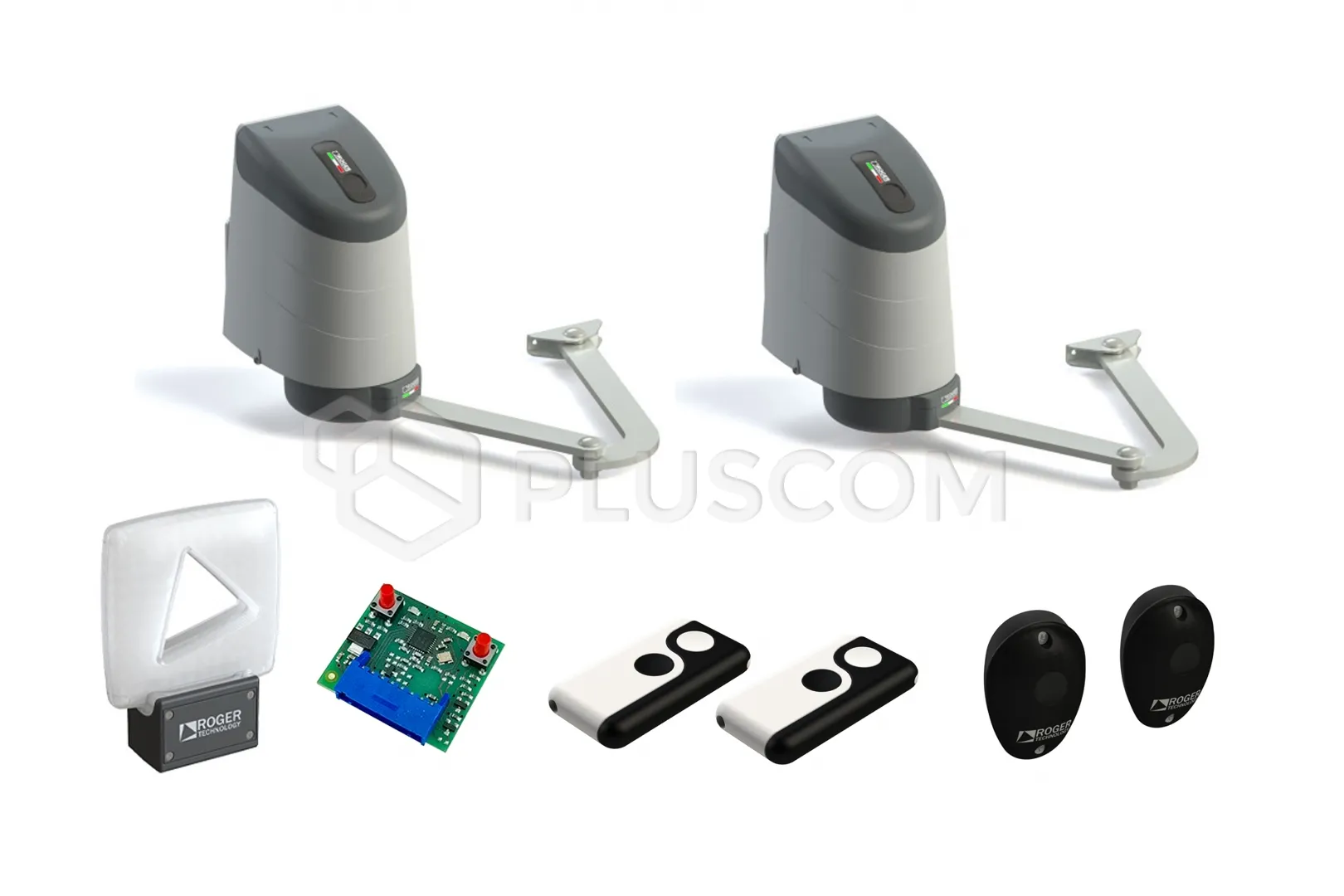

The set consists of:
Roger Technology KIT AY/255/F KIT FULL

Roger Technology KIT AY/255/F KIT FULL
Self-locking AYRON AY/250/M actuator with BRUSHLESS 24V HIGH SPEED engine and built-in B70/2ML and AYRON AY/250/S control unit, make up a set for swing gates with a wing length of up to 2.5 m.
A set designed for very intensive work.

FEATURES:

  • Up to 800 cycles per day
  • Digital encoder management
  • Opening time up to 900 10-18s
  • For wide posts
  • Electronic force regulation
  • Adjustable opening/closing speed
  • Full control of the leaf movement
  • Obstacle detection function
  • Mechanical limiter for opening and closing
  • Metal alloy gear - no plastic, no Teflon, no nylon
  • Key release
  • Soft start and slowdown
  • Very low consumption energy
The actuator set is enriched with two 2-channel SYNUS/2 remote controls with fixed code/rolling code operating at a frequency of 433.92MHz, a set of R90/F4ES photocells, based on infrared technology and a FIFTHY/24 24V LED signal lamp with a built-in 433.92MHz antenna.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 24V
  • Nominal power: 150 W
  • Force: 50-200 N
  • Speed: 1.5 cm/s (10-18 s opening to 90°)
  • Number of cycles per day: 800
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (48 pulses per revolution)
  • Protection class: IP 43
  • Operating temperature: -20°C up to +55°C
  • Dimensions: 189 x 330 x 245 mm
  • Weight: 13.2 kg
