Roger Technology AY/250/M 24V brushless motor drive

932,59 EUR including 20.00% VAT
Product code: #33095
Manufacturer: Roger Technology
  • Leaf length up to 2.5m
  • Leaf weight up to 250kg
  • Built-in B70/2ML control unit
  • Engine power supply 24V
  • For very intensive work
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology LT337 Long arm for AYRON series Roger Technology LT336 Short arm for AYRON series Roger Technology B71/BC Battery Charging Card Roger Technology B70/2ML Control unit for 2 24 V DC motors

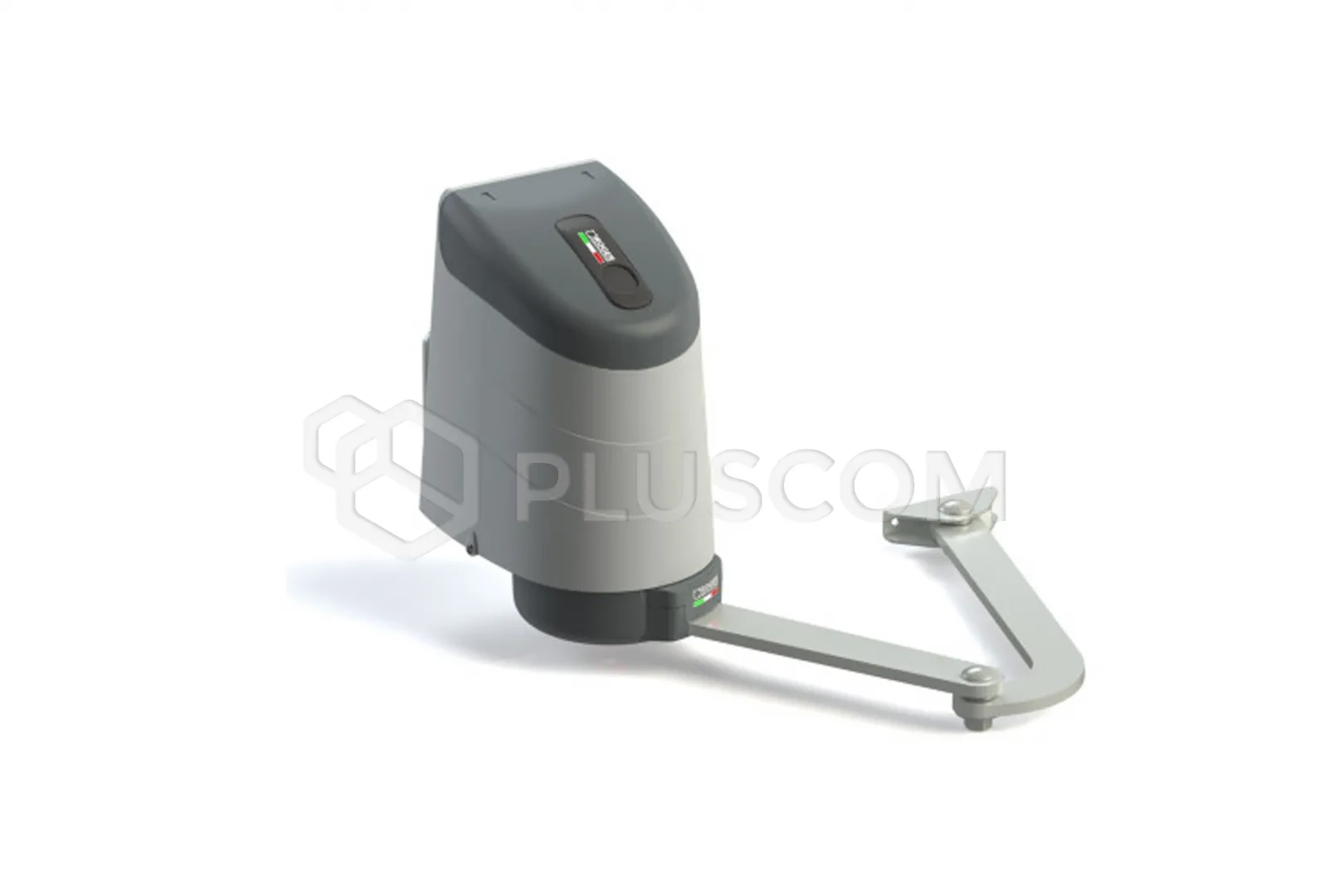

Roger Technology AY/250/M Drive with 24V brushless motor for swing gates up to 2.5m


Self-locking actuator with folding arm AYRON AY/250/M with BRUSHLESS 24V HIGH SPEED motor. It has a built-in B70/2ML control unit and digital encoder for swing gates with a wing length of up to 2.5 m.
The drive is designed for very intensive work.

FEATURES:

  • Designed for very intensive work - up to 800 cycles per day
  • Built-in B70/2ML control unit
  • Opening time up to 90°: 10-18s
  • For wide posts
  • Electronic force regulation
  • Adjustable opening/closing speed
  • Full control of the wing movement
  • Obstacle detection function
  • Digital encoder management
  • Mechanical limiter for opening and closing
  • Metal alloy gear - no plastic, no Teflon, no nylon
  • Key release
  • Soft start and slowdown
  • Very low energy consumption

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 24V
  • Nominal power: 150 W
  • Force: 50-200 N
  • Speed: 1.5 cm/s (10-18 s opening to 90°)
  • Number of cycles per day: 800
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (48 pulses per revolution)
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 189 x 330 x 245 mm
  • Weight: 13.2 kg
