Roger Technology SET BIONIK1PE automatic parking
barrier with a 36V brushless motor arm 3m
SET INCLUDES
|

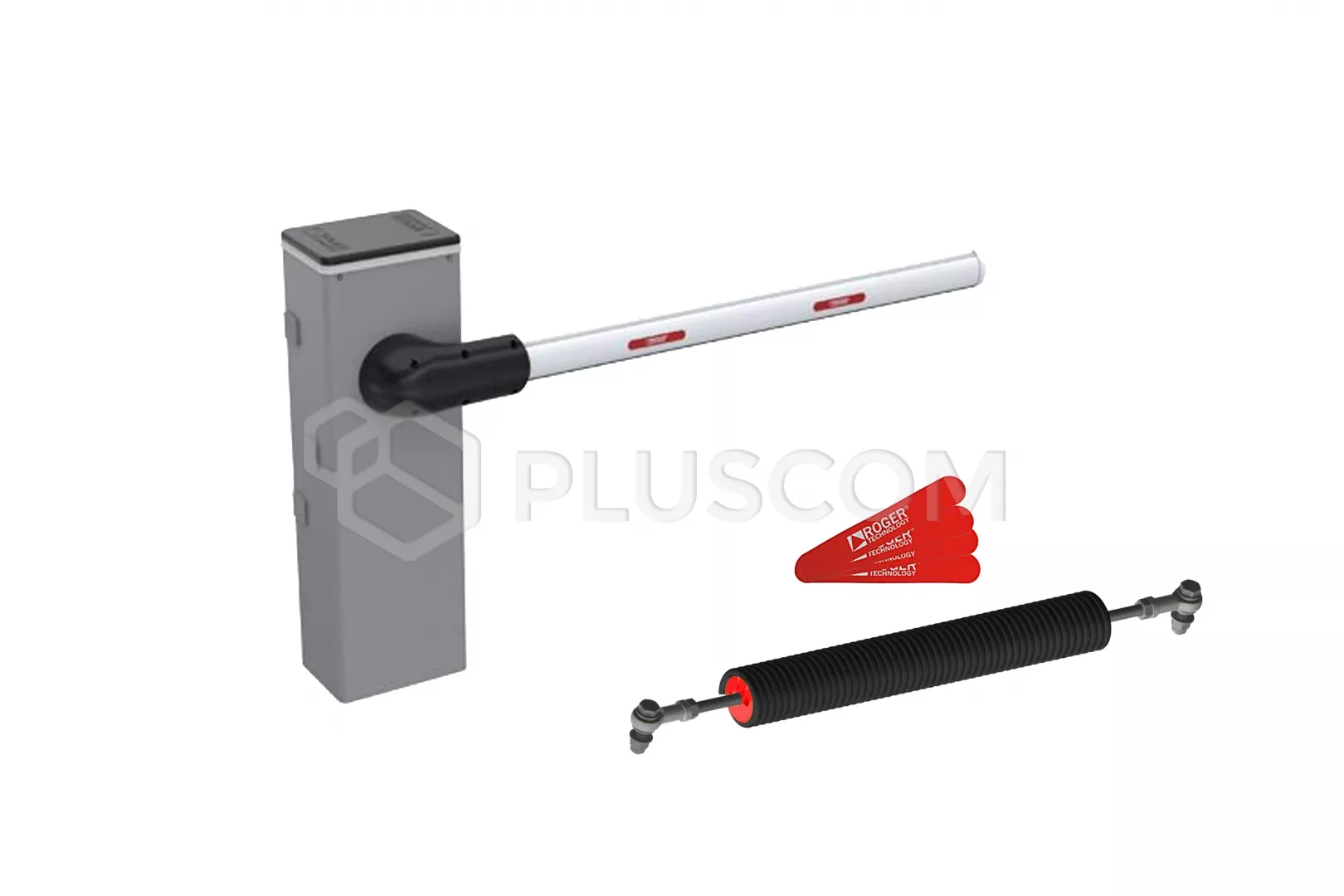

Roger Technology SET BIONIK1PE Set with BIONIK1PE with 3 m arm
|
The barrier guarantees intensive work cycles and can be installed on it
ramoin up to 3m. It is dedicated to parking systems and is equipped with:
CTRL/P control panel, digital encoder, LED column lighting, mounting base with
anchor elements and arm mounting.
The BRUSHLESS 36V engine allows you to use the barrier without any limits with
extremely low energy consumption.
An innovative and precise encoder mounted on the reducer shaft makes it
possible managing arm movement with accuracy down to the tenth of a degree
angle. It also allows the barrier to operate without being restarted after
power return or manual release.
To ensure the durability of the entire barrier and high stability during
maneuvers, steel and bronze were used, which are of the highest quality.
Windproof aluminum frame with elliptical and internal cross-section ribs
additionally increase stability. Housing made of carbon steel protected against
corrosion and painted.
BI/001PE is a barrier with high speed and durability, with super-intensity
operation.
SPECIAL FEATURES:
- 36V brushless motor
- Super intensive use
- Continuous use 8000 cycles per day
- Avg. failure-free operation time 8,500,000 cycles (MCBF)
- Metal alloy gear, no plastic, no Teflon, no nylon
- Low energy consumption
- Very quiet operation
- LED lighting of the column and arm
- Strong construction
- Aluminum arm
The barrier is equipped with an aluminum elliptical frame BA/90/03 with
a length 3 m, with LED lighting profile and protective rubber (2 pcs).
The arm is made of aluminum, which guarantees mechanical resistance damage and
wear, as well as smooth operation and has a protective rubber.
We can equip them with additional accessories such as warning stickers, ladders
and supports.
The SET BIONIK1PE kit includes a red balancing spring SP/72/01 with a
diameter of 72 mm dedicated to the 3m arm.
TECHNICAL PARAMETERS OF THE BARRIER
- Power supply: 230 Vac - 50 Hz, +/-10%
- Motor power supply: 36V
- Motor current consumption: max 15A
- Power: 450W
- Force: 10-200 Nm
- Opening speed: 2-4 seconds
- Entry clearance: 2.85m
- Control system: encoder
- Frequency of use: continuous
- Number of cycles per day: 8000
- Control panel: CTRL/P
- Arm: max. 3 m
- Declutch system: key
- Protection rating: IP54
- Operating temperature: - 20°C/+ 55°C
- Dimensions: 380x270x1237mm
TECHNICAL PARAMETERS OF THE CTRL/P CONTROL UNIT
- Power supply: 230V AC, 60 Hz
- Max power consumption: 500W
- Motor power supply: 36 Vac
- Max engine power consumption: 450W
- Accessory power supply: 24 V
- Warning lamp: 24V, 5W
- Electric lock: 12V, 5-10W
- Operating temperature: - 20°C/+ 55°C
- Dimensions of the control panel: 166x150x48mm
