Roger Technology SET BIONIK1PC Set with BIONIK1PC with 3 m arm

3938,83 EUR including 23.00% VAT
Product code: #33349
Manufacturer: Roger Technology

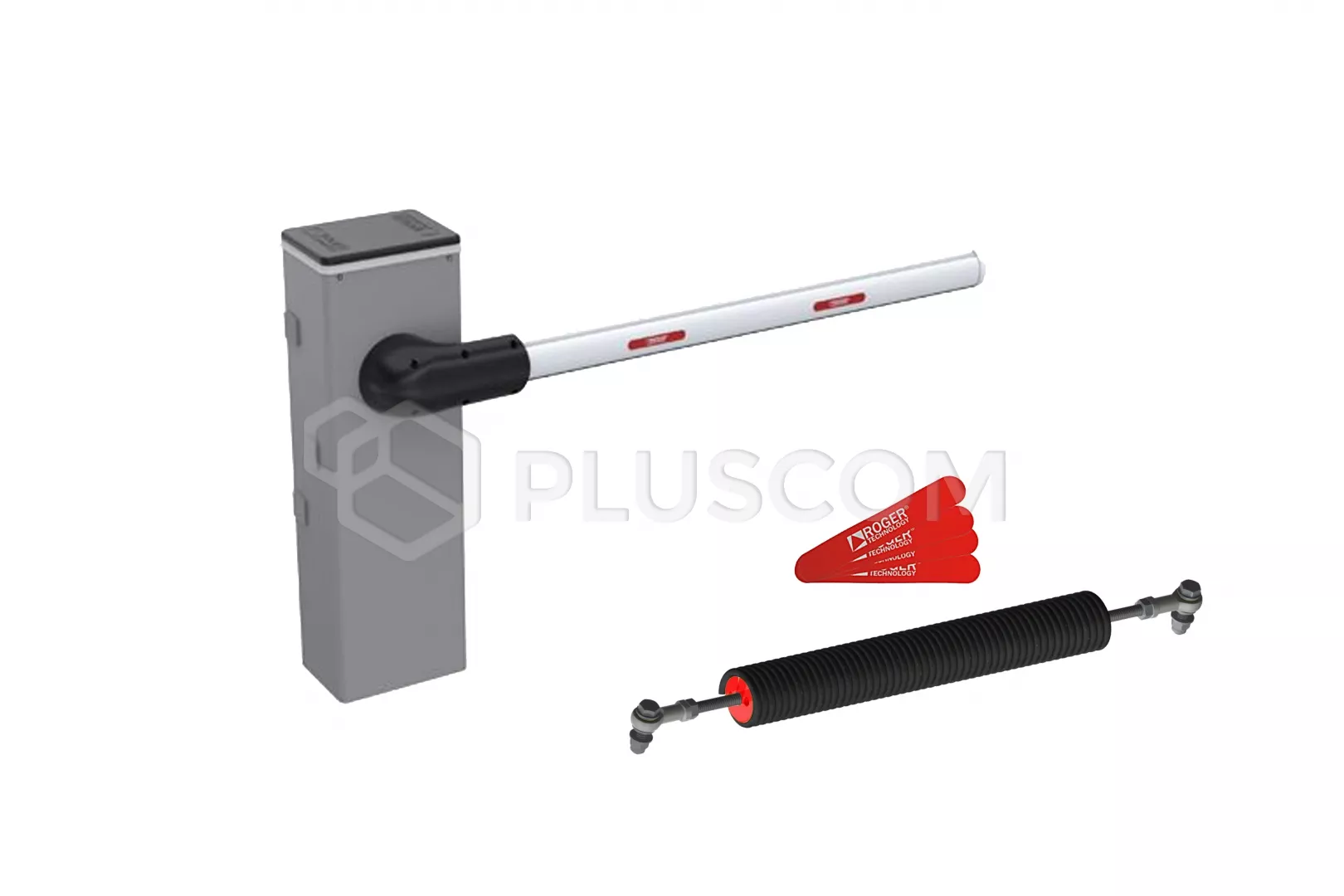

  • THE KIT:
  • BI/001PC - Electromechanical barrier column
  • SP/72/01 - Red spring, diameter 72mm
  • BA/60/03 - Round arm 3m
  • R99/BASB20 - Reflective stickers (20 pcs.)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,62 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology B73/EXP Signal status card Roger Technology ALED/RG/4C LED lighting for the 4 m arm Roger Technology ALED/RG/2C Red-green LED dome lighting Roger Technology ACS/BA/68 Elliptical arm breaking system Roger Technology ACS/BA/60 Round arm breaking system Roger Technology Two-chamber LED 24V semaphore Roger Technology CRA/50 Column for G90 photocells, height 50cm Roger Technology CRA/100 Column for G90 photocells, height 100cm Roger Technology BI/BAT/KIT Battery pack and charging card Roger Technology B73/LTM Module for managing RGB LED strips and semaphores

Roger Technology SET BIONIK1PC Set BIONIK1PC automatic highway barrier with a 36V brushless motor and arm 3m


SET INCLUDES
Roger Technology SET BIONIK1PC Set with BIONIK1PC with 3 m arm

Roger Technology SET BIONIK1PC Set with BIONIK1PC with 3 m arm
The barrier guarantees intensive work cycles and can be installed on it ramoin up to 3m. It is dedicated to highway systems and is equipped with: CTRL/P control panel, digital encoder, LED column lighting, mounting base with anchor elements and arm mounting.

The BRUSHLESS 36V engine allows you to use the barrier without any limits with extremely low energy consumption.
An innovative and precise encoder mounted on the reducer shaft makes it possible managing arm movement with accuracy down to the tenth of a degree angle. It also allows the barrier to operate without being restarted after power return or manual release.

To ensure the durability of the entire barrier and high stability during maneuvers, steel and bronze were used, which are of the highest quality. Windproof aluminum round frame. Housing made of carbon steel protected against corrosion and painted.

BI/001PC is a barrier with high speed and durability, with super-intensity operation.

SPECIAL FEATURES:
  • 36V brushless motor
  • Super intensive use
  • Continuous use 12,000 cycles per day
  • Avg. failure-free operation time 12,000,000 cycles (MCBF)
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Low energy consumption
  • Very quiet operation
  • LED lighting of the column and arm
  • Strong construction
  • Aluminum arm

The barrier is equipped with a long aluminum round frame BA/60/03 3m
The arm is made of aluminum, which guarantees mechanical resistance damage and wear and smooth operation.

The SET BIONIK1PC kit includes a red balancing spring SP/72/01 with a diameter of 72 mm dedicated to the 3m arm.

TECHNICAL PARAMETERS OF THE BARRIER
  • Power supply: 230 Vac - 50 Hz, +/-10%
  • Motor power supply: 36V
  • Motor current consumption: max 15A
  • Power: 450W
  • Force: 10-200 Nm
  • Opening speed: 1-3 seconds
  • Control system: encoder
  • Frequency of use: continuous
  • Number of cycles per day: 12000
  • Entry clearance: 2.85m
  • Control panel: CTRL/P
  • Arm: max. 3 m
  • Declutch system: key
  • Protection rating: IP54
  • Operating temperature: - 20°C/+ 55°C
  • Dimensions: 380x270x1237mm
TECHNICAL PARAMETERS OF THE CTRL CONTROL UNIT
  • Power supply: 230V AC, 60 Hz
  • Max power consumption: 500W
  • Motor power supply: 36 Vac
  • Max engine power consumption: 450W
  • Accessory power supply: 24 V
  • Warning lamp: 24V, 5W
  • Electric lock: 12V, 5-10W
  • Operating temperature: - 20°C/+ 55°C
  • Dimensions of the control panel: 166x150x48mm
