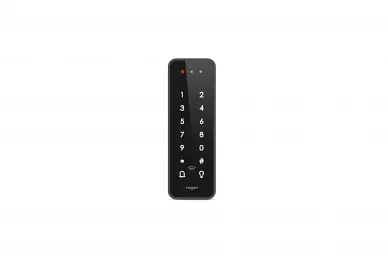

Roger PRT84ME Access Terminal

179,36 EUR including 20.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #33008
Manufacturer: Roger
  • ISO14443A and EM125kHz proximity reader
  • Work in terminal mode
  • Touch keyboard
  • 2 programmable function keys
  • Reading range: up to 5cm
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,77 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MC16-EVC-16 Conventional Elevator Access Controller Roger MC16-PAC-ST-2 Physical Access Controller Roger MFC-1 MIFARE Ultralight ISO Proximity Card Roger MC16-HRC-3 Hotel access controller module Roger MC16-BAC-8 Building Automation Controller Roger MC16-PAC-ST-1 Physical Access Controller Roger ME-10 Metal protective enclosure for proximity readers Roger MC16-HRC-2 Hotel access controller module Roger MC16-BAC-64 Building Automation Controller Roger MC16-PAC-EX-4 Physical Access Controller

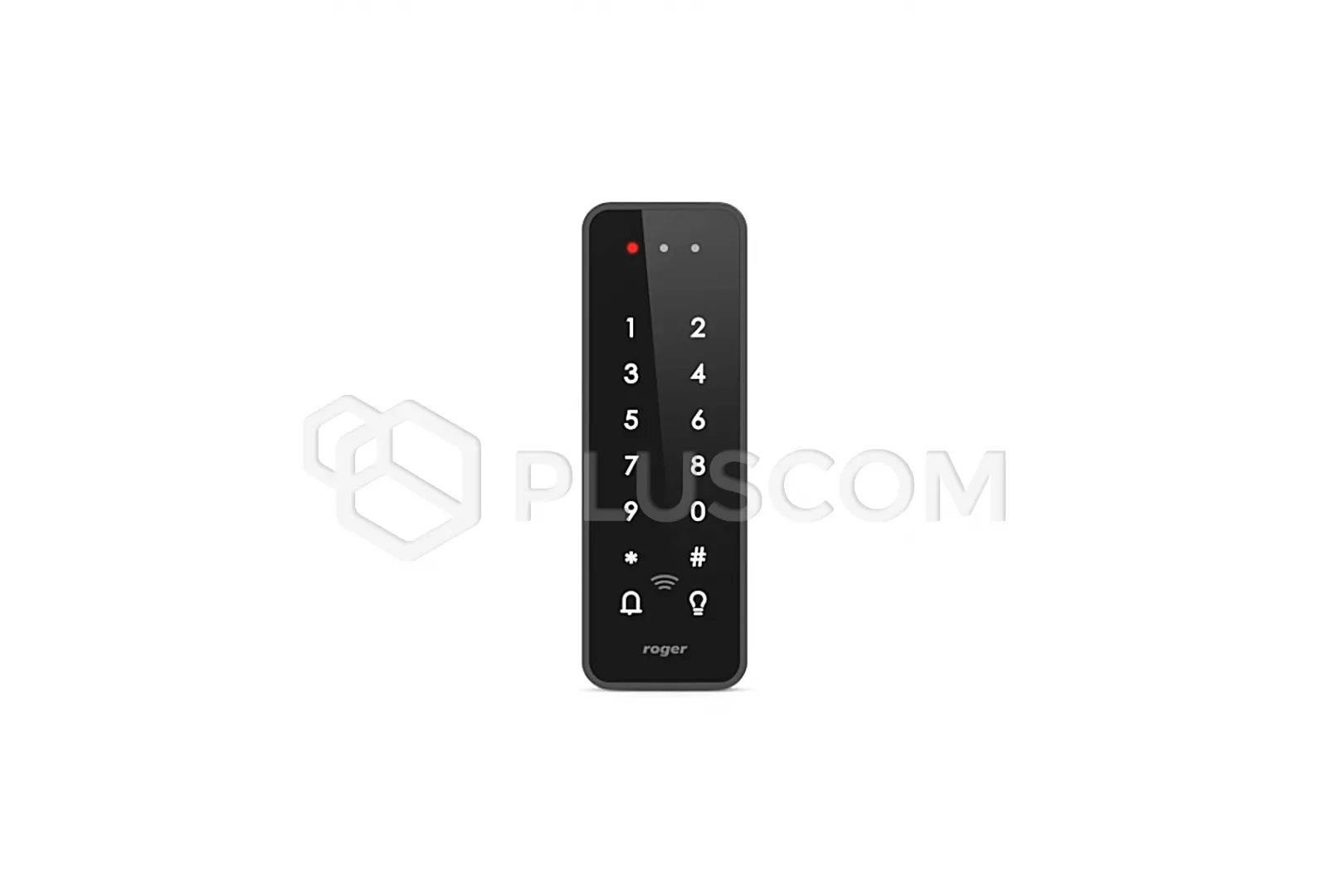

Roger PRT84ME Dual internal proximity card reader for EM125 kHz and 13.56 MHz MIFARE cards with touch keyboard

The PRT84ME reader is designed to work with controllers access devices supporting the RACS CLK/DTA (Roger) or Wiegand 24...66 bit protocol.
The reader is equipped with a touch numeric keyboard, two input lines and two function keys marked with the Bell and Light symbols. Function keys may be used for purposes other than those indicated by their associated symbols. PRT84ME can be connected to a controller with the RACS CLK&DTA interface (RACS 4 system) or with the Wiegand interface.
The device cannot work independently. The operation is limited to reading the card number or PIN code and sending these data to the access controller.

Detailed programming of the device can be made from a computer (RogerVDM program). The working mode is possible can also be changed manually using the reader's keyboard or card proximity. Configuring reader settings from the RogerVDM program requires the use of the RUD-1 interface.

FEATURES:
  • ISO14443A and EM125kHz contactless cards:
    • MIFARE® ULTRALIGHT
    • MIFARE® Classic 1k and 4k
    • MIFARE® DESFire EV0 and EV1 (PRT12MF-DES only)
    • MIFARE® Plus (PRT12MF-DES only)
    • EM125KHz (PRT84ME only)
  • Reading CSN and PCN numbers
  • RACS CLK/DTA output format
  • Wiegand 26..66 bit output format
  • Three LED indicators
  • Control of LED indicators from input lines (Wiegand mode)
  • Signal loudspeaker with volume control
  • Speaker control from the input line (Wiegand mode)
  • Keyboard backlight level adjustment
  • Two function keys (PRT12MF-DES)
  • Case opening and wall separation sensor
  • Configuration from a PC (RogerVDM program)
  • Connection cable 0.5m
READER CONFIGURATION
The reader can work in various operating modes that determine how cooperation with the controller. Selecting the operating mode and its associated format data transmission to the controller can take place from the RogerVDM program (Windows) or manually during the programming procedure operating mode.
Download
Datasheet 0.16 MB
CE Declaration 0.1 MB
User manual 1.17 MB
Installation Manual 0.29 MB
