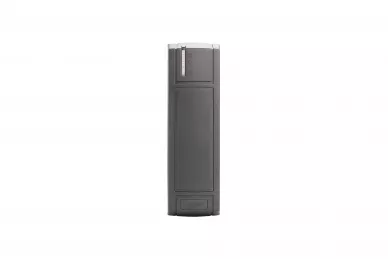

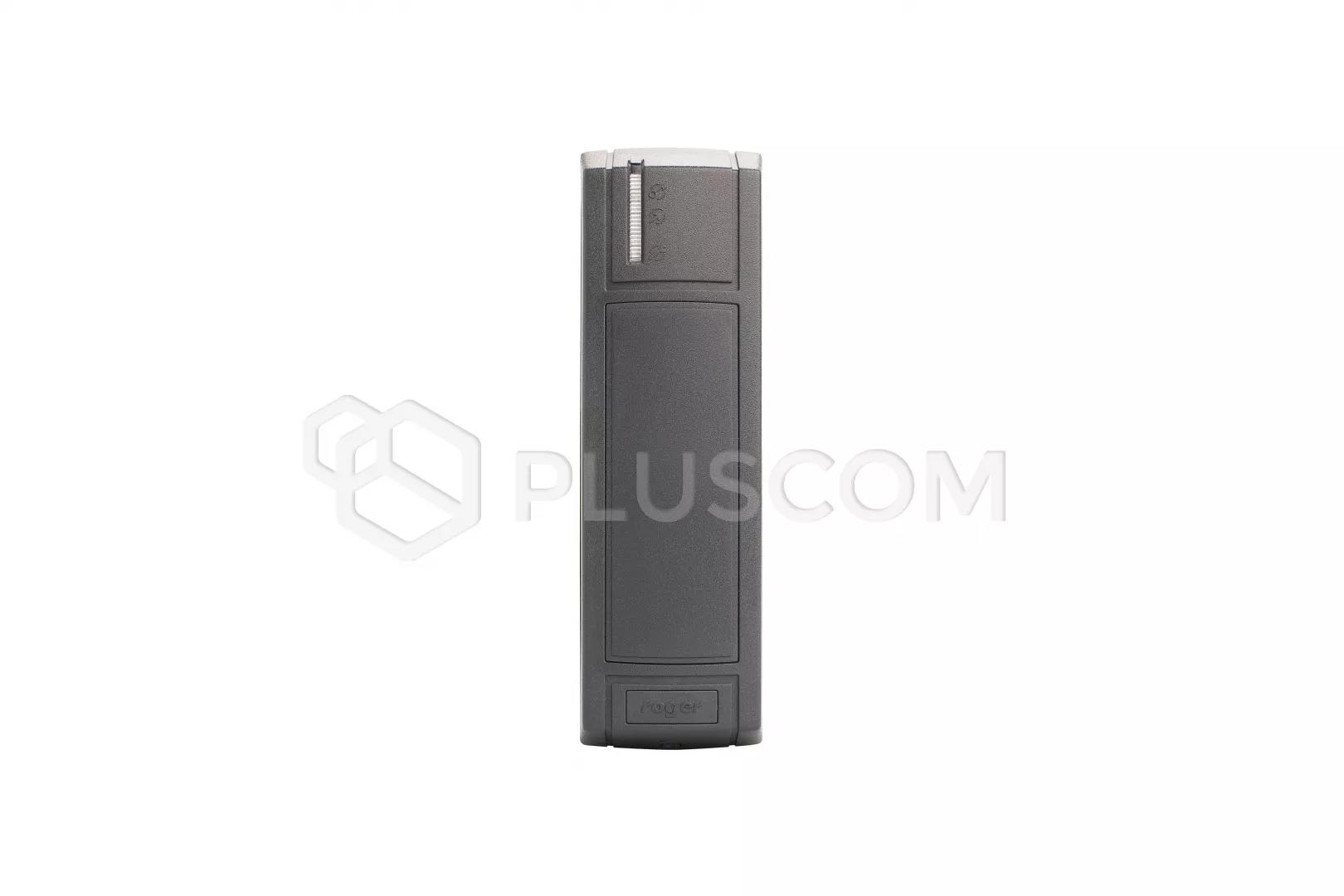

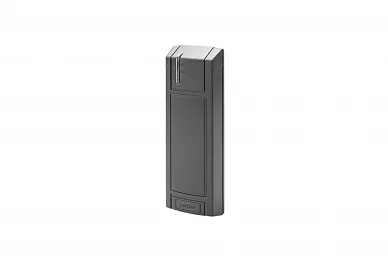

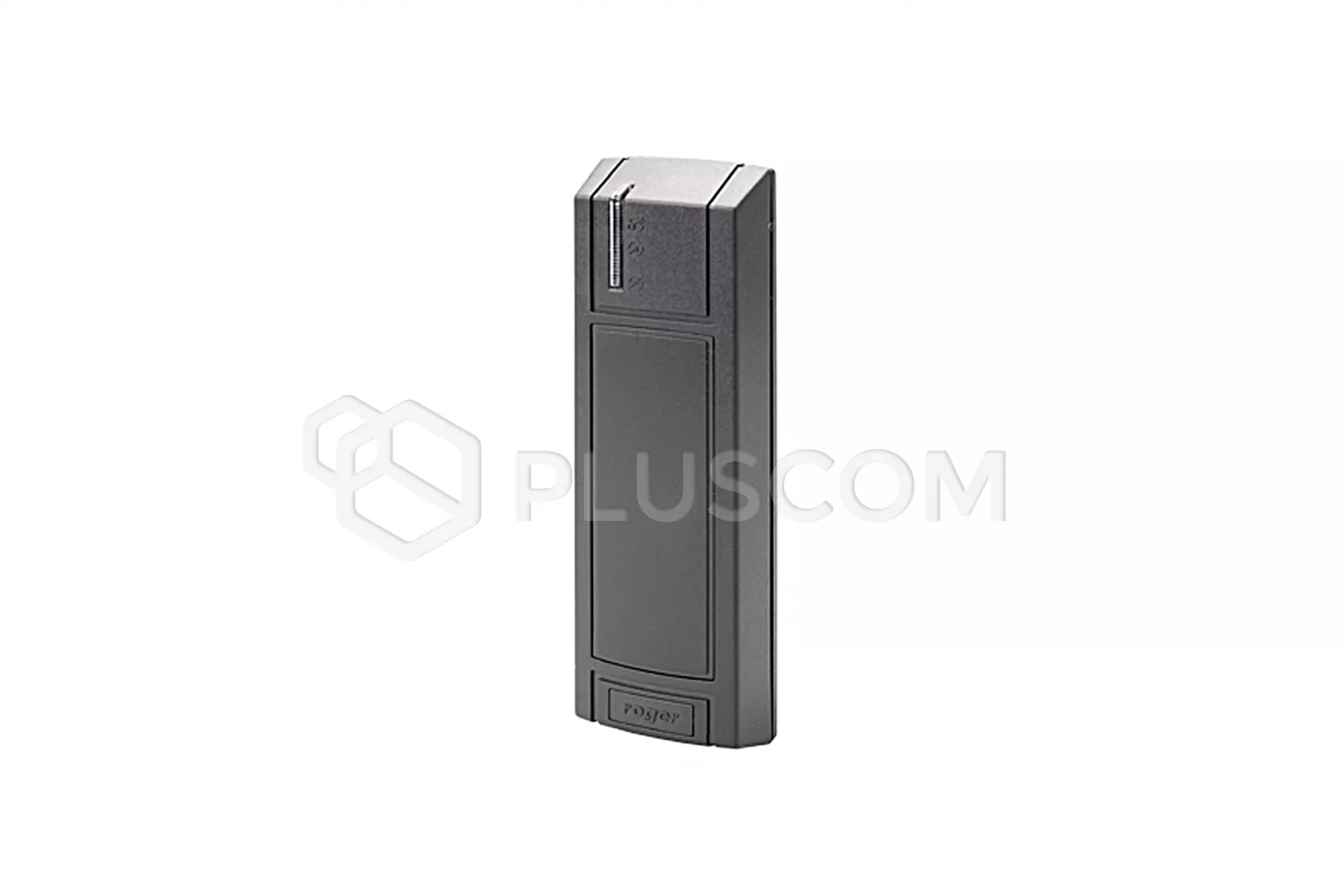

Roger PRT12EM-BK Outdoor proximity reader

80,18 EUR including 22.00% VAT
Product code: #22300
Manufacturer: Roger
  • Work in terminal and autonomous mode
  • EM 125 KHz proximity cards
  • Manual / remote programming
  • Reading range: up to 15cm
  • 120 users
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger XM-2DR I/O expande Roger EMC-1 ISO Size thin PVC proximity card Roger RUD-1 Portable USB-RS485 communication interface Roger XM-2DR-BRD Electronic module of XM-2DR expander Roger ME-10 Metal protective enclosure for proximity readers Roger EMKF-1 EM 125 kHz key fob Roger EMC-7 Proximity Card with Roger Master Graphics Roger EMC-4 Proximity Card with Q5 Chip Roger EMC-3 Long Range Clamshell Proximity Card Roger EMC-2 ISO size thick (Clamshell) proximity card

Roger PRT12EM-BK EM 125 kHz outdoor proximity reader


Each PRT12EM-BK series reader can be used as a universal identification point connected to the access controller or configured for autonomous work, as a simple access controller for a single door. In the first case, the reader’s functionality is limited only to reading an identifier (card) and sending data to an external controller, which takes further action. In case of work in a standalone mode, PRT12EM-BK terminals can independently supervise a single door using data entered in the process of their configuration.

FEATURES

General
  • EM 125 KHz proximity cards (EM4100/4102 compatible)
  • Programmable T5555 (Q5) and T5557 card numbers
  • Tamper switch (detection of enclosure opening and detachment)
  • Configurable as standalone access unit or slave reader
  • Outdoor installation (depends on particular reader)
  • Programming and firmware upgrade through RS232 serial port
  • RARC configuration program (for Windows)
Terminal Mode
  • 26/32/32 reversed/34/42/66 bit Wiegand data formats
  • Magstripe data format (ABA Track II emulation)
  • RACS CLK/DTA (for communication with Roger controllers)
  • RS232, EPSO protocol
  • RS232, direct output of cards
  • LED control input
  • BUZZER control input
System settings stored in non-volatile memory
  • 120 indexed users with card
  • User indexing (indexed user records)
  • Real time clock (100 year)
  • Automatic winter/summer time
  • 1000 event log
  • Built-in 1.5A relay output
  • Support for door contact and exit button
  • Read-in/read-out door control (requires second PRT reader)
  • Door Alarm and Door Bell signalling
  • Integration with the alarm system trough I/O-s
  • Operation with XM-2 I/O expander

Roger PRT12EM-BK Outdoor proximity reader

Roger PRT12EM-BK Outdoor proximity reader


TECHNICAL PARAMETERS
  • supply voltage:
    • nominal 12VDC
    • min./max. range 10-15VDC
  • proximity cards: EM 125 KHz proximity cards (EM4100/4102 compatible)
  • average current consumption: 45mA
  • read range: up to 15cm
  • environment class: IV
  • IP65
  • working temperature: -25 ° C ~ +60 ° C
  • weight: approx. 150g
  • dimensions: 150.5x46x23mm
