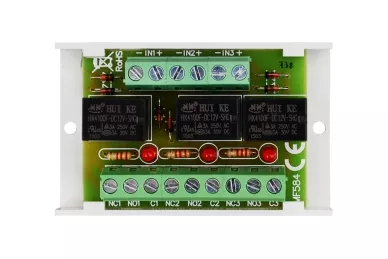

Relay module Pulsar AWZ528

11,53 EUR including 23.00% VAT
Product code: #10652
Manufacturer: Pulsar
  • The number of relays: 3
  • Coil control current: 17mA@12VDC
  • Load of relay contacts: 1A 30V DC/50V AC
  • Coil voltage: 10-14V DC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Relay module Pulsar AWZ624 Relay module Pulsar AWZ 622 Relay module Pulsar AWZ 520 Relay module Pulsar AWZ 529 Relay module Pulsar AWZ612

PU3 Relay module AWZ 528

The PU3 (AWZ528) relay module is to be used in low-voltage installations. It is intended for controlling and status indication in e.g. alarm or access control systems. It may be used to control devices of high power consumption via OC outputs of alarm systems. Moreover, it ensures galvanic isolation of signals, power sources relating to the outputs of the module. The module is adapted for connection of cables with a maximum cross section of 1mm2.

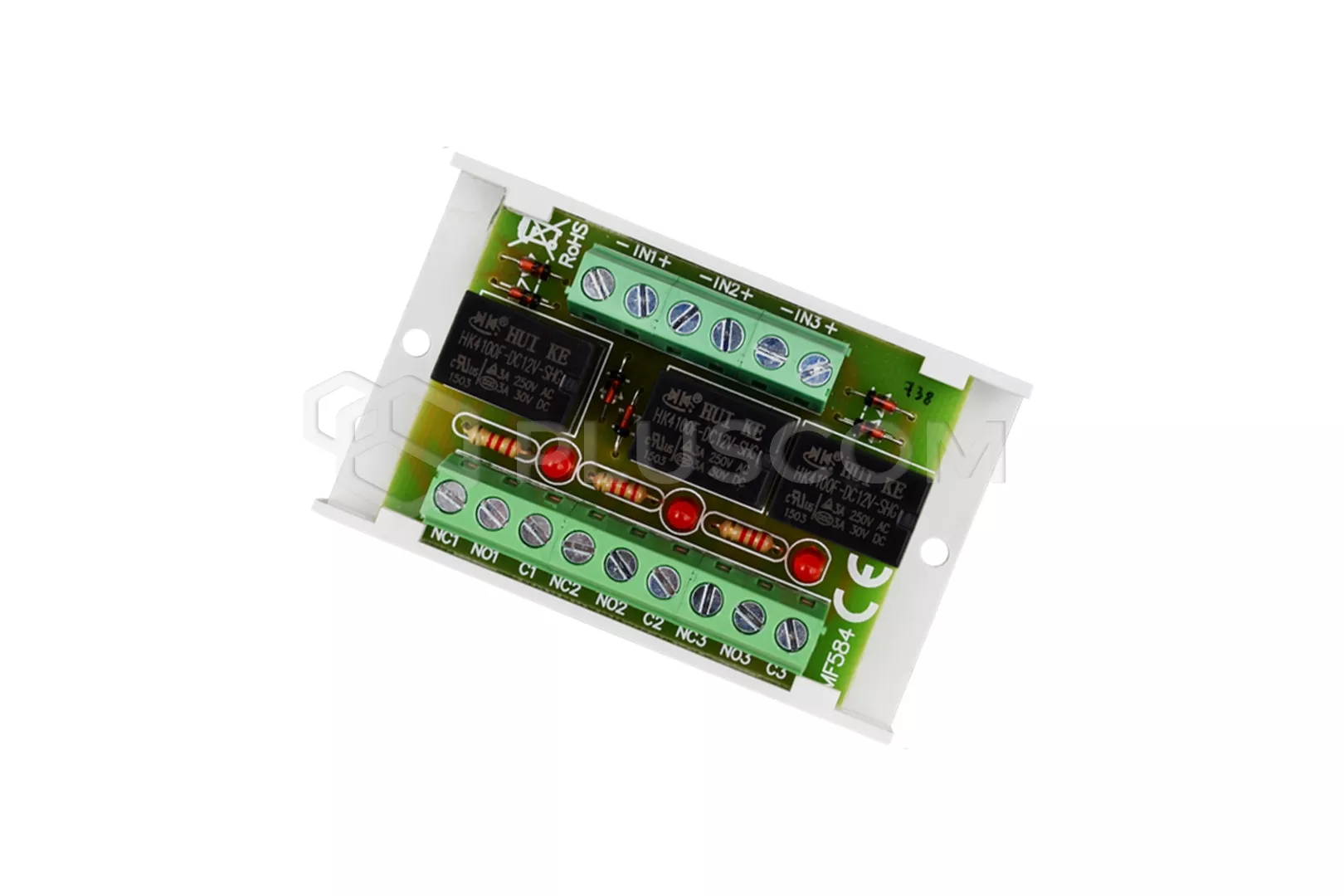

Relay module Pulsar AWZ528

Relay module Pulsar AWZ528

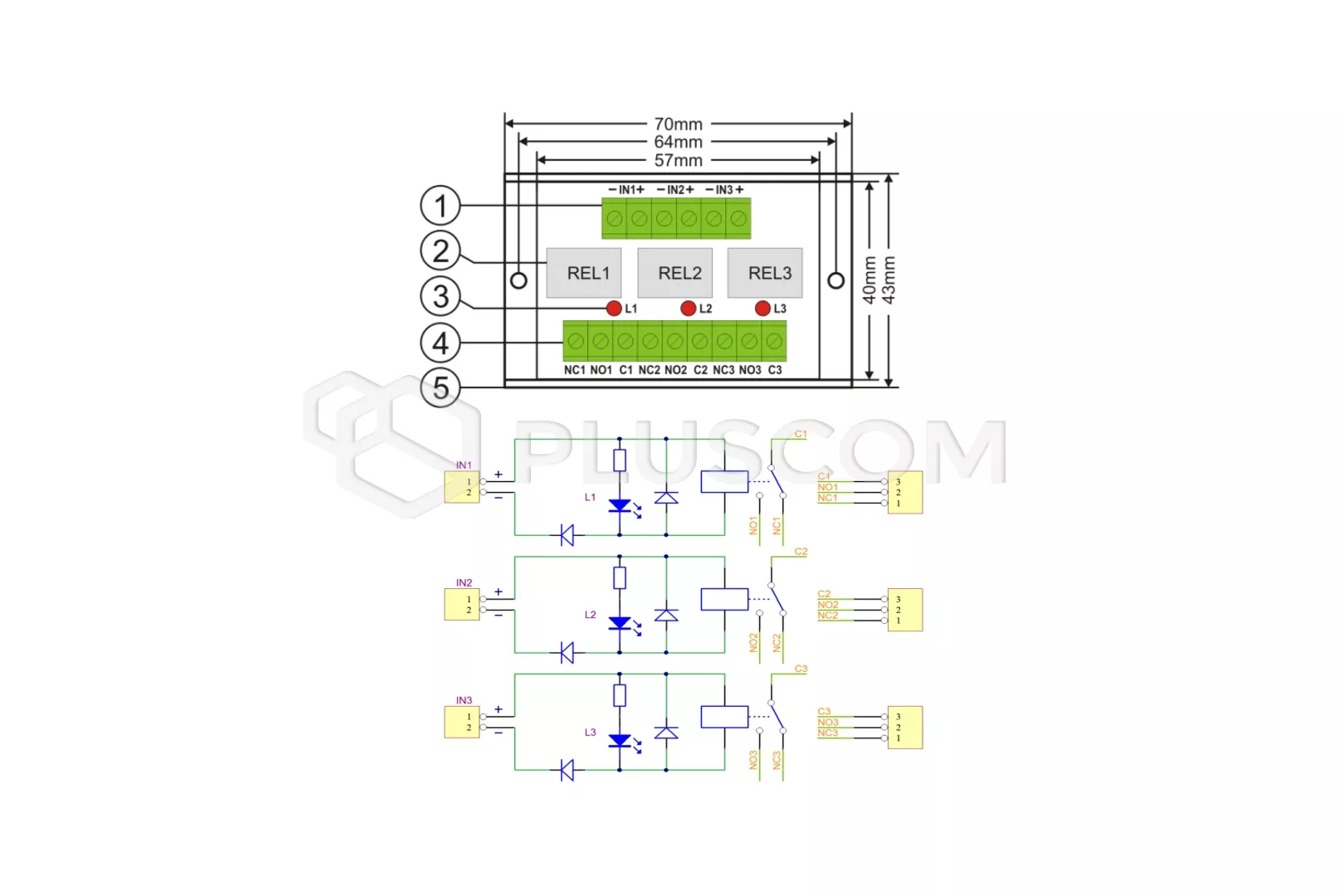

SPECIFICATIONS

  • Voltage of the relay’s coil: 10-14V DC/AC
  • Current of the relay’s coil: 17mA 12VDC
  • Resistance of coil: 720 OHM (-/+10%)
  • Power of coil: 200mW
  • Number of relays: 3
  • Voltage of the relay’s contacts: 30VDC / 50VAC max.
  • Current of the relay’s contacts: 1A max
  • ON/OFF time: 10ms/5ms
  • Operating conditions: 2nd environmental class, -10°C÷ 50°C
  • Dimensions: 70x43x20 mm(+/-2)
  • Weight: 0,06kg

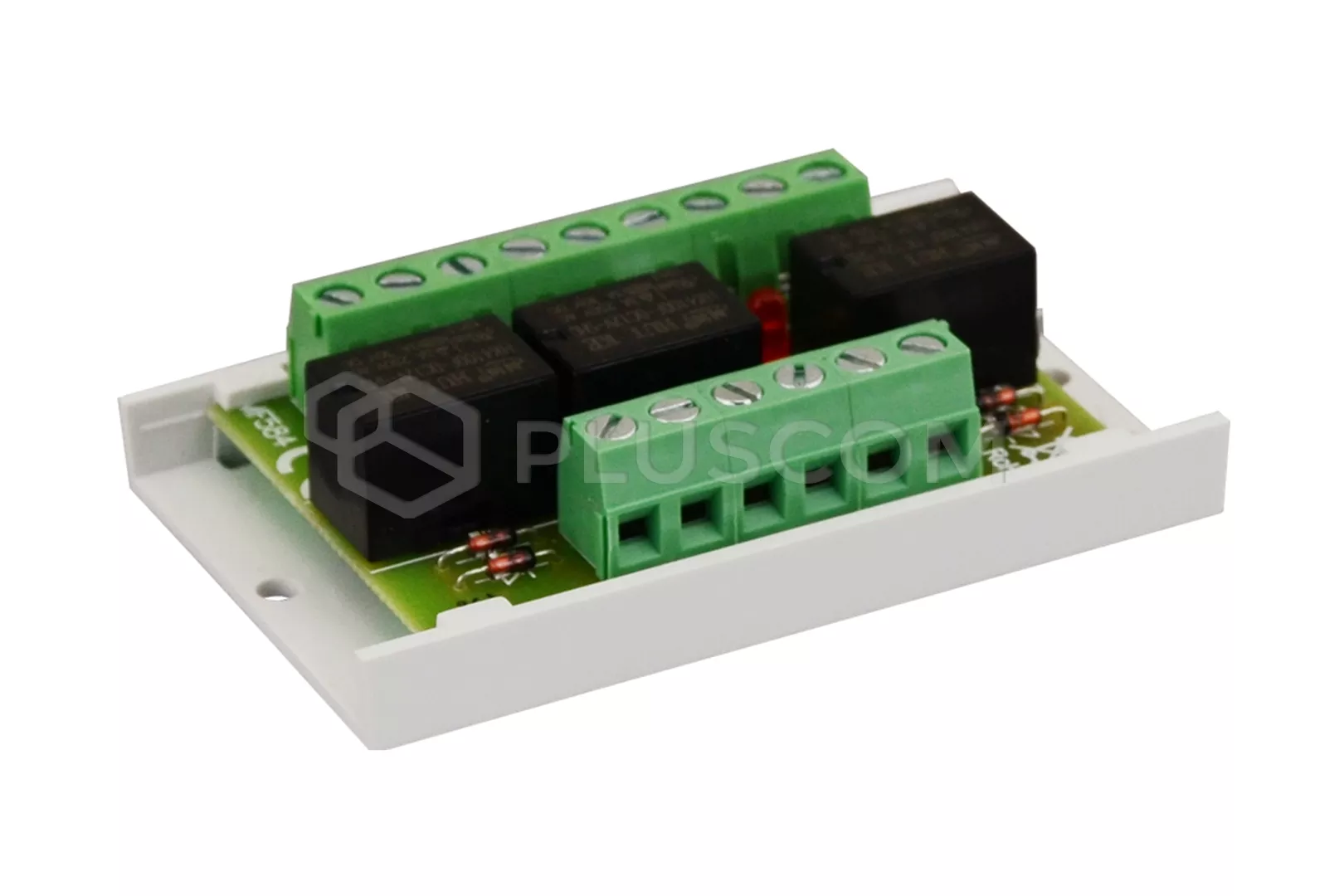

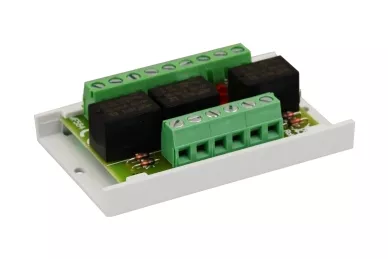

Relay module Pulsar AWZ528

Relay module Pulsar AWZ528


Download
Datasheet 0.18 MB
Declaration CE 0.32 MB
User Manual 0.23 MB
