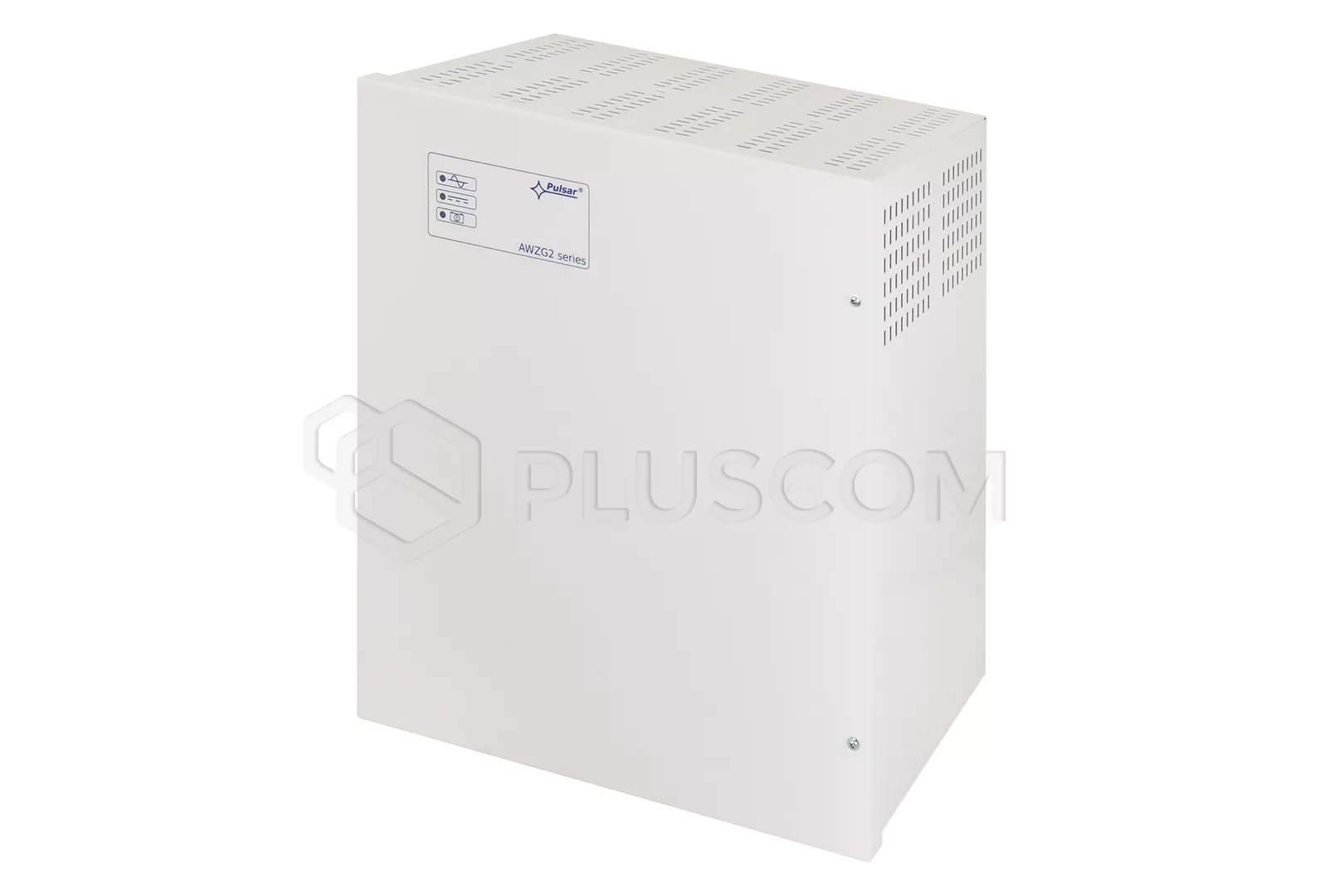

Pulsar AWZG2-12V5A-D AWZG2 13,8V/5A/40Ah buffer power supply unit Grade 2

270,90 EUR including 23.00% VAT
Product code: #22578
Manufacturer: Pulsar
  • Battery charging current: 0.5A/1A/2A
  • Battery: 1 x 40AhDimensions of battery space : 325 x 178 x 175 [+/-2 mm]
  • Current consumption by PSU systems: 11mA max.
  • Dimensions: 335 x 385 x 173 [+/-2 mm]distance from surface: 14 mm
  • Technical outputs OC type: EPS – AC power failureAPS – battery failure
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWZ639 MPOC technical outputs relay module Pulsar AWZG2-12V3A-C AWZG2 13,8V/3A/17Ah buffer power supply unit Grade 2 Pulsar AWZG2-12V2A-B AWZG2 13,8V/2A/7Ah buffer power supply unit Grade 2 Pulsar AWZG2-12V5A-C AWZG2 13,8V/5A/17Ah buffer power supply unit Grade 2

Pulsar AWZG2-12V5A-D AWZG2 13,8V/5A/40Ah buffer power supply unit Grade 2


Technical parameters:

  • Power supply output: 5 A / 13.8 V DC (total output current with charging) - for general purpose application 3.33 A / 13.8 V DC - GRADE 1÷2 function START allows running PSU from battery power
  • Compliant with standards: Construction compliant with EN50131, GRADE 1÷2Access control norm EN60839-11
  • Battery charging current: 0.5A/1A/2A
  • Battery: 1 x 40AhDimensions of battery space : 325 x 178 x 175 [+/-2 mm]
  • Current consumption by PSU systems: 11mA max.
  • Dimensions: 335 x 385 x 173 [+/-2 mm]distance from surface: 14 mm
  • Protections: SCP, OLP, OVP, UVP, tamper – opening of enclosurepossibility of mounting tamper switch PKAZ067 detects detachment from the wall
  • Technical outputs OC type: EPS – AC power failureAPS – battery failure
  • Closing: bolted
  • Installation: surface-mounted
  • Indication: LED optical indication
  • Material: steel DC01, 1mm, RAL9003 (white), metallic
  • IP protection class: IP 20
  • Warranty: 5 years
Download
Data sheet 0.4 MB
Instruction 1.13 MB
