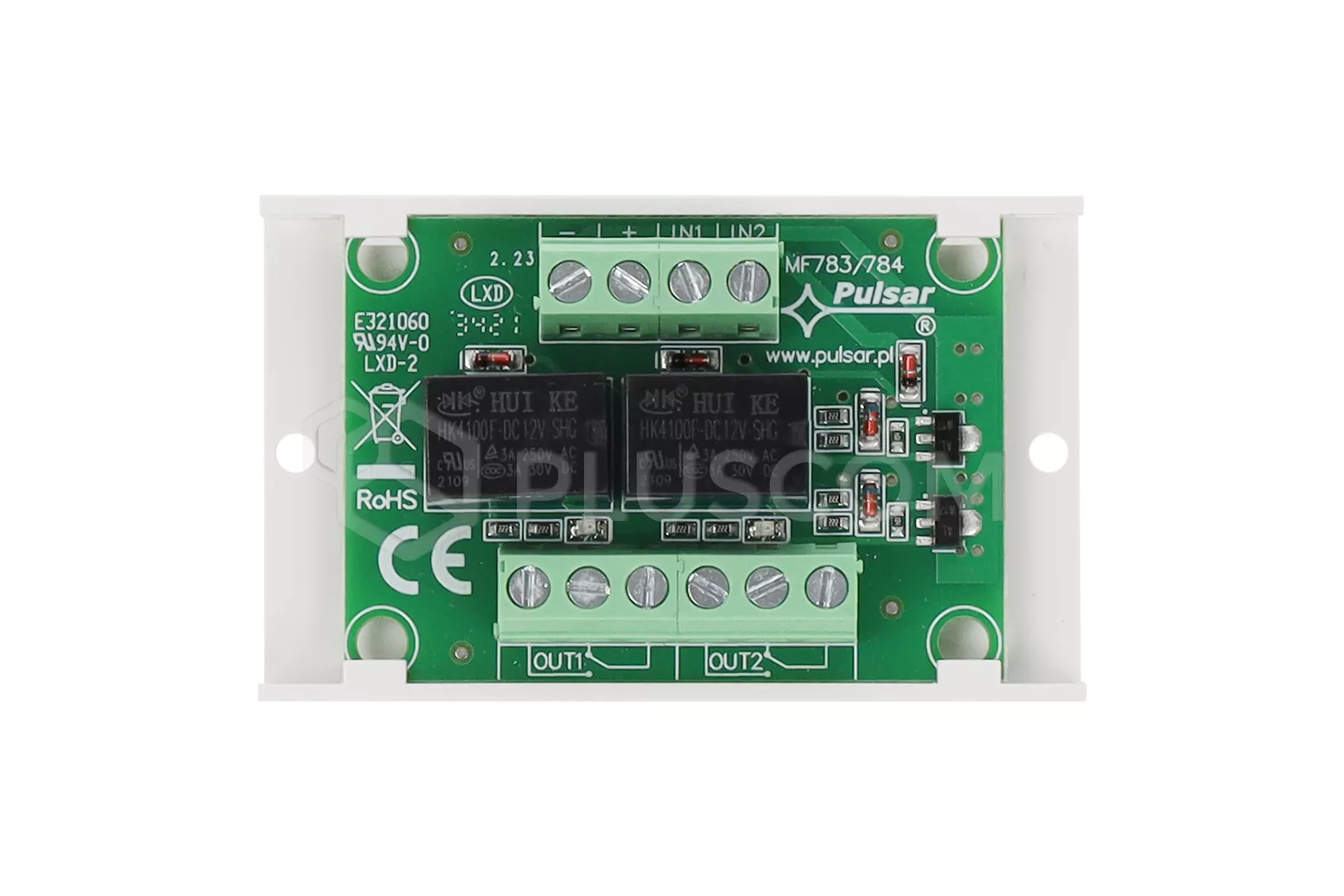

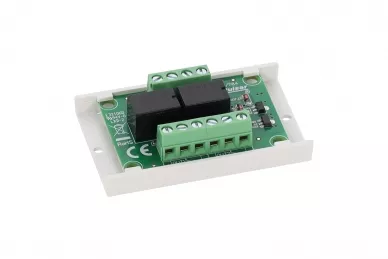

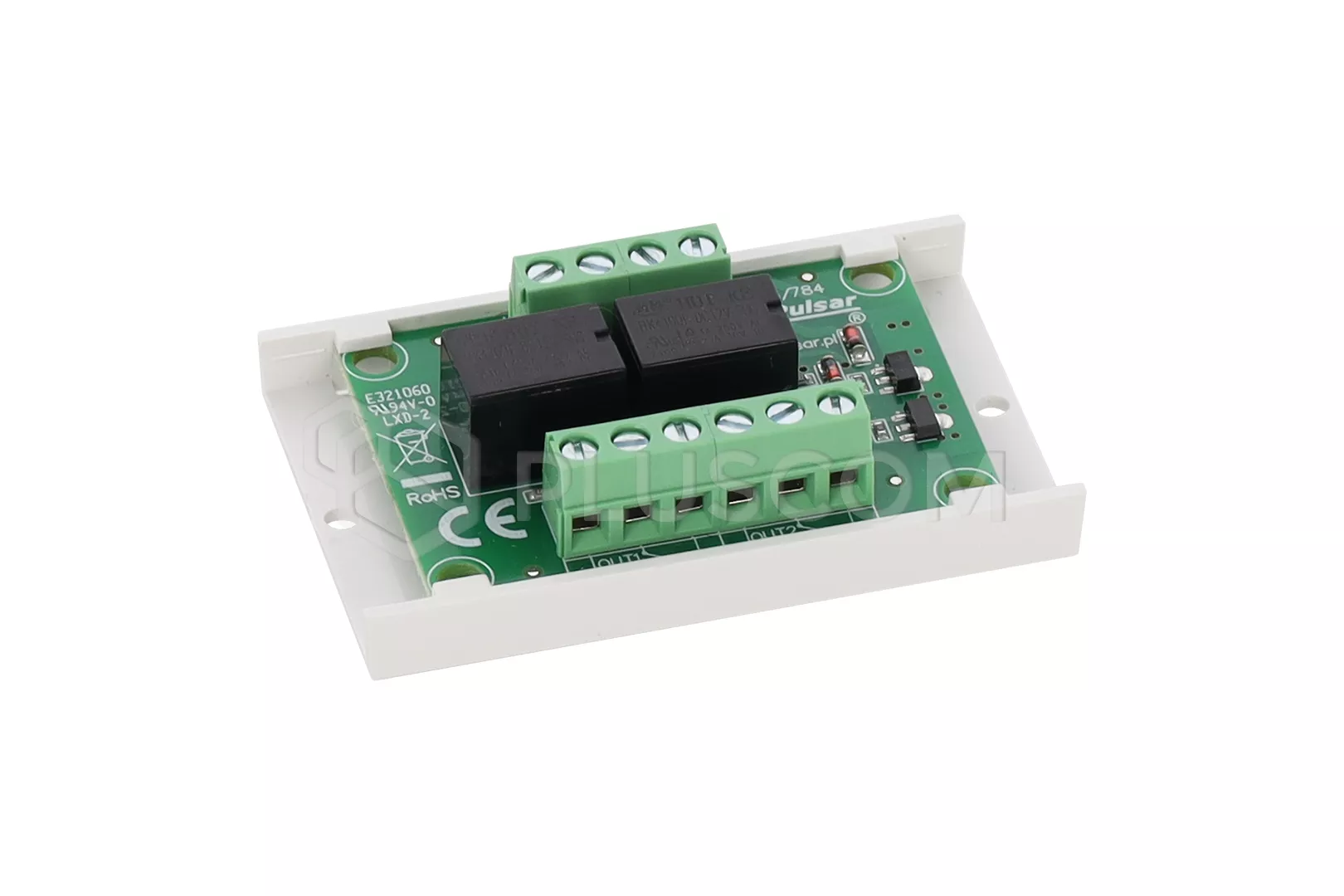

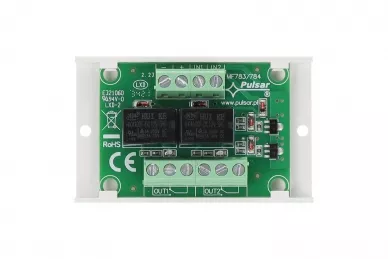

Pulsar AWZ639 MPOC technical outputs relay module

13,01 EUR including 23.00% VAT
Product code: #24589
Manufacturer: Pulsar
  • Power supply: 10 - 30 V DC
  • Dimensions: 69 x 20 x 43 [+/-2 mm]
  • Technical outputs relay type: OUT1OUT2
  • Switchable current: 1A@30V DC; 1A@50V AC
  • Relays: 2 x C/NC/NO

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWZG2-12V5A-D AWZG2 13,8V/5A/40Ah buffer power supply unit Grade 2 Pulsar AWZG2-12V3A-C AWZG2 13,8V/3A/17Ah buffer power supply unit Grade 2 Pulsar AWZG2-12V2A-B AWZG2 13,8V/2A/7Ah buffer power supply unit Grade 2 Pulsar AWZG2-12V5A-C AWZG2 13,8V/5A/17Ah buffer power supply unit Grade 2

Pulsar AWZ639 MPOC technical outputs relay module


Technical parameters:

  • Power supply: 10 - 30 V DC
  • Dimensions: 69 x 20 x 43 [+/-2 mm]
  • Technical outputs relay type: OUT1OUT2
  • Switchable current: 1A@30V DC; 1A@50V AC
  • Relays: 2 x C/NC/NO
  • Control inputs: IN1IN2
  • Indication: LED optical indication
  • Warranty: 5 years

Download
Data sheet 0.17 MB
Instruction 0.68 MB
