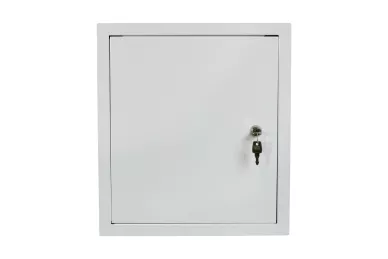

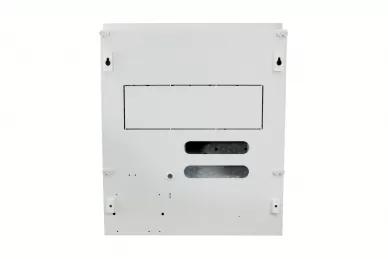

Pulsar AWO520PU Casing for control panels

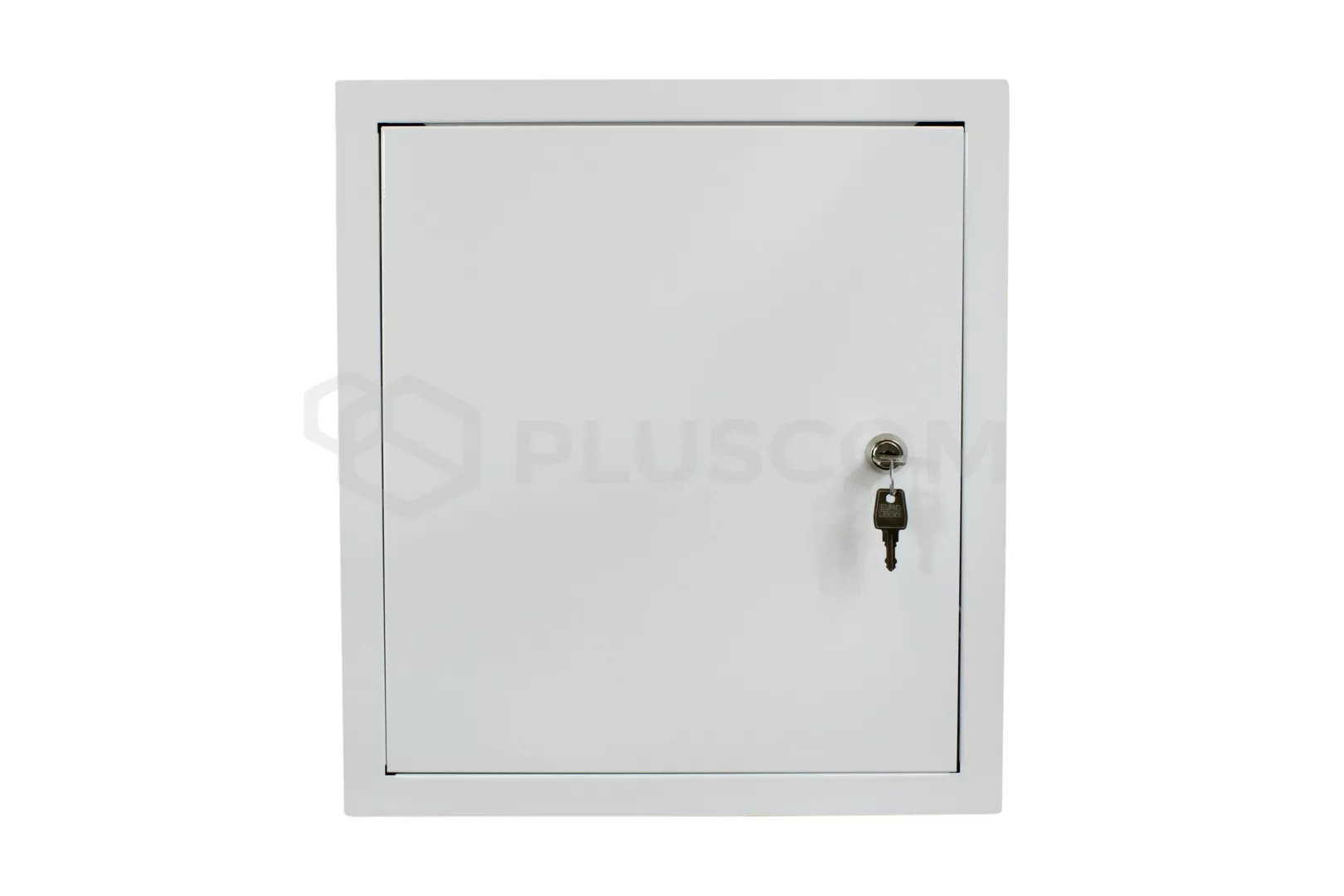

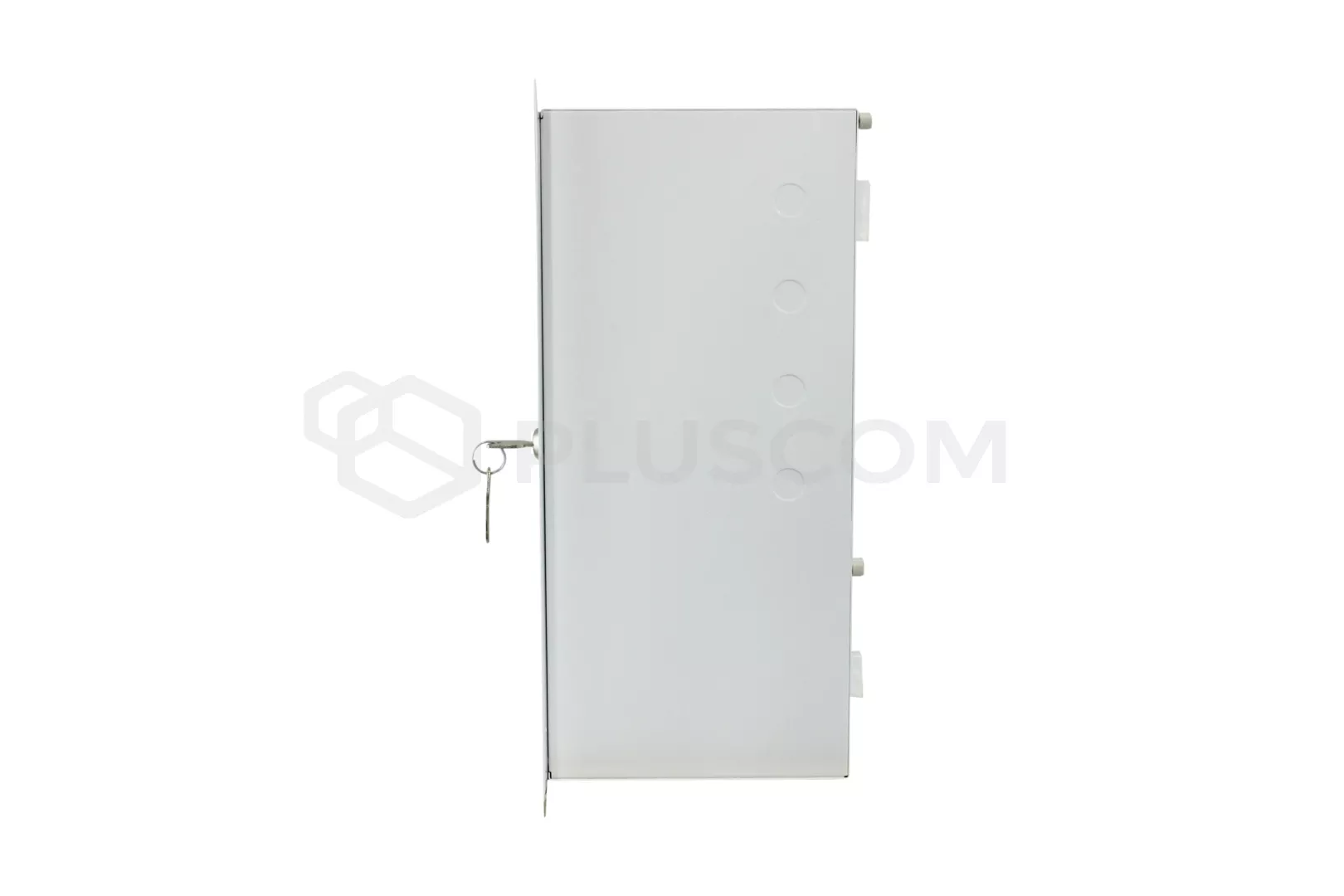

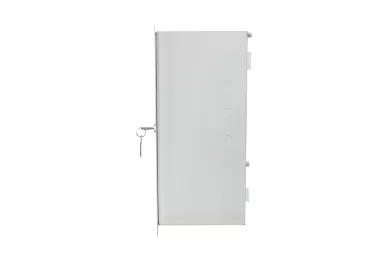

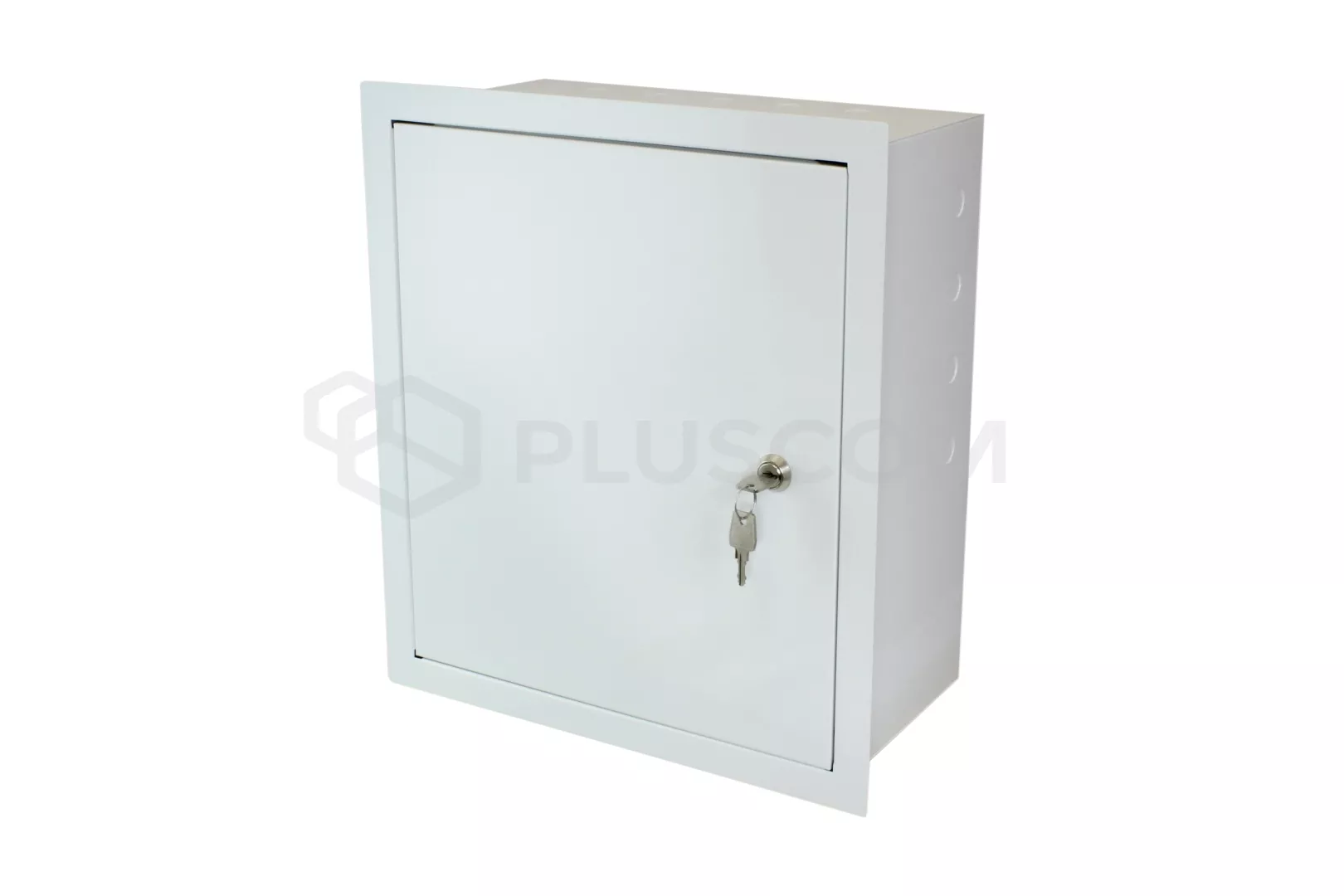

Pulsar AWO520PU 17/80/L-F/PUSTA flush mounted housing is designed for mounting:

• panel boards and optional additional modules control

• controllers and additional modules

• radio transmitter, GSM

• module PS

• other dedicated devices
• to the housing can be mounted transformer type: TRZ40, TRZ50, TRZ80

The housing has a place for 12V/24Ah. The standard is also a tamper protection in the form of the chassis intrusion detector.



SPECIFICATIONS:

• place for transformer TRZ 40/50/80

• place on battery: 12V/24Ah

• tamper protection: Yes

• material: 0.7mm sheet RAL9003 color

• degree od protection : IP20

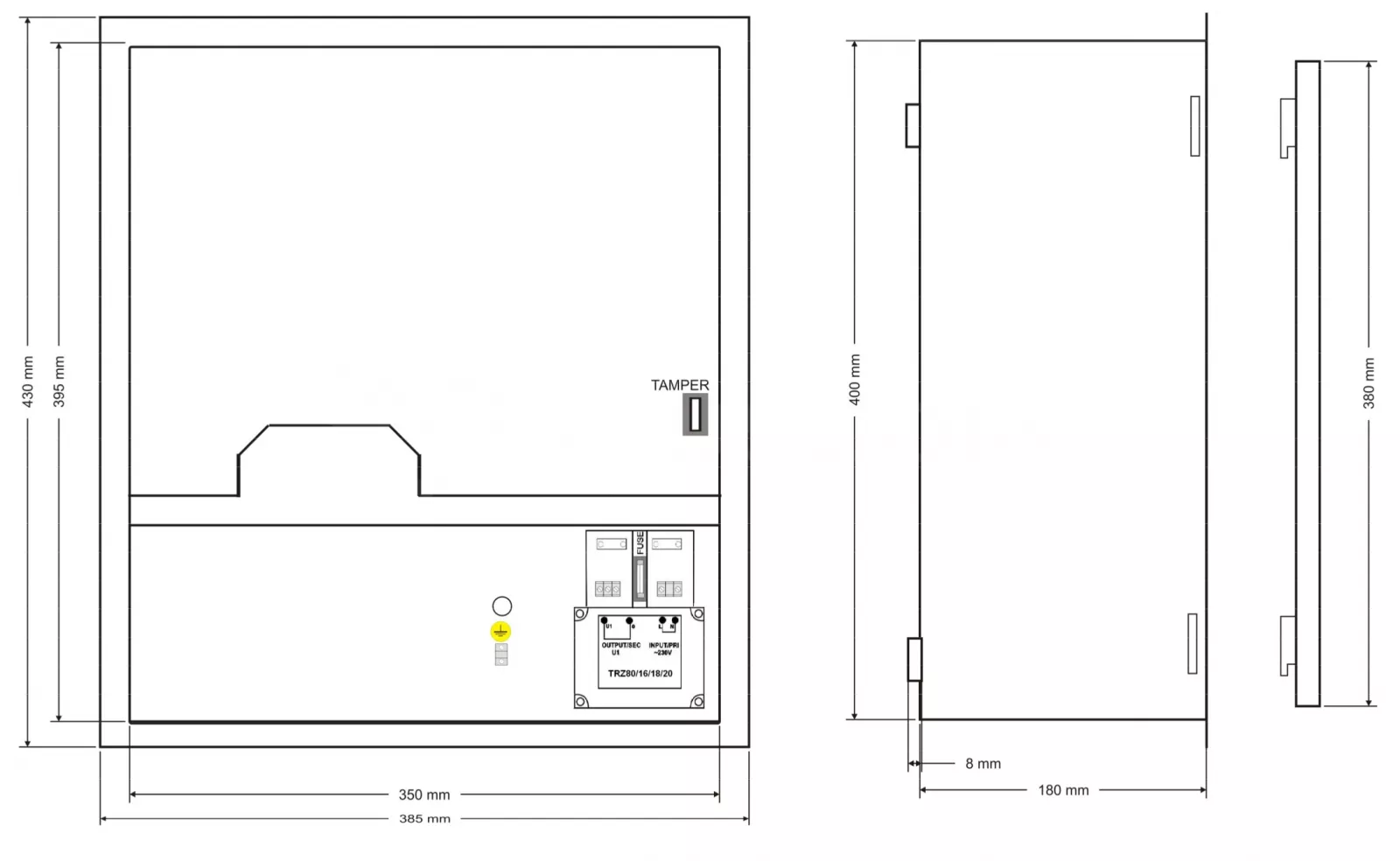

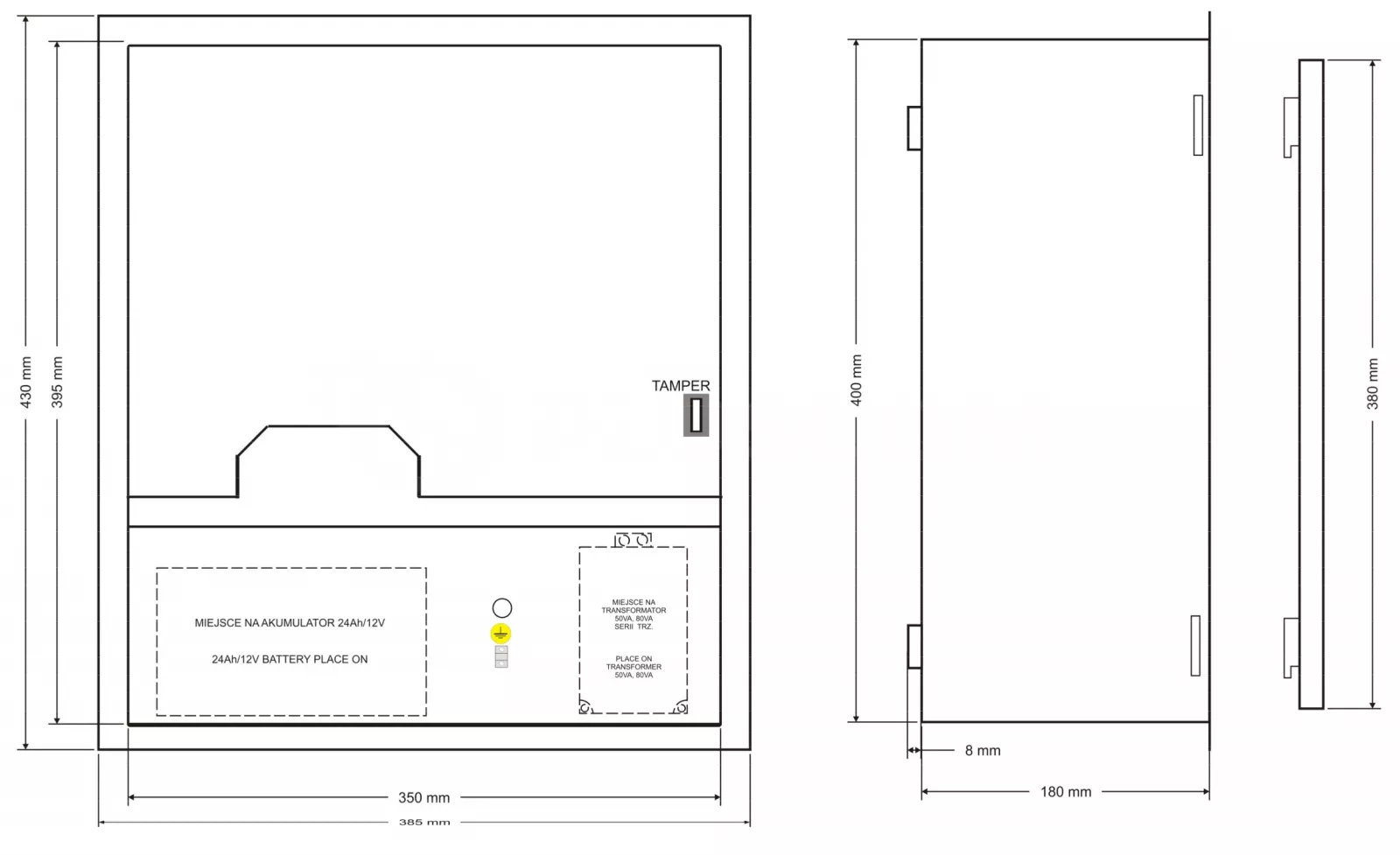

• internal dimensions: 350x395x180mm

• closing: key lock

• distance from wall 8mm

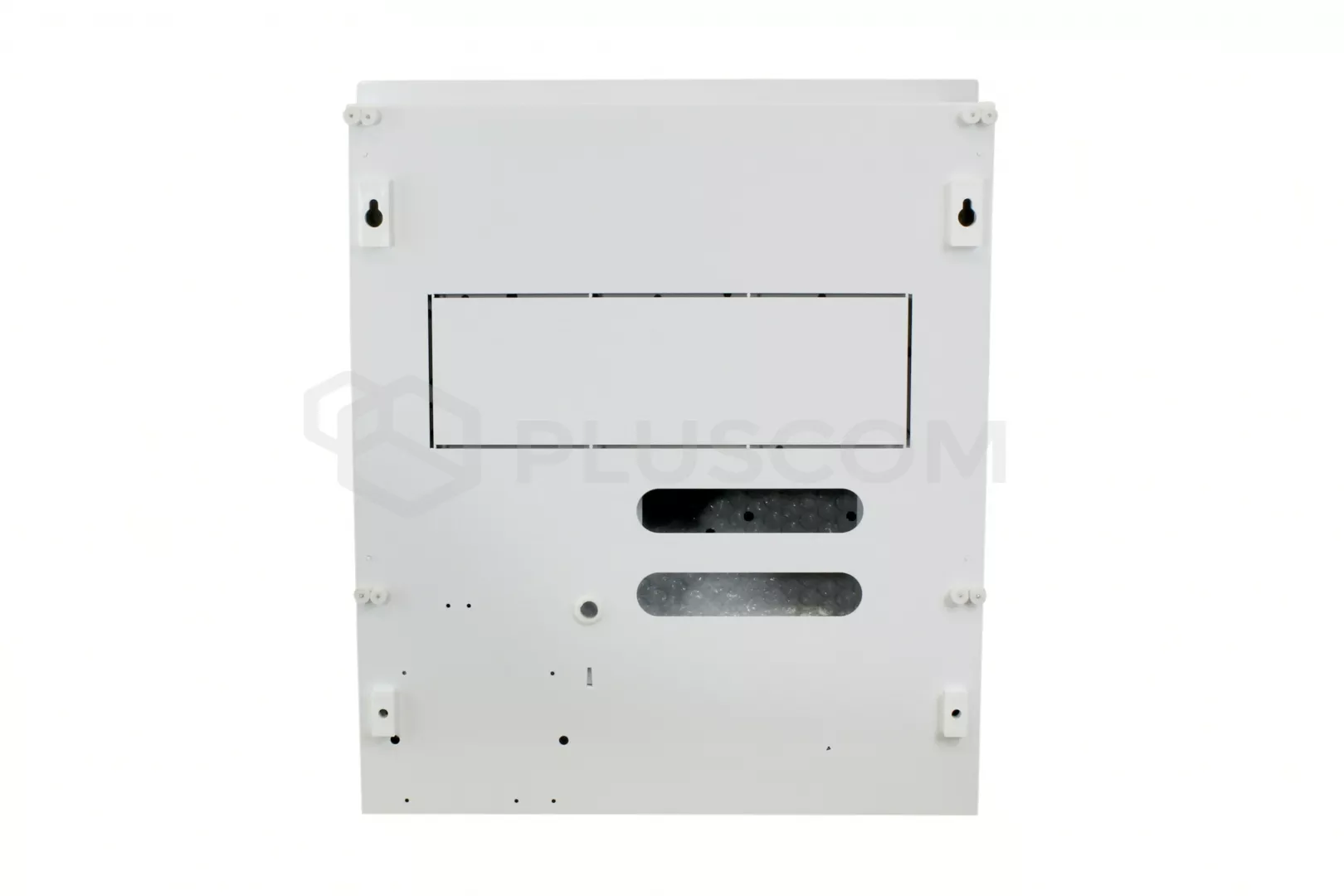

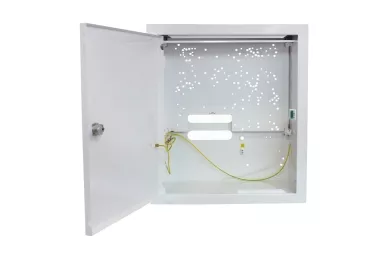

The housing has a removable mounting plate. Sheet is available in two versions: 520B, 520S. Use of one or the other version, we can use a variety of connection configurations.

Housing is ideal for panel and modules installation SATEL

Plate 520B:

PANELS:

• CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + 2x (CA64E, CA10E, SM, MST1)
• INTEGRA 64, 128+ CA64E (CA10E, SM, MST1)

MODULES:

• CA64 (PP, EPS, ADR, O-R, O-ROC, O-OC, OPS-OC, OPS-R, OPS-ROC,
  VGM16, SR, PTSA) + 2x (CA64E, CA10E, SM, MST1)


Plate 520S:  dedicated to SATEL

PANELS:

• CA6, 10, VERSA5,10,15, INTEGRA24, 32+ 4x CA64E (CA10E, SM, MST1)
• CA6, 10, VERSA5,10,15, INTEGRA24, 32+ 3x CA64E (CA10E, SM, MST1)+ CA64
  (EPS, O-OC, O-ROC, O-R, VGM-16, SR, ADR, ACC-KP-PS)
• CA6,10,VERSA5,10,15, INTEGRA 24, 32+ CA64E (CA10E, SM, MST)+ 2x CA64
  (EPS, O-OC, O-ROC, O-R, VGM-16, SR, ADR, ACC-KP-PS)
• INTEGRA64, 128+ 3x CA64E (CA10E, SM, MST1)
• INTEGRA 64, 128+ CA64E (CA10E, SM, MST1)+ CA64 (EPS, O-OC, O- ROC, O-R, VGM-16, SR, ADR, ACC- KP- PS)

MODULES:

• CA64 (PP, OPS-OC, OPS-R, OPS-ROC, EPS, O-OC, O-ROC, O-R, VGM-16, SR, ADR, ACC-KP-PS) +4x CA64E (CA10E, SM, MST1)
• CA64 (PP, OPS-OC, OPS-R, OPS-ROC)+ CA64 (EPS, O-OC, O-ROC, O-R, VGM16, SR, ADR, ACC-KP-PS) + 3xCA64E (CA10E, SM, MST1)
• 2x CA64 (EPS, O-OC, O-ROC, O-R, VGM16, SR, ADR, ACC-KP-PS)+ 3x CA64E (CA10E, SM, MST1)

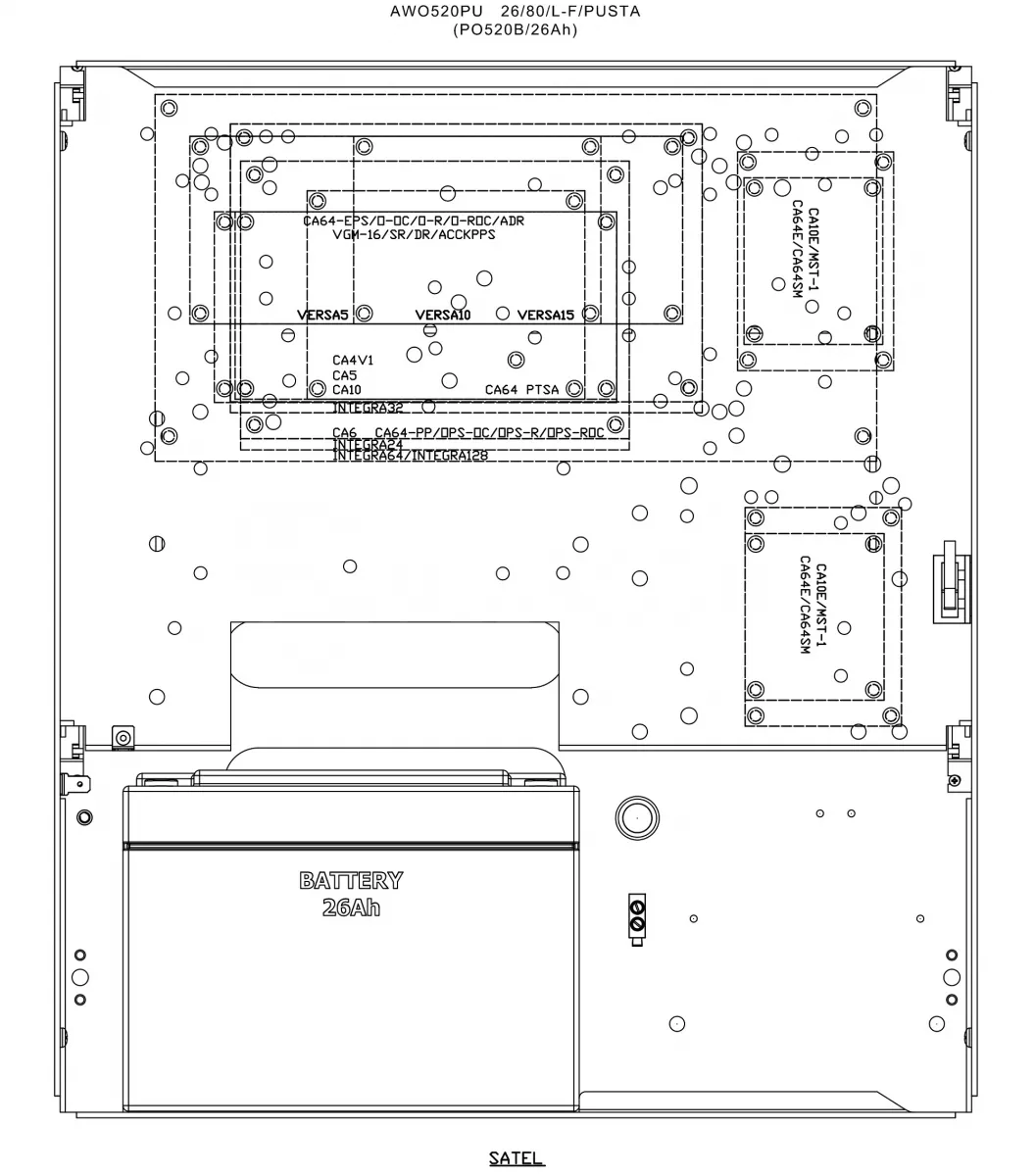

Examples of arrangement of SATEL modules in the housing using plate 520B

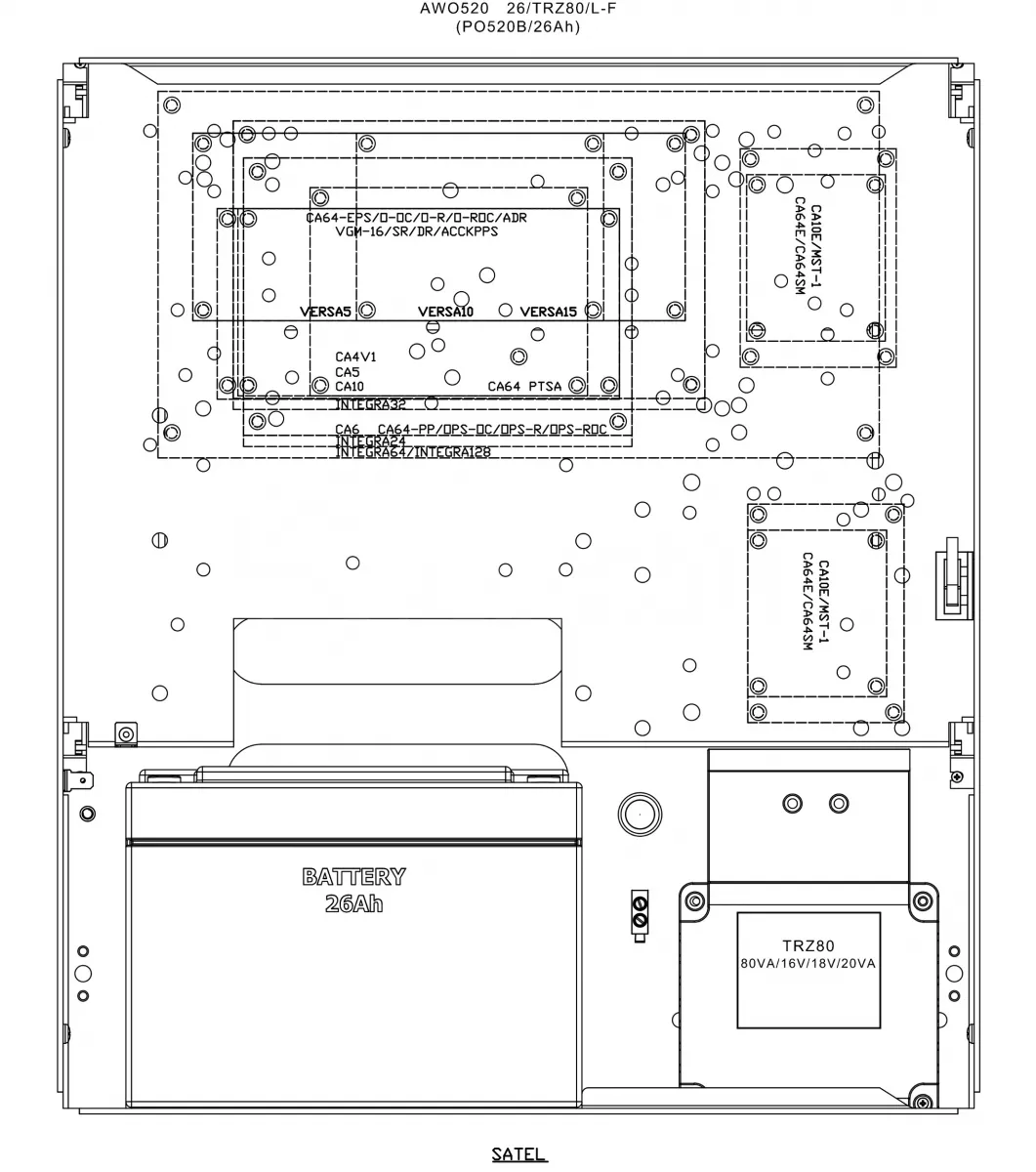

Sheet 520B - arrangement SATEL

Other panels that can be mounted in the enclosure:

DSC, PARADOX, RISCO, SATEL, PYRONIX, TEXECOM, TELMOR, ROGER, EBS, PULSAR
