Pulsar AWO500PU Casing for control panels

63,28 EUR including 23.00% VAT
Product code: #6518
Manufacturer: Pulsar
  • Universal housing, flush-mounted
  • Place on the transformer TRZ 80/50/40, battery 12V/17Ah or 12V/7Ah
  • Internal dimensions: 320x305x100mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO510PU Casing for control panels Pulsar AWO520PU Casing for control panels
Pulsar AWO500PU 17/40/S-F/PUSTA flush mounted housing is designed for mounting:
  • panel boards and optional additional modules control
  • controllers and additional modules
  • radio transmitter, GSM
  • module PS
  • other dedicated devices
  • to the housing can be mounted transformer type: TRZ40, TRZ50, TRZ80
The housing has a place for 12V/17Ah or 12V/7Ah. The standard is also a tamper protection in the form of the chassis intrusion detector.

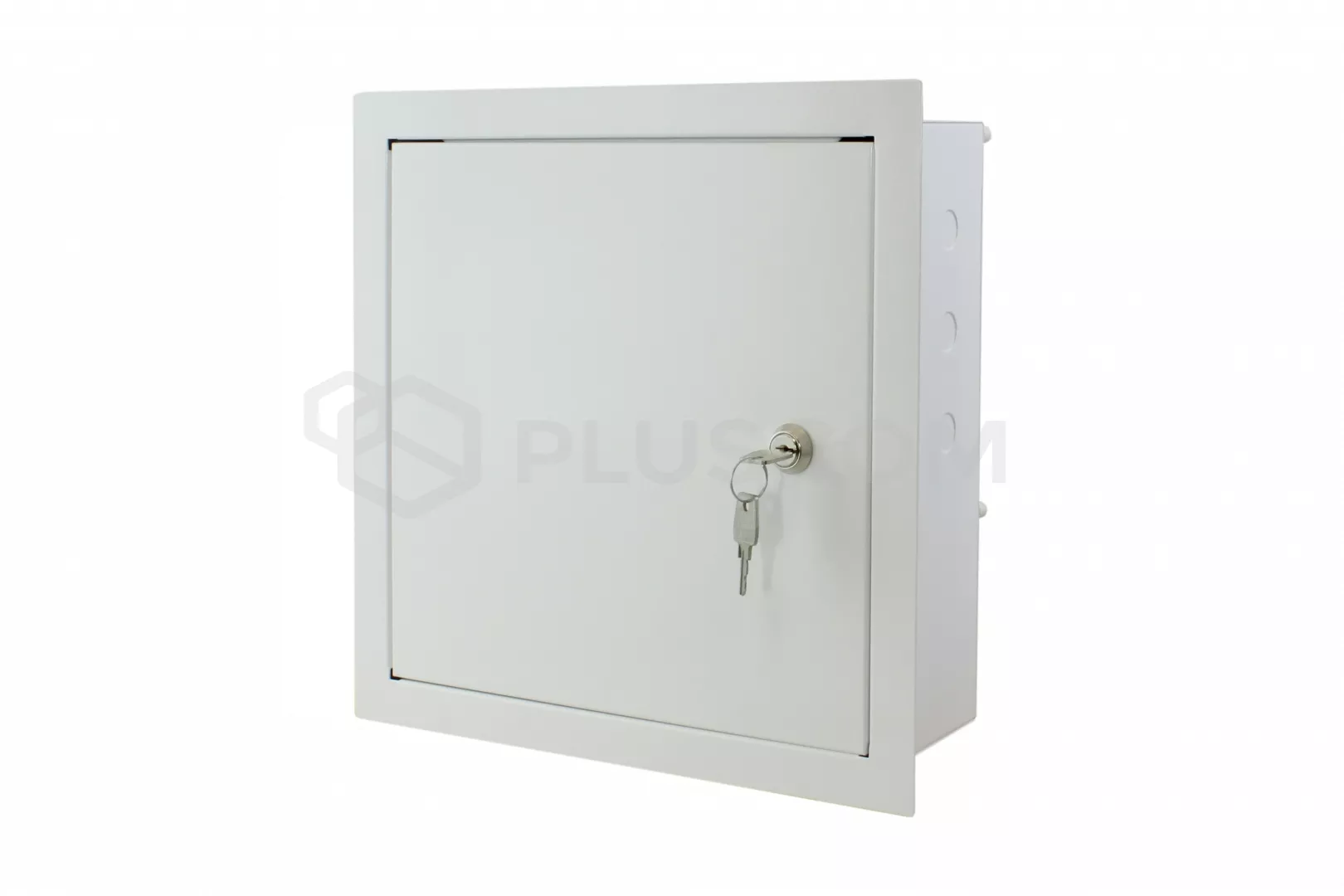

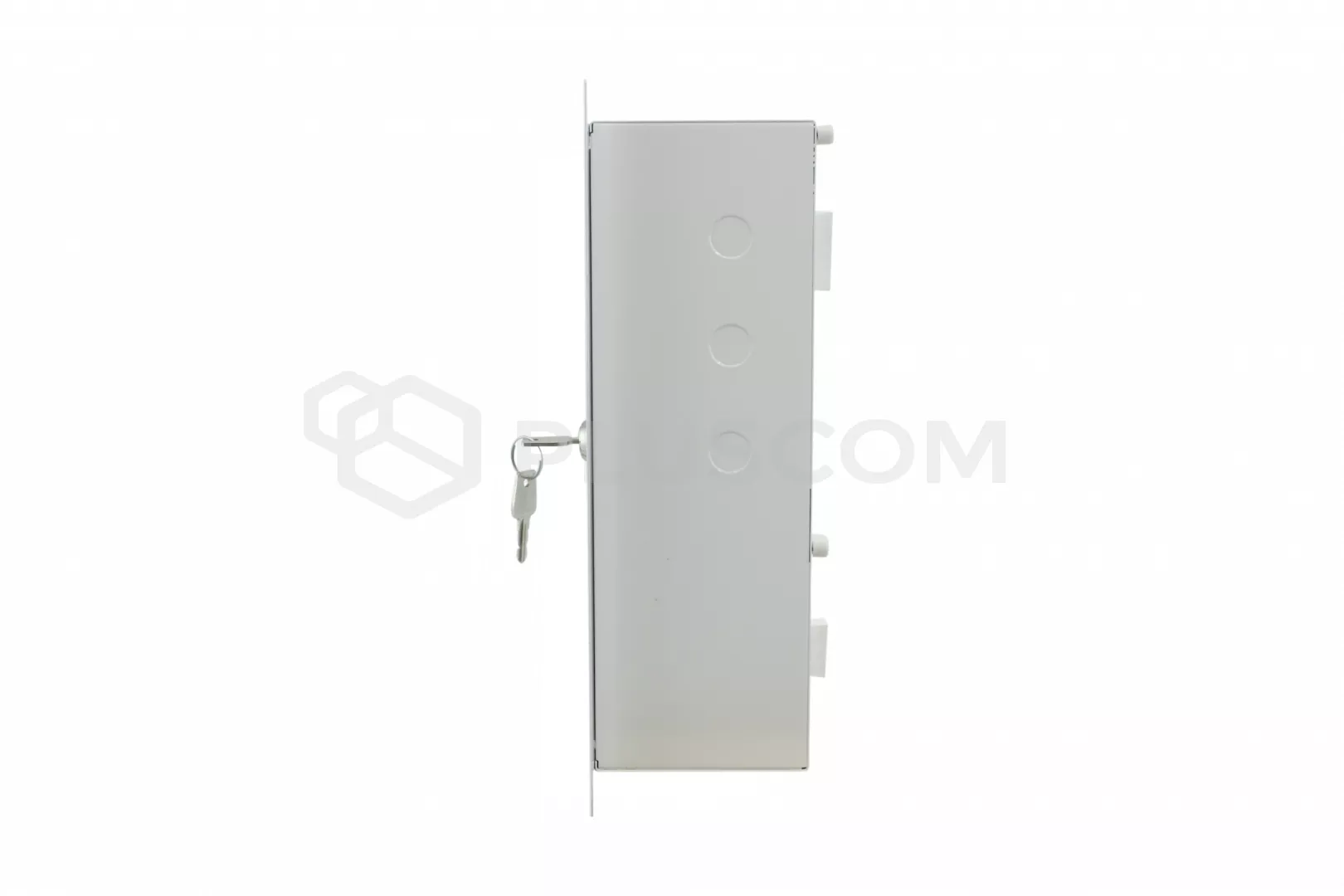

Pulsar AWO500PU

Pulsar AWO500PU



SPECIFICATIONS:
  • place for transformer TRZ 40/50/80
  • place on battery: 12V/17Ah or 12V/7Ah
  • tamper protection: Yes
  • material: 0.7mm sheet RAL9003 color
  • degree od protection : IP20
  • internal dimensions: 320x305x100mm
  • closing: key lock
  • distance from wall 8mm

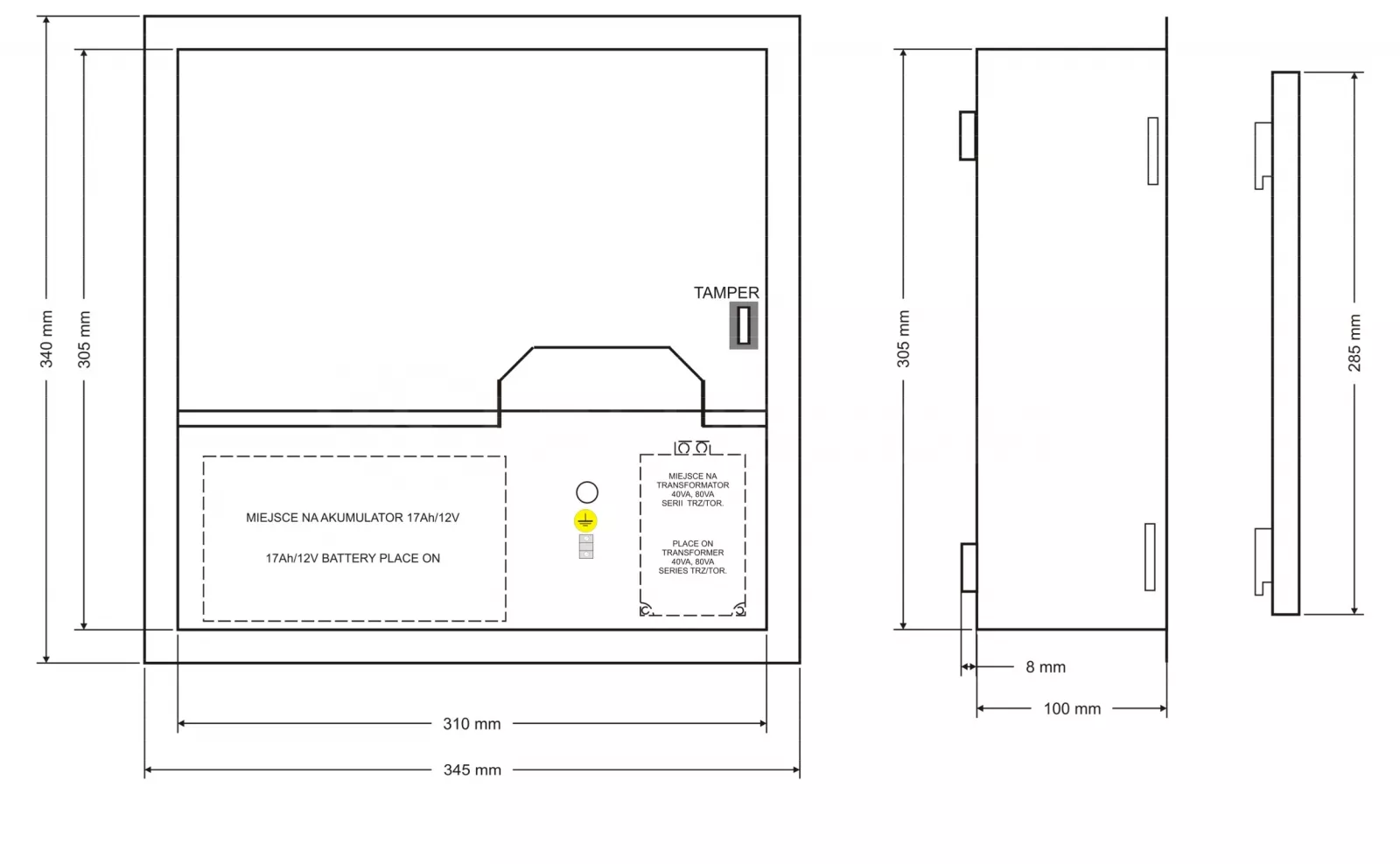

Pulsar AWO500PU Dimensions:

Pulsar AWO500PU Dimensions:

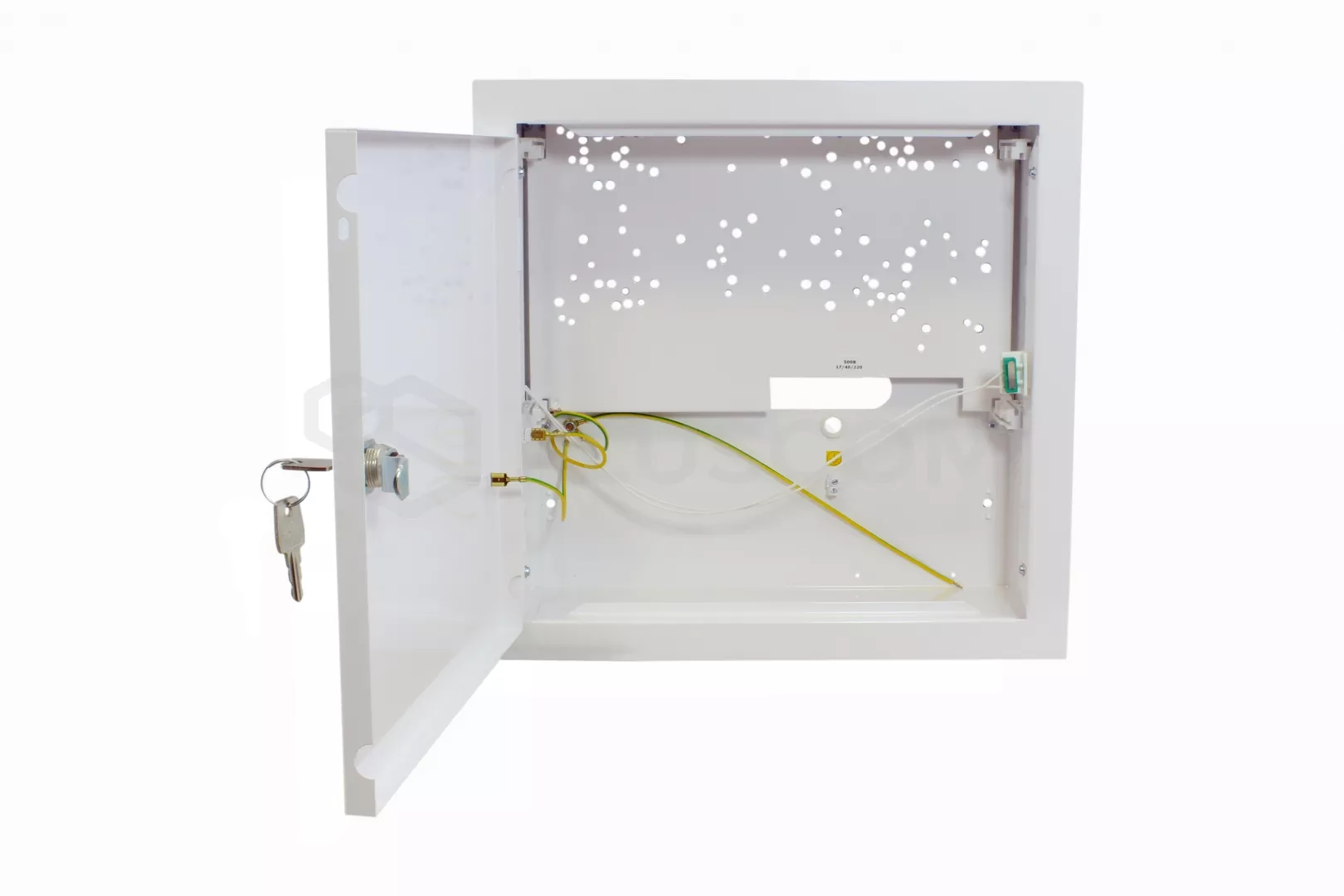

The housing has a removable mounting plate. Sheet is available in two versions: 500B, 500D. Use of one or the other version, we can use a variety of connection configurations.

Housing is ideal for panel and modules installation SATEL

Plate 500B with 17Ah:

PANELS:

  • CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32+ CA64E (CA10E, SM, MST1)

MODULES:

  • CA64 (PP, EPS, ADR, O-R, O-ROC, O-OC, OPS-OC, OPS-R, OPS-ROC, DR, ACC-KP-PS, VGM16, SR, PTSA) + CA64E (CA10E, SM, MST1)

Plate 500D with 7Ah:

PANELS:

  • CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + CA64E (CA10E, SM, MST1)
MODULES:
  • CA64 (PP, EPS, ADR, O-R, O-ROC, O-OC, OPS-OC, OPS-R, OPS-ROC,VGM 16, SR, DR, PTSA, ACC-KPPS) + CA64E (CA10E, MST1, SM)

Other panels that can be mounted in the enclosure:

DSC, PARADOX, RISCO, SATEL, PYRONIX, CROW, TEXECOM, TELMOR, ROEL, ROGER, EBS, PULSAR
