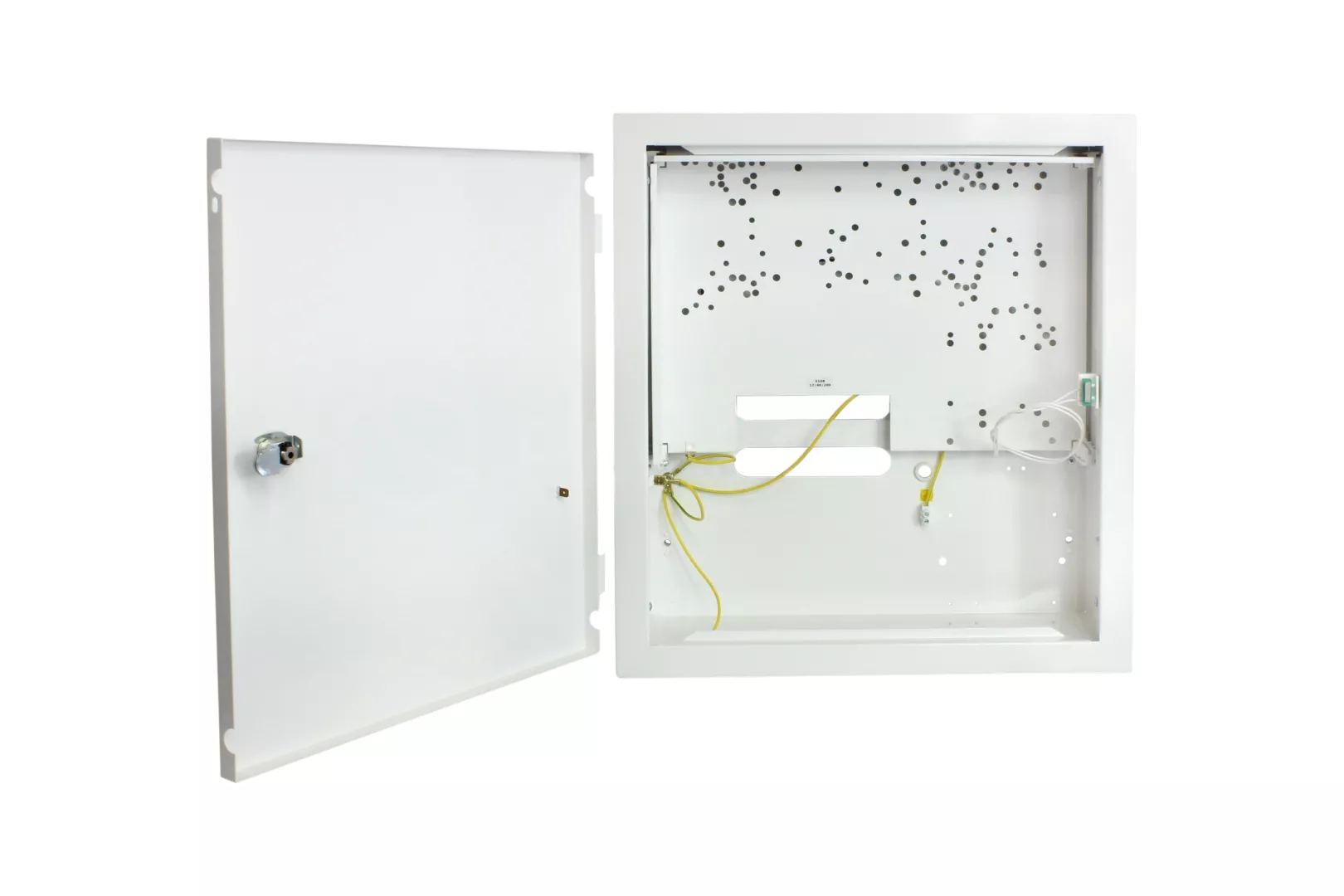

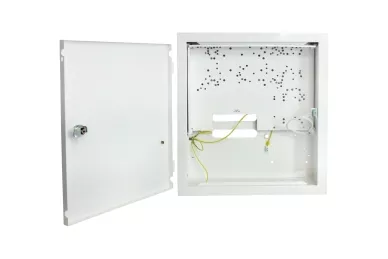

Pulsar AWO510PU Casing for control panels

• panel boards and optional additional modules control

• controllers and additional modules

• radio transmitter, GSM

• module PS

• other dedicated devices
• to the housing can be mounted transformer type: TRZ40, TRZ50, TRZ80

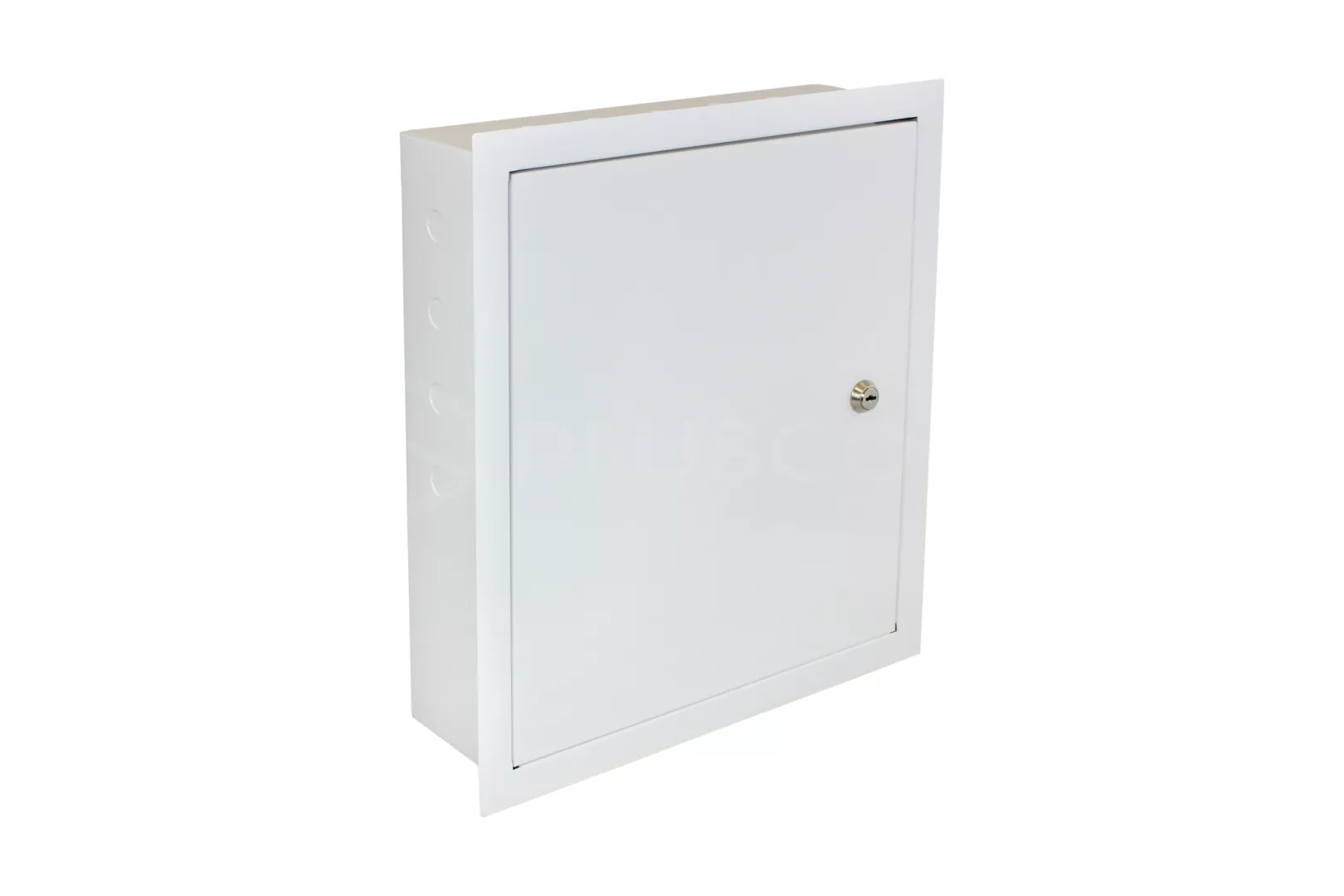

Front view:

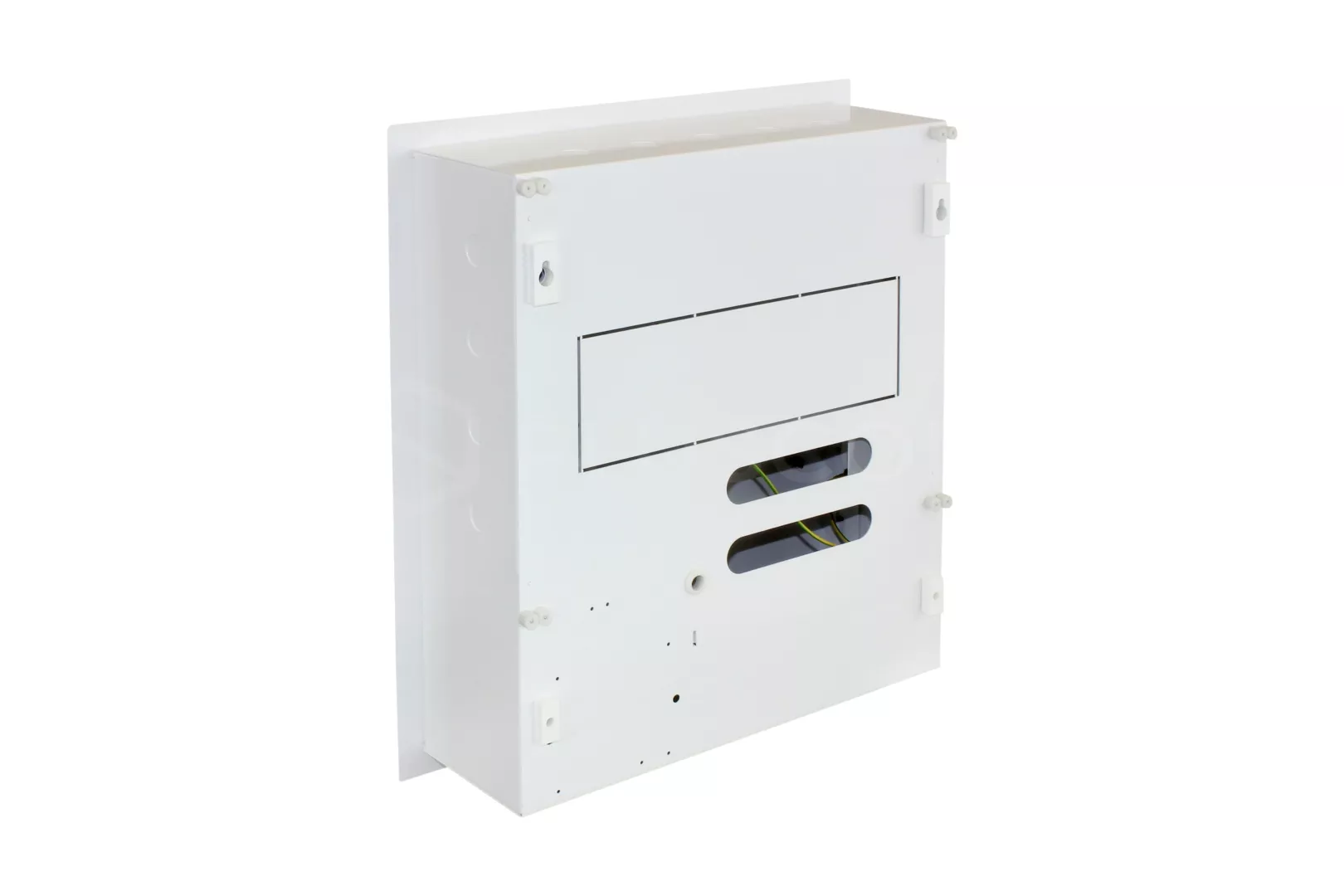

Rear view:

The housing has a place for 12V/17Ah. The standard is also a tamper protection in the form of the chassis intrusion detector.

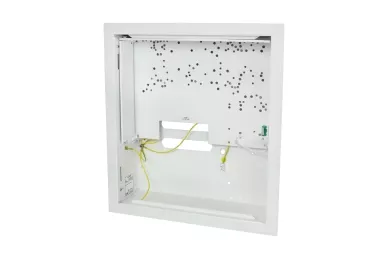

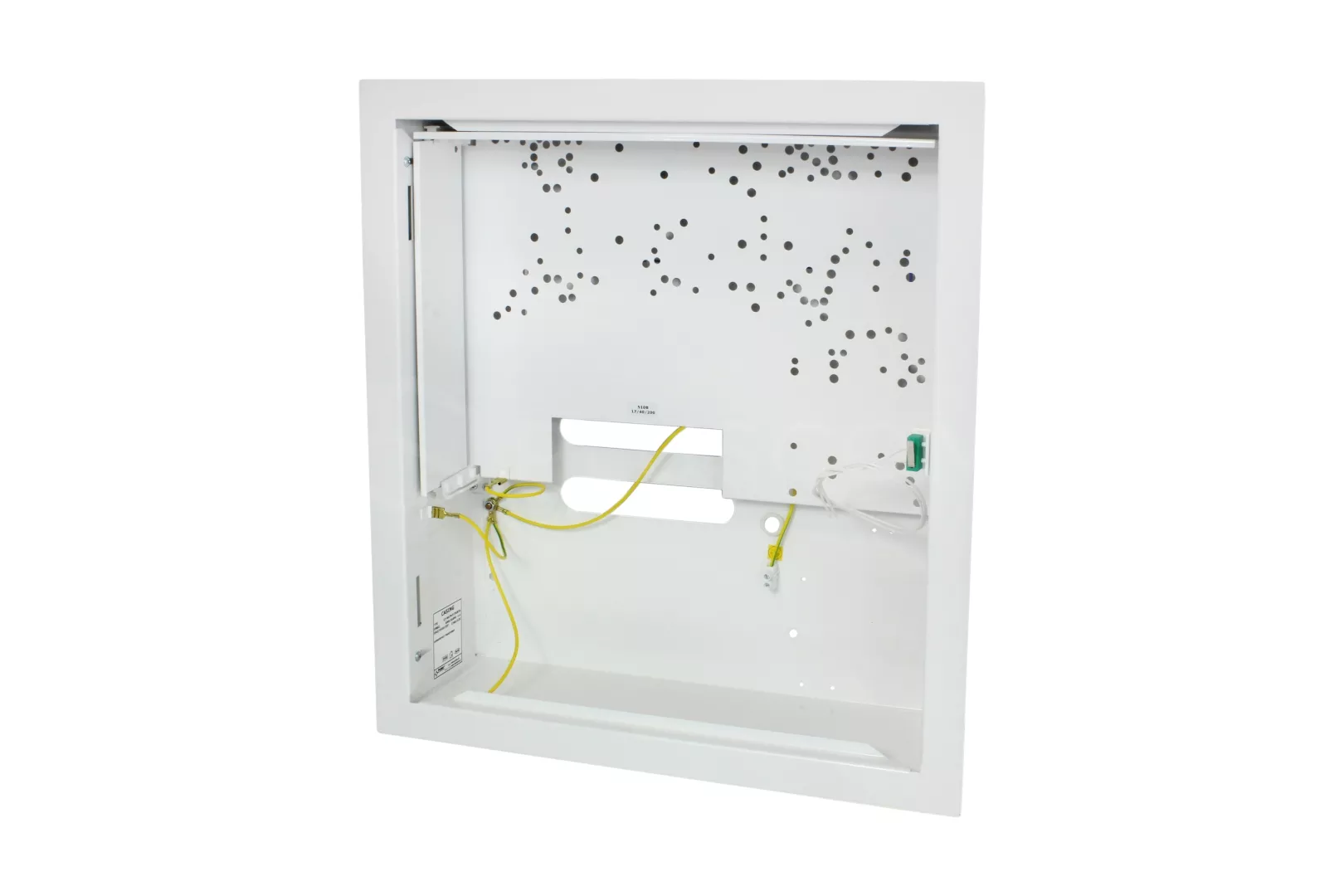

Interior the enclosure:

SPECIFICATIONS:

• place for transformer TRZ 40/50/80
• place on battery: 12V/17Ah

• tamper protection: Yes

• material: 0.7mm sheet RAL9003 color

• degree od protection : IP20

• internal dimensions: 350x395x100mm

• closing: key lock

• distance from wall 8mm

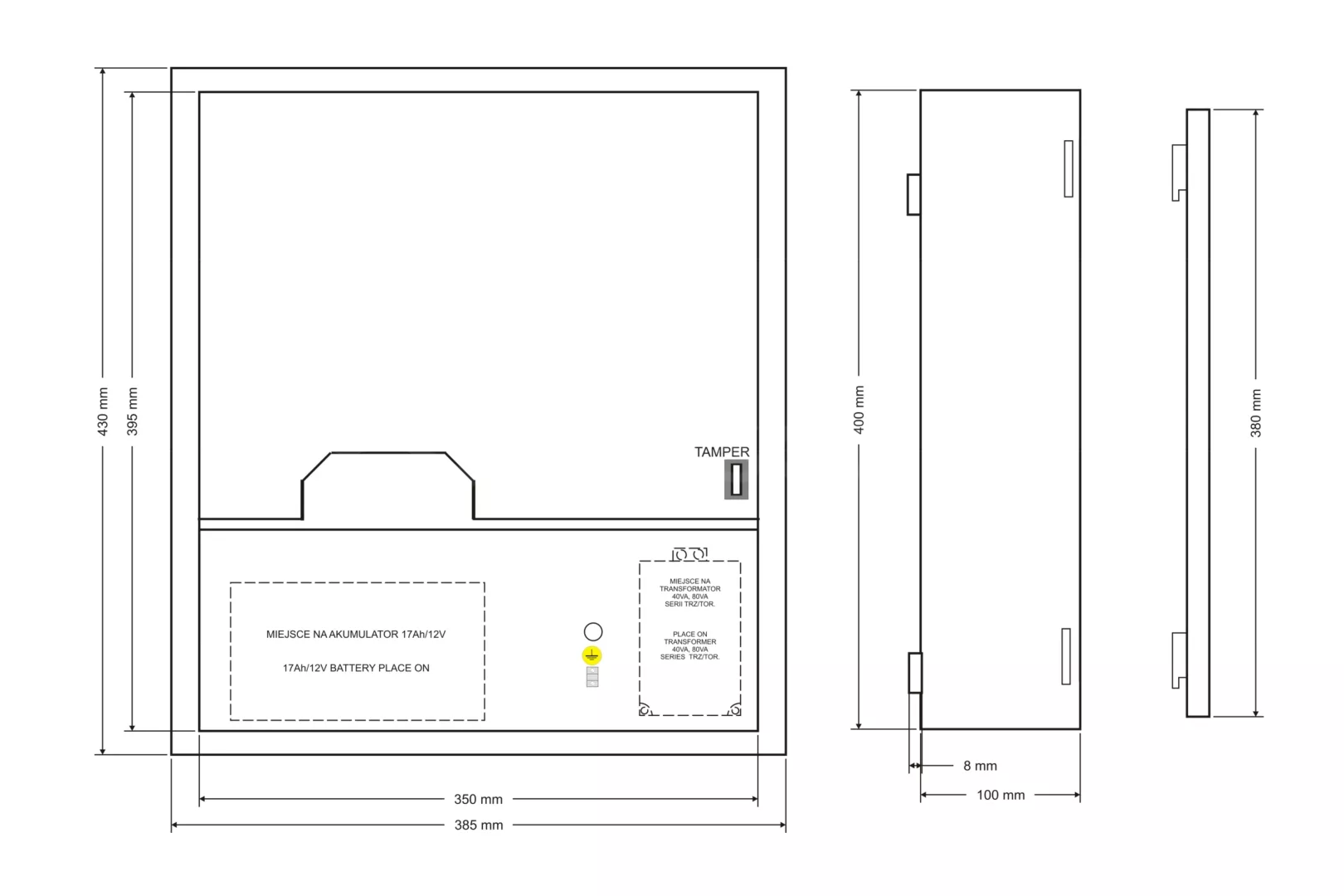

Pulsar AWO510PU Dimensions:

Housing is ideal for panel and modules installation SATEL

Plate 510B:

PANELS:

• CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32+ 2x (CA64E, CA10E, SM, MST1)
• INTEGRA 64, 128+ CA64E (CA10E, SM, MST1)

MODULES:

• CA64 (PP, EPS, ADR, O-R, O-ROC, O-OC, OPS-OC, OPS- R, OPS- ROC, VGM16, SR, PTSA) + 2x CA64E (CA10E, MST1, SM)

Examples of arrangement of SATEL modules in the housing using plate 510B

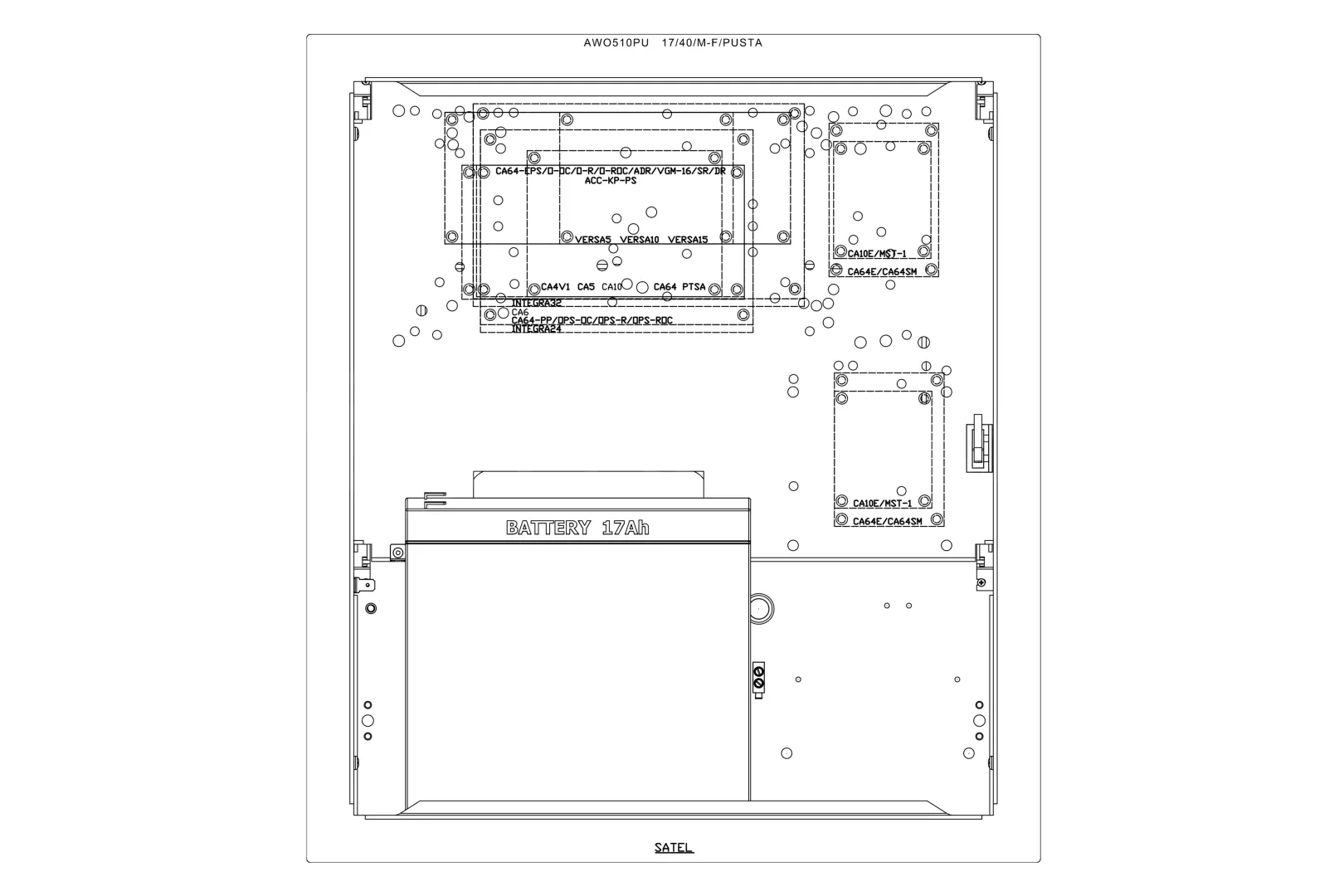

Scheme of arrangement SATEL:

Other panels that can be mounted in the enclosure:

DSC, PARADOX, RISCO, SATEL, PYRONIX, TEXECOM, TELMOR, ROGER, EBS, PULSAR
